2015 UFORCE 800 — Engine parts

US market52 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 9Cylinder Head & Parts · 9Seals & Gaskets · 3Belt/Chain Drive · 3Engine Hardware · 44

Part numbers

Every genuine engine part fitted to the 2015 UFORCE 800. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
0800-011103-00011PLAIN BEARING 2, REDLEFT CRANKCASE ASSY.Enquire
0800-011102-00021PLAIN BEARING 1, BLUE Replacing: 0800-011102-0002 - PLAIN BEARING 1 BLUE THICKLEFT CRANKCASE ASSY.Enquire
0180-332002-0020BOLT M8X12.5, FLANGELEFT CRANKCASE ASSY.Enquire
0800-011100-20020LH CRANKCASE ASSYLEFT CRANKCASE ASSY.Enquire
0800-011100-20010LH CRANKCASE ASSYLEFT CRANKCASE ASSY.Enquire
0800-011006-00001SCREW PLUGLEFT CRANKCASE ASSY.Enquire
0130-011109-0010BOLT M8X60LEFT CRANKCASE ASSY.Enquire
0180-011007-0010BOLT M14X1.5X32LEFT CRANKCASE ASSY.Enquire
0800-011012-20000DIPSTICK, ENGINE OILLEFT CRANKCASE ASSY.Enquire
0800-022009-00001BOLT 6X80RIGHT CRANKCASE ASSY.Enquire
0800-012100-20020RH CRANKCASE ASSYRIGHT CRANKCASE ASSY.Enquire
0800-0100A0-00010CRANKCASE ASSY Replacing: 0800-012000-1000 - CRANKCASE ASSY, RHRIGHT CRANKCASE ASSY.Enquire
0010-021019-0030BOLT M6X12RIGHT CRANKCASE ASSY.Enquire
0180-013206-0010LIMITATOR, OIL SEALCVT COVER ASSYEnquire
0180-014009-0010SCREW, PRESS PLATELEFT CRANKCASE COVER ASSYEnquire
0180-014007-0010PRESS PLATE, OIL SEALLEFT CRANKCASE COVER ASSYEnquire
0800-022000-20000CYLINDER HEAD 1, SUB ASSY (COMPLETE) Replacing: 0800-022000-1000 - CYLINDER HEAD 1, SUB ASSY (COMPLETE)CYLINDER HEAD AND CYLINDER ASSY.Enquire
0800-026000-20000CYLINDER HEAD 2, SUB ASSY (COMPLETE) Replacing: 0800-026000-1000 - CYLINDER HEAD 2, SUB ASSY (COMPLETE)CYLINDER HEAD AND CYLINDER ASSY.Enquire
0800-022003-00001BOLT, CYLINDER Replacing: 0800-022003 - BOLT, CYLINDERCYL HEAD NO.1 ASSY (STARTER END)Enquire
0180-022003-0010STUD M8x42CYL HEAD NO.1 ASSY (STARTER END)Enquire
0010-021017-0030BOLT M6X25CYL HEAD NO.1 ASSY (STARTER END)Enquire
0800-022600-1000SWING ARM, EXHAUSTCYL HEAD NO.1 ASSY (STARTER END)Enquire
0800-022400-10000TENSIONER Replacing: 0800-022400 - TENSIONERCYL HEAD NO.1 ASSY (STARTER END)Enquire
0800-023100-0002CYLINDER BODY MARK 2CYLINDER ASSY.Enquire
0800-023001-00002SCREW, TENSIONER PLATE Replacing: 0800-023001 - SCREW, TENSIONER PLATE NLA USE 0800-023001-00002CYLINDER ASSY.Enquire
0800-023100-0001CYLINDER BODY MARK 1CYLINDER ASSY.Enquire
0800-023002-00002CYLINDER GASKET Replacing: 0800-023002 - GASKET, CYLINDERCYLINDER ASSY.Enquire
0800-024002-00001DOWEL PIN, SPROCKET Replacing: 0800-024002 - DOWEL PIN, SPROCKETCAMSHAFT OF CYLINDER 1 ASSY.Enquire
0800-024004-10000HOLDING STRIP, CAMSHAFTCAMSHAFT OF CYLINDER 1 ASSY.Enquire
0130-011114-0030BOLT M8X25INTAKE MANIFOLD ASSY.Enquire
0180-022400-0050CLAMPINTAKE MANIFOLD ASSY.Enquire
0800-022015-00001SCREW PLUG M12X1.5 Replacing: 0800-022015 - SCREW PLUG M12X1.5CYL HEAD NO.2 ASSY (TRANSMISSION END)Enquire
0800-022013-10000THERMOSTAT CAP Replacing: 0800-022013 - THERMOSTAT CAPCYL HEAD NO.2 ASSY (TRANSMISSION END)Enquire
0800-024003-00002BOLT, TIMING SPROCKET Replacing: 0800-024003 - BOLT, TIMING CHAINCAMSHAFT OF CYLINDER 2 ASSY.Enquire
0800-040002-00001PISTON PIN Replacing: 0800-040002 - PISTON PINCRANKSHAFT ASSY & PISTONEnquire
0180-054004-0003CIRCLIPCLUTCH ASSYEnquire
0180-061007-0050CIRCLIP 25GEAR SHIFT ASSY 2Enquire
0180-062104-0010LIMITATOR, BEARINGGEAR SHIFT ASSY 2Enquire
0180-064002-00001LOCK SCREW T25GEARSHIFT ASSY 3Enquire
0010-030002-00001BOLTOIL PUMP ASSY.Enquire
0010-023010-0010BOLT M6x20COOLING FANEnquire
0800-110011-1000CLAMP, AIR INTAKEAIR FILTER ASSY.Enquire
0800-110004-1000SEAL RING, AIR FILTERAIR FILTER ASSY.Enquire
0800-110013-1000RUBBER PLUGAIR FILTER ASSY.Enquire
9030-050600-10000MAIN PIN COMP Replacing: 9030-050600 - MAIN PIN ASSYFRONT SUSPENSIONEnquire
7020-150500-1000OUTPUT SEAT,POWER, SUMITOMO PLUGELECTRIC SYSTEMEnquire
7030-160310-10000FRONT TURN LIGHT, LH, SUMITOMO PLUGLIGHTEnquire
7030-160320-10000FRONT TURN LIGHT,RH, SUMITOMO PLUGLIGHTEnquire
7000-180007-00001STEEL BAND CLAMP 34COOLING SYSTEMEnquire
9010-280102-00001WIRE CIRCLIPREAR CV DRIVE SHAFT ASSYEnquire
0180-313007-0050PINFRONT DIFFERENTIALEnquire
0180-334005-0030INNER HEX SCREW M8X45REAR DIFFERENTIALEnquire

Exploded diagrams — Engine

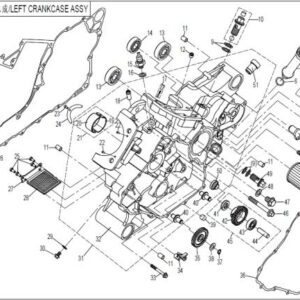

2015 UFORCE 800 LEFT CRANKCASE ASSY. exploded diagram
LEFT CRANKCASE ASSY. · 9

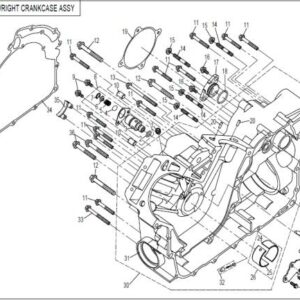

2015 UFORCE 800 RIGHT CRANKCASE ASSY. exploded diagram
RIGHT CRANKCASE ASSY. · 7

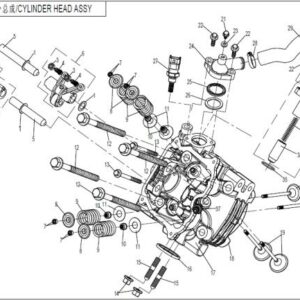

2015 UFORCE 800 CYL HEAD NO.1 ASSY (STARTER END) exploded diagram
CYL HEAD NO.1 ASSY (STARTER END) · 7

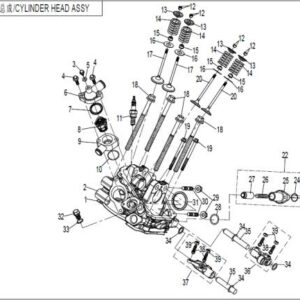

2015 UFORCE 800 CYL HEAD NO.2 ASSY (TRANSMISSION END) exploded diagram
CYL HEAD NO.2 ASSY (TRANSMISSION END) · 7

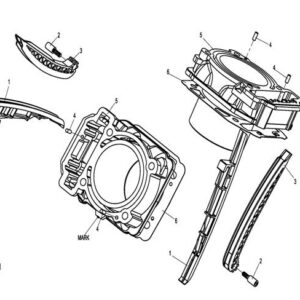

2015 UFORCE 800 CYLINDER ASSY. exploded diagram
CYLINDER ASSY. · 4

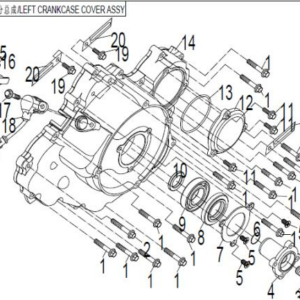

2015 UFORCE 800 LEFT CRANKCASE COVER ASSY exploded diagram
LEFT CRANKCASE COVER ASSY · 3

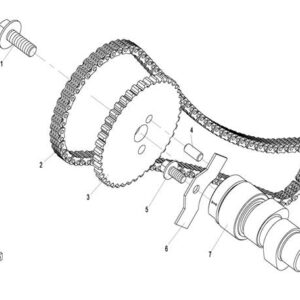

2015 UFORCE 800 CAMSHAFT OF CYLINDER 1 ASSY. exploded diagram
CAMSHAFT OF CYLINDER 1 ASSY. · 3
2015 UFORCE 800 CAMSHAFT OF CYLINDER 2 ASSY. exploded diagram
CAMSHAFT OF CYLINDER 2 ASSY. · 3
2015 UFORCE 800 AIR FILTER ASSY. exploded diagram
AIR FILTER ASSY. · 3

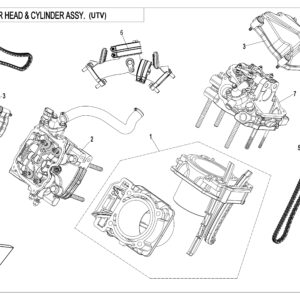

2015 UFORCE 800 CYLINDER HEAD AND CYLINDER ASSY. exploded diagram
CYLINDER HEAD AND CYLINDER ASSY. · 2

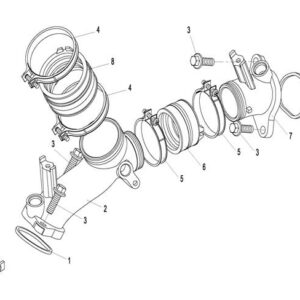

2015 UFORCE 800 INTAKE MANIFOLD ASSY. exploded diagram
INTAKE MANIFOLD ASSY. · 2

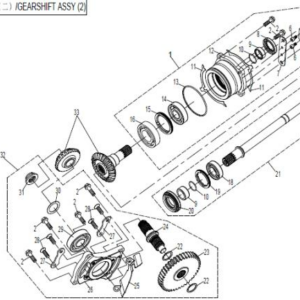

2015 UFORCE 800 GEAR SHIFT ASSY 2 exploded diagram
GEAR SHIFT ASSY 2 · 2
