2020 ZFORCE 800 Trail — Engine parts

US market54 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 12Cylinder Head & Parts · 9Seals & Gaskets · 2Belt/Chain Drive · 4Engine Hardware · 47

Part numbers

Every genuine engine part fitted to the 2020 ZFORCE 800 Trail. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
0040-012006-0010BOLT M8X50 Replacing: 0040-012006-0030 - BOLT M8X50LEFT CRANKCASE ASSY.Enquire
0800-011013-00001RESTRICTION PLUGLEFT CRANKCASE ASSY.Enquire
0180-011007-0010BOLT M14X1.5X32LEFT CRANKCASE ASSY.Enquire
0180-332002-0010BOLT M8X12.5, FLANGELEFT CRANKCASE ASSY.Enquire
0800-011100-20010LH CRANKCASE ASSYLEFT CRANKCASE ASSY.Enquire
0800-011100-20020LH CRANKCASE ASSYLEFT CRANKCASE ASSY.Enquire
0010-021018-0010BOLT M6x55LEFT CRANKCASE ASSY.Enquire
0010-021019-0010BOLT M6x12LEFT CRANKCASE ASSY.Enquire
0800-011006-00001SCREW PLUGLEFT CRANKCASE ASSY.Enquire
0130-011109-0010BOLT M8X60LEFT CRANKCASE ASSY.Enquire
0800-011102-00021PLAIN BEARING 1, BLUE Replacing: 0800-011102-0002 - PLAIN BEARING 1 BLUE THICKLEFT CRANKCASE ASSY.Enquire
0800-011103-00011PLAIN BEARING 2, REDLEFT CRANKCASE ASSY.Enquire
0800-011103-0002PLAIN BEARING 2 BLUE THICKLEFT CRANKCASE ASSY.Enquire
0800-022009-00001BOLT 6X80RIGHT CRANKCASE ASSY.Enquire
0800-012200-1000GEAR SENSOR, SUMITOMO PLUGRIGHT CRANKCASE ASSY.Enquire
0800-012100-20020RH CRANKCASE ASSYRIGHT CRANKCASE ASSY.Enquire
0180-013206-0010LIMITATOR, OIL SEALCVT COVER ASSY.Enquire
0180-014003-0010WIRE CLAMPLEFT CRANKCASE COVER ASSY.Enquire
0800-011101-30010LH CRANKCASE SMALL RED Replacing: 0800-011101-20010 - LH CRANKCASECRANKCASE ASSY.Enquire
0800-0100A0-00010CRANKCASE ASSY Replacing: 0800-012000-1000 - CRANKCASE ASSY, RHCRANKCASE ASSY.Enquire
0800-022600-20000ROCKER ARM ASSY, AIR EXHAUSTCYLINDER HEAD NO.1 ASSY.Enquire
0800-022500-20000ROCKER ARM ASSY, AIR INTAKECYLINDER HEAD NO.1 ASSY.Enquire
0800-022003-00001BOLT, CYLINDER Replacing: 0800-022003 - BOLT, CYLINDERCYLINDER HEAD NO.1 ASSY.Enquire
0180-022003-00001STUDCYLINDER HEAD NO.1 ASSY.Enquire
0010-021017-0010BOLT M6x25CYLINDER HEAD NO.1 ASSY.Enquire
0800-022013-10000THERMOSTAT CAP Replacing: 0800-022013 - THERMOSTAT CAPCYLINDER HEAD NO.1 ASSY.Enquire
0800-022400-10000TENSIONER Replacing: 0800-022400 - TENSIONERCYLINDER HEAD NO.1 ASSY.Enquire
0800-023001-00002SCREW, TENSIONER PLATE Replacing: 0800-023001 - SCREW, TENSIONER PLATE NLA USE 0800-023001-00002CYLINDER BODY ASSY.Enquire
0800-023100-0001CYLINDER BODY MARK 1CYLINDER BODY ASSY.Enquire
0800-023100-0002CYLINDER BODY MARK 2CYLINDER BODY ASSY.Enquire
0800-023002-00002CYLINDER GASKET Replacing: 0800-023002 - GASKET, CYLINDERCYLINDER BODY ASSY.Enquire
0800-024002-00001DOWEL PIN, SPROCKET Replacing: 0800-024002 - DOWEL PIN, SPROCKETCAMSHAFT OF CYLINDER 1 ASSY.Enquire
0800-024004-10000HOLDING STRIP, CAMSHAFTCAMSHAFT OF CYLINDER 1 ASSY.Enquire
0130-011114-00001BOLTINTAKE MANIFOLD ASSY.Enquire
0800-022015-00001SCREW PLUG M12X1.5 Replacing: 0800-022015 - SCREW PLUG M12X1.5CYLINDER HEAD NO.2 ASSY.Enquire
0800-024003-00002BOLT, TIMING SPROCKET Replacing: 0800-024003 - BOLT, TIMING CHAINCAMSHAFT OF CYLINDER 2 ASSY.Enquire
0800-022000-10001CYLINDER HEAD 1, SUB ASSY (COMPLETE)CYLINDER HEAD&CYLINDER ASSY.Enquire
0800-026000-20000CYLINDER HEAD 2, SUB ASSY (COMPLETE) Replacing: 0800-026000-1000 - CYLINDER HEAD 2, SUB ASSY (COMPLETE)CYLINDER HEAD&CYLINDER ASSY.Enquire
0800-040002-00001PISTON PIN Replacing: 0800-040002 - PISTON PINCRANKSHAFT&CONNECTING ROD&PISTON ASSY.Enquire
0180-054004-0003CIRCLIPWET CLUTCH ASSY.Enquire
0180-061007-0050CIRCLIP 25TRANSMISSION SYSTEM(2)Enquire
0180-062104-0010LIMITATOR, BEARINGTRANSMISSION SYSTEM(2)Enquire
0180-064002-00001LOCK SCREW T25TRANSMISSION SYSTEM(3)Enquire
0010-030002-00001BOLTOIL PUMP ASSY.Enquire
7000-041602-0V10CAP, GEARSHIFT, SILVER WHITEMIDDLE PLASTICS 2Enquire
9030-050600-10000MAIN PIN COMP Replacing: 9030-050600 - MAIN PIN ASSYFRONT SUSPENSIONEnquire
9060-050900-10000BALL PIN COMPFRONT SUSPENSIONEnquire
7020-150500-1000OUTPUT SEAT,POWER, SUMITOMO PLUGELECTRIC SYSTEMEnquire
7000-180007-00001STEEL BAND CLAMP 34WATER COOLING SYSTEMEnquire
9010-270203-00001WIRE CIRCLIP Replacing: 9010-270203 - WIRE CIRCLIPFRONT CV SHAFTEnquire
9010-280102-00001WIRE CIRCLIPREAR CV SHAFTEnquire
Q830-310006-10000O-RING 55X2.5REAR AXLE(NO DIFFERENTIAL)Enquire
9010-400102-10000COTTER PIN Replacing: 9010-400102 - COTTER PINTOWBAR(SPLIT)Enquire
0800-110011-1000CLAMP, AIR INTAKEAIR FILTER ASSY.Enquire

Exploded diagrams — Engine

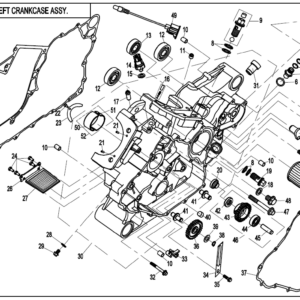

2020 ZFORCE 800 Trail LEFT CRANKCASE ASSY. exploded diagram
LEFT CRANKCASE ASSY. · 13

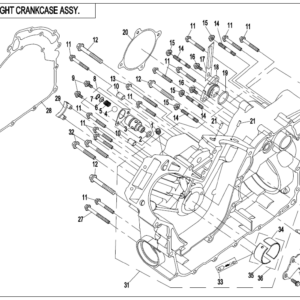

2020 ZFORCE 800 Trail RIGHT CRANKCASE ASSY. exploded diagram
RIGHT CRANKCASE ASSY. · 9

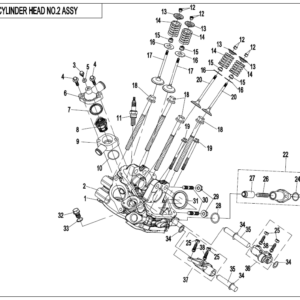

2020 ZFORCE 800 Trail CYLINDER HEAD NO.2 ASSY. exploded diagram
CYLINDER HEAD NO.2 ASSY. · 9

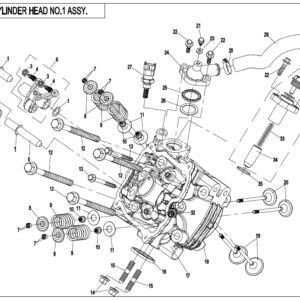

2020 ZFORCE 800 Trail CYLINDER HEAD NO.1 ASSY. exploded diagram
CYLINDER HEAD NO.1 ASSY. · 8

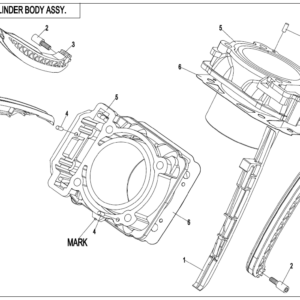

2020 ZFORCE 800 Trail CYLINDER BODY ASSY. exploded diagram
CYLINDER BODY ASSY. · 4

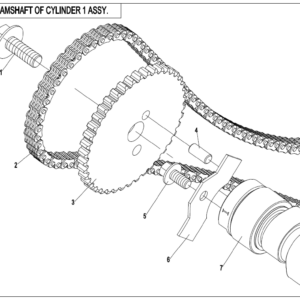

2020 ZFORCE 800 Trail CAMSHAFT OF CYLINDER 1 ASSY. exploded diagram
CAMSHAFT OF CYLINDER 1 ASSY. · 3
2020 ZFORCE 800 Trail CAMSHAFT OF CYLINDER 2 ASSY. exploded diagram
CAMSHAFT OF CYLINDER 2 ASSY. · 3

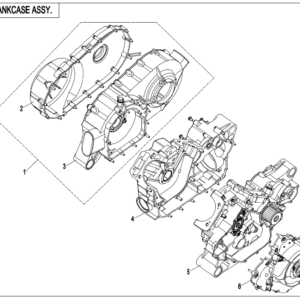

2020 ZFORCE 800 Trail CRANKCASE ASSY. exploded diagram
CRANKCASE ASSY. · 2

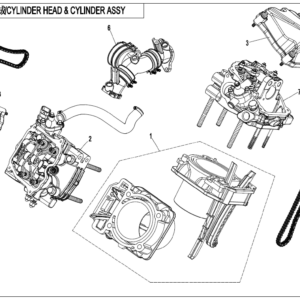

2020 ZFORCE 800 Trail CYLINDER HEAD&CYLINDER ASSY. exploded diagram
CYLINDER HEAD&CYLINDER ASSY. · 2

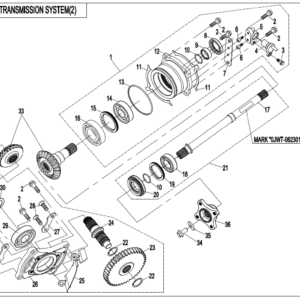

2020 ZFORCE 800 Trail TRANSMISSION SYSTEM(2) exploded diagram
TRANSMISSION SYSTEM(2) · 2

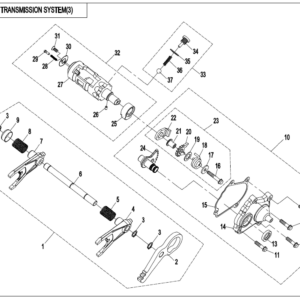

2020 ZFORCE 800 Trail TRANSMISSION SYSTEM(3) exploded diagram
TRANSMISSION SYSTEM(3) · 2

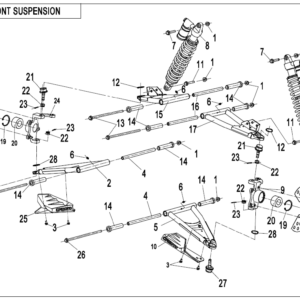

2020 ZFORCE 800 Trail FRONT SUSPENSION exploded diagram
FRONT SUSPENSION · 2
