2023 ZFORCE 800 Trail — Engine parts

US market91 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 26Cylinder Head & Parts · 9Seals & Gaskets · 10Belt/Chain Drive · 7Engine Hardware · 91

Part numbers

Every genuine engine part fitted to the 2023 ZFORCE 800 Trail. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
0800-011006-00001SCREW PLUGLEFT CRANKCASE ASSYEnquire
0040-012006-0010BOLT M8X50 Replacing: 0040-012006-0030 - BOLT M8X50LEFT CRANKCASE ASSYEnquire
0180-011007-0010BOLT M14X1.5X32LEFT CRANKCASE ASSYEnquire
0800-011013-00001RESTRICTION PLUGLEFT CRANKCASE ASSYEnquire
0180-332002-0010BOLT M8X12.5, FLANGELEFT CRANKCASE ASSYEnquire
0JWA-011004-30000GASKET, LEFT CRANKCASE GASKET Replacing: 0JWA-011004 - GASKET,LEFT CRANKCASE COVERLEFT CRANKCASE ASSYEnquire
0800-011203-10000OIL SEALLEFT CRANKCASE ASSYEnquire
0130-011109-0010BOLT M8X60LEFT CRANKCASE ASSYEnquire
0800-011102-00021PLAIN BEARING 1, BLUE Replacing: 0800-011102-0002 - PLAIN BEARING 1 BLUE THICKLEFT CRANKCASE ASSYEnquire
0800-011103-00011PLAIN BEARING 2, REDLEFT CRANKCASE ASSYEnquire
0800-011103-00021PLAIN BEARING 2, BLUELEFT CRANKCASE ASSYEnquire
0800-0111A0-00001PLAIN BEARING KIT, MAIN SHAFT, RED Replacing: 0800-0111A0 - PLAIN BEARING KIT, MAIN SHAFT, REDLEFT CRANKCASE ASSYEnquire
0800-0111B0-00001PLAIN BEARING KIT, MAIN SHAFT, BLUE Replacing: 0800-0111B0 - PLAIN BEARING KIT, MAIN SHAFT, BLUELEFT CRANKCASE ASSYEnquire
0030-011006-0010BOLT M6X105LEFT CRANKCASE ASSYEnquire
0800-012200-20000GEAR SENSOR, KAIDI PLUGRIGHT CRANKCASE ASSYEnquire
01A0-012010-00001SCREWRIGHT CRANKCASE ASSYEnquire
0700-012003-00002BOLTRIGHT CRANKCASE ASSYEnquire
0JY0-013102-00011PLAIN BEARING, CVT (RED) Replacing: 0JY0-013102-00010 - PLAIN BEARING, CVT REDCVT CASE ASSYEnquire
0JY0-013102-00021PLAIN BEARING, CVT (BLUE)CVT CASE ASSYEnquire
0010-021018-0010BOLT M6x55CVT CASE ASSYEnquire
0JWV-013202-6000DRAIN BOLTCVT CASE ASSYEnquire
0010-011017-001063x2.5 BOLT M6X60, Pack of 6LEFT CRANKCASE COVER ASSYEnquire
0800-014011-10000PLUGLEFT CRANKCASE COVER ASSYEnquire
0800-022600-20000ROCKER ARM ASSY, AIR EXHAUSTCYLINDER HEAD NO.1 ASSYEnquire
0800-022003-00001BOLT, CYLINDER Replacing: 0800-022003 - BOLT, CYLINDERCYLINDER HEAD NO.1 ASSYEnquire
0800-022009-00001BOLT 6X80CYLINDER HEAD NO.1 ASSYEnquire
0180-022003-00001STUDCYLINDER HEAD NO.1 ASSYEnquire
0800-022013-10000THERMOSTAT CAP Replacing: 0800-022013 - THERMOSTAT CAPCYLINDER HEAD NO.1 ASSYEnquire
0800-022015-00001SCREW PLUG M12X1.5 Replacing: 0800-022015 - SCREW PLUG M12X1.5CYLINDER HEAD NO.1 ASSYEnquire
0010-021017-0010BOLT M6x25CYLINDER HEAD NO.1 ASSYEnquire
0800-022400-10000TENSIONER Replacing: 0800-022400 - TENSIONERCYLINDER HEAD NO.1 ASSYEnquire
0800-022500-20000ROCKER ARM ASSY, AIR INTAKECYLINDER HEAD NO.1 ASSYEnquire
0800-023002-00002CYLINDER GASKET Replacing: 0800-023002 - GASKET, CYLINDERCYLINDER BODYEnquire
0800-023100-0001CYLINDER BODY MARK 1CYLINDER BODYEnquire
0800-023100-0002CYLINDER BODY MARK 2CYLINDER BODYEnquire
0800-023001-00002SCREW, TENSIONER PLATE Replacing: 0800-023001 - SCREW, TENSIONER PLATE NLA USE 0800-023001-00002CYLINDER BODYEnquire
0010-021019-0010BOLT M6x12CAMSHAFT OF CYLINDER 1 ASSYEnquire
0800-024004-10000HOLDING STRIP, CAMSHAFTCAMSHAFT OF CYLINDER 1 ASSYEnquire
0JWV-024010-6000CAMSHAFT ASSY, FIRST CYLINDERCAMSHAFT OF CYLINDER 1 ASSYEnquire
0130-011114-00001BOLTINTAKE MANIFOLD ASSY(WHITOUT FUEL VAPORIZATION SYSTEM)Enquire
0JWV-026100-6000THERMOSTAT CAPCYLINDER HEAD NO.2 ASSYEnquire
0800-024003-00002BOLT, TIMING SPROCKET Replacing: 0800-024003 - BOLT, TIMING CHAINCAMSHAFT OF CYLINDER 2 ASSYEnquire
0800-040006-00012CRANKSHAFT CONNECTING ROD, PLAIN BEARING, RED Replacing: 0800-040006-0001 - PLAIN BEARING, CONNECTING ROD RED THINCRANKSHAFT & CONNECTING ROD & PISTON ASSYEnquire
0800-040006-00022CRANKSHAFT CONNECTING ROD, PLAIN BEARING, BLACK Replacing: 0800-040006-0002 - PLAIN BEARING, CONNECTING ROD BLACK@MIDDLECRANKSHAFT & CONNECTING ROD & PISTON ASSYEnquire
0800-040006-00032CRANKSHAFT CONNECTING ROD, PLAIN BEARING, BLUE Replacing: 0800-040006-0003 - PLAIN BEARING, CONNECTING ROD BLUE THICKCRANKSHAFT & CONNECTING ROD & PISTON ASSYEnquire
0JWA-041000-10022CRANKSHAFT, MARK BCRANKSHAFT & CONNECTING ROD & PISTON ASSYEnquire
0800-040002-00001PISTON PIN Replacing: 0800-040002 - PISTON PINCRANKSHAFT & CONNECTING ROD & PISTON ASSYEnquire
0180-061007-0050CIRCLIP 25TRANSMISSION SYSTEM (1)Enquire
0180-062104-0010LIMITATOR, BEARINGTRANSMISSION SYSTEM (2)Enquire
0180-064002-00001LOCK SCREW T25TRANSMISSION SYSTEM (3)Enquire
0010-030002-00001BOLTOIL PUMP ASSYEnquire
0JYA-023001-00001HEX FLANGE BOLT M6x6OIL COOLING SYSTEM.Enquire
0JY#-170005-1500BRACKET, RH FUEL INJECTOR HOSEFUEL INJECTION SYSTEMEnquire
0JWV-170001-6000WIRE CLIP 1, ENGINEFUEL INJECTION SYSTEMEnquire
0010-023010-0010BOLT M6x20FUEL INJECTION SYSTEMEnquire
5BWV-000110-5000LH DAMPING SLEEVE, ENGINEENGINE MOUNTING PARTSEnquire
5BWV-000120-5000RH DAMPING SLEEVE, ENGINEENGINE MOUNTING PARTSEnquire
5BWV-107000-5001WIRE CLIP ASSY Replacing: 5BWV-107000-5000 - WIRE CLIP ASSY NLA USE 5BWV-107000-5001FRAMEnquire
5HY#-130002-1000BACKREST DAMPING MATFRONT PLASTICSEnquire
6WWV-046902-5000INNER HEX SCREW M6x20FRONT PLASTICSEnquire
5BWV-040015-5000INNER HEX SLEF-TAPPING SCREWFRONT PLASTICSEnquire
5BYV-806114-1000PLUGMIDDLE PLASTICSEnquire
5BWV-043053-5000CAP, GEARSHIFTMIDDLE PLASTICSEnquire
5BWV-043064-5000ECU CAPMIDDLE PLASTICSEnquire
9030-050600-10000MAIN PIN COMP Replacing: 9030-050600 - MAIN PIN ASSYFRONT SUSPENSIONEnquire
9060-050900-10000BALL PIN COMPFRONT SUSPENSIONEnquire
5BWV-050500-5000-22O-RINGFRONT SHOCK ABSORBEREnquire
5BWV-050500-5000-23CIRCLIPFRONT SHOCK ABSORBEREnquire
9DS#-050600-6000-27KNUCKLE BEARINGFRONT SHOCK ABSORBEREnquire
5BWV-050010-5000BALL PIN, FRONT SWAY BARFRONT SUSPENSIONEnquire
5BWV-060801-5000REAR RH BEARING CARRIERREAR SUSPENSIONEnquire
5BWV-060510-5000BALL PIN, REAR LH SWAY BARREAR SUSPENSIONEnquire
5BWV-060530-5000BALL PIN, REAR RH SWAY BARREAR SUSPENSIONEnquire
CFCV-CCC001-2000-M1CLIPBRAKE SYSTEMEnquire
9DS#-120300-6000CAP, FUEL TANKFUEL TANKEnquire
5BWV-131000-5000-20STEM PLUGSEATEnquire
CFCV-CBC005-2000-M1CLIPELECTRIC SYSTEMEnquire
5BWV-156906-5000-M1EXTENSION POWER TERMINAL CAPELECTRIC SYSTEMEnquire
CFCV-156103-2000PLUG, T-BOX CONNECTORELECTRIC SYSTEMEnquire
6GU#-150001-6000-M1CLASPELECTRIC SYSTEMEnquire
CFCV-CBC001-2001-M1CLIPELECTRIC SYSTEMEnquire
7000-180007-00001STEEL BAND CLAMP 34COOLING SYSTEMEnquire
CFCV-CAC002-2000-M1CLIPCOOLING SYSTEMEnquire
5ASV-180008-6000HOSE CLIPCOOLING SYSTEMEnquire
6KM#-181001-8001DAMPER RUBBER MATCOOLING SYSTEMEnquire
Q830-310006-10000O-RING 55X2.5FRONT AXLEEnquire
Q890-314000-10000FRONT GEAR CASE MOTOR ASSY GRAY PLUGFRONT AXLEEnquire
Q830-310012-10000O-RING 67.5X2FRONT AXLEEnquire
0010-022020-00002BOLTGEAR SHIFTINGEnquire
0JWV-110000-6000-22SEAL RINGAIR FILTER ASSYEnquire
0JWV-110000-6000-20CLAMPAIR FILTER ASSYEnquire

Exploded diagrams — Engine

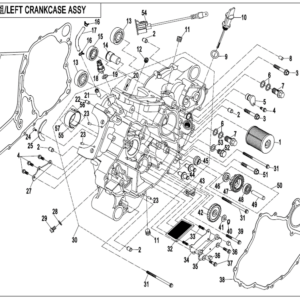

2023 ZFORCE 800 Trail LEFT CRANKCASE ASSY exploded diagram
LEFT CRANKCASE ASSY · 16

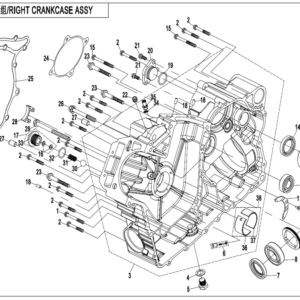

2023 ZFORCE 800 Trail RIGHT CRANKCASE ASSY exploded diagram
RIGHT CRANKCASE ASSY · 9

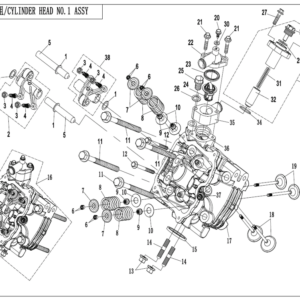

2023 ZFORCE 800 Trail CYLINDER HEAD NO.1 ASSY exploded diagram
CYLINDER HEAD NO.1 ASSY · 9

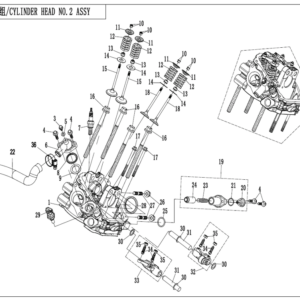

2023 ZFORCE 800 Trail CYLINDER HEAD NO.2 ASSY exploded diagram
CYLINDER HEAD NO.2 ASSY · 8

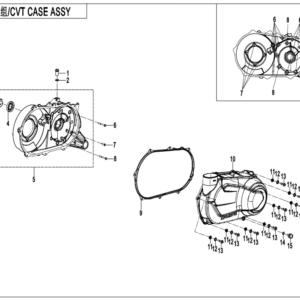

2023 ZFORCE 800 Trail CVT CASE ASSY exploded diagram
CVT CASE ASSY · 6

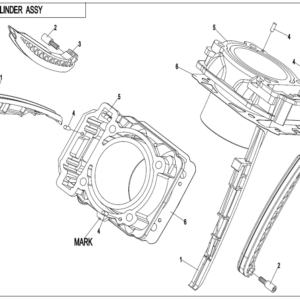

2023 ZFORCE 800 Trail CYLINDER BODY exploded diagram
CYLINDER BODY · 6

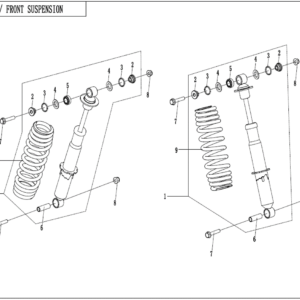

2023 ZFORCE 800 Trail FRONT SHOCK ABSORBER exploded diagram
FRONT SHOCK ABSORBER · 6

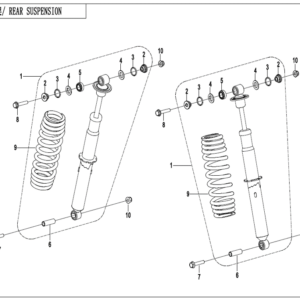

2023 ZFORCE 800 Trail REAR SHOCK ABSORBER exploded diagram
REAR SHOCK ABSORBER · 6

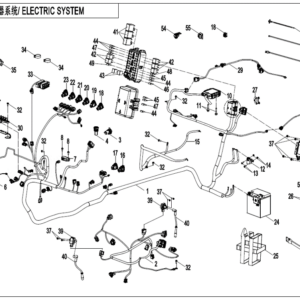

2023 ZFORCE 800 Trail ELECTRIC SYSTEM exploded diagram
ELECTRIC SYSTEM · 6

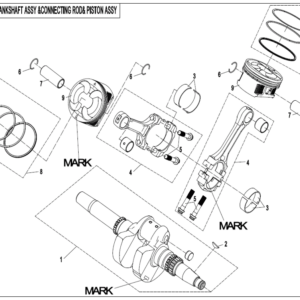

2023 ZFORCE 800 Trail CRANKSHAFT & CONNECTING ROD & PISTON ASSY exploded diagram
CRANKSHAFT & CONNECTING ROD & PISTON ASSY · 5

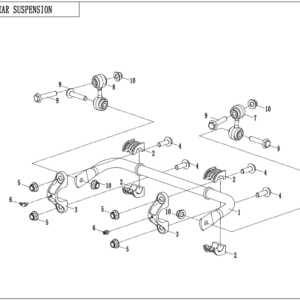

2023 ZFORCE 800 Trail REAR SUSPENSION exploded diagram
REAR SUSPENSION · 4

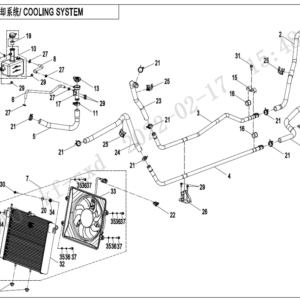

2023 ZFORCE 800 Trail COOLING SYSTEM exploded diagram
COOLING SYSTEM · 4

Browse the catalogue interactively

Open Engine in the interactive 2023 ZFORCE 800 Trail catalogue to drill into diagrams, check availability and add parts to your cart.

Other assembly groups on this vehicle

Body · 262Gearbox · 120Electrical System · 42Suspension · 41Fuel Supply System · 29Filters · 26Cooling System · 17Clutch & Parts · 16Exhaust System · 16Brake System · 15Steering System · 11Wheels & Tyres · 11Final Drive · 7Interior · 3Fuel Preparation · 3Unclassified · 88
