2022 CFORCE 800 XC — Engine parts

US market56 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 15Cylinder Head & Parts · 7Seals & Gaskets · 3Belt/Chain Drive · 5Engine Hardware · 48

Part numbers

Every genuine engine part fitted to the 2022 CFORCE 800 XC. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
0040-012006-0010BOLT M8X50 Replacing: 0040-012006-0030 - BOLT M8X50LEFT CRANKCASE ASSYEnquire
0180-011007-0010BOLT M14X1.5X32LEFT CRANKCASE ASSYEnquire
0800-011006-00001SCREW PLUGLEFT CRANKCASE ASSYEnquire
0800-011013-00001RESTRICTION PLUGLEFT CRANKCASE ASSYEnquire
0180-332002-0010BOLT M8X12.5, FLANGELEFT CRANKCASE ASSYEnquire
0JWA-011100-20001LH CRANKCASE ASSY Replacing: 0JWA-011100-20000 - LH CRANKCASE ASSYLEFT CRANKCASE ASSYEnquire
0JWA-011004-30000GASKET, LEFT CRANKCASE GASKET Replacing: 0JWA-011004 - GASKET,LEFT CRANKCASE COVERLEFT CRANKCASE ASSYEnquire
0130-011109-0010BOLT M8X60LEFT CRANKCASE ASSYEnquire
0800-011102-00021PLAIN BEARING 1, BLUE Replacing: 0800-011102-0002 - PLAIN BEARING 1 BLUE THICKLEFT CRANKCASE ASSYEnquire
0800-011103-00021PLAIN BEARING 2, BLUELEFT CRANKCASE ASSYEnquire
0800-0111A0-00001PLAIN BEARING KIT, MAIN SHAFT, RED Replacing: 0800-0111A0 - PLAIN BEARING KIT, MAIN SHAFT, REDLEFT CRANKCASE ASSYEnquire
0030-011006-0010BOLT M6X105LEFT CRANKCASE ASSYEnquire
0JWA-012100-20004RH CRANKCASE ASSY Replacing: 0JWA-012100-20001 - RH CRANKCASE ASSYRIGHT CRANKCASE ASSYEnquire
0800-012200-20000GEAR SENSOR, KAIDI PLUGRIGHT CRANKCASE ASSYEnquire
01A0-012010-00001SCREWRIGHT CRANKCASE ASSYEnquire
0700-012003-00001BOLT M8x73RIGHT CRANKCASE ASSYEnquire
0010-021018-0010BOLT M6x55CVT CASE ASSYEnquire
0010-021019-0010BOLT M6x12CVT CASE ASSYEnquire
0JY0-013102-00021PLAIN BEARING, CVT (BLUE)CVT CASE ASSYEnquire
0010-011017-0010M6x60 BOLT M6X60, Pack of 6LEFT CRANKCASE COVER ASSYEnquire
0800-014011-10000PLUGLEFT CRANKCASE COVER ASSYEnquire
0JWA-014001-10000LH CRANKCASE COVER Replacing: 0JWA-014001 - COVER, LEFT CRANKCASELEFT CRANKCASE COVER ASSYEnquire
0800-022600-20000ROCKER ARM ASSY, AIR EXHAUSTCYLINDER HEAD NO.1 ASSYEnquire
0800-022003-00001BOLT, CYLINDER Replacing: 0800-022003 - BOLT, CYLINDERCYLINDER HEAD NO.1 ASSYEnquire
0800-022009-00001BOLT 6X80CYLINDER HEAD NO.1 ASSYEnquire
0180-022003-00001STUDCYLINDER HEAD NO.1 ASSYEnquire
0800-022000-30000CYLINDER HEAD 1, SUB ASSY (COMPLETE)CYLINDER HEAD NO.1 ASSYEnquire
0800-022013-10000THERMOSTAT CAP Replacing: 0800-022013 - THERMOSTAT CAPCYLINDER HEAD NO.1 ASSYEnquire
0800-022015-00001SCREW PLUG M12X1.5 Replacing: 0800-022015 - SCREW PLUG M12X1.5CYLINDER HEAD NO.1 ASSYEnquire
0010-021017-0010BOLT M6x25CYLINDER HEAD NO.1 ASSYEnquire
0800-022400-10000TENSIONER Replacing: 0800-022400 - TENSIONERCYLINDER HEAD NO.1 ASSYEnquire
0800-022500-20000ROCKER ARM ASSY, AIR INTAKECYLINDER HEAD NO.1 ASSYEnquire
0800-023100-0002CYLINDER BODY MARK 2CYLINDER BODYEnquire
0800-023002-00002CYLINDER GASKET Replacing: 0800-023002 - GASKET, CYLINDERCYLINDER BODYEnquire
0800-024002-00001DOWEL PIN, SPROCKET Replacing: 0800-024002 - DOWEL PIN, SPROCKETCAMSHAFT OF CYLINDER 1 ASSYEnquire
0800-024004-10000HOLDING STRIP, CAMSHAFTCAMSHAFT OF CYLINDER 1 ASSYEnquire
0JY0-024001-00003CAMSHAFT, FIRST CYLINDER Replacing: 0JY0-024001 - CAMSHAFT, FRONT CYLINDERCAMSHAFT OF CYLINDER 1 ASSYEnquire
0130-011114-00001BOLTINTAKE MANIFOLD ASSYEnquire
0800-024003-00002BOLT, TIMING SPROCKET Replacing: 0800-024003 - BOLT, TIMING CHAINCAMSHAFT OF CYLINDER 2 ASSYEnquire
0800-040006-00032CRANKSHAFT CONNECTING ROD, PLAIN BEARING, BLUE Replacing: 0800-040006-0003 - PLAIN BEARING, CONNECTING ROD BLUE THICKCRANKSHAFT / CONNECTING ROD / PISTON ASSY (Cracked Cap)Enquire
0800-040002-00001PISTON PIN Replacing: 0800-040002 - PISTON PINCRANKSHAFT / CONNECTING ROD / PISTON ASSY (Cracked Cap)Enquire
0180-061007-0050CIRCLIP 25TRANSMISSION SYSTEM(1)Enquire
0180-062104-0010LIMITATOR, BEARINGTRANSMISSION SYSTEM(2)Enquire
0180-064002-00001LOCK SCREW T25TRANSMISSION SYSTEM(3)Enquire
0010-030002-00001BOLTOIL PUMP ASSYEnquire
0JYA-023001-00001HEX FLANGE BOLT M6x6OIL COOLING SYSTEM.Enquire
9010-050800-20000LOWER BALL PIN ASSY Replacing: 9010-050800-1000 - LOWER BALL PIN ASSYFRONT SUSPENSIONEnquire
7020-051603-30000CIRCLIPFRONT SHOCK ABSORBER(GAS)Enquire
7020-051610-30000BEARING COMPFRONT SHOCK ABSORBER(GAS)Enquire
0010-023010-0010BOLT M6x20FUEL INJECTION SYSTEM-NO FUEL VAPORIZATION SYSTEMEnquire
7000-180007-00001STEEL BAND CLAMP 34COOLING SYSTEMEnquire
9010-270203-00001WIRE CIRCLIP Replacing: 9010-270203 - WIRE CIRCLIPFRONT CV SHAFTEnquire
Q830-310006-10000O-RING 55X2.5FRONT AXLE(ORDINARY)Enquire
Q830-310012-10000O-RING 67.5X2FRONT AXLE(ORDINARY)Enquire
Q890-314000-10000FRONT GEAR CASE MOTOR ASSY GRAY PLUGFRONT AXLE(ORDINARY)Enquire
9010-400102-10000COTTER PIN Replacing: 9010-400102 - COTTER PINTOWBAREnquire

Exploded diagrams — Engine

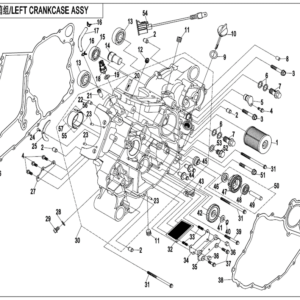

2022 CFORCE 800 XC LEFT CRANKCASE ASSY exploded diagram
LEFT CRANKCASE ASSY · 12

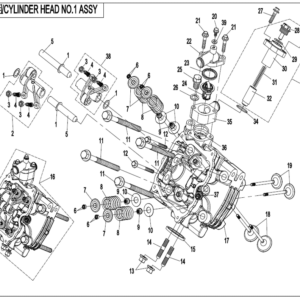

2022 CFORCE 800 XC CYLINDER HEAD NO.1 ASSY exploded diagram
CYLINDER HEAD NO.1 ASSY · 10

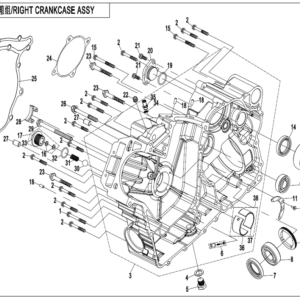

2022 CFORCE 800 XC RIGHT CRANKCASE ASSY exploded diagram
RIGHT CRANKCASE ASSY · 8

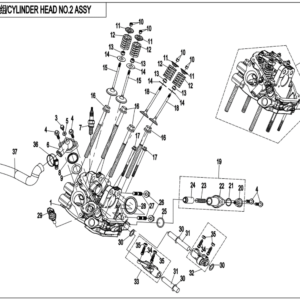

2022 CFORCE 800 XC CYLINDER HEAD NO.2 ASSY exploded diagram
CYLINDER HEAD NO.2 ASSY · 8

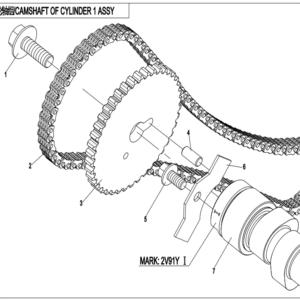

2022 CFORCE 800 XC CAMSHAFT OF CYLINDER 1 ASSY exploded diagram
CAMSHAFT OF CYLINDER 1 ASSY · 4

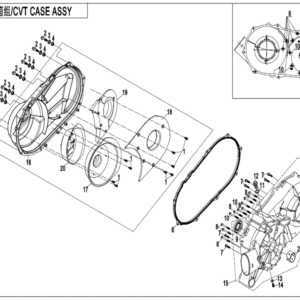

2022 CFORCE 800 XC CVT CASE ASSY exploded diagram
CVT CASE ASSY · 3

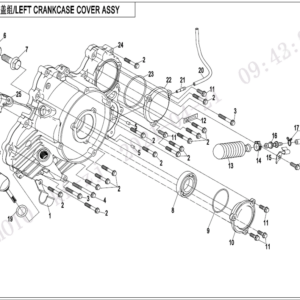

2022 CFORCE 800 XC LEFT CRANKCASE COVER ASSY exploded diagram
LEFT CRANKCASE COVER ASSY · 3

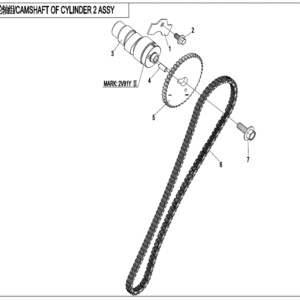

2022 CFORCE 800 XC CAMSHAFT OF CYLINDER 2 ASSY exploded diagram
CAMSHAFT OF CYLINDER 2 ASSY · 3

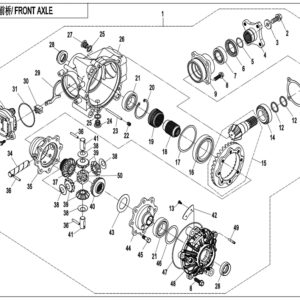

2022 CFORCE 800 XC FRONT AXLE(ORDINARY) exploded diagram
FRONT AXLE(ORDINARY) · 3

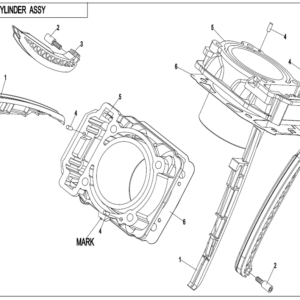

2022 CFORCE 800 XC CYLINDER BODY exploded diagram
CYLINDER BODY · 2

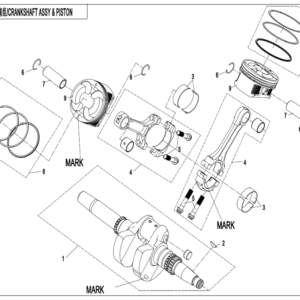

2022 CFORCE 800 XC CRANKSHAFT / CONNECTING ROD / PISTON ASSY (Cracked Cap) exploded diagram
CRANKSHAFT / CONNECTING ROD / PISTON ASSY (Cracked Cap) · 2

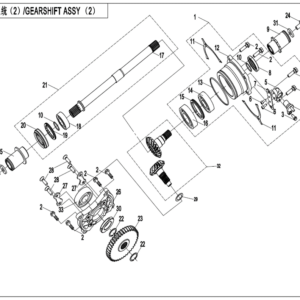

2022 CFORCE 800 XC TRANSMISSION SYSTEM(2) exploded diagram
TRANSMISSION SYSTEM(2) · 2
