2020 CFORCE 800 XC — Engine parts

US market61 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 16Cylinder Head & Parts · 10Seals & Gaskets · 3Belt/Chain Drive · 5Engine Hardware · 48

Part numbers

Every genuine engine part fitted to the 2020 CFORCE 800 XC. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
0040-012006-0010BOLT M8X50 Replacing: 0040-012006-0030 - BOLT M8X50LEFT CRANKCASE ASSYEnquire
0180-011007-0010BOLT M14X1.5X32LEFT CRANKCASE ASSYEnquire
0800-011006-00001SCREW PLUGLEFT CRANKCASE ASSYEnquire
0800-011013-00001RESTRICTION PLUGLEFT CRANKCASE ASSYEnquire
0180-332002-0010BOLT M8X12.5, FLANGELEFT CRANKCASE ASSYEnquire
0JWA-011100-20001LH CRANKCASE ASSY Replacing: 0JWA-011100-20000 - LH CRANKCASE ASSYLEFT CRANKCASE ASSYEnquire
0JWA-011004-30000GASKET, LEFT CRANKCASE GASKET Replacing: 0JWA-011004 - GASKET,LEFT CRANKCASE COVERLEFT CRANKCASE ASSYEnquire
0130-011109-0010BOLT M8X60LEFT CRANKCASE ASSYEnquire
0800-011102-00021PLAIN BEARING 1, BLUE Replacing: 0800-011102-0002 - PLAIN BEARING 1 BLUE THICKLEFT CRANKCASE ASSYEnquire
0800-011103-00011PLAIN BEARING 2, REDLEFT CRANKCASE ASSYEnquire
0800-011103-0002PLAIN BEARING 2 BLUE THICKLEFT CRANKCASE ASSYEnquire
0030-011006-0010BOLT M6X105LEFT CRANKCASE ASSYEnquire
0800-012200-1000GEAR SENSOR, SUMITOMO PLUGRIGHT CRANKCASE ASSYEnquire
01A0-012010-00001SCREWRIGHT CRANKCASE ASSYEnquire
0700-012003-00001BOLT M8x73RIGHT CRANKCASE ASSYEnquire
0010-021018-0010BOLT M6x55CVT CASE ASSYEnquire
0JY0-013102-00011PLAIN BEARING, CVT (RED) Replacing: 0JY0-013102-00010 - PLAIN BEARING, CVT REDCVT CASE ASSYEnquire
0JY0-013102-00021PLAIN BEARING, CVT (BLUE)CVT CASE ASSYEnquire
0010-011017-0010M6x60 BOLT M6X60, Pack of 6LEFT CRANKCASE COVER ASSYEnquire
0800-014011-10000PLUGLEFT CRANKCASE COVER ASSYEnquire
0JWA-014001-10000LH CRANKCASE COVER Replacing: 0JWA-014001 - COVER, LEFT CRANKCASELEFT CRANKCASE COVER ASSYEnquire
0800-022600-20000ROCKER ARM ASSY, AIR EXHAUSTCYLINDER HEAD NO.1 ASSYEnquire
0800-022003-00001BOLT, CYLINDER Replacing: 0800-022003 - BOLT, CYLINDERCYLINDER HEAD NO.1 ASSYEnquire
0800-022009-00001BOLT 6X80CYLINDER HEAD NO.1 ASSYEnquire
0180-022003-00001STUDCYLINDER HEAD NO.1 ASSYEnquire
0800-022000-30000CYLINDER HEAD 1, SUB ASSY (COMPLETE)CYLINDER HEAD NO.1 ASSYEnquire
0800-022013-10000THERMOSTAT CAP Replacing: 0800-022013 - THERMOSTAT CAPCYLINDER HEAD NO.1 ASSYEnquire
0800-022015-00001SCREW PLUG M12X1.5 Replacing: 0800-022015 - SCREW PLUG M12X1.5CYLINDER HEAD NO.1 ASSYEnquire
0010-021017-0010BOLT M6x25CYLINDER HEAD NO.1 ASSYEnquire
0800-022400-10000TENSIONER Replacing: 0800-022400 - TENSIONERCYLINDER HEAD NO.1 ASSYEnquire
0800-022500-20000ROCKER ARM ASSY, AIR INTAKECYLINDER HEAD NO.1 ASSYEnquire
0800-023001-00002SCREW, TENSIONER PLATE Replacing: 0800-023001 - SCREW, TENSIONER PLATE NLA USE 0800-023001-00002CYLINDER BODYEnquire
0800-023100-0001CYLINDER BODY MARK 1CYLINDER BODYEnquire
0800-023100-0002CYLINDER BODY MARK 2CYLINDER BODYEnquire
0800-023002-00002CYLINDER GASKET Replacing: 0800-023002 - GASKET, CYLINDERCYLINDER BODYEnquire
0800-024002-00001DOWEL PIN, SPROCKET Replacing: 0800-024002 - DOWEL PIN, SPROCKETCAMSHAFT OF CYLINDER 1 ASSYEnquire
0010-021019-0010BOLT M6x12CAMSHAFT OF CYLINDER 1 ASSYEnquire
0800-024004-10000HOLDING STRIP, CAMSHAFTCAMSHAFT OF CYLINDER 1 ASSYEnquire
0JY0-024001-00003CAMSHAFT, FIRST CYLINDER Replacing: 0JY0-024001 - CAMSHAFT, FRONT CYLINDERCAMSHAFT OF CYLINDER 1 ASSYEnquire
0130-011114-00001BOLTINTAKE MANIFOLD ASSYEnquire
0JWA-026000-20000REAR CYLINDER HEAD COMPCYLINDER HEAD NO.2 ASSYEnquire
0800-024003-00002BOLT, TIMING SPROCKET Replacing: 0800-024003 - BOLT, TIMING CHAINCAMSHAFT OF CYLINDER 2 ASSYEnquire
0JWA-041000-00020CRANKCASE PARTSCRANKSHAFT&CONNECTING ROD&PISTON ASSYEnquire
0800-040006-00012CRANKSHAFT CONNECTING ROD, PLAIN BEARING, RED Replacing: 0800-040006-0001 - PLAIN BEARING, CONNECTING ROD RED THINCRANKSHAFT&CONNECTING ROD&PISTON ASSYEnquire
0800-040006-00032CRANKSHAFT CONNECTING ROD, PLAIN BEARING, BLUE Replacing: 0800-040006-0003 - PLAIN BEARING, CONNECTING ROD BLUE THICKCRANKSHAFT&CONNECTING ROD&PISTON ASSYEnquire
0800-040002-00001PISTON PIN Replacing: 0800-040002 - PISTON PINCRANKSHAFT&CONNECTING ROD&PISTON ASSYEnquire
0180-061007-0050CIRCLIP 25TRANSMISSION SYSTEM(1)Enquire
0180-062104-0010LIMITATOR, BEARINGTRANSMISSION SYSTEM(2)Enquire
0180-064002-00001LOCK SCREW T25TRANSMISSION SYSTEM(3)Enquire
0010-030002-00001BOLTOIL PUMP ASSYEnquire
0JYA-023001-00001HEX FLANGE BOLT M6x6OIL COOLING SYSTEM.Enquire
9010-050800-20000LOWER BALL PIN ASSY Replacing: 9010-050800-1000 - LOWER BALL PIN ASSYFRONT SUSPENSIONEnquire
7020-051603-30000CIRCLIPFRONT SHOCK ABSORBER(GAS)-BLACKEnquire
7020-051610-30000BEARING COMPFRONT SHOCK ABSORBER(GAS)-BLACKEnquire
6KM#-040702-8000SCREWTOWING WINCHEnquire
0010-023010-0010BOLT M6x20FUEL INJECTION SYSTEM-FOR FUEL VAPORIZATION SYSTEMEnquire
7000-180007-00001STEEL BAND CLAMP 34COOLING SYSTEMEnquire
9010-270203-00001WIRE CIRCLIP Replacing: 9010-270203 - WIRE CIRCLIPFRONT CV SHAFTEnquire
Q830-310006-10000O-RING 55X2.5FRONT AXLEEnquire
Q830-310012-10000O-RING 67.5X2FRONT AXLEEnquire
9010-400102-10000COTTER PIN Replacing: 9010-400102 - COTTER PINTOWBAREnquire

Exploded diagrams — Engine

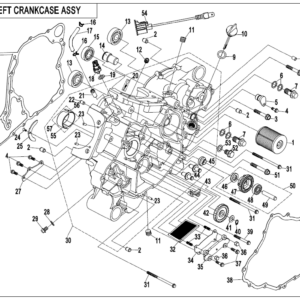

2020 CFORCE 800 XC LEFT CRANKCASE ASSY exploded diagram
LEFT CRANKCASE ASSY · 12

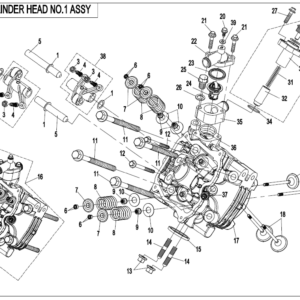

2020 CFORCE 800 XC CYLINDER HEAD NO.1 ASSY exploded diagram
CYLINDER HEAD NO.1 ASSY · 10

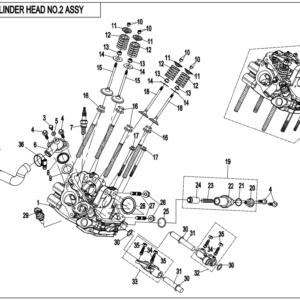

2020 CFORCE 800 XC CYLINDER HEAD NO.2 ASSY exploded diagram
CYLINDER HEAD NO.2 ASSY · 9

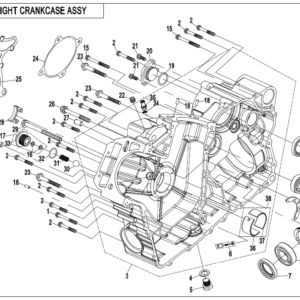

2020 CFORCE 800 XC RIGHT CRANKCASE ASSY exploded diagram
RIGHT CRANKCASE ASSY · 7

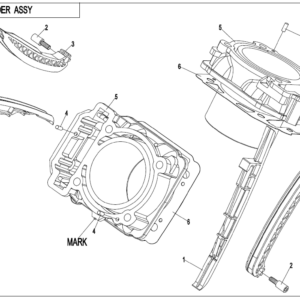

2020 CFORCE 800 XC CYLINDER BODY exploded diagram
CYLINDER BODY · 4

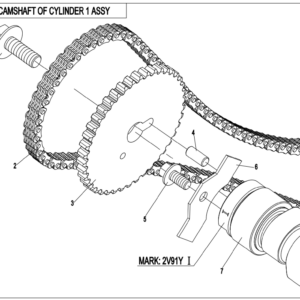

2020 CFORCE 800 XC CAMSHAFT OF CYLINDER 1 ASSY exploded diagram
CAMSHAFT OF CYLINDER 1 ASSY · 4

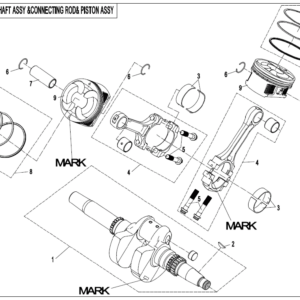

2020 CFORCE 800 XC CRANKSHAFT&CONNECTING ROD&PISTON ASSY exploded diagram
CRANKSHAFT&CONNECTING ROD&PISTON ASSY · 4

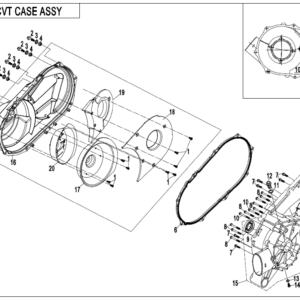

2020 CFORCE 800 XC CVT CASE ASSY exploded diagram
CVT CASE ASSY · 3

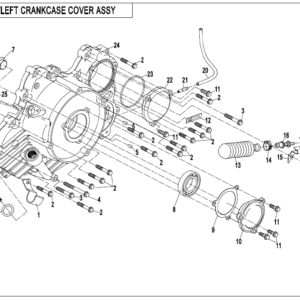

2020 CFORCE 800 XC LEFT CRANKCASE COVER ASSY exploded diagram
LEFT CRANKCASE COVER ASSY · 3

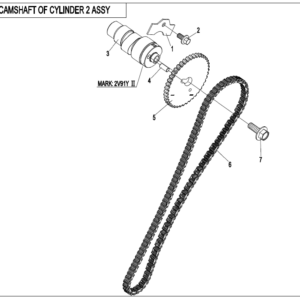

2020 CFORCE 800 XC CAMSHAFT OF CYLINDER 2 ASSY exploded diagram
CAMSHAFT OF CYLINDER 2 ASSY · 3

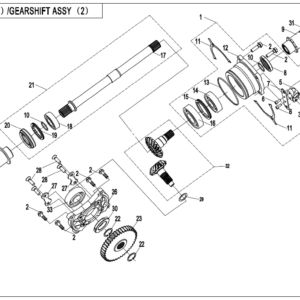

2020 CFORCE 800 XC TRANSMISSION SYSTEM(2) exploded diagram
TRANSMISSION SYSTEM(2) · 2

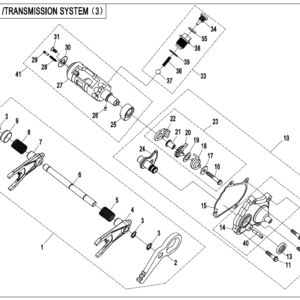

2020 CFORCE 800 XC TRANSMISSION SYSTEM(3) exploded diagram
TRANSMISSION SYSTEM(3) · 2

Browse the catalogue interactively

Open Engine in the interactive 2020 CFORCE 800 XC catalogue to drill into diagrams, check availability and add parts to your cart.

Other assembly groups on this vehicle

Gearbox · 91Body · 91Steering System · 17Wheels & Tyres · 15Electrical System · 13Brake System · 10Filters · 10Clutch & Parts · 9Suspension · 8Cooling System · 7Exhaust System · 7Fuel Supply System · 5Final Drive · 3Fuel Preparation · 2Unclassified · 79
