2023 IBEX 800 Touring — Engine parts

US market38 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 2Seals & Gaskets · 2Belt/Chain Drive · 3Engine Hardware · 51

Part numbers

Every genuine engine part fitted to the 2023 IBEX 800 Touring. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
6WWV-046801-5000SCREWENGINE FITTINGS(TOURING)Enquire
6WWV-046502-5000STEPPED SCREW M5MUFFLEREnquire
6WWV-047102-5000INNER HEX SCREW M5x14MUFFLEREnquire
6KM#-181001-8001DAMPER RUBBER MATMAIN FRAMEEnquire
6WWV-030011-5000INNER HEX SCREW M10x45MAIN FRAMEEnquire
6WWV-030013-5000SCREW M8X16MAIN FRAMEEnquire
6WWV-030017-5000INNER HEX SCREW M10x30MAIN FRAMEEnquire
6WWV-046902-5000INNER HEX SCREW M6x20MAIN FRAMEEnquire
6WWV-046702-5000INNER HEX SCREW M6x12REAR FRAMEEnquire
6WWV-030016-5001INNER_HEX_SCREW_M10x22REAR FRAMEEnquire
6WWV-046901-5000INNER HEX SCREW M6X20PLASTICS2Enquire
6WWV-046802-5000INNER HEX SCREW M6x16PLASTICS2Enquire
6WWV-046501-5000STEPPED SCREW M5PLASTICS5Enquire
6KM#-160420-8001SPONGE MATPLASTICS5Enquire
8030-040020-1000SCREW M6x17.5PLASTICS7Enquire
6WWV-046602-5000INNER HEX STEPPED SCREW M6x14FRONT SUSPENSIONEnquire
6WWV-050300-5001LOWER TRIPLE CLAMP ASSY (SILVER)FRONT SUSPENSIONEnquire
6WWV-050011-5000INNER HEX SCREW M8x30FRONT SUSPENSIONEnquire
6WWV-050009-5000SCREW M8x25FRONT SUSPENSIONEnquire
6WWV-050001-5001UPPER TRIPLE CLAMP (SILVER)FRONT SUSPENSIONEnquire
6WWV-050402-5000RH CABLE CLIPFRONT SUSPENSIONEnquire
6WWV-050401-5000LH CABLE CLIPFRONT SUSPENSIONEnquire
6WWV-050500-5000-25DUST-PROOF CAPFRONT SUSPENSIONEnquire
6WWV-060030-5000-10OIL SEALREAR SUSPENSIONEnquire
6WWV-070100-5000-21OIL SEALFRONT WHEEL(TOURING)Enquire
6WWV-070100-5000-20CAPFRONT WHEEL(TOURING)Enquire
6WWV-100800-5000WIRE CLIP, CLUTCH CABLESTEERING SYSTEM(TOURING)Enquire
6WWV-110100-5000-21OIL SEALREAR WHEEL(TOURING)Enquire
6WWV-110004-5001SUNK SCREW M8x28REAR WHEEL(TOURING)Enquire
6WWV-110100-5000-20CAPREAR WHEEL(TOURING)Enquire
6GU#-140202-6000LIMIT BOLTFOOTREST & REAR HANDRAILEnquire
6GU#-140140-6001BEARINGFOOTREST & REAR HANDRAILEnquire
6GU#-140160-6001BEARINGFOOTREST & REAR HANDRAILEnquire
6WWV-180006-5000CLAMP B32COOLING SYSTEMEnquire
6WWV-180007-5000CLAMP B38COOLING SYSTEMEnquire
6WWV-180008-5000BOLTCOOLING SYSTEMEnquire
6WWV-180009-5000THREADED DAMPING RUBBERCOOLING SYSTEMEnquire
6WWV-221000-5000-21SCREWSIDE BOX BRACKETEnquire

Exploded diagrams — Engine

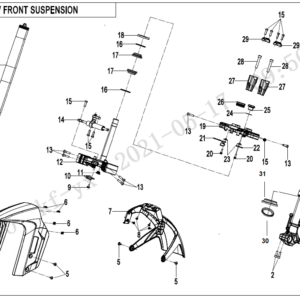

2023 IBEX 800 Touring FRONT SUSPENSION exploded diagram
FRONT SUSPENSION · 9
2023 IBEX 800 Touring MAIN FRAME exploded diagram
MAIN FRAME · 5

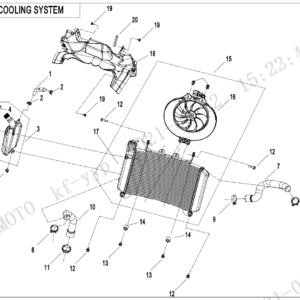

2023 IBEX 800 Touring COOLING SYSTEM exploded diagram
COOLING SYSTEM · 5

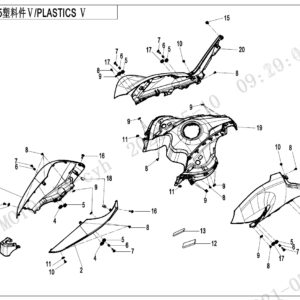

2023 IBEX 800 Touring PLASTICS5 exploded diagram
PLASTICS5 · 4

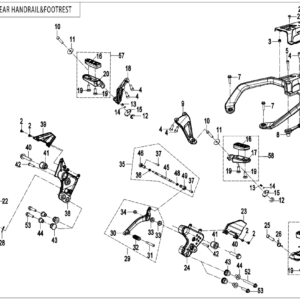

2023 IBEX 800 Touring FOOTREST & REAR HANDRAIL exploded diagram
FOOTREST & REAR HANDRAIL · 4

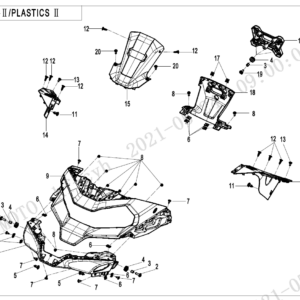

2023 IBEX 800 Touring PLASTICS2 exploded diagram
PLASTICS2 · 3
2023 IBEX 800 Touring PLASTICS7 exploded diagram
PLASTICS7 · 3

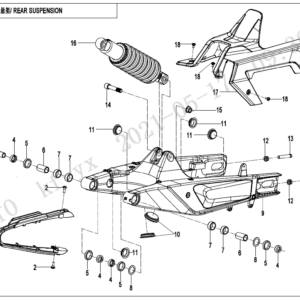

2023 IBEX 800 Touring REAR SUSPENSION exploded diagram
REAR SUSPENSION · 3

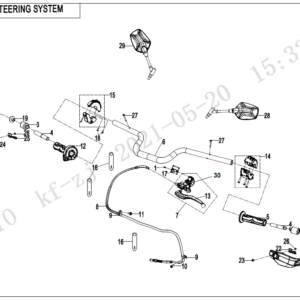

2023 IBEX 800 Touring STEERING SYSTEM(TOURING) exploded diagram
STEERING SYSTEM(TOURING) · 3

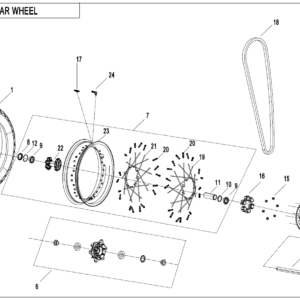

2023 IBEX 800 Touring REAR WHEEL(TOURING) exploded diagram
REAR WHEEL(TOURING) · 3

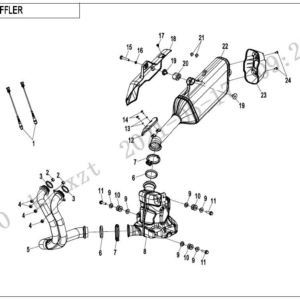

2023 IBEX 800 Touring MUFFLER exploded diagram
MUFFLER · 2

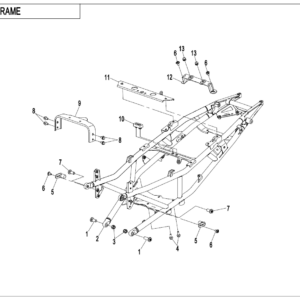

2023 IBEX 800 Touring REAR FRAME exploded diagram
REAR FRAME · 2

Browse the catalogue interactively

Open Engine in the interactive 2023 IBEX 800 Touring catalogue to drill into diagrams, check availability and add parts to your cart.
