2019 UFORCE 800 — Engine parts

US market54 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 8Cylinder Head & Parts · 10Seals & Gaskets · 4Belt/Chain Drive · 4Engine Hardware · 44

Part numbers

Every genuine engine part fitted to the 2019 UFORCE 800. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
0040-012006-0010BOLT M8X50 Replacing: 0040-012006-0030 - BOLT M8X50LEFT CRANKCASE ASSY.Enquire
0800-011012-20000DIPSTICK, ENGINE OILLEFT CRANKCASE ASSY.Enquire
0180-011007-0010BOLT M14X1.5X32LEFT CRANKCASE ASSY.Enquire
0180-332002-0010BOLT M8X12.5, FLANGELEFT CRANKCASE ASSY.Enquire
0800-011100-20020LH CRANKCASE ASSYLEFT CRANKCASE ASSY.Enquire
0800-011100-20010LH CRANKCASE ASSYLEFT CRANKCASE ASSY.Enquire
0010-021018-0010BOLT M6x55LEFT CRANKCASE ASSY.Enquire
0800-011006-00001SCREW PLUGLEFT CRANKCASE ASSY.Enquire
0130-011109-0010BOLT M8X60LEFT CRANKCASE ASSY.Enquire
0010-021019-0010BOLT M6x12RIGHT CRANKCASE ASSY.Enquire
0800-022009-00001BOLT 6X80RIGHT CRANKCASE ASSY.Enquire
0800-012200-1000GEAR SENSOR, SUMITOMO PLUGRIGHT CRANKCASE ASSY.Enquire
0800-012100-20020RH CRANKCASE ASSYRIGHT CRANKCASE ASSY.Enquire
0800-0100A0-00010CRANKCASE ASSY Replacing: 0800-012000-1000 - CRANKCASE ASSY, RHRIGHT CRANKCASE ASSY.Enquire
0180-014009-0010SCREW, PRESS PLATELEFT CRANKCASE COVER ASSY.Enquire
0180-014007-0010PRESS PLATE, OIL SEALLEFT CRANKCASE COVER ASSY.Enquire
0180-014003-0010WIRE CLAMPLEFT CRANKCASE COVER ASSY.Enquire
0180-013206-0010LIMITATOR, OIL SEALCVT COVER ASSY.Enquire
0800-011101-30010LH CRANKCASE SMALL RED Replacing: 0800-011101-20010 - LH CRANKCASECRANKCASE ASSY.Enquire
0800-011000-1000LH CRANKCASE SUB ASSYCRANKCASE ASSY.Enquire
0800-022600-20000ROCKER ARM ASSY, AIR EXHAUSTCYLINDER HEAD NO.1 ASSY.Enquire
0800-022500-20000ROCKER ARM ASSY, AIR INTAKECYLINDER HEAD NO.1 ASSY.Enquire
0800-022003-00001BOLT, CYLINDER Replacing: 0800-022003 - BOLT, CYLINDERCYLINDER HEAD NO.1 ASSY.Enquire
0180-022003-0010STUD M8x42CYLINDER HEAD NO.1 ASSY.Enquire
0010-021017-0010BOLT M6x25CYLINDER HEAD NO.1 ASSY.Enquire
0800-022013-10000THERMOSTAT CAP Replacing: 0800-022013 - THERMOSTAT CAPCYLINDER HEAD NO.1 ASSY.Enquire
0800-022400-10000TENSIONER Replacing: 0800-022400 - TENSIONERCYLINDER HEAD NO.1 ASSY.Enquire
0800-023100-0002CYLINDER BODY MARK 2CYLINDER ASSY.Enquire
0800-023001-00002SCREW, TENSIONER PLATE Replacing: 0800-023001 - SCREW, TENSIONER PLATE NLA USE 0800-023001-00002CYLINDER ASSY.Enquire
0800-023100-0001CYLINDER BODY MARK 1CYLINDER ASSY.Enquire
0800-023002-00002CYLINDER GASKET Replacing: 0800-023002 - GASKET, CYLINDERCYLINDER ASSY.Enquire
0800-024002-00001DOWEL PIN, SPROCKET Replacing: 0800-024002 - DOWEL PIN, SPROCKETCAMSHAFT OF CYLINDER 1 ASSY.Enquire
0800-024004-10000HOLDING STRIP, CAMSHAFTCAMSHAFT OF CYLINDER 1 ASSY.Enquire
0130-011114-00001BOLTINTAKE MANIFOLD ASSY.Enquire
0800-022015-00001SCREW PLUG M12X1.5 Replacing: 0800-022015 - SCREW PLUG M12X1.5CYLINDER HEAD NO.2 ASSY.Enquire
0800-024003-00002BOLT, TIMING SPROCKET Replacing: 0800-024003 - BOLT, TIMING CHAINCAMSHAFT OF CYLINDER 2 ASSY.Enquire
0800-022000-20000CYLINDER HEAD 1, SUB ASSY (COMPLETE) Replacing: 0800-022000-1000 - CYLINDER HEAD 1, SUB ASSY (COMPLETE)CYLINDER HEAD AND CYLINDER ASSY.Enquire
0800-026000-20000CYLINDER HEAD 2, SUB ASSY (COMPLETE) Replacing: 0800-026000-1000 - CYLINDER HEAD 2, SUB ASSY (COMPLETE)CYLINDER HEAD AND CYLINDER ASSY.Enquire
0800-040006-00012CRANKSHAFT CONNECTING ROD, PLAIN BEARING, RED Replacing: 0800-040006-0001 - PLAIN BEARING, CONNECTING ROD RED THINCRANKSHAFT & CONNETING GOD & PISTON ASSYEnquire
0800-040002-00001PISTON PIN Replacing: 0800-040002 - PISTON PINCRANKSHAFT & CONNETING GOD & PISTON ASSYEnquire
0180-054004-0003CIRCLIPWET CLUTCH ASSYEnquire
0180-061007-0050CIRCLIP 25TRANSMISSION SYSTEM (2)Enquire
0180-062104-0010LIMITATOR, BEARINGTRANSMISSION SYSTEM (2)Enquire
0180-064002-00001LOCK SCREW T25TRANSMISSION SYSTEM(3)Enquire
0010-030002-00001BOLTOIL PUMP ASSY.Enquire
0010-023010-0010BOLT M6x20FAN ASSY.Enquire
9030-050600-10000MAIN PIN COMP Replacing: 9030-050600 - MAIN PIN ASSYFRONT SUSPENSIONEnquire
7020-150500-1000OUTPUT SEAT,POWER, SUMITOMO PLUGELECTRIC SYSTEMEnquire
7000-180007-00001STEEL BAND CLAMP 34WATER COOLING SYSTEMEnquire
9010-270203-00001WIRE CIRCLIP Replacing: 9010-270203 - WIRE CIRCLIPFRONT CV SHAFT (ODM)Enquire
Q830-310006-10000O-RING 55X2.5REAR AXLEEnquire
0800-110004-1000SEAL RING, AIR FILTERAIR FILTER ASSY.Enquire
0800-110013-1000RUBBER PLUGAIR FILTER ASSY.Enquire
0800-110011-1000CLAMP, AIR INTAKEAIR FILTER ASSY.Enquire

Exploded diagrams — Engine

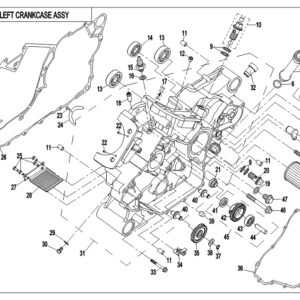

2019 UFORCE 800 LEFT CRANKCASE ASSY. exploded diagram
LEFT CRANKCASE ASSY. · 9

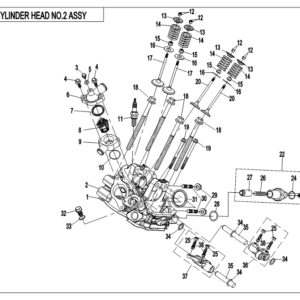

2019 UFORCE 800 CYLINDER HEAD NO.2 ASSY. exploded diagram
CYLINDER HEAD NO.2 ASSY. · 9

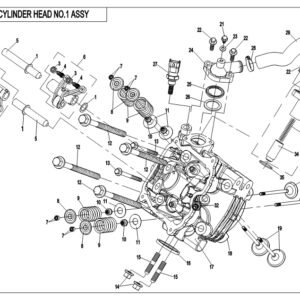

2019 UFORCE 800 CYLINDER HEAD NO.1 ASSY. exploded diagram
CYLINDER HEAD NO.1 ASSY. · 8

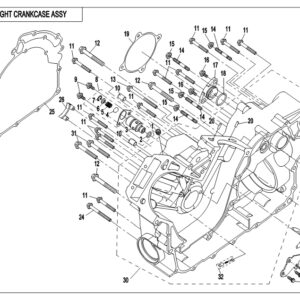

2019 UFORCE 800 RIGHT CRANKCASE ASSY. exploded diagram
RIGHT CRANKCASE ASSY. · 6

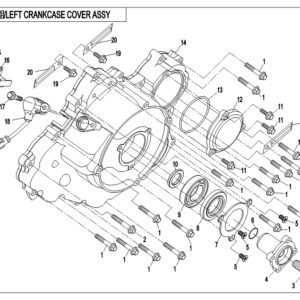

2019 UFORCE 800 LEFT CRANKCASE COVER ASSY. exploded diagram
LEFT CRANKCASE COVER ASSY. · 4
2019 UFORCE 800 CYLINDER ASSY. exploded diagram
CYLINDER ASSY. · 4

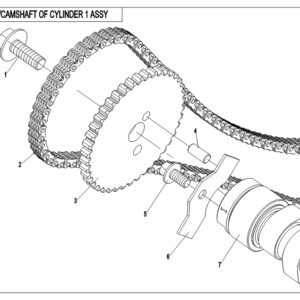

2019 UFORCE 800 CAMSHAFT OF CYLINDER 1 ASSY. exploded diagram
CAMSHAFT OF CYLINDER 1 ASSY. · 3
2019 UFORCE 800 CAMSHAFT OF CYLINDER 2 ASSY. exploded diagram
CAMSHAFT OF CYLINDER 2 ASSY. · 3
2019 UFORCE 800 AIR FILTER ASSY. exploded diagram
AIR FILTER ASSY. · 3

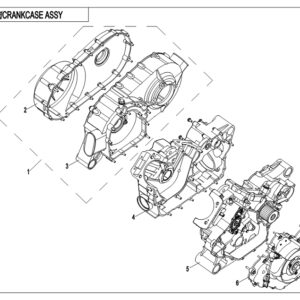

2019 UFORCE 800 CRANKCASE ASSY. exploded diagram
CRANKCASE ASSY. · 2

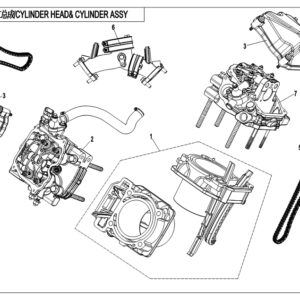

2019 UFORCE 800 CYLINDER HEAD AND CYLINDER ASSY. exploded diagram
CYLINDER HEAD AND CYLINDER ASSY. · 2

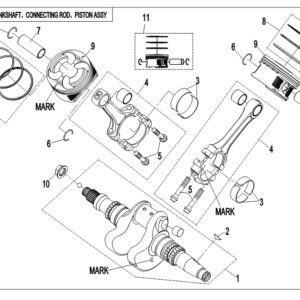

2019 UFORCE 800 CRANKSHAFT & CONNETING GOD & PISTON ASSY exploded diagram
CRANKSHAFT & CONNETING GOD & PISTON ASSY · 2
