2020 ZFORCE 800 EX — Cooling System parts
US market6 genuine parts4 diagrams
Subgroups
Part numbers
Every genuine cooling system part fitted to the 2020 ZFORCE 800 EX. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 0010-013006-0010 | JOINT, BREATHER HOSE | LEFT CRANKCASE ASSY. | Enquire | |

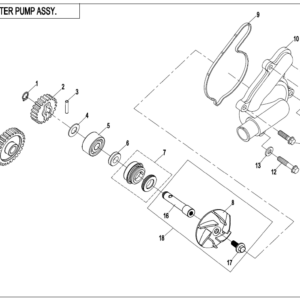

| 0JWA-080007-00001 | BOLT M6X17 Replacing: 0JWA-080007 - BOLT M6X17 | WATER PUMP ASSY. | Enquire | |

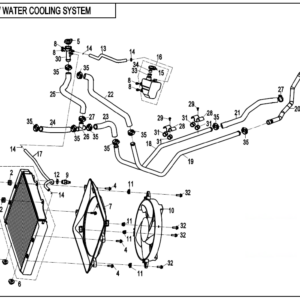

| 7020-181400-1000 | FAN & MOTOR | WATER COOLING SYSTEM | Enquire | |
| 9060-180004-00001 | WATER OUTLET | WATER COOLING SYSTEM | Enquire | |
| 9060-180025-1000 | WATER FILLING PORT | WATER COOLING SYSTEM | Enquire | |

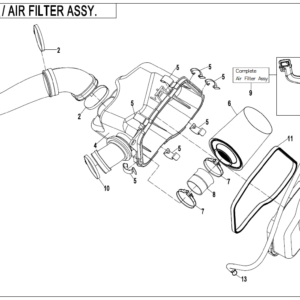

| 0800-110012-2000 | BREATHER HOSE | AIR FILTER ASSY | Enquire |
Exploded diagrams — Cooling System
