2023 CF MOTO UFORCE 1000 EPS HUNTER — Engine parts

AU market234 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 47Cylinder Head & Parts · 31Air Supply System · 1Seals & Gaskets · 38Lubrication System · 2Belt/Chain Drive · 11Engine Hardware · 194

Part numbers

Every genuine engine part fitted to the 2023 CF MOTO UFORCE 1000 EPS HUNTER. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
30406-00500ROLLER NEEDLE P5X11.8LEFT CRANKCASE ASSY.Enquire
30499-01700BEARING 6303LEFT CRANKCASE ASSY.Enquire
30400-01704BEARINGLEFT CRANKCASE ASSY.Enquire
30122-040010850SCREW M4X10LEFT CRANKCASE ASSY.Enquire
0180-332002-0010BOLT M8X12.5, FLANGELEFT CRANKCASE ASSY.Enquire
0JWA-011100-20001LH CRANKCASE ASSY Replacing: 0JWA-011100-20000 - LH CRANKCASE ASSYLEFT CRANKCASE ASSY.Enquire
0010-021005DOWEL PINLEFT CRANKCASE ASSY.Enquire
0700-022018SOLID PIN 8x14LEFT CRANKCASE ASSY.Enquire
0800-011105SEAT, BREATHERLEFT CRANKCASE ASSY.Enquire
0130-011109-0010BOLT M8X60LEFT CRANKCASE ASSY.Enquire
0800-011013-00001RESTRICTION PLUGLEFT CRANKCASE ASSY.Enquire
0180-014010WIRE CLAMPLEFT CRANKCASE ASSY.Enquire
0010-021019-0010BOLT M6x12LEFT CRANKCASE ASSY.Enquire
0800-011006-00001SCREW PLUGLEFT CRANKCASE ASSY.Enquire
0110-013030O-RINGLEFT CRANKCASE ASSY.Enquire
0180-011007-0010BOLT M14X1.5X32LEFT CRANKCASE ASSY.Enquire
0800-011300-0004OIL FILTER ELEMENT Replacing: 0800-011300-00030 - OIL FILTER, ENGINELEFT CRANKCASE ASSY.Enquire
0130-011400PLUG, SEALLEFT CRANKCASE ASSY.Enquire
0130-011303O-RING 14X1.4LEFT CRANKCASE ASSY.Enquire
0010-080008DOWEL PINLEFT CRANKCASE ASSY.Enquire
0040-012006-0010BOLT M8X50 Replacing: 0040-012006-0030 - BOLT M8X50LEFT CRANKCASE ASSY.Enquire
0800-011203OIL SEAL 15X26X6LEFT CRANKCASE ASSY.Enquire
0800-011201GEAR, BREATHERLEFT CRANKCASE ASSY.Enquire
30400-01003BEARING 6200-RS/P6LEFT CRANKCASE ASSY.Enquire
0800-011200BREATHER ASSYLEFT CRANKCASE ASSY.Enquire
0NYV-073001-3000DRAIN BOLT Replacing: 0180-011500 - DRAIN BOLT MAGNETIC (M12X1.25)LEFT CRANKCASE ASSY.Enquire
0030-011006-0010BOLT M6X105LEFT CRANKCASE ASSY.Enquire
0800-011004IDLE GEAR, BREATHERLEFT CRANKCASE ASSY.Enquire
0010-011008O-RING 15.8X2.4RIGHT CRANKCASE ASSY.Enquire
30801-01005CIRCLIPS FOR SHAFT10LEFT CRANKCASE ASSY.Enquire
0JWA-011004-30000GASKET, LEFT CRANKCASE GASKET Replacing: 0JWA-011004 - GASKET,LEFT CRANKCASE COVERLEFT CRANKCASE ASSY.Enquire
30017-060022110BOLTLEFT CRANKCASE ASSY.Enquire
0JWA-011009OIL STRAINERLEFT CRANKCASE ASSY.Enquire
0800-011103-00021PLAIN BEARING 2, BLUELEFT CRANKCASE ASSY.Enquire
0800-011103-00011PLAIN BEARING 2, REDLEFT CRANKCASE ASSY.Enquire
0800-0111A0-00001PLAIN BEARING KIT, MAIN SHAFT, RED Replacing: 0800-0111A0 - PLAIN BEARING KIT, MAIN SHAFT, REDLEFT CRANKCASE ASSY.Enquire
0800-011102-00021PLAIN BEARING 1, BLUE Replacing: 0800-011102-0002 - PLAIN BEARING 1 BLUE THICKLEFT CRANKCASE ASSY.Enquire
0800-0111B0-00001PLAIN BEARING KIT, MAIN SHAFT, BLUE Replacing: 0800-0111B0 - PLAIN BEARING KIT, MAIN SHAFT, BLUELEFT CRANKCASE ASSY.Enquire
0JWA-012100-20004RH CRANKCASE ASSY Replacing: 0JWA-012100-20001 - RH CRANKCASE ASSYRIGHT CRANKCASE ASSY.Enquire
0010-021018-0010BOLT M6x55RIGHT CRANKCASE ASSY.Enquire
0180-332004O-RING 19X2.5RIGHT CRANKCASE ASSY.Enquire
0GR0-014003SCREW PLUG ,DECOMPRESSORRIGHT CRANKCASE ASSY.Enquire
0700-012003-00002BOLTRIGHT CRANKCASE ASSY.Enquire
01A0-012010-00001SCREWRIGHT CRANKCASE ASSY.Enquire
0180-023002O-SEAL RINGRIGHT CRANKCASE ASSY.Enquire
0800-012200-20000GEAR SENSOR, KAIDI PLUGRIGHT CRANKCASE ASSY.Enquire
0180-012006-10000OIL SEAL Replacing: 0180-012006 - OIL SEAL 30X45X7RIGHT CRANKCASE ASSY.Enquire
30499-03000BEARING 5206RIGHT CRANKCASE ASSY.Enquire
0JWA-012004MIDDLE BEARING RETAINER, FRONT OUTPUT SHAFTRIGHT CRANKCASE ASSY.Enquire
30400-02501BEARINGRIGHT CRANKCASE ASSY.Enquire
0010-011002OIL SEALRIGHT CRANKCASE ASSY.Enquire
0JY0-013201-00003BOLT, CVT CASE COVER Replacing: 0JY0-013201 - BOLT,CVT CASE COVER NLA USE 0JY0-013201-00003CVT CASE ASSY.Enquire
0JY0-013002SEAL RING,CVT CASE COVERCVT CASE ASSY.Enquire
0JY0-013103OIL SEAL 32X55X10CVT CASE ASSY.Enquire
0JY0-013102-00021PLAIN BEARING, CVT (BLUE)CVT CASE ASSY.Enquire
0JY0-013102-00011PLAIN BEARING, CVT (RED) Replacing: 0JY0-013102-00010 - PLAIN BEARING, CVT REDCVT CASE ASSY.Enquire

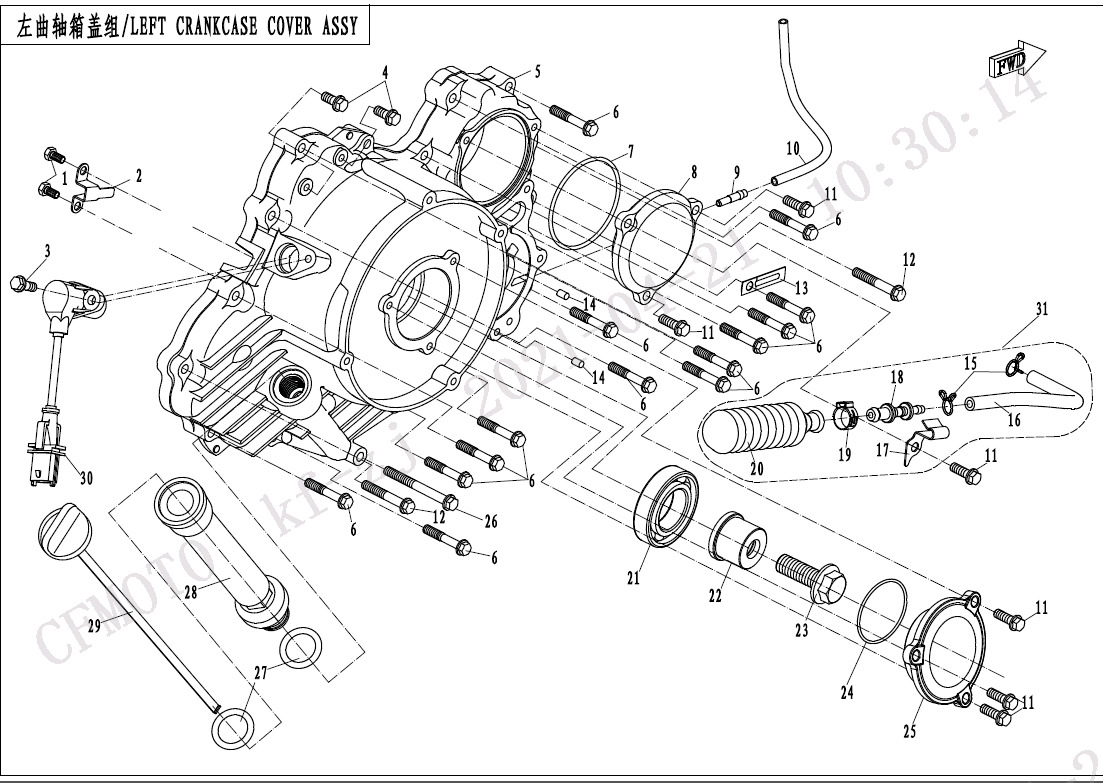

0800-014003O-RING 63X2.5LEFT CRANKCASE COVER ASSY.Enquire
30601-108010CLAMPLEFT CRANKCASE COVER ASSY.Enquire
6070-120400CLAMP(Φ14.5)LEFT CRANKCASE COVER ASSY.Enquire
30400-02800BEARINGLEFT CRANKCASE COVER ASSY.Enquire
0GRA-014003O-RING 48X2.5LEFT CRANKCASE COVER ASSY.Enquire
0800-014011-10000PLUGLEFT CRANKCASE COVER ASSY.Enquire
0010-011017-0010BOLT M6X60LEFT CRANKCASE COVER ASSY.Enquire
0JY0-022000-20002FIRST CYLINDER HEAD Replacing: 0JY0-022000-20001 - FIRST CYLINDER HEAD SUB ASSYCYLINDER HEAD NO.1 ASSY.Enquire
0800-021002-00001SEAL RING, CYLINDER HEAD COVERCYLINDER HEAD COVER ASSY.Enquire
0800-021001CYLINDER HEAD COVERCYLINDER HEAD COVER ASSY.Enquire
0GSV-013004-3000BOLT 1, CVT COVER Replacing: 0800-021101-1000 - BOLT, CYLINDER HEAD COVERCYLINDER HEAD COVER ASSY.Enquire

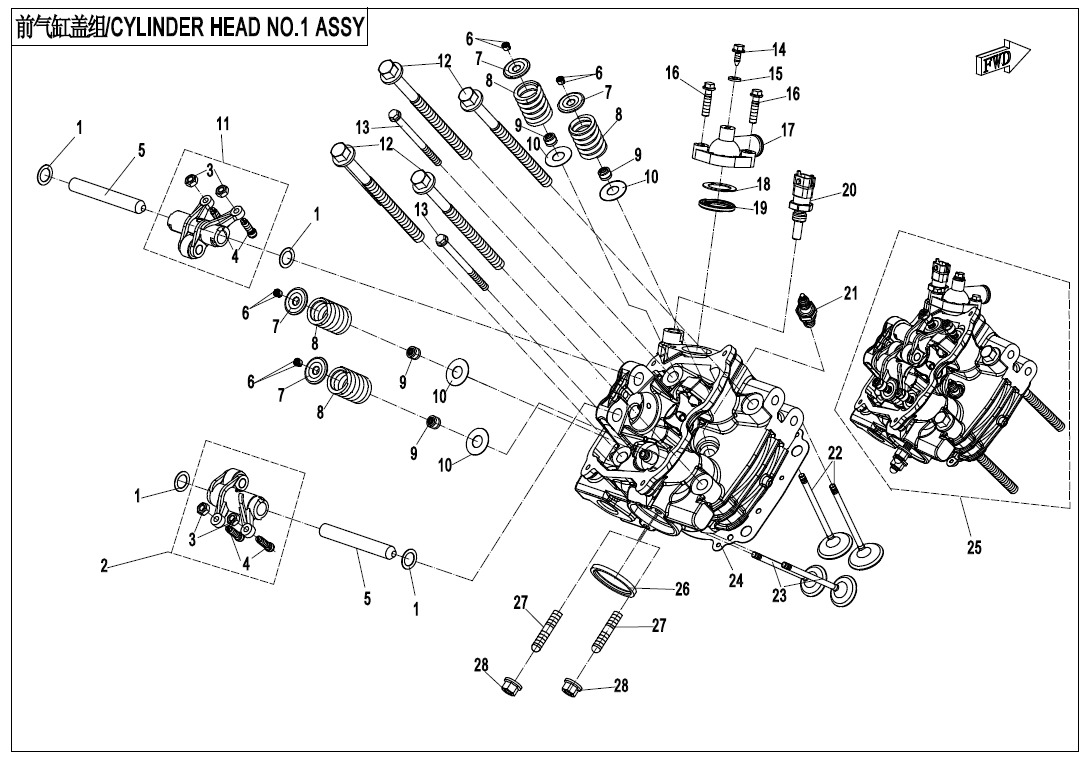

0800-022600-20000ROCKER ARM ASSY, AIR EXHAUSTCYLINDER HEAD NO.1 ASSY.Enquire
0800-022510ADJUST SCREWCYLINDER HEAD NO.1 ASSY.Enquire
0800-022500-20000ROCKER ARM ASSY, AIR INTAKECYLINDER HEAD NO.1 ASSY.Enquire
0JY0-022003-00001BOLT, CYLINDERCYLINDER HEAD NO.1 ASSY.Enquire
0060-013021-00002BOLT M6X85CYLINDER HEAD NO.1 ASSY.Enquire
0JWV-022102-2000SCREW 5.5X16 Replacing: 30132-550160030 - SCREW ST5.5X16CYLINDER HEAD NO.1 ASSY.Enquire
0010-021017-0010BOLT M6x25CYLINDER HEAD NO.1 ASSY.Enquire
0800-022013-10000THERMOSTAT CAP Replacing: 0800-022013 - THERMOSTAT CAPCYLINDER HEAD NO.1 ASSY.Enquire
0010-022802SEAL RINGCYLINDER HEAD NO.1 ASSY.Enquire
018B-022810COOLANT TEMP. SENSORCYLINDER HEAD NO.1 ASSY.Enquire
0800-022800SPARK PLUG DCPR8E (NGK)CYLINDER HEAD NO.1 ASSY.Enquire
0180-022003-00001STUDCYLINDER HEAD NO.1 ASSY.Enquire
0800-023001-00002SCREW, TENSIONER PLATE Replacing: 0800-023001 - SCREW, TENSIONER PLATE NLA USE 0800-023001-00002CYLINDER BODY ASSY.Enquire
0GS0-023200-00001TENSIONER ASSYCYLINDER BODY ASSY.Enquire
0JYA-023001-00001HEX FLANGE BOLT M6x6CYLINDER BODY ASSY.Enquire
0JY0-023200-10011SECOND CYLINDER BODY ASSY, MARK 1 Replacing: 0JY0-023200-10010 - SECOND CYLINDER BODY ASSYCYLINDER BODY ASSY.Enquire
0JY0-023200-10021SECOND CYLINDER BODY ASSY, MARK 2 Replacing: 0JY0-023200-10020 - SECOND CYLINDER BODY ASSYCYLINDER BODY ASSY.Enquire
0800-023002-00001GASKET, CYLINDERCYLINDER BODY ASSY.Enquire
0JY0-023100-10011FIRST CYLINDER BODY ASSY, MARK 1 Replacing: 0JY0-023100-10010 - FIRST CYLINDER BODY ASSYCYLINDER BODY ASSY.Enquire
0JY0-023100-10021FIRST CYLINDER BODY ASSY MARK 2 Replacing: 0JY0-023100-10020 - FIRST CYLINDER BODY ASSYCYLINDER BODY ASSY.Enquire
0700-011202O-SEAL RINGCYLINDER BODY ASSY.Enquire
0JY0-024100TIMING CHAIN Replacing: 0JY0-024100-10000 - TIMING CHAIN ASSYCAMSHAFT OF CYLINDER 1 ASSY.Enquire
0800-024003-00002BOLT, TIMING SPROCKET Replacing: 0800-024003 - BOLT, TIMING CHAINCAMSHAFT OF CYLINDER 1 ASSY.Enquire
0800-024006TIMING SPROCKETCAMSHAFT OF CYLINDER 1 ASSY.Enquire
0800-024002-00001DOWEL PIN, SPROCKET Replacing: 0800-024002 - DOWEL PIN, SPROCKETCAMSHAFT OF CYLINDER 1 ASSY.Enquire
0800-024004-10000HOLDING STRIP, CAMSHAFTCAMSHAFT OF CYLINDER 1 ASSY.Enquire
0JY0-024001-00003CAMSHAFT, FIRST CYLINDER Replacing: 0JY0-024001 - CAMSHAFT, FRONT CYLINDERCAMSHAFT OF CYLINDER 1 ASSY.Enquire
080V-025002-1000SEAL RING, MANIFOLD Replacing: 0800-025002 - SEAL RING, MANIFOLDINTAKE MANIFOLD ASSY.Enquire
0JYA-025002-10000AUXILIARY AIR INLET MANIFOLDINTAKE MANIFOLD ASSY.Enquire
0130-011114-00001BOLTINTAKE MANIFOLD ASSY.Enquire
0JYA-025010CLAMP D54INTAKE MANIFOLD ASSY.Enquire
0180-331004O-RING 64.5X3INTAKE MANIFOLD ASSY.Enquire
30603-125020CLAMP D25CYLINDER HEAD NO.2 ASSY.Enquire
0800-022700THERMOSTATCYLINDER HEAD NO.2 ASSY.Enquire
0800-022012SEAT,THERMOSTATCYLINDER HEAD NO.2 ASSY.Enquire
30502-028000NO-RING 28X265CYLINDER HEAD NO.2 ASSY.Enquire
0800-022015-00001SCREW PLUG M12X1.5 Replacing: 0800-022015 - SCREW PLUG M12X1.5CYLINDER HEAD NO.2 ASSY.Enquire
0800-040002-00001PISTON PIN Replacing: 0800-040002 - PISTON PINCRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY.Enquire
0800-042004BOLT, CONNECTING RODCRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY.Enquire
0JYA-026000-20002SECOND CYLINDER HEAD Replacing: 0JYA-026000-20001 - SECOND CYLINDER HEAD SUB ASSYCYLINDER HEAD NO.2 ASSY.Enquire
0JY0-027001-00003CAMSHAFT, SECOND CYLINDERCAMSHAFT OF CYLINDER 2 ASSY.Enquire
30102-080020810SCREWMAGNETO ASSY.Enquire
0JYA-041000-10014CRANKSHAFT ASSYCRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY.Enquire
0JYA-041000-10024CRANKSHAFT ASSYCRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY.Enquire
0JYA-041000-10017CRANKSHAFT ASSY - MARK "A" Replacing: 0JYA-041000-10010 - CRANKCASE ASSYCRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY.Enquire
0JYA-041000-10027CRANKSHAFT ASSY Replacing: 0JYA-041000-10022 - CRANKSHAFT ASSY, MARK B NLA USE 0JYA-041000-10025CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY.Enquire
0JY0-041000-00021CONNECTING ROD, MARK 2CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY.Enquire
0JY0-041000-00012CONNECTING ROD ASSY Replacing: 0JY0-041000-00010 - CONNECTING ROD PARTS 1CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY.Enquire
0JY0-041000-00022CONNECTING ROD ASSYCRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY.Enquire
0180-040007WOODRUFF KEYCRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY.Enquire
0800-040005CIRCLIP, PISTON PINCRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY.Enquire
0JY0-040003-00012PLAIN BEARING, CONNECTING ROD, REDCRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY.Enquire
0JY0-040003-00022PLAIN BEARING, CONNECTING ROD, BLACK Replacing: 0JY0-040003-00020 - PLAIN BEARING, CONNECTING ROD BLACK@MIDDLECRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY.Enquire
0JY0-040003-00032PLAIN BEARING, CONNECTING ROD, YELLOWCRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY.Enquire
0GR0-052006SCREWCVT ASSY(FOR ELECTRONIC DOWNHILL BRAKING)Enquire
0GR0-052004CIRCLIPCVT ASSY(FOR ELECTRONIC DOWNHILL BRAKING)Enquire
0JYA-051015CIRCLIPCVT ASSY(FOR ELECTRONIC DOWNHILL BRAKING)Enquire
30402-02500NEEDLE BEARING, K25X29X10TRANSMISSION SYSTEM(1)Enquire
0180-061007-0050CIRCLIP 25TRANSMISSION SYSTEM(1)Enquire
0800-061007CIRCLIP 29TRANSMISSION SYSTEM(1)Enquire
30402-02402NEEDLE BEARING, K24X29X13TRANSMISSION SYSTEM(1)Enquire
30801-02905CIRCLIPS FOR SHAFT 29TRANSMISSION SYSTEM(1)Enquire
0110-041007BEARING 28X68X18 Replacing: 30499-02800 - BEARINGTRANSMISSION SYSTEM(2)Enquire
0180-062104-0010LIMITATOR, BEARINGTRANSMISSION SYSTEM(2)Enquire
30124-080025810SCREW M8X25TRANSMISSION SYSTEM(2)Enquire
0JWA-062302-00001OIL SEAL Replacing: 0JWA-062302 - OIL SEAL 35X61X9 (14)TRANSMISSION SYSTEM(2)Enquire
0180-060008BEARING RETAINER, FRONT OUTPUT SHAFTTRANSMISSION SYSTEM(2)Enquire
0800-062205O-RINGTRANSMISSION SYSTEM(2)Enquire
0800-062204OIL SEAL 35X50X6TRANSMISSION SYSTEM(2)Enquire
30102-050012810SCREWTRANSMISSION SYSTEM(2)Enquire
0180-062205O-RING 88X2.5TRANSMISSION SYSTEM(2)Enquire
30400-03500BEARING 6207C3TRANSMISSION SYSTEM(2)Enquire
30801-01205CIRCLIPS FOR SHAFTTRANSMISSION SYSTEM(3)Enquire
0180-065002OIL SEAL SD15X25X5TRANSMISSION SYSTEM(3)Enquire
0180-064002-00001LOCK SCREW T25TRANSMISSION SYSTEM(3)Enquire
30406-00402ROLLER NEEDLE P4x21.8OIL PUMP ASSY.Enquire
0010-030002-00001BOLTOIL PUMP ASSY.Enquire
30406-00400ROLLER PINOIL PUMP ASSY.Enquire
0JYA-071007CLIP, WATER PIPEOIL COOLING SYSTEMEnquire
30502-017000FO-RINGOIL COOLING SYSTEMEnquire
30006-103020810BOLT M10X20 Replacing: 30006-103020840 - BOLT M10X20OIL COOLING SYSTEMEnquire
C3H0-073002CLAMPOIL COOLING SYSTEMEnquire
30408-01000BEARINGWATER PUMP ASSY.Enquire
0110-080005OIL SEAL 10X20X5WATER PUMP ASSY.Enquire
01A0-013005O-SEAL RINGWATER PUMP ASSY.Enquire
30401-03000NEEDLE BEARING NK30/20STARTING SYSTEMEnquire
0JYA-170001CLASPFUEL INJECTION SYSTEMEnquire
9DQV-000300-3000DAMPING BLOCK, ENGINEENGINE MOUNTING PARTSEnquire
9010-000105A-TYPE SCREW CLAMP 78-101CVT AIR PIPE@^SIDE COVEREnquire
30604-301300CLAMPCVT AIR PIPE@^SIDE COVEREnquire
9010-020007A-TYPE SCREW CLAMPMUFFLEREnquire
9CR6-230001PLUG, REAR BUMPERFRAMEEnquire
9060-040310CLAMP ASSYFRONT PLASTICSEnquire
5HY#-130002-1000BACKREST DAMPING MATFRONT PLASTICSEnquire
30110-480160010SELF-TAPPING SCREWFRONT PLASTICS(FOR TFT)Enquire
6NQ#-000206-6001INNER HEX SCREW M6x16MIDDLE PLASTICSEnquire
5BYV-042032-AD00PEDAL PLUG Replacing: 5BY0-042032 - PLUG, PEDALMIDDLE PLASTICSEnquire
6NQ#-000203-6001INNER HEX SCREW M6x20MIDDLE PLASTICSEnquire
30110-481130010SELF-TAPPING SCREWMIDDLE PLASTICSEnquire
6KM#-160420-8001SPONGE MATMIDDLE PLASTICSEnquire
30801-03205CIRCLIPS FOR SHAFT32 Replacing: 30804-03205 - CIRCLIPS FOR SHAFT32FRONT SUSPENSIONEnquire
9060-050900-10000BALL PIN COMPFRONT SUSPENSIONEnquire
30801-03405CIRCLIPS FOR SHAFT 34FRONT SUSPENSIONEnquire
5BY0-050102DAMPING SLEEVE, FRONT UPPER SWING ARM (SUIT 23MM S-ARM)FRONT SUSPENSIONEnquire
30800-06005CIRCLIP FOR HOLEFRONT SUSPENSIONEnquire
30411-03081HUB BEARING Replacing: 30411-03080 - HUB BEARINGFRONT SUSPENSIONEnquire
30903-0322210COTTER PINFRONT SUSPENSIONEnquire
9030-050600-10000MAIN PIN COMP Replacing: 9030-050600 - MAIN PIN ASSYFRONT SUSPENSIONEnquire
5HY0-060703REAR BEARING CARRIERREAR SUSPENSIONEnquire
9060-060002PLUG, REAR SUSPENSIONREAR SUSPENSIONEnquire
9DQV-060800-3000-M2RH BALL PIN ASSY Replacing: 9010-060800-20000 - BALL PIN, RHREAR SUSPENSIONEnquire
9DQV-060700-3000-M2LH BALL PIN ASSY Replacing: 9010-060700-20000 - BALL PIN, LHREAR SUSPENSIONEnquire
30110-420130010SELF-TAPPING SCREW_ST4.2x13BRAKE SYSTEMEnquire
30102-060016810SCREWBRAKE SYSTEMEnquire
30400-02005BEARING 6804ZSTEERING SYSTEM(EPS)Enquire
30107-060012410SCREW M6X12STEERING SYSTEM(EPS)Enquire
5BY0-104102CLAMPSTEERING SYSTEM(EPS)Enquire
7020-120006CLAMP D16.6AFUEL TANK(FOR NON FUEL EVAPORATION SYSTEM)Enquire
30601-112010CLAMPFUEL TANK(FOR NON FUEL EVAPORATION SYSTEM)Enquire
30102-080045170SCREWSEAT(NON HEATING EQUIPMENT)Enquire
30910-0183220LOCK PINSEAT(NON HEATING EQUIPMENT)Enquire
30102-080016170SCREW M8X16SEAT(NON HEATING EQUIPMENT)Enquire
30105-050030410SCREW M5X30 Replacing: 30105-050030440 - SCREW M5X30ELECTRIC SYSTEMEnquire
30110-420160070SELF-TAPPING SCREWELECTRIC SYSTEMEnquire
CFCV-156103-2000PLUG, T-BOX CONNECTORELECTRIC SYSTEMEnquire
CFCV-CBC005-2000-M1CLIPELECTRIC SYSTEMEnquire
30601-113010CLAMPCOOLING SYSTEMEnquire
30105-050012410SCREWLIGHTSEnquire
30110-350095010SELF-TAPPING SCREW ST3.5X9.5COOLING SYSTEMEnquire
8010-180024CAP, WATER FILLERCOOLING SYSTEMEnquire
30601-111010CLAMPCOOLING SYSTEMEnquire
8010-180023CAP, RESERVOIR TANKCOOLING SYSTEMEnquire
7000-180007-00001STEEL BAND CLAMP 34COOLING SYSTEMEnquire
30112-060016410SCREW COMP M6X16 Replacing: 30112-060016440 - SCREW COMP M6X16COOLING SYSTEMEnquire
9010-180007CLAMP, WATER HOSECOOLING SYSTEMEnquire
30110-480160070SELF-TAPPING SCREWCARGO BOXEnquire
5HY#-221601-1000SCREW, PIN SHAFTCARGO BOXEnquire
30102-102020810SCREW M10X1.25X20BUMPER @^ CAB FRAMEEnquire
9030-000109SCREW CLAMP, A-TYPE, 70~90BODY ACCESSORIESEnquire
30601-117010CLAMPBODY ACCESSORIESEnquire
30102-080045810SCREWBODY ACCESSORIESEnquire
30102-102025810SCREWDRIVETRAIN SYSTEMEnquire
9010-270203-00001WIRE CIRCLIP Replacing: 9010-270203 - WIRE CIRCLIPFRONT CV SHAFTEnquire
5BWB-280302CIRCLIPREAR CV SHAFTEnquire
9GQ0-290104BIG CLAMPDRIVETRAIN SYSTEMEnquire
30800-02205CIRCLIP FOR HOLEDRIVETRAIN SYSTEMEnquire
Q830-310006-10000O-RING 55X2.5FRONT AXLEEnquire
0180-311001OIL SEAL 24X38X8FRONT AXLEEnquire
30105-040008410SCREW M4X8FRONT AXLEEnquire
Q890-314000-10000FRONT GEAR CASE MOTOR ASSY GRAY PLUGFRONT AXLEEnquire
Q830-310012-10000O-RING 67.5X2FRONT AXLEEnquire
30800-05505CIRCLIP D55 BLACKFRONT AXLEEnquire
0180-021008-00001BOLTFRONT AXLEEnquire
30906-0503000PINFRONT AXLEEnquire
Q830-310011O-RING 130X2FRONT AXLEEnquire
30130-080010810SCREWFRONT AXLEEnquire
30802-00605SPLIT WASHERGEAR SHIFTINGEnquire
0010-022020-00002BOLTGEAR SHIFTINGEnquire
0180-334002O-RING 151X3REAR AXLE(AUTOMATIC LOCK DIFFERENTIAL )Enquire
30118-420130010SELF-TAPPING SCREW. ST4.2X13LEFT DOORSEnquire
30903-0162010COTTER PINLEFT DOORSEnquire
30122-080016810SCREW M8X16LEFT DOORSEnquire
5HYV-370010-1000RUBBER PLUGLEFT DOORSEnquire
5HYV-370011-1000RUBBER PLUGLEFT DOORSEnquire
30601-117020CLAMP D17AIR FILTER ASSYEnquire
30601-115020CLAMP D15 Replacing: 30601-115010 - CLAMP D15AIR FILTER ASSYEnquire
0JYA-113003-10000PLUGAIR FILTER ASSYEnquire

Exploded diagrams — Engine

2023 CF MOTO UFORCE 1000 EPS HUNTER LEFT CRANKCASE ASSY. exploded diagram
LEFT CRANKCASE ASSY. · 37

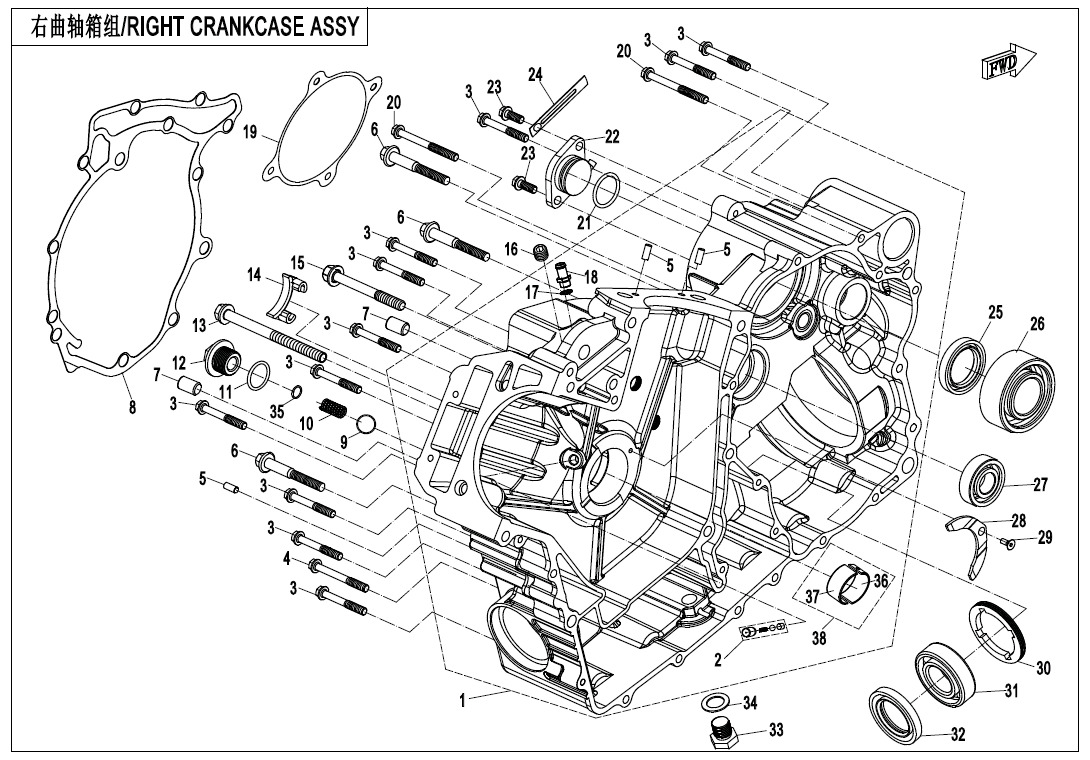

2023 CF MOTO UFORCE 1000 EPS HUNTER RIGHT CRANKCASE ASSY. exploded diagram
RIGHT CRANKCASE ASSY. · 25

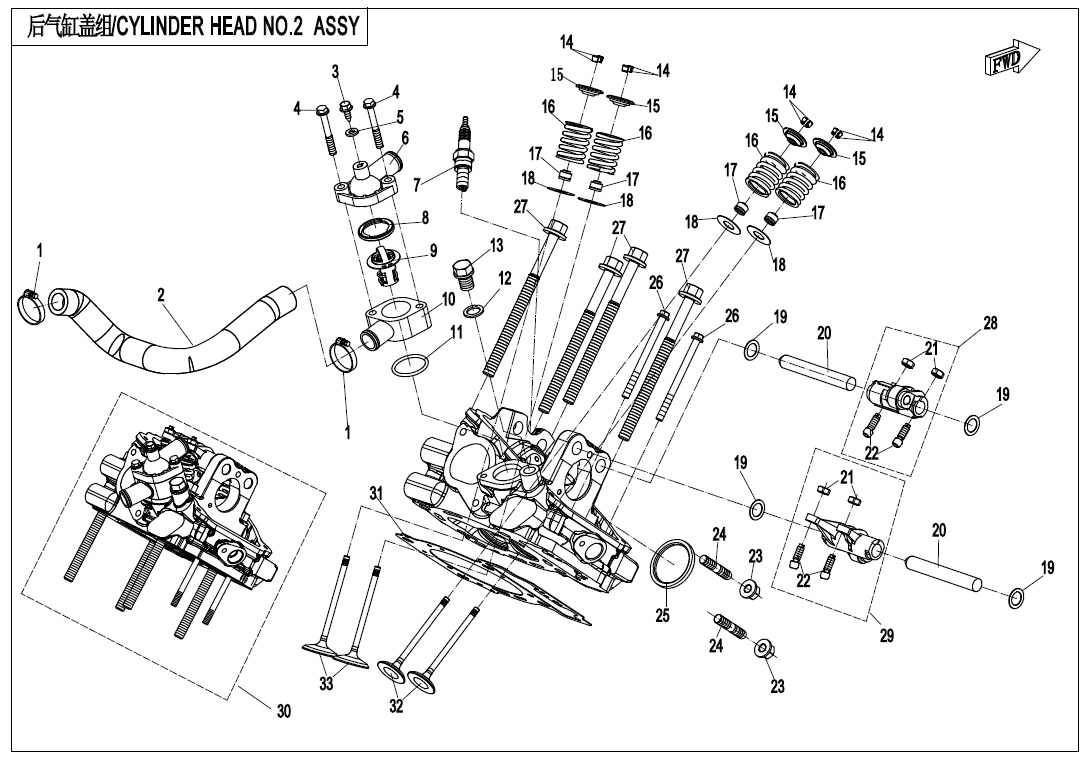

2023 CF MOTO UFORCE 1000 EPS HUNTER CYLINDER HEAD NO.2 ASSY. exploded diagram
CYLINDER HEAD NO.2 ASSY. · 16

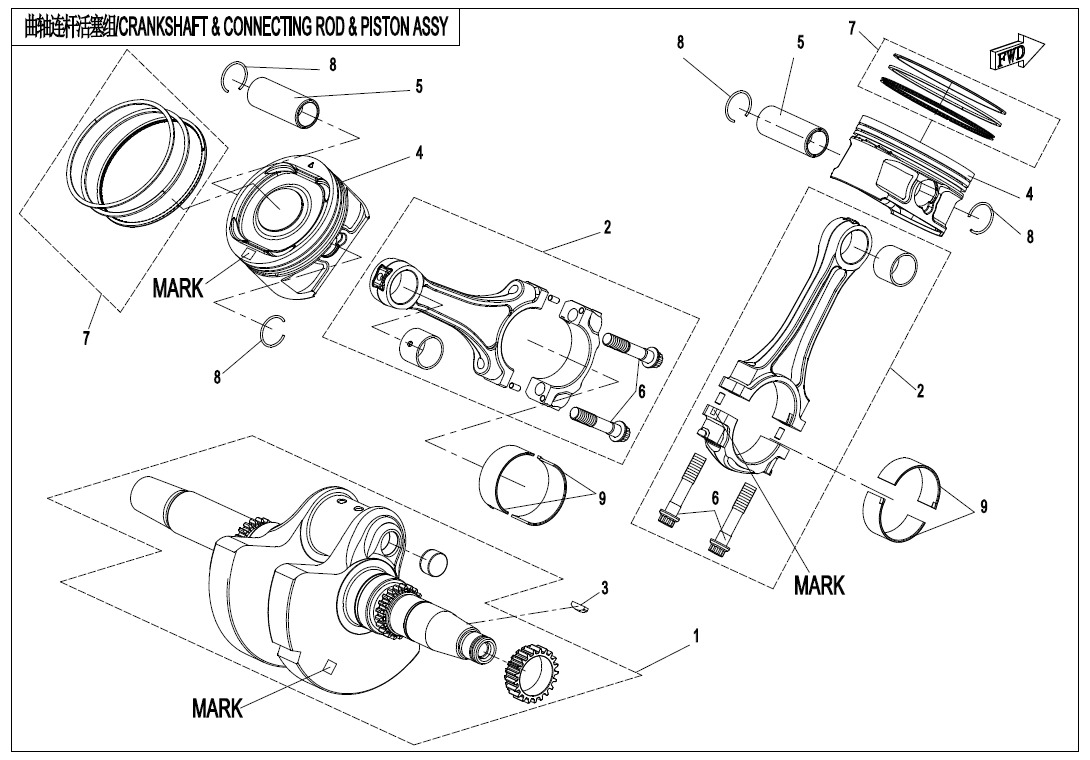

2023 CF MOTO UFORCE 1000 EPS HUNTER CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY. exploded diagram
CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY. · 14
2023 CF MOTO UFORCE 1000 EPS HUNTER CYLINDER HEAD NO.1 ASSY. exploded diagram
CYLINDER HEAD NO.1 ASSY. · 13

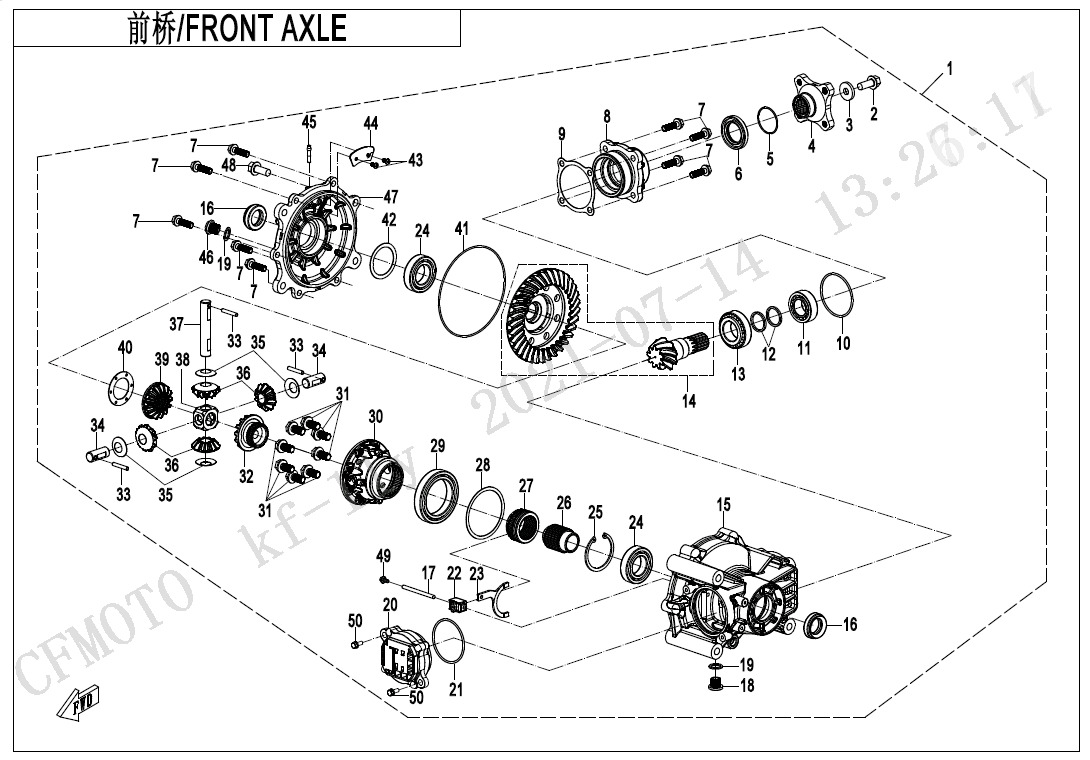

2023 CF MOTO UFORCE 1000 EPS HUNTER FRONT AXLE exploded diagram
FRONT AXLE · 13

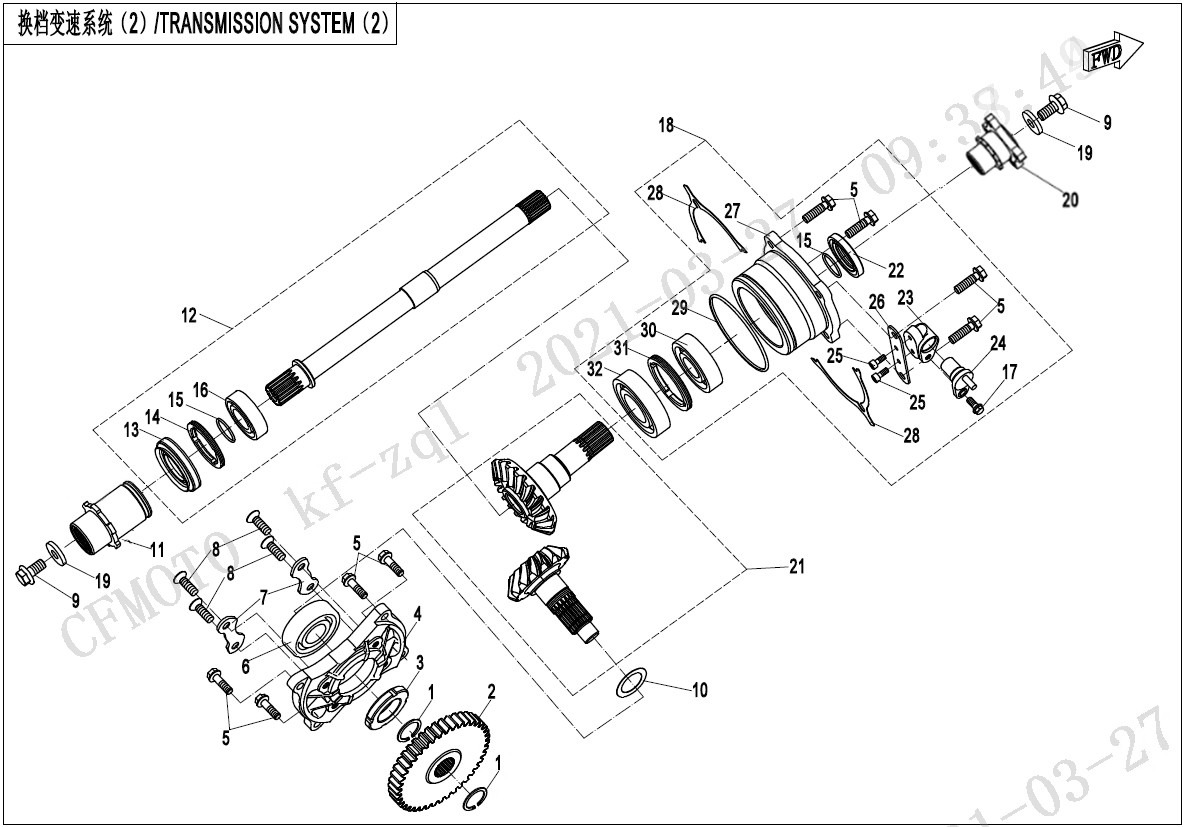

2023 CF MOTO UFORCE 1000 EPS HUNTER TRANSMISSION SYSTEM(2) exploded diagram
TRANSMISSION SYSTEM(2) · 12
2023 CF MOTO UFORCE 1000 EPS HUNTER LEFT CRANKCASE COVER ASSY. exploded diagram
LEFT CRANKCASE COVER ASSY. · 11
2023 CF MOTO UFORCE 1000 EPS HUNTER CYLINDER BODY ASSY. exploded diagram
CYLINDER BODY ASSY. · 11
2023 CF MOTO UFORCE 1000 EPS HUNTER OIL COOLING SYSTEM exploded diagram
OIL COOLING SYSTEM · 8

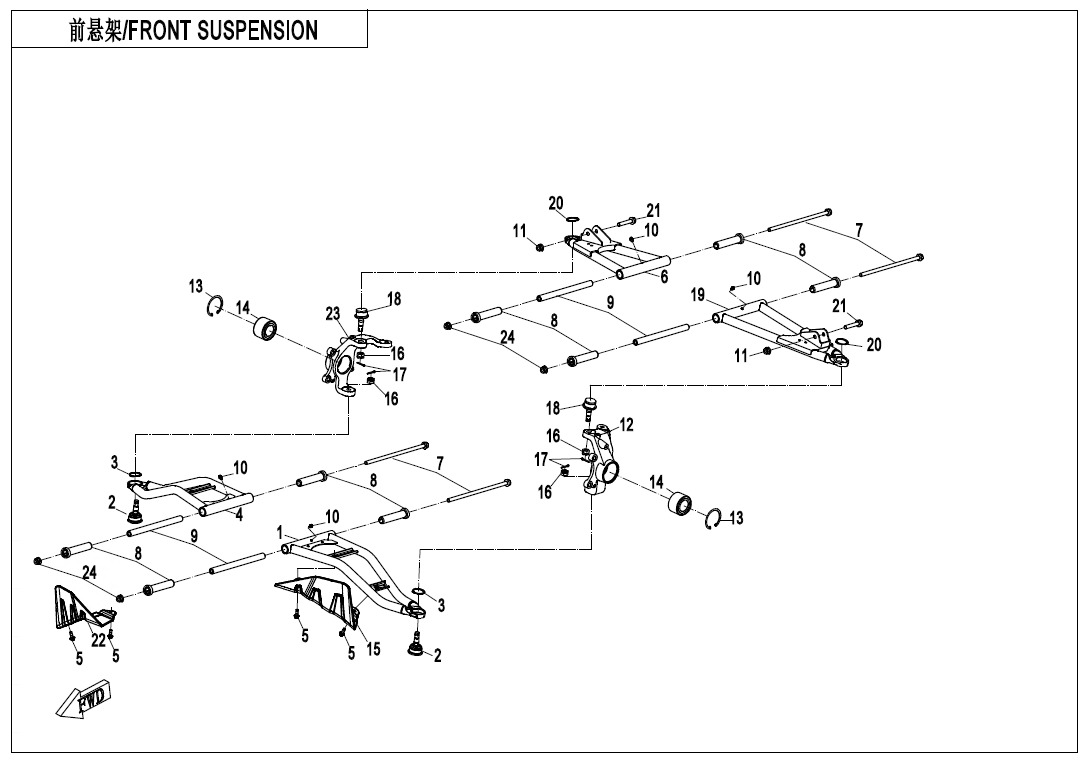

2023 CF MOTO UFORCE 1000 EPS HUNTER FRONT SUSPENSION exploded diagram
FRONT SUSPENSION · 8

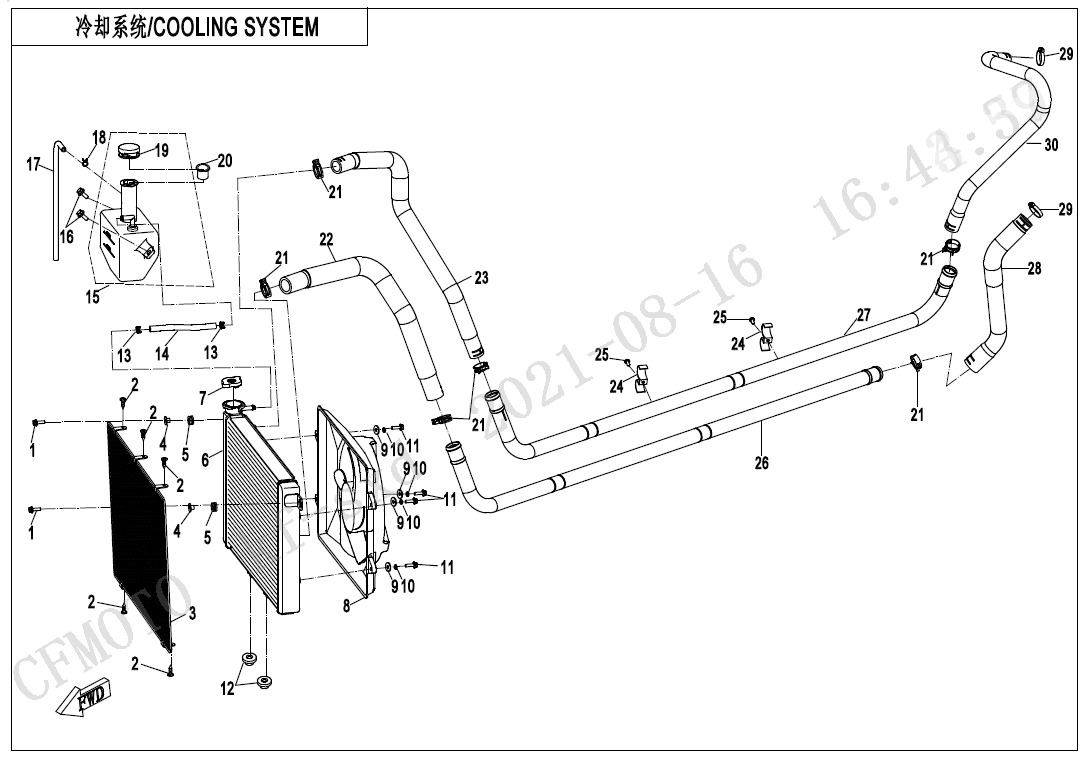

2023 CF MOTO UFORCE 1000 EPS HUNTER COOLING SYSTEM exploded diagram
COOLING SYSTEM · 8

Browse the catalogue interactively

Open Engine in the interactive 2023 CF MOTO UFORCE 1000 EPS HUNTER catalogue to drill into diagrams, check availability and add parts to your cart.

Other assembly groups on this vehicle

Body · 515Gearbox · 238Electrical System · 86Suspension · 68Brake System · 62Wheels & Tyres · 57Filters · 45Cooling System · 36Clutch & Parts · 26Exhaust System · 20Fuel Supply System · 16Final Drive · 11Steering System · 10Fuel Preparation · 3Interior · 1Unclassified · 58
