2021–2023 GP 125 AC CBS E5 (2021 – 2023) — Engine parts

UK market25 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 1 Cylinder Head & Parts · 13 Seals & Gaskets · 2 Lubrication System · 2 Belt/Chain Drive · 2 Engine Hardware · 5

Part numbers

Every genuine engine part fitted to the 2021–2023 GP 125 AC CBS E5 (2021 – 2023). Each number opens its cross-reference & fitment page.

Part number	Description	Diagram	Price
08RA-08-012	Royal Alloy GP 125 AC CBS E5 OIL FILTER SCREEN	Right Crank Case Cover	Enquire

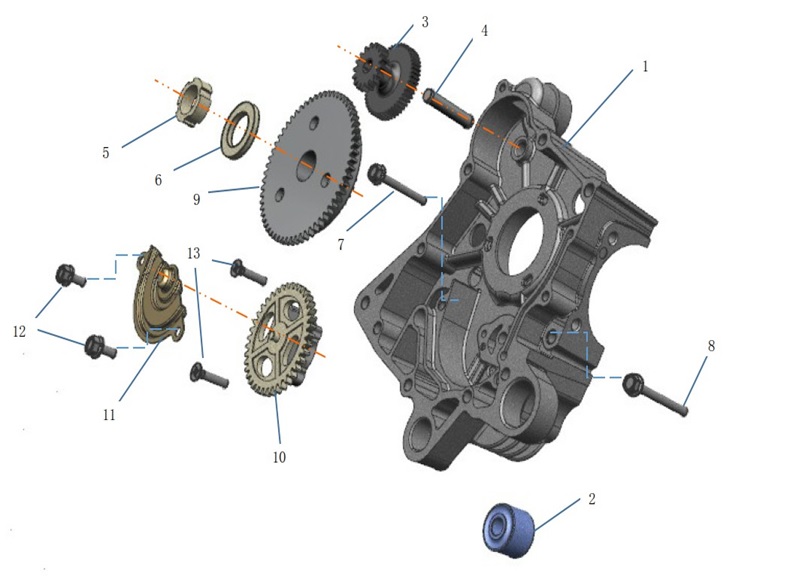

08RA-03-001	Royal Alloy GP 125 AC CBS E5 R.CRANK CASE COMP.	R Crank Case & Oil Pump Assy	Enquire
0304020004-02-001	Royal Alloy GP 125 AC CBS E5 Seal Ring Air Cooled	Muffler	Enquire

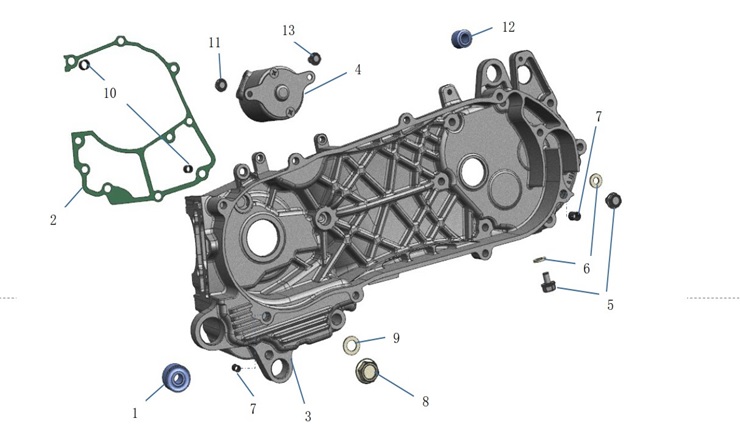

08RA-03-002	Royal Alloy GP 125 AC CBS E5 L.CRANK CASE COMP.	Left Crank Case	Enquire

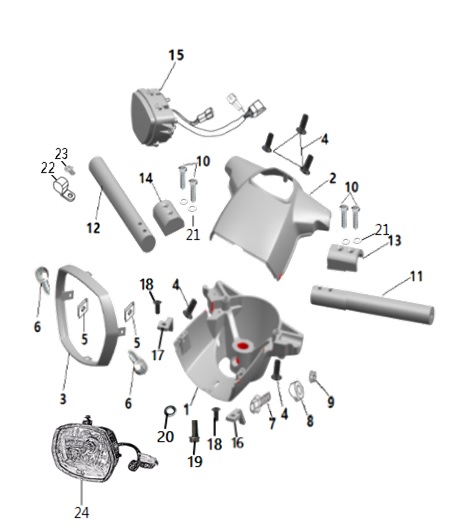

07GB845P-ST4.2X12-001	Royal Alloy GP 125 AC CBS E5 Self-Tapping Screw ST4.2x12	Handlebar and Speedo Cover	Enquire

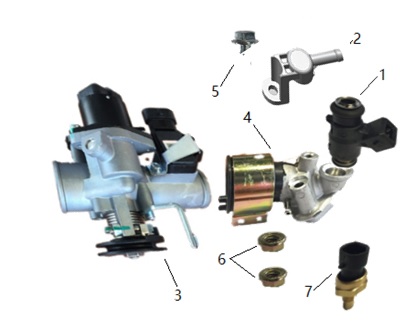

08RA-11-010-I	Royal Alloy GP 125 AC CBS E5 pressure cap?fuel injector	Fuel Injector	Enquire

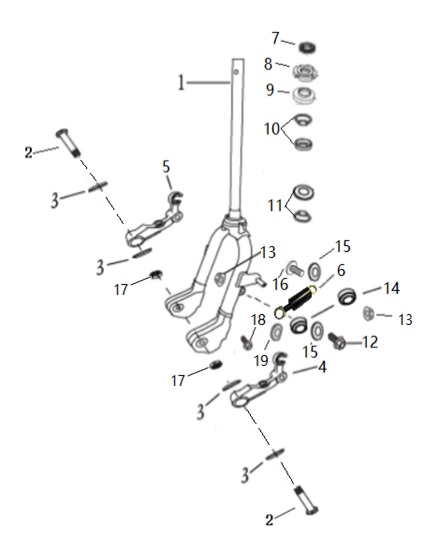

0307070004-02-001	Royal Alloy GP 125 AC CBS E5 Lower tapered roller bearing 32906	Front Fork	Enquire
08RA-08-007	Royal Alloy GP 125 AC CBS E5 CARB.INSULATOR	Cylinder Head	Enquire
8.RA-07-8.5X18X2.5	Royal Alloy GP 125 AC CBS E5 ccopper plating	Cylinder Head	Enquire
08RA-01-005	Royal Alloy GP 125 AC CBS E5 IN.VAIVE	Cylinder Head	Enquire

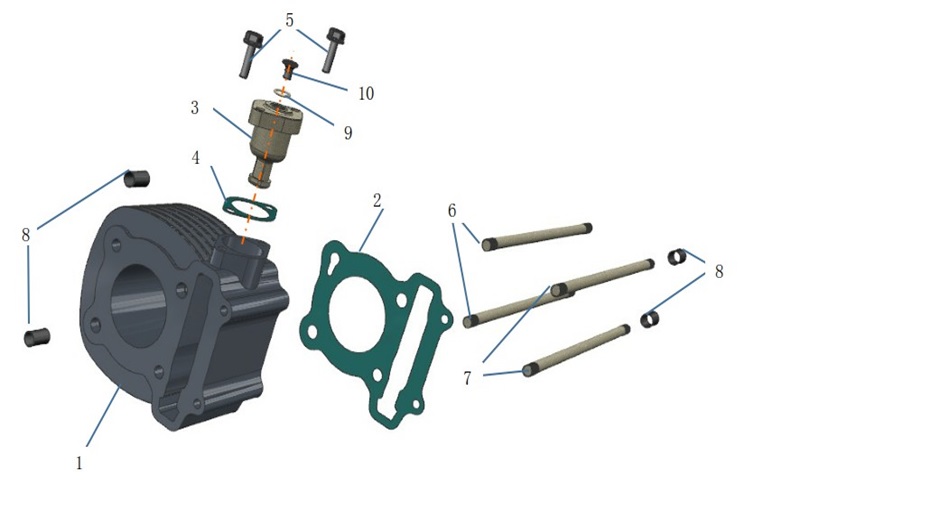

08RA-02-002	Royal Alloy GP 125 AC CBS E5 TENSIONER LIFTER ASSY.	Cylinder	Enquire
08RA-02-001-125	Royal Alloy GP 125 AC CBS E5 CYLINDER	Cylinder	Enquire

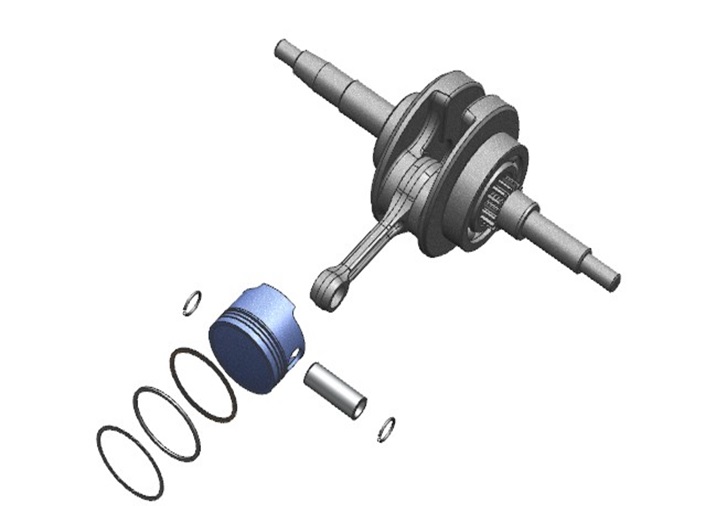

08RA-02-006-125	Royal Alloy GP 125 AC CBS E5 PISTON PIN 7X10X29.2	Crank Shaft	Enquire

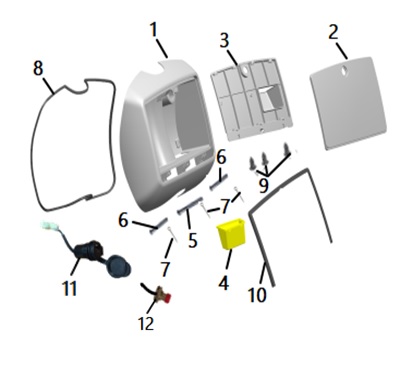

0212010015-02-032	Royal Alloy GP 125 AC CBS E5 Liner Panel Matt Green	Case	Enquire
0312020007-02-001	Royal Alloy GP 125 AC CBS E5 Sponge mat 5x5x740	Case	Enquire
0312020020-02-001	Royal Alloy GP 125 AC CBS E5 strip	Case	Enquire
0314030001-02-001	Royal Alloy GP 125 AC CBS E5 Cotter pin	Case	Enquire

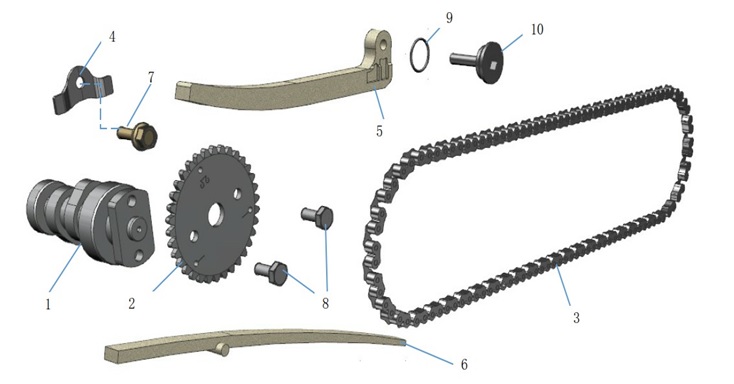

8.RA-08-15.5X1.5	Royal Alloy GP 125 AC CBS E5 O-RING 15.5X1.5	Cam shaft & Cylinder Head L Side Cover	Enquire
8.RA-08-012	Royal Alloy GP 125 AC CBS E5 OIL FILTER SCREEN	Right Crank Case Cover	Enquire
8.RA-03-001	Royal Alloy GP 125 AC CBS E5 R.CRANK CASE COMP.	R Crank Case & Oil Pump Assy	Enquire
8.RA-03-002	Royal Alloy GP 125 AC CBS E5 L.CRANK CASE COMP.	Left Crank Case	Enquire
8.RA-08-007	Royal Alloy GP 125 AC CBS E5 CARB.INSULATOR	Cylinder Head	Enquire
8.RA-02-002	Royal Alloy GP 125 AC CBS E5 TENSIONER LIFTER ASSY.	Cylinder	Enquire
8.RA-02-001-125	Royal Alloy GP 125 AC CBS E5 CYLINDER	Cylinder	Enquire
8.RA-02-006-125	Royal Alloy GP 125 AC CBS E5 PISTON PIN 7X10X29.2	Crank Shaft	Enquire
