2022 CF MOTO ZFORCE 800 TRAIL — Brake System parts

AU market35 genuine parts12 diagrams

Subgroups

Disc Brake · 30Brake Fluid Reservoir & Parts · 2Brake Master Cylinder · 1Brake Pedal · 2Brake Light Switch · 1Brake Hardware · 16Brake Assembly · 1

Part numbers

Every genuine brake system part fitted to the 2022 CF MOTO ZFORCE 800 TRAIL. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
30006-102020810BOLT M10x1.25x20ENGINE MOUNTING PARTSEnquire
30006-060055810BOLT M6X55FRAMEnquire
9010-120008SPONGE PAD, FUEL TANKMIDDLE PLASTICSEnquire
A000-080001SCREWFRONT WHEELEnquire
5BY0-080008GUARD, FRONT RH BRAKE CALIPERBRAKE SYSTEMEnquire
5BY0-080007GUARD, FRONT LH BRAKE CALIPERBRAKE SYSTEMEnquire
5BWV-081000-5000HYDRAULIC BRAKE ASSYBRAKE SYSTEMEnquire
9AWV-081200-4000FRONT RH BRAKE CALIPER ASSY Replacing: 9AWA-081200 - FRONT BRAKE CALIPER, RHBRAKE SYSTEMEnquire
5HYV-0811A0FRONT BRAKE PAD ASSY Replacing: 9AWA-0811A0 - BRAKE PAD ASSYBRAKE SYSTEMEnquire
30006-102025810BOLT M10X1.25X25BRAKE SYSTEMEnquire
7020-081004BANJO BOLTBRAKE SYSTEMEnquire
5BY0-080002PLASTIC CLASPBRAKE SYSTEMEnquire
9010-080405CLAMPBRAKE SYSTEMEnquire
9AWV-081100-4000FRONT LH BRAKE CALIPER ASSY Replacing: 9AWA-081100 - FRONT BRAKE CALIPER, LHBRAKE SYSTEMEnquire
5BWV-080010-5000HYDRAULIC SENSOR SWITCHBRAKE SYSTEMEnquire
5BY0-081001FLUID RESERVOIR HOSE 1BRAKE SYSTEMEnquire
9GQ0-080110FLUID RESERVOIRBRAKE SYSTEMEnquire
7020-081002PIPE CLIP, MASTER CYLINDERBRAKE SYSTEMEnquire
5SYV-081100-6000MASTER CYLINDERBRAKE SYSTEMEnquire
30006-080025810BOLTBRAKE SYSTEMEnquire
5BWV-081020-5000REAR BRAKE FLUID HOSEBRAKE SYSTEMEnquire
7030-150005TIE BANDBRAKE SYSTEMEnquire
9DS#-150009-6100-M1TIE BAND ZDG4.7X195BRAKE SYSTEMEnquire
5BWV-081600-5000REAR BRAKE CALIPER, RHBRAKE SYSTEMEnquire
5HYV-0813A0REAR BRAKE PAD ASSYBRAKE SYSTEMEnquire
5BWV-081500-5001REAR LH BRAKE CALIPER ASSY Replacing: 5BWV-081500-5000 - REAR BRAKE CALIPER, LHBRAKE SYSTEMEnquire
5BWV-080011-5000BRACKET, BRAKE PEDALBRAKE SYSTEMEnquire
30904-1206540PIN SHAFTBRAKE SYSTEMEnquire
9060-105002BUSHINGBRAKE SYSTEMEnquire
5BWV-080001-5000RETURN SPRING, FOOT BRAKEBRAKE SYSTEMEnquire
5BWV-082000-5000BRAKE PEDAL ASSY MAUD SPIRIT BLACKBRAKE SYSTEMEnquire
30801-02005CIRCLIPS FOR SHAFT 20STEERING SYSTEM(EPS)Enquire
30006-060030810BOLTFUEL TANKEnquire
30006-060025810BOLTELECTRIC SYSTEMEnquire
30102-060012870SCREWSIDE DOORSEnquire

Exploded diagrams — Brake System

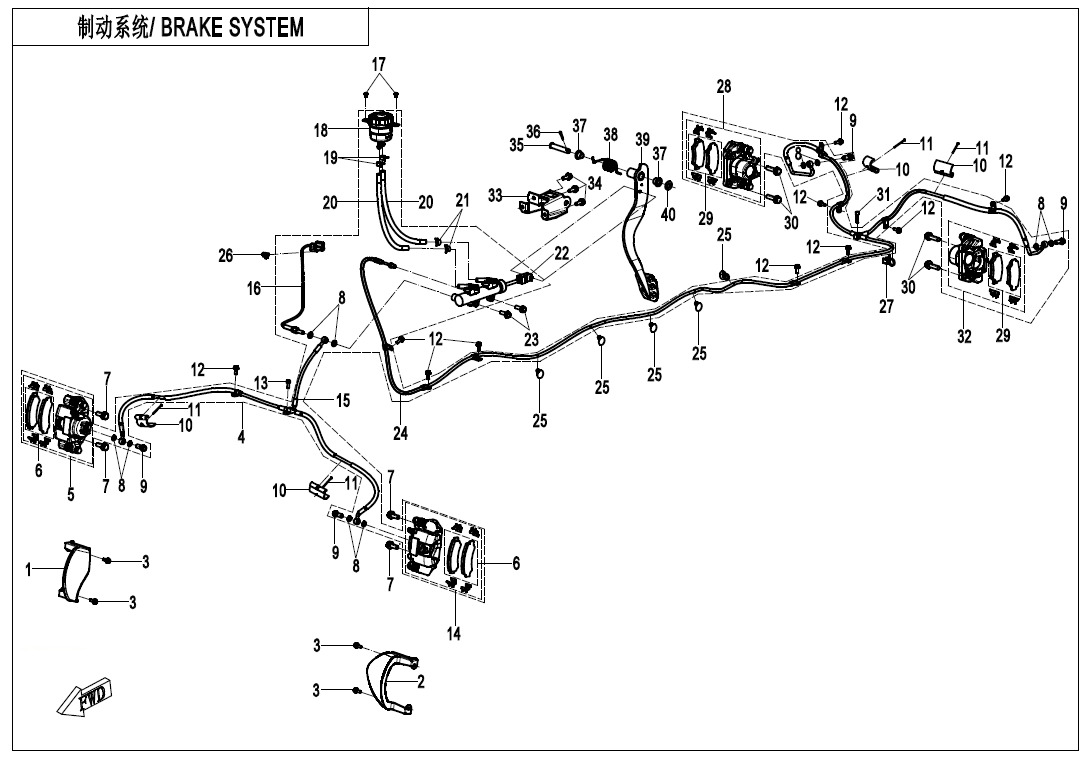

2022 CF MOTO ZFORCE 800 TRAIL BRAKE SYSTEM exploded diagram
BRAKE SYSTEM · 27

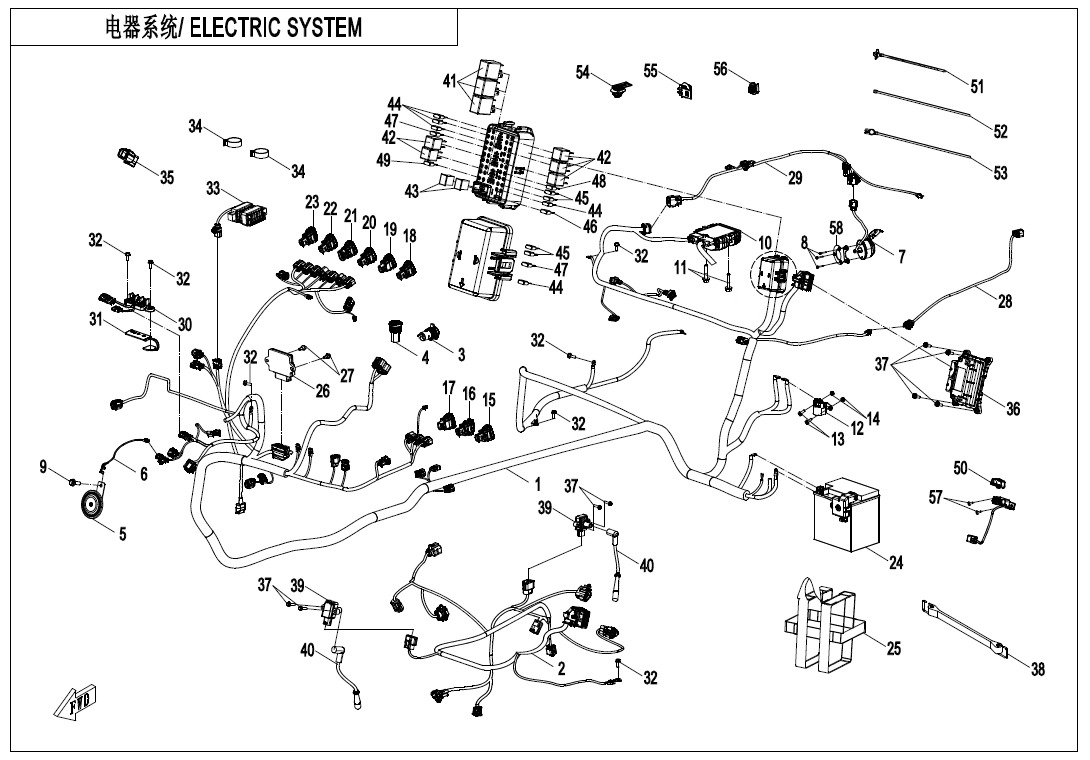

2022 CF MOTO ZFORCE 800 TRAIL ELECTRIC SYSTEM exploded diagram
ELECTRIC SYSTEM · 4

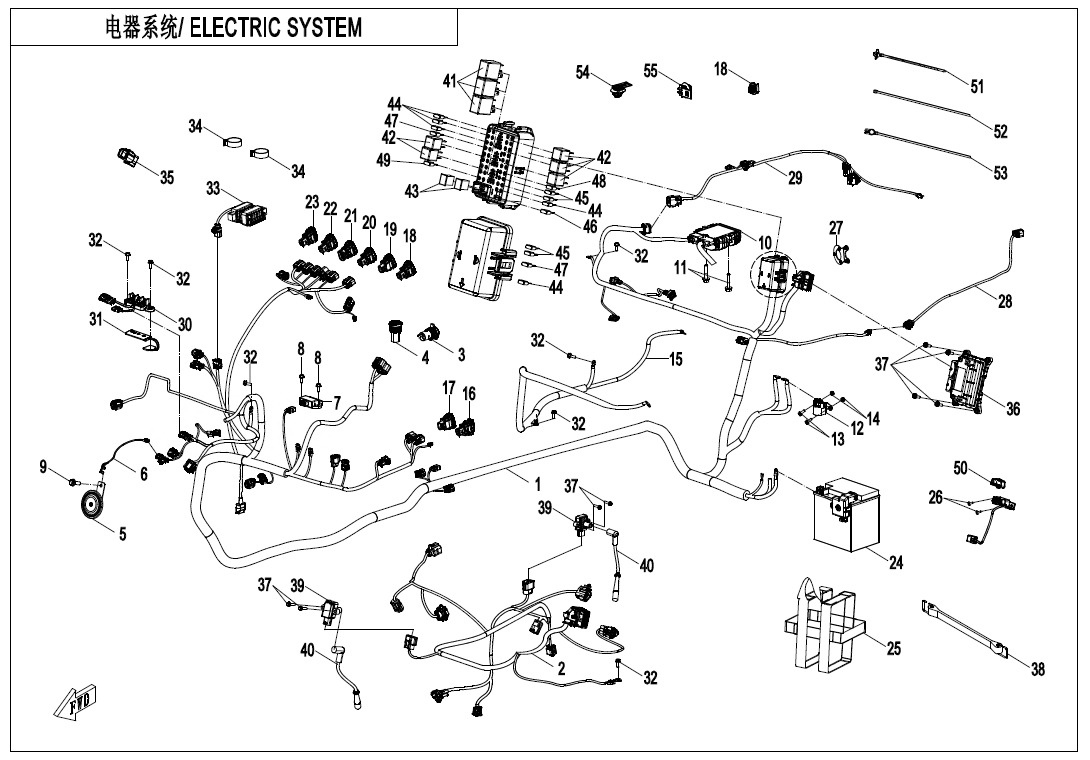

2022 CF MOTO ZFORCE 800 TRAIL ELECTRIC SYSTEM exploded diagram
ELECTRIC SYSTEM · 4

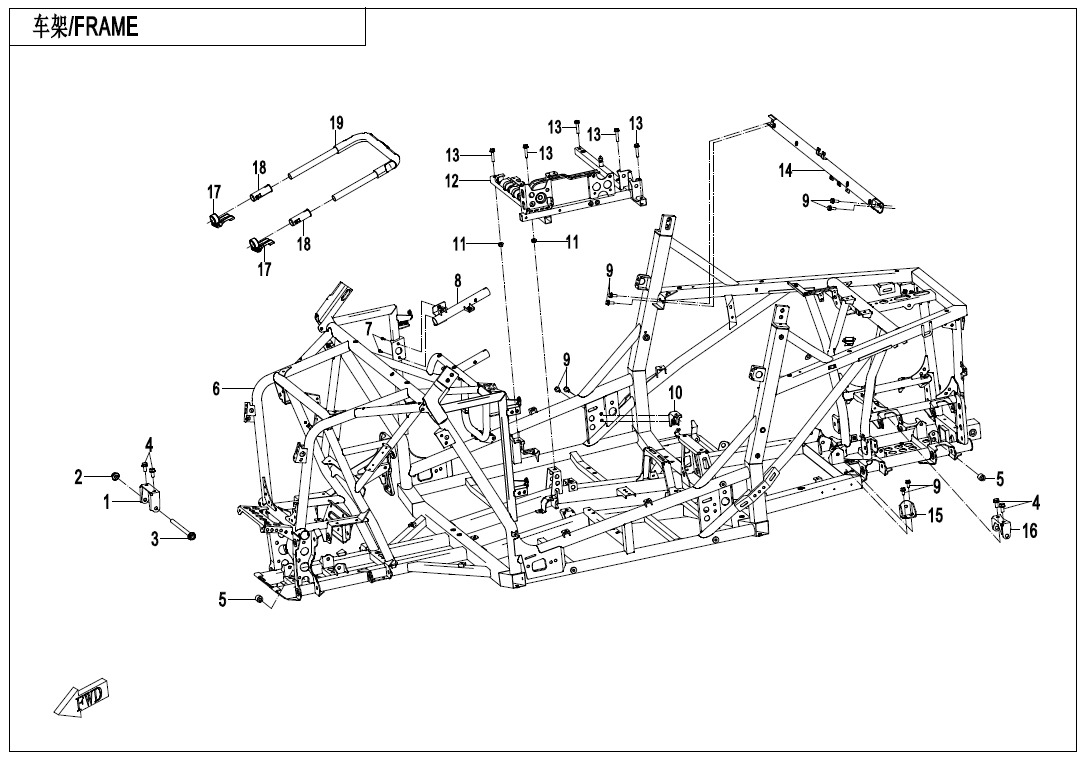

2022 CF MOTO ZFORCE 800 TRAIL FRAM exploded diagram
FRAM · 2

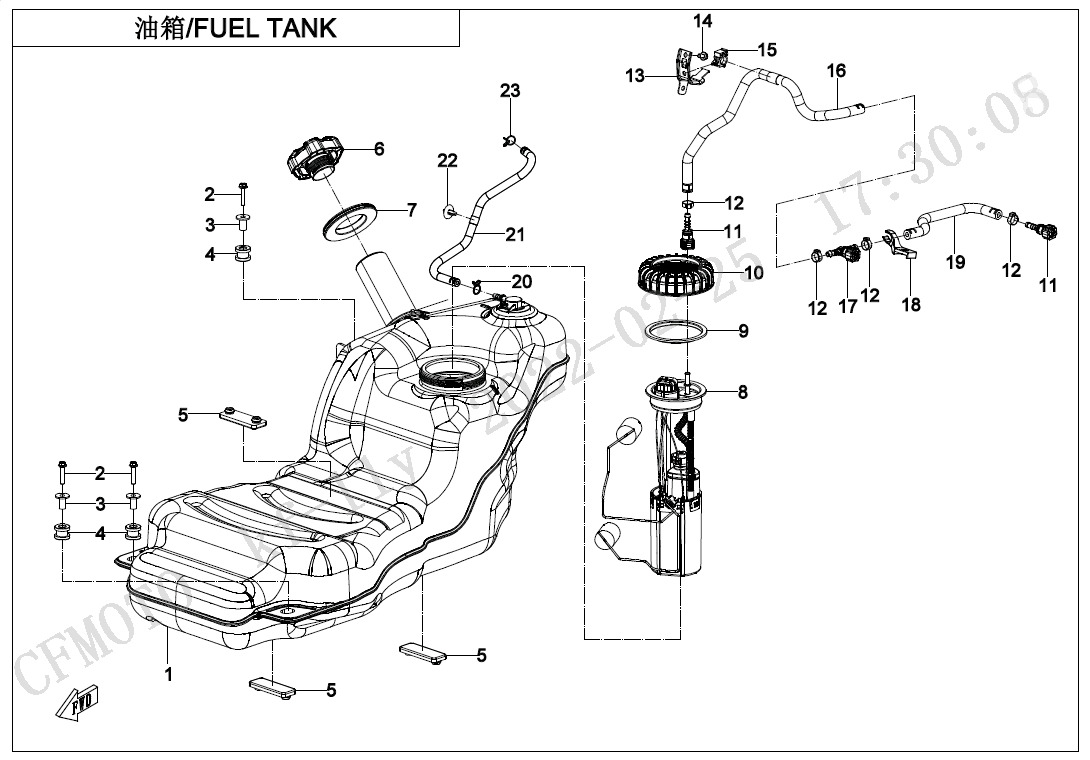

2022 CF MOTO ZFORCE 800 TRAIL FUEL TANK exploded diagram
FUEL TANK · 2
2022 CF MOTO ZFORCE 800 TRAIL TOWING WINCH exploded diagram
TOWING WINCH · 2

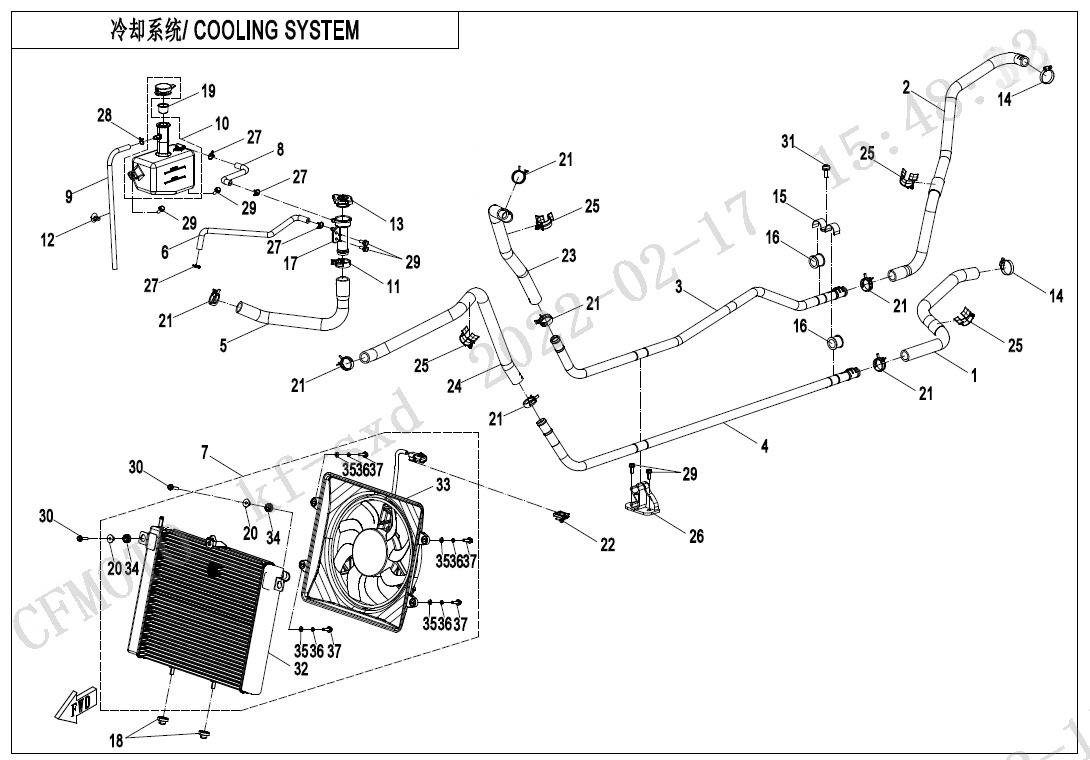

2022 CF MOTO ZFORCE 800 TRAIL COOLING SYSTEM exploded diagram
COOLING SYSTEM · 2
2022 CF MOTO ZFORCE 800 TRAIL TOWING WINCH exploded diagram
TOWING WINCH · 2

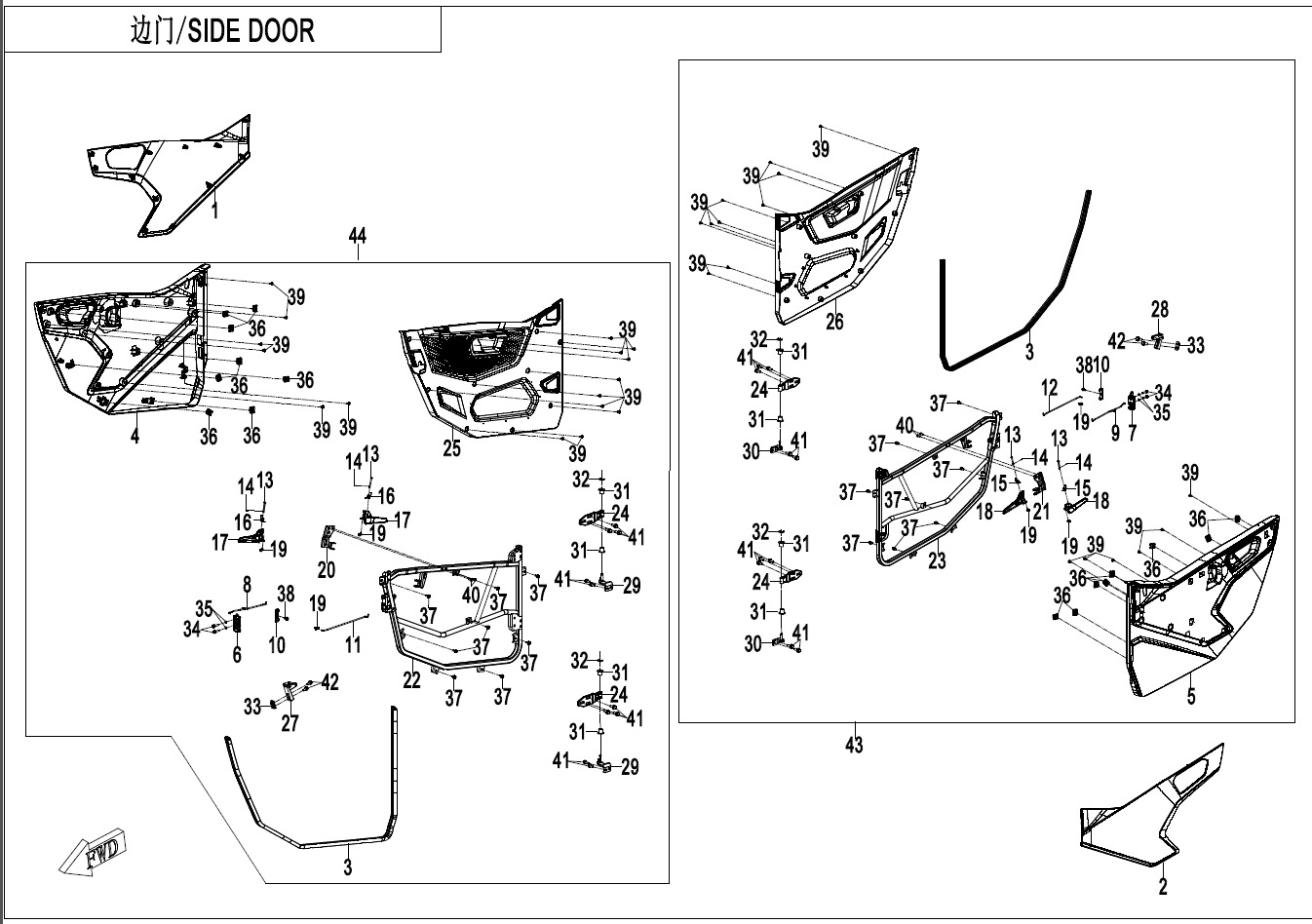

2022 CF MOTO ZFORCE 800 TRAIL SIDE DOORS exploded diagram
SIDE DOORS · 2

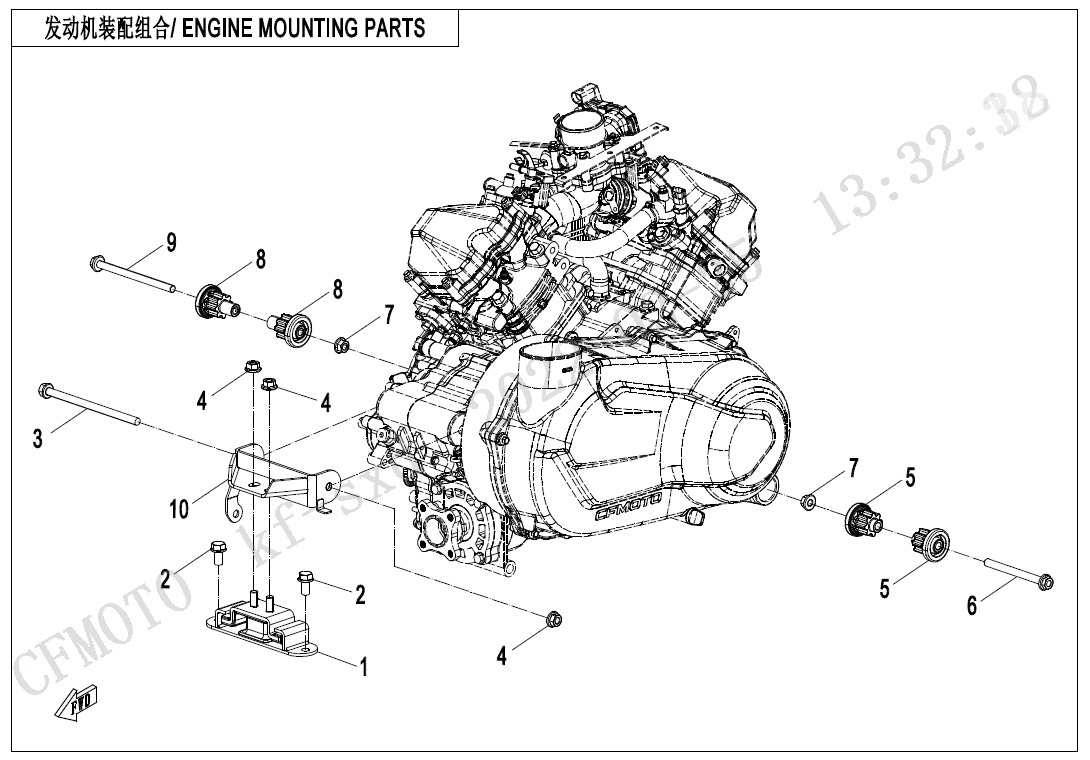

2022 CF MOTO ZFORCE 800 TRAIL ENGINE MOUNTING PARTS exploded diagram
ENGINE MOUNTING PARTS · 1

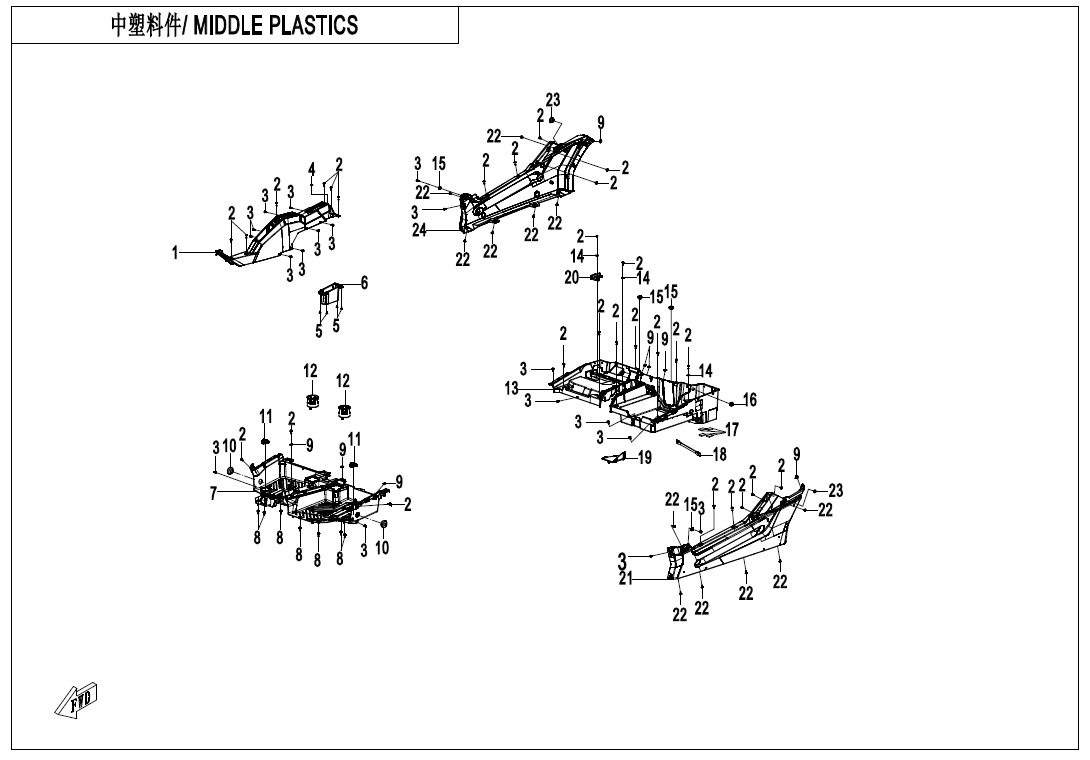

2022 CF MOTO ZFORCE 800 TRAIL MIDDLE PLASTICS exploded diagram
MIDDLE PLASTICS · 1

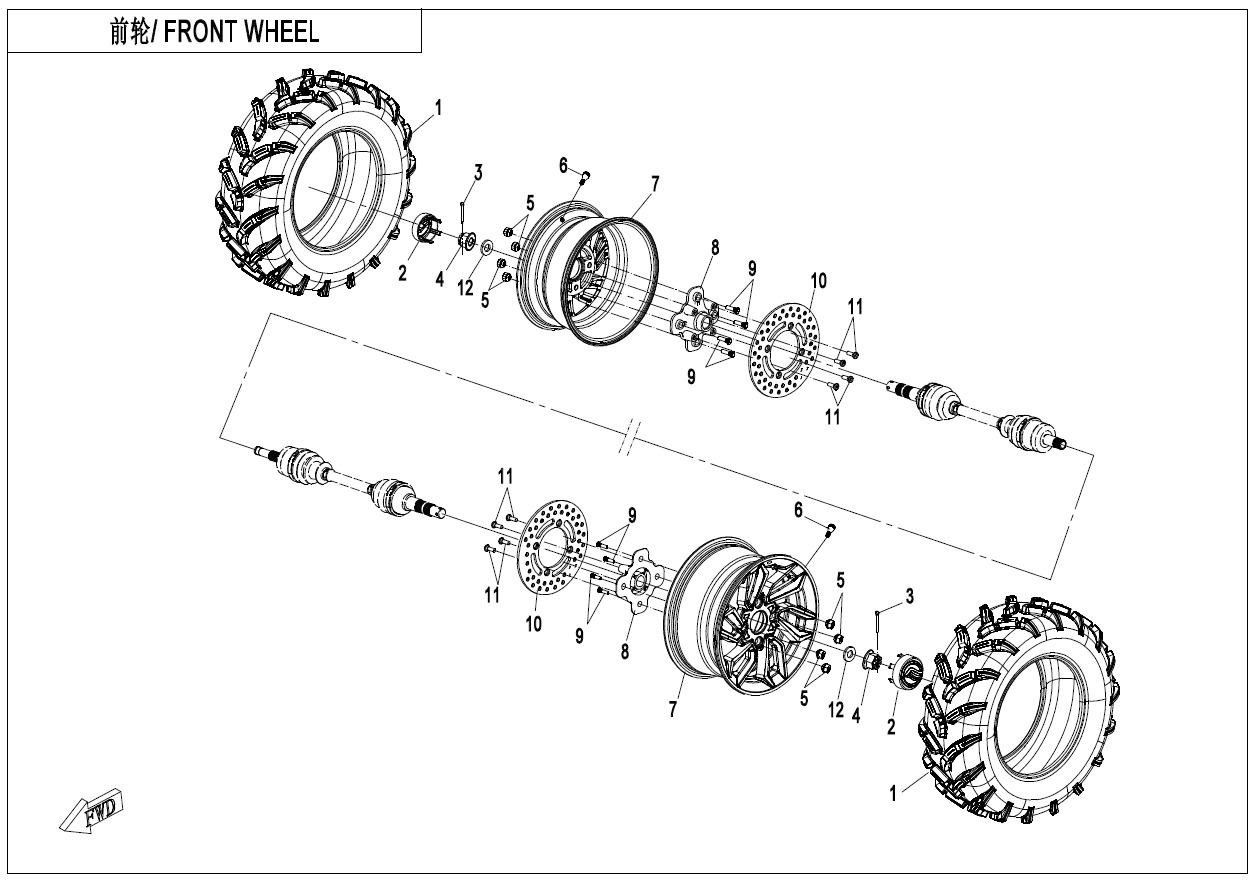

2022 CF MOTO ZFORCE 800 TRAIL FRONT WHEEL exploded diagram
FRONT WHEEL · 1
