2025–2026 V-Cruise 125 E5+ (2025 – 2026) — Electrical System parts

UK market77 genuine parts12 diagrams

Subgroups

Sensor · 2Headlight & Parts · 28Lights · 6Battery · 12Relay · 8Controller/ECU · 30

Part numbers

Every genuine electrical system part fitted to the 2025–2026 V-Cruise 125 E5+ (2025 – 2026). Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
P0821N00-431032-0A3Keeway V 302 C E5 HEADLIGHT RIGHT MOUNTING BRACKF20 - HEADLIGHTEnquire
P0821N00-431031-0A3Keeway V 302 C E5 HEADLIGHT LEFT MOUNTING BRACKEF20 - HEADLIGHTEnquire
P0821N00-431020-0A3Keeway V 302 C E5 OUTER DECORATIVE FRAME OF HEADF20 - HEADLIGHTEnquire
P0821I0G-303040Keeway RKV 125C E5 HEADLIGHT RIGHT BRACKETF11 - BRAKE SYSTEMEnquire
P08258V0-259001Keeway RKV 125C E5 OXYGEN SENSOR WIRE LENGTH:400MMF03 - EXHAUSTEnquire
P08258V0-252000-002Keeway RKV 125C E5 REAR IGNITION COIL ASSEMBLYF01 - ELECTRICAL PARTSEnquire
P0826700.257000Keeway RKV 125C E5 START RELAYF01 - ELECTRICAL PARTSEnquire
P0826700-100120Keeway RKV 125C E5 SENSOR, WATER TEMPERATUREE17 - THERMOSTATEnquire
P0804490-035300Keeway RKV 125C E5+ CABLE TIE (3.5?300)F26 - WIRE HARNESS ASSY.Enquire
P0821N00-481030Keeway RKV 125C E5+ LEAD WIRE, STARTER MOTORF26 - WIRE HARNESS ASSY.Enquire
PH21II481010100Keeway V-Cruise 125 E5+ MAIN HARNESS MotionF26 - WIRE HARNESS ASSY.Enquire
P0821N00-481020Keeway V 302 C E5+ TAILLIGHT TRANSITION LINEF26 - WIRE HARNESS ASSY.Enquire
P0821N00-494020Keeway RKV 125C E5+ T-TYPE BUSHINGF24 - BODY COVER PARTSEnquire
P0821N00-462000Keeway RKV 125C E5 GASOLINE SENSOR ASSEMBLYF23 - INSTRUMENT ASSY.Enquire
P0821N00-452022Keeway RKV 125C E5+ REAR RIGHT TURN SIGNAL LIGHTF22 - TURN SIGNAL LIGHTEnquire
P0821N00-452021Keeway RKV 125C E5+ REAR LEFT TURN SIGNAL LIGHTF22 - TURN SIGNAL LIGHTEnquire
P0821N00-451011Keeway RKV 125C E5+ FRONT LEFT TURN SIGNAL LIGHTF22 - TURN SIGNAL LIGHTEnquire
P0821N00-451012Keeway RKV 125C E5+ FRONT RIGHT TURN SIGNAL LIGHTF22 - TURN SIGNAL LIGHTEnquire
PH09710816150SLKeeway V 302 C E5+ FLAT CUSHION ?8??16?1.5F21 - TAIL LIGHTEnquire
P0821N00-511090Keeway V 302 C E5+ REAR TAILLIGHT CUSHION LEATHERF21 - TAIL LIGHTEnquire
P0821N00-441010Keeway V 302 C E5+ REAR LIGHTF21 - TAIL LIGHTEnquire
P0821N00-473072Keeway RKV 125C E5+ RIGHT DECORATIVE COVER FOR HEADLIGHTF20 - HEADLIGHTEnquire
PH21N04730721MPKeeway RKV 125C E5+ RIGHT DECORATIVE COVER FOR HEADLIGHTF20 - HEADLIGHTEnquire
P0821N00-431050Keeway RKV 125C E5+ LARGE LAMPSHADE LIGHT LEAKAGE SPONGE STRIP 210?18?12F20 - HEADLIGHTEnquire
P0821N00-431040Keeway RKV 125C E5+ LARGE LAMPSHADE LIGHT LEAKAGE SPONGE STRIP 165?18?12F20 - HEADLIGHTEnquire
PH07010802800ZHKeeway RKV 125C E5+ BOLT SOCKET 8x25F20 - HEADLIGHTEnquire
P0821N00-511100Keeway RKV 125C E5+ HEADLIGHT CUSHIONF20 - HEADLIGHTEnquire
P0821N00-473071Keeway RKV 125C E5+ LEFT DECORATIVE COVER OF HEADLIGHTF20 - HEADLIGHTEnquire
PH21N04730711MPKeeway RKV 125C E5+ LEFT DECORATIVE COVER OF HEADLIGHT MATT BLACK A3F20 - HEADLIGHTEnquire
P0821N00-431032Keeway V 302 C E5+ HEADLIGHT RIGHT MOUNTING BRACKETF20 - HEADLIGHTEnquire
PH21N04310320A3Keeway V 302 C E5+ HEADLIGHT RIGHT MOUNTING BRACKET MATT BLACK A3F20 - HEADLIGHTEnquire
P0821N00-431031Keeway V 302 C E5+ HEADLIGHT LEFT MOUNTING BRACKETF20 - HEADLIGHTEnquire
PH21N04310310A3Keeway V 302 C E5+ HEADLIGHT LEFT MOUNTING BRACKET MATT BLACK A3F20 - HEADLIGHTEnquire
P0821N00-431020Keeway V 302 C E5+ OUTER DECORATIVE FRAME OF HEADLIGHTF20 - HEADLIGHTEnquire
PH21N04310200A3Keeway V 302 C E5+ OUTER DECORATIVE FRAME OF HEADLIGHT MATT BLACK A3F20 - HEADLIGHTEnquire
PH21N0431010002Keeway V 302 C E5+ HEADLIGHT BD-MOTOF20 - HEADLIGHTEnquire
P0821N00-375050Keeway V 302 C E5+ SEAT LOCK CABLEF17 - LOCKSETEnquire
P0821N00-400030Keeway V 302 C E5+ CUSHION LOCKF17 - LOCKSETEnquire
P0821N00-400010Keeway V 302 C E5+ IGNITION SWITCH LOCKF17 - LOCKSETEnquire
P0821N00-400000Keeway V 302 C E5+ SET OF LOCK ASSEMBLYF17 - LOCKSETEnquire
P0821N00-372020Keeway V 302 C E5+ CLUTCH HANDLE PRESSURE BLOCKF12 - HANDLEBARSEnquire
P0821N00-511050Keeway V 302 C E5+ CLUTCH WIRE SHEATHF12 - HANDLEBARSEnquire
PH21N03120300A3Keeway V-Cruise 125 E5+ STEERING STEM PRESS BLOCKF12 - HANDLEBARSEnquire
P0821R00-511090Keeway V-Cruise 125 E5+ SPROCKET SEAT BUFFER BLOCKF10 - REAR WHEELEnquire
P0821MG0-482010Keeway RKV 125C E5+ CONNECT WIRE VALVE EGR/SOLENOID VALVEF05 - CANISTEREnquire
P0821QA1-431011Keeway RKV 125C E5+ HEADLIGHT CONTROLLERF01 - ELECTRICAL PARTSEnquire
PH258V252000002Keeway RKV 125C E5+ REAR IGNITION COIL ASSEMBLYF01 - ELECTRICAL PARTSEnquire
P0821M00-544030Keeway V 302 C E5+ 3M SINGLE-SIDED ADHESIVE (20?2.0)F01 - ELECTRICAL PARTSEnquire
P0821N00-482070Keeway V 302 C E5+ USB CHARGERF01 - ELECTRICAL PARTSEnquire
P0821N00-511060Keeway RKV 125C E5+ LOGIC RELAY SHEATHF01 - ELECTRICAL PARTSEnquire
P0821N00-482030Keeway RKV 125C E5+ FLASHERF01 - ELECTRICAL PARTSEnquire
P0821N00-482020Keeway RKV 125C E5+ LOGIC RELAYF01 - ELECTRICAL PARTSEnquire
PH242V251000014Keeway V-Cruise 125 E5+ ECU MotionF01 - ELECTRICAL PARTSEnquire
P0821N00-474050Keeway V 302 C E5+ BATTERY BOXF01 - ELECTRICAL PARTSEnquire
P0821N00-486010Keeway RKV 125C E5+ BATTERY (MG14ZS-C 12V 11.2AH)F01 - ELECTRICAL PARTSEnquire
P0825300-257000Keeway RKV 125C E5+ START RELAYF01 - ELECTRICAL PARTSEnquire
P08258V0-252000Keeway RKV 125C E5+ HIGH VOLTAGE IGNITION COIL ASSEMBLYF01 - ELECTRICAL PARTSEnquire
P08258V0-252000-001Keeway RKV 125C E5+ HIGH VOLTAGE IGNITION COIL ASSF01 - ELECTRICAL PARTSEnquire
PH258V252000001Keeway RKV 125C E5+ HIGH VOLTAGE IGNITION COIL ASSEMBLYF01 - ELECTRICAL PARTSEnquire
P0821N00-483040Keeway RKV 125C E5+ Tilt SwitchF01 - ELECTRICAL PARTSEnquire
P0821Q00-482040Keeway RKV 125C E5+ HORNF01 - ELECTRICAL PARTSEnquire
P0825300-256000Keeway V 302 C E5+ VOLTAGE REGULATING RECTIFIERF01 - ELECTRICAL PARTSEnquire
P08258V0-210006Keeway RKV 125C E5+ SENSOR,THE LOCTION OF THROTTLEE18 - THROTTLE BODYEnquire
P08258V0-210003Keeway RKV 125C E5+ SENSOR,INLET PRESSUREE18 - THROTTLE BODYEnquire
P0826701-100120Keeway RKV 125C E5+ SENSOR, WATER TEMPERATUREE17 - THERMOSTATEnquire
P0800070-050120Keeway RKV 125C E5+ BOLT,SOCKET,5x12E15 - GENERATOREnquire
P0800701-050120-0DWKeeway RKV 125C E5+ BOLT,SOCKET,5x12E15 - GENERATOREnquire
PH07010501200DWKeeway RKV 125C E5+ BOLT SOCKET 5x12E15 - GENERATOREnquire
P0800070-060350Keeway RKV 125C E5+ BOLT,SOCKET,6x35E15 - GENERATOREnquire
P0800701-060350-0DWKeeway RKV 125C E5+ BOLT,SOCKET,6x35E15 - GENERATOREnquire
PH07010603500DWKeeway RKV 125C E5+ BOLT SOCKET 6x35E15 - GENERATOREnquire
PH07010801800NBKeeway RKV 125C E5+ BOLT SOCKET 8x18E15 - GENERATOREnquire
P08258V0-201000Keeway RKV 125C E5+ FLYWHEEL COMP.E15 - GENERATOREnquire
P08258V0-202000Keeway RKV 125C E5+ STATOR COMP.E15 - GENERATOREnquire
P08258V0-200000Keeway RKV 125C E5+ GENERATOR ASSY.E15 - GENERATOREnquire
P0826700-114005Keeway RKV 125C E5+ BOLT,TDC,12MME09 - GENERATOR COVEREnquire
P0826700-114004Keeway RKV 125C E5+ WASHER,TDC BOLTE09 - GENERATOR COVEREnquire

Exploded diagrams — Electrical System

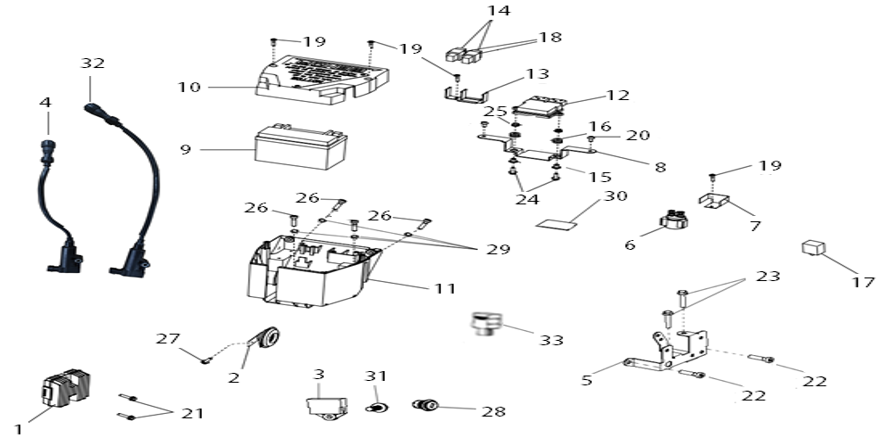

2025–2026 V-Cruise 125 E5+ (2025 – 2026) F01 - ELECTRICAL PARTS exploded diagram
F01 - ELECTRICAL PARTS · 20

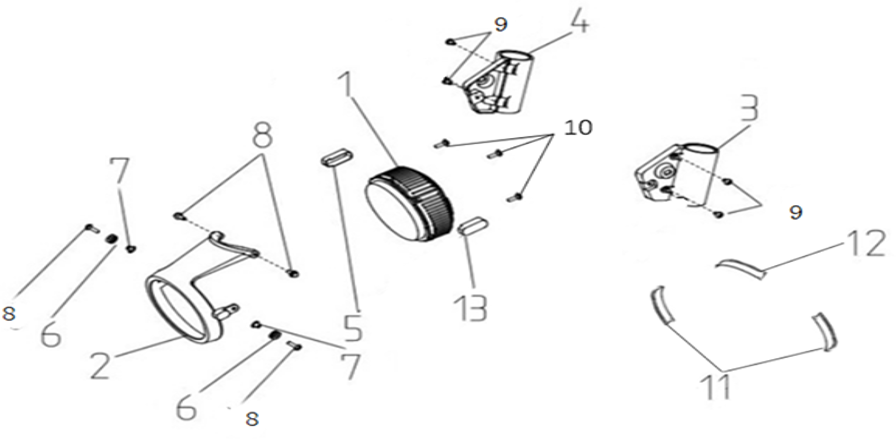

2025–2026 V-Cruise 125 E5+ (2025 – 2026) F20 - HEADLIGHT exploded diagram
F20 - HEADLIGHT · 18

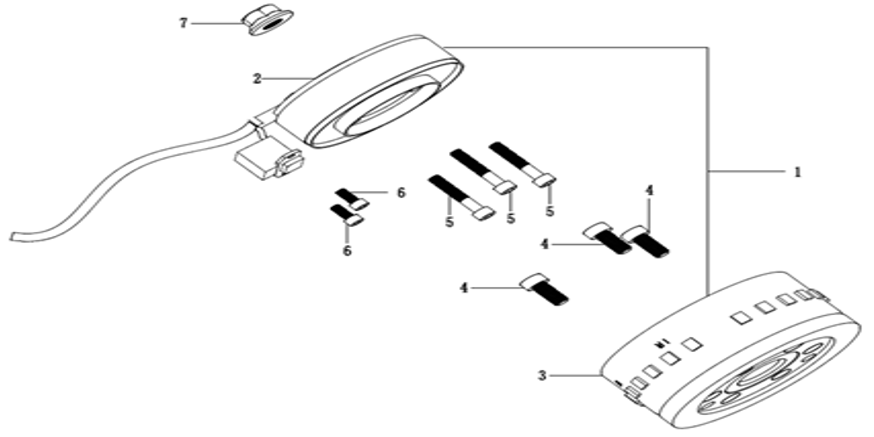

2025–2026 V-Cruise 125 E5+ (2025 – 2026) E15 - GENERATOR exploded diagram
E15 - GENERATOR · 10
2025–2026 V-Cruise 125 E5+ (2025 – 2026) F26 - WIRE HARNESS ASSY. exploded diagram
F26 - WIRE HARNESS ASSY. · 4

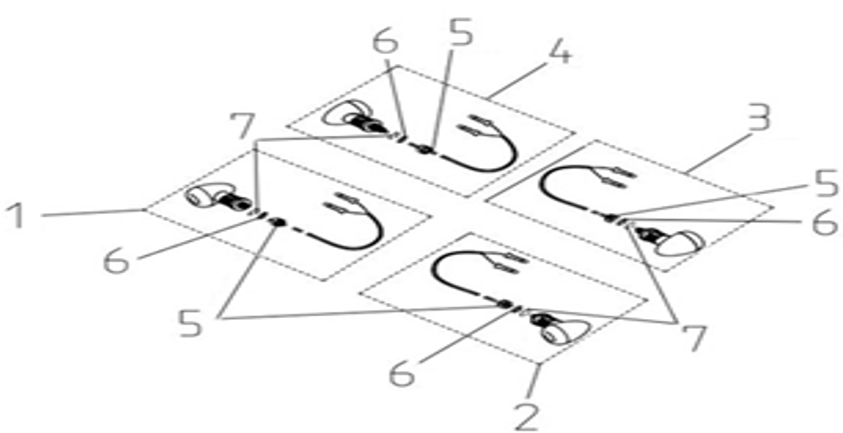

2025–2026 V-Cruise 125 E5+ (2025 – 2026) F22 - TURN SIGNAL LIGHT exploded diagram
F22 - TURN SIGNAL LIGHT · 4

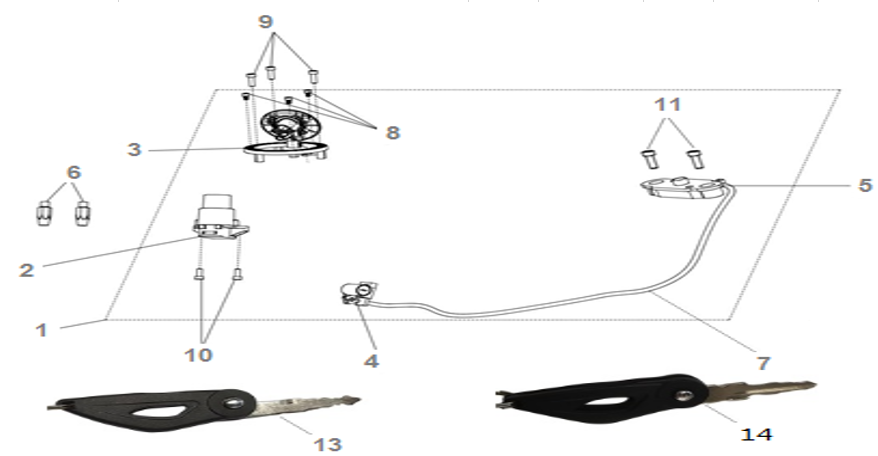

2025–2026 V-Cruise 125 E5+ (2025 – 2026) F17 - LOCKSET exploded diagram
F17 - LOCKSET · 4
2025–2026 V-Cruise 125 E5+ (2025 – 2026) F12 - HANDLEBARS exploded diagram
F12 - HANDLEBARS · 4
2025–2026 V-Cruise 125 E5+ (2025 – 2026) F21 - TAIL LIGHT exploded diagram
F21 - TAIL LIGHT · 3
2025–2026 V-Cruise 125 E5+ (2025 – 2026) F11 - BRAKE SYSTEM exploded diagram
F11 - BRAKE SYSTEM · 2

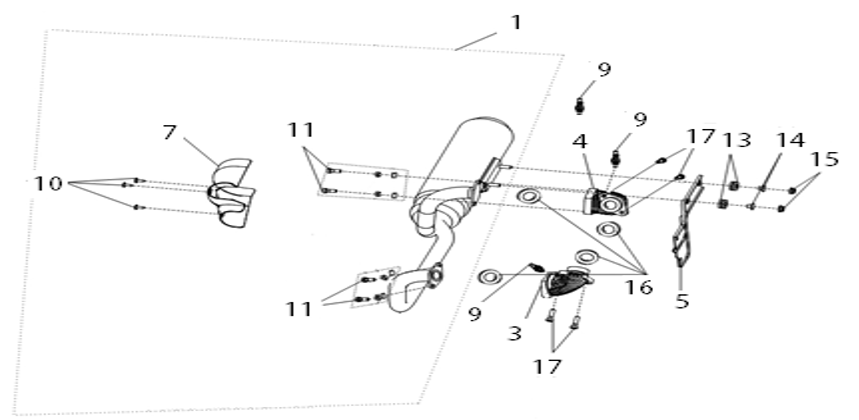

2025–2026 V-Cruise 125 E5+ (2025 – 2026) F03 - EXHAUST exploded diagram
F03 - EXHAUST · 2
2025–2026 V-Cruise 125 E5+ (2025 – 2026) E17 - THERMOSTAT exploded diagram
E17 - THERMOSTAT · 2
2025–2026 V-Cruise 125 E5+ (2025 – 2026) E18 - THROTTLE BODY exploded diagram
E18 - THROTTLE BODY · 2
