TBQ251RUBBER BLOCK — Genuine CF MOTO Part
CF MOTOoem
TBQ251 - RUBBER BLOCK #39
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (1)

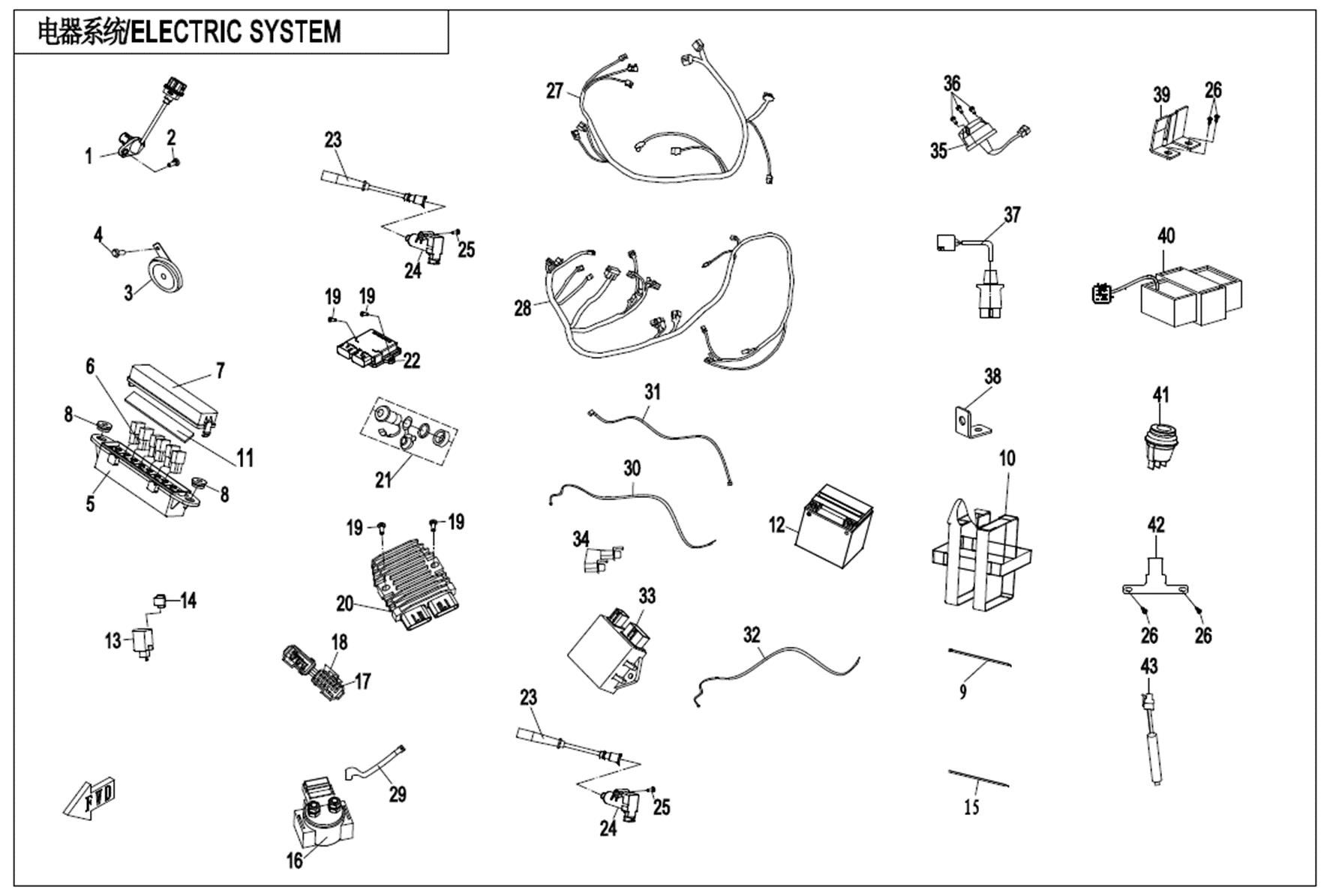

Location in exploded diagrams
Other parts on this diagram — ELECTRIC SYSTEM(HIGH POWER)
- #1 7020-150400 — SPEED SENSOR
- #2 30006-060020810 — BOLT M6X20
- #3 5020-150700 — ELECTRIC HORN
- #4 30006-060016810 — BOLT M6X16
- #5 7020-040411 — RELAY BOX
- #6 9010-150350 — AUXILIARY RELAY
- #7 7020-040412-10000 — COVER,RELAY BOX Replacing: 7020-040412 - COVER, RELAY BOX
- #8 0180-015003 — RUBBER SLEEVE
- #9 9010-150004 — TIE BAND
- #10 9060-152100 — BELT,BETTERY, 30A
- #11 7020-040414 — RUBBER MAT,RELAY BOX COVER
- #12 31023004 — BATTERY DYNAVOLT GHD32HL-BS 12V 30A/H Replacing: 31023000 - BATTERY DYNAVOLT DTX30L-BS
- #13 9AWA-150340 — FLASHER
- #14 8010-150002 — CUSHION FLASHER
- #15 8010-150003 — TIE BAND 5X250
- #16 9CR6-150310 — STARTER RELAY
- #17 806A-151302 — FUSE 10A
- #18 806A-151305 — FUSE (15A) Replacing: 806A-151303 - FUSE
- #19 30006-060030810 — BOLT M6X30
- #20 0800-177000-10000 — REGULATOR
- #21 9GQ0-150500-10000 — OUTPUT SEAT,POWER Replacing: 9GQ0-150500 - OUTPUT SEAT, POWER
- #22 0JWA-174000-20000 — ECU 850 Replacing: 0JWA-174000 - ECU
- #23 0800-179100-10000 — HIGH VOLTAGE CABLE ASSY 1 Replacing: 0800-179100 - HIGH-TENSION CABLE 1
- #24 0800-178000 — IGNITION COIL
