SH-JC24322-033012Nd Driven Gear Big Gasket — Genuine CF MOTO Part
CF MOTOoem
Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 1.07 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 1.00 | listing | cfmoto.quadzillaparts.co.uk |

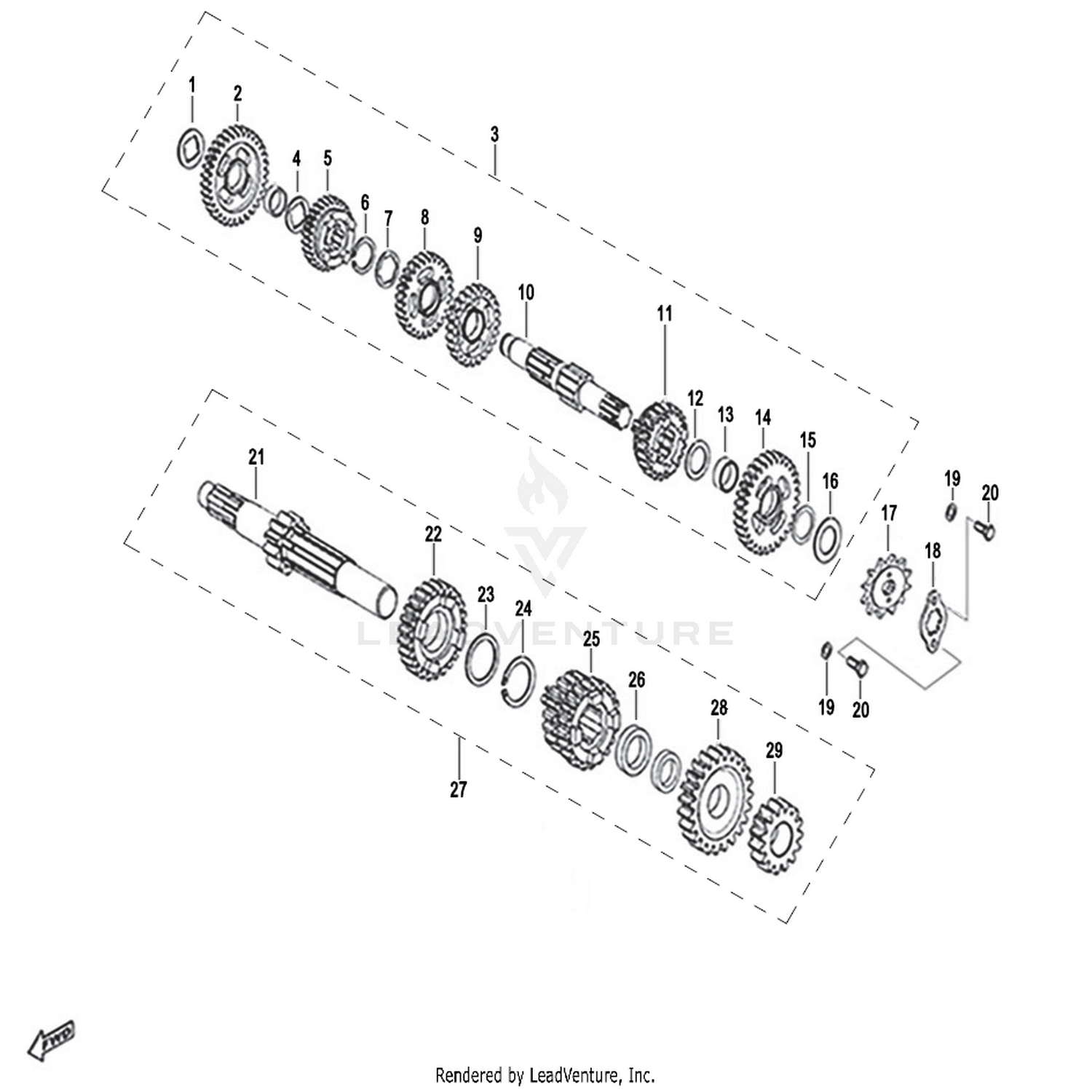

Location in exploded diagrams
Other parts on this diagram — Transmission
- #03 SH-JC24300-03301 — Output Shaft Assy
- #09 SH-JC24341-03301 — 4Th Driven Gear
- #15 SH-JC24323-03301 — 2Nd Driven Gear Small Gasket
- #21 SH-JC24211-03301 — Intermediate Shaft
- #27 SH-JC24200-03301 — Middle Shaft Assy
- #04 SH-JC24313-03301 — 1St Driven Gear Small Gasket
- #10 SH-JC24371-03301 — Output Shaft
- #22 SH-JC24251-03301 — 5Th Drive Gear
- #28 SH-JC24261-03301 — 6Th Drive Gear
- #05 SH-JC24351-03301 — 5Th Driven Gear
- #11 SH-JC24361-03301 — 6Th Driven Gear
- #17 SH-JC27511-03301 — Small Sprocket
- #23 SH-JC24252-03301 — 5Th Drive Gear Gasket
- #29 SH-JC24221-03301 — 2Nd Drive Gear
- #06 SH-JC24333-03301 — 3Rd Driven Gear Circlip
- #12 SH-JC24325-03301 — 2Nd Driven Gear Small Gasket
- #18 SH-JC27521-03300 — Lock Gasket
- #24 SH-JC24253-03301 — 5Th Drive Gear
- #01 SH-JC24312-03301 — 1St Driven Gear Big Gasket
- #07 SH-JC24332-03301 — 3Rd Driven Gear Gasket
- #13 SH-JC24324-03301 — 2Nd Driven Gear Bushing
- #19 30317-005050 — Washer
- #25 SH-JC24231-03301 — 3,4Th Drive Gear
- #02 SH-JC24311-03301 — 1St Driven Gear
