Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 11.88 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 10.99 | listing | cfmoto.quadzillaparts.co.uk |

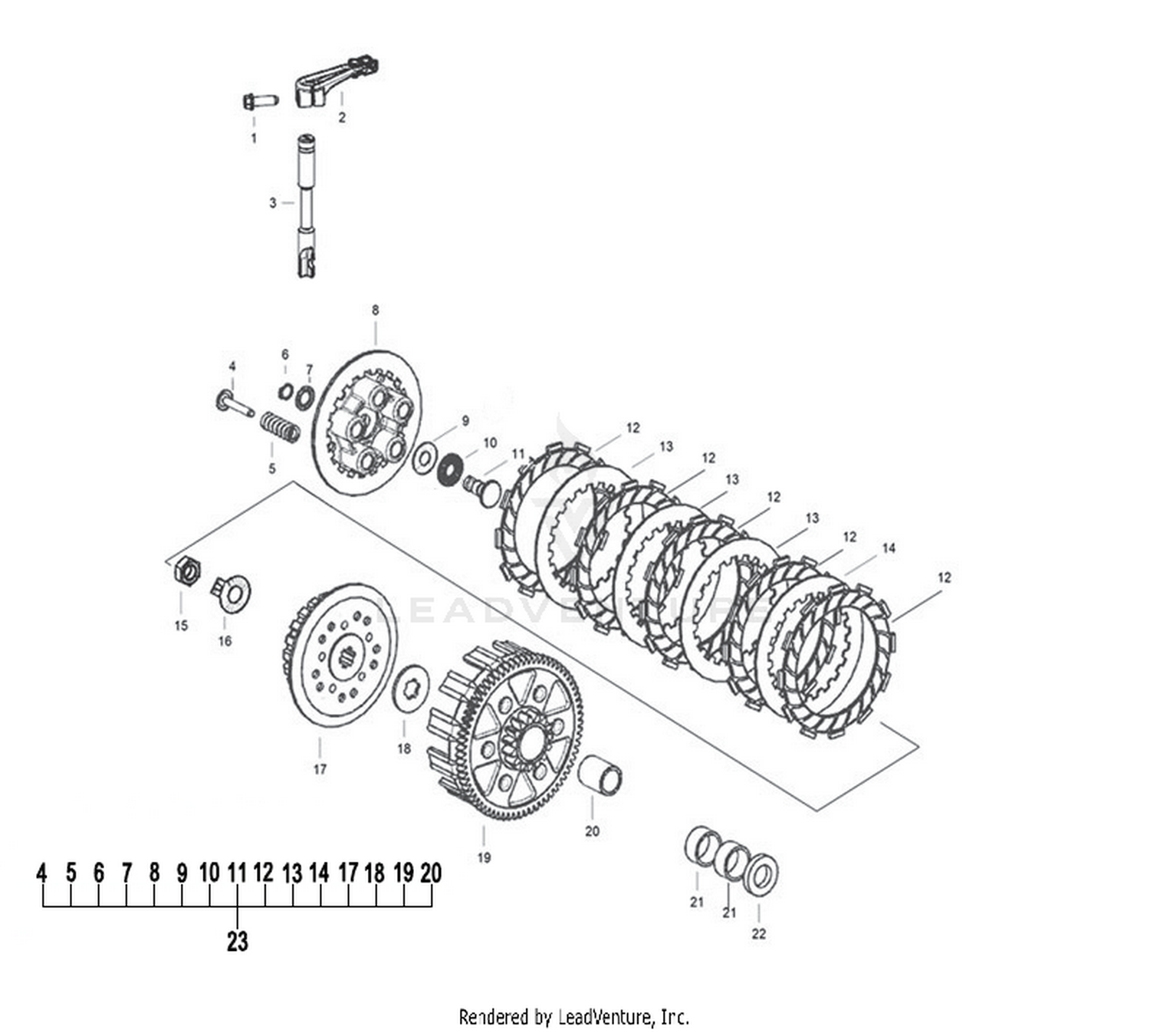

Location in exploded diagrams
Other parts on this diagram — Clutch
- #04 SH-JCJ4320-5035H — Clutch Spring Bolt
- #10 SH-JC21312-03300 — Clutch Release Bearing
- #16 SH-JC21413-03300 — Gasket
- #22 SH-JC21553-03300 — Gasket
- #11 SH-JC21311-03300 — Clutch Release Tappet
- #05 SH-JC21414-03300 — Clutch Spring
- #17 SH-JC21411-03300 — Clutch Inner Housing
- #23 SH-JC21000-03300 — Clutch Assy
- #06 SH-JCH1020-1000H — Circlip
- #12 SH-JC21441-03300 — Clutch Drive Frisc Disc
- #18 SH-JC21552-03300 — Clutch Housing Gasket
- #01 SH-JCC2010-8020L — Inner Hex Bolt
- #07 SH-JC21314-03300 — Gasket
- #13 SH-JC21451-03300 — Clutch Driven Frisc Disc
- #19 SH-JC21200-03300 — Clutch Outer Housing Assy
- #02 SH-JC23270-03310 — Clutch Release Swing Arm Assy
- #08 SH-JC21462-03300 — Clutch Pressure Plate
- #14 SH-JC21452-03300 — Clutch Driven Frisc Disc
- #20 SH-JC21551-03300 — Clutch Sleeve
- #09 SH-JC21313-03300 — Gasket
- #15 SH-JC21412-03300 — Inner Housing Lock Nut
- #21 SH-JC21415-03300 — Needle Bearing
