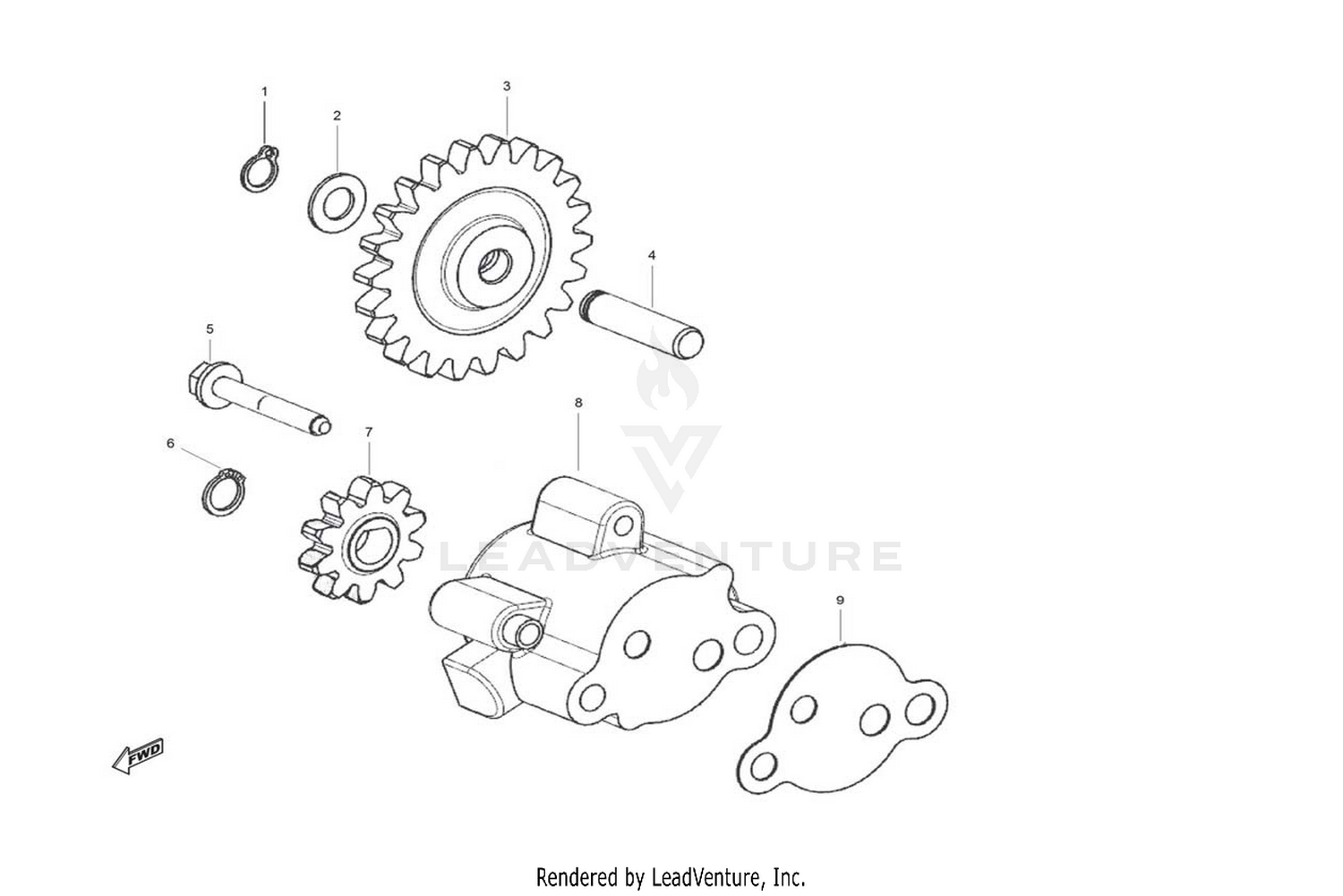

Location in exploded diagrams
Other parts on this diagram — Oil Pump
- #01 SH-JCH1020-08000 — Circlip
- #02 SH-JC16323-03300 — Gasket
- #08 SH-JC16400-03300 — Oil Pump Assy
- #03 SH-JC16321-03300 — Oil Pump Intermediate Gear
- #09 SH-JC16341-03302 — Seal Gasket
- #04 SH-JC16322-03300 — Oil Pump Intermediate Shaft
- #05 SH-JCC2010-5040B — Oil Pump Positioning Bolt
- #06 SH-JC16332-03300 — Circlip
