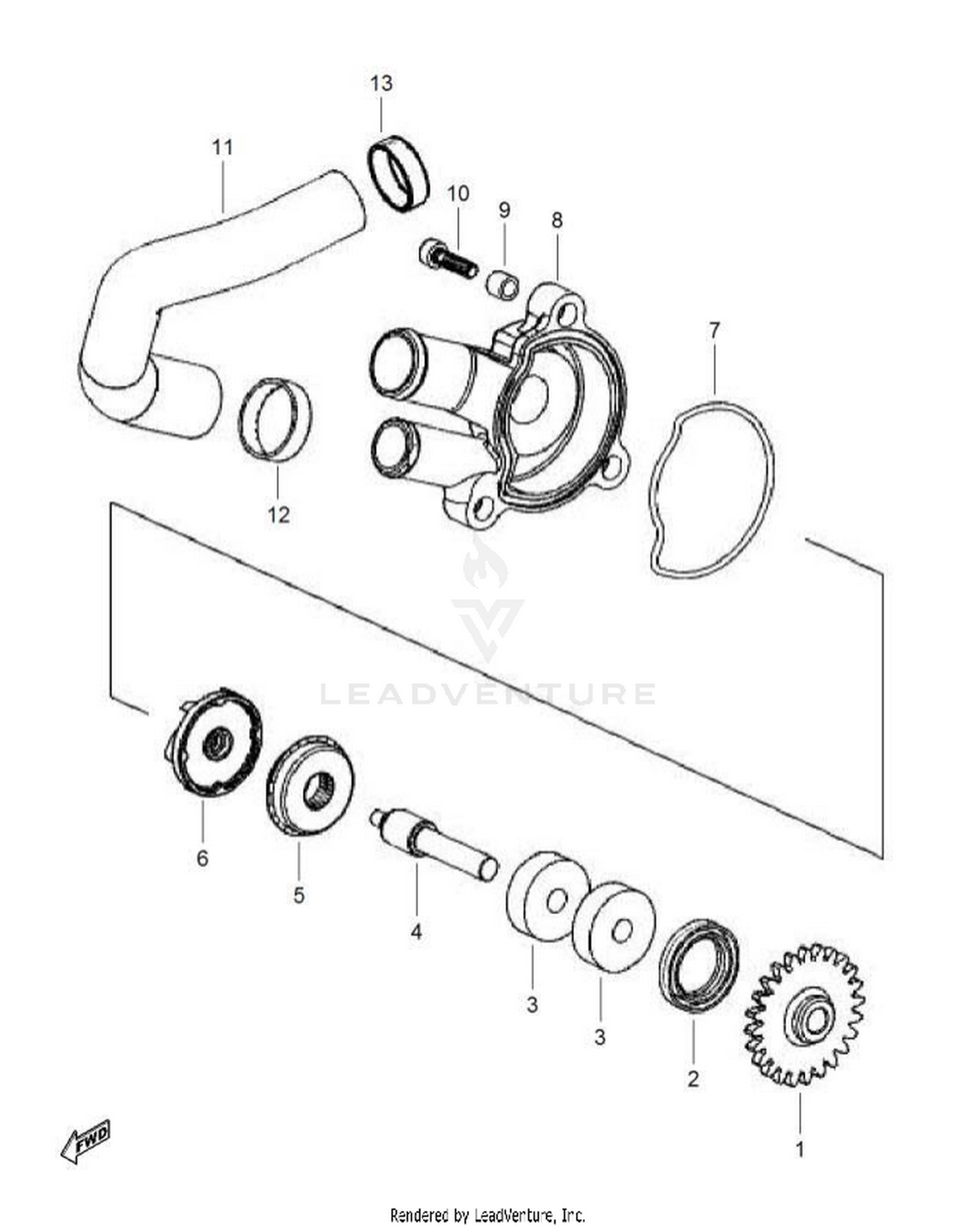

Location in exploded diagrams
Other parts on this diagram — Water Pump
- #01 SH-JC17462-03300 — Pump Driven Gear
- #07 SH-JC17433-00300 — O-Ring
- #13 SH-JC17473-00300 — Pipe Clamp
- #08 SH-JC17432-03300 — Water Pump Housing
- #03 SH-JC17422-03300 — Ball Bearing
- #09 SH-JC17431-03300 — Dowel Pin
- #04 SH-JC17421-03300 — Water Pump Shaft
- #10 SH-JCC2010-5018W — Bolt
- #05 SH-JC17440-03301 — Water Pump Shaft Sealer
- #11 SH-JC17471-03310 — Water Pump Pipe
- #06 SH-JC17410-03300 — Water Pump Rotor Assy
- #12 SH-JC6100-180001 — Pipe Clamp
