Q891-310002FRONT GEAR CASE COVER — Genuine CF MOTO Part
CF MOTOoem
Q891-310002 - FRONT GEAR CASE COVER #47
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (1)

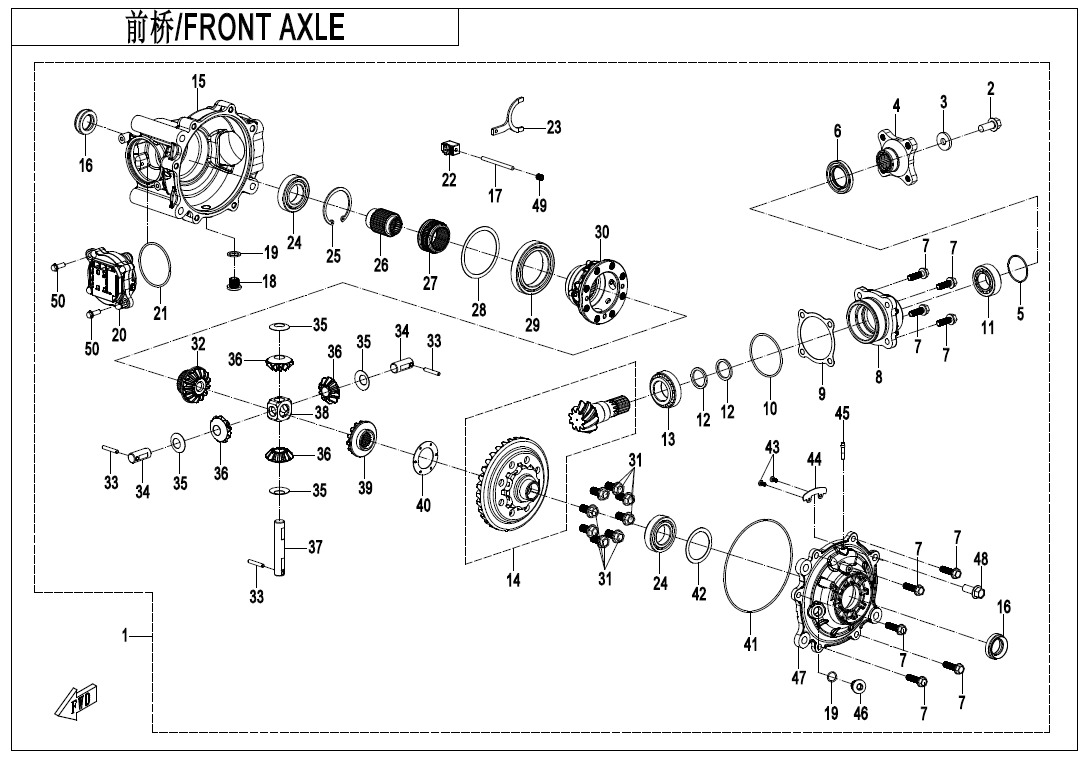

Location in exploded diagrams
Other parts on this diagram — FRONT AXLE
- #1 Q891-310000 — FRONT GEAR CASE ASSY
- #2 0GR0-062203 — BOLT M10X1.25X20
- #3 0GR0-062204 — WASHER 10X27.5X4
- #4 Q850-331002 — COUPLER
- #5 0800-062205 — O-RING 25X2
- #6 0800-062204 — OIL SEAL 35X50X6
- #7 0JYA-062104 — BOLT M8X28 Replacing: 0110-060011-0010 - BOLT M8X28
- #8 Q830-311002-00001 — BEARING SEAT
- #9 Q830-310023-00100 — ADJUSTING WASHER, T=0.20
- #9 Q830-310023-00200 — ADJUSTING WASHER, T=0.30
- #10 Q830-310006-10000 — O-RING 55X2.5
- #11 30409-02500 — BEARING 33005 25X47X17
- #12 Q830-311003-00600 — ADJUSTING WASHER 32×25.4, T=2.44 Replacing: Q830-311003-00601 - ADJUSTING WASHER 32X25.4 T=2.44
- #12 Q830-311003-00100 — ADJUSTING WASHER 32X25.4 T=2.10 Replacing: Q830-311003-00101 - ADJUSTING WASHER 32X25.4 T=2.10
- #12 Q830-311003-00201 — ADJUSTING WASHER 32X25.4 T=2.20
- #28 Q830-310015-00200 — ADJUSTING WASHER 79.5×68, T=0.20
- #29 30400-05500 — BEARING. 61911 (55X80X13)
- #30 Q890-313002 — DIFFERENTIAL HOUSING
- #31 0181-313100-0010 — BOLT M10X1.25X22
- #12 Q830-311003-00301 — ADJUSTING WASHER 32X25.4 T=2.30
- #12 Q830-311003-00401 — ADJUSTING WASHER 32X25.4 T=2.40
- #12 Q830-311003-00501 — ADJUSTING WASHER 32X25.4 T=2.42
- #12 Q830-311003-00701 — ADJUSTING WASHER 32X25.4 T=2.46
- #12 Q830-311003-00801 — ADJUSTING WASHER 32X25.4 T=2.48
