PCATR00601204DLMorbidelli C1002V E5+ BOLT M6x12 — Genuine Morbidelli Part
Morbidellioem
Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Location in exploded diagrams

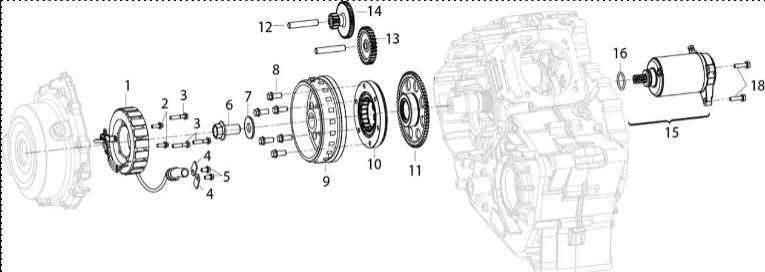

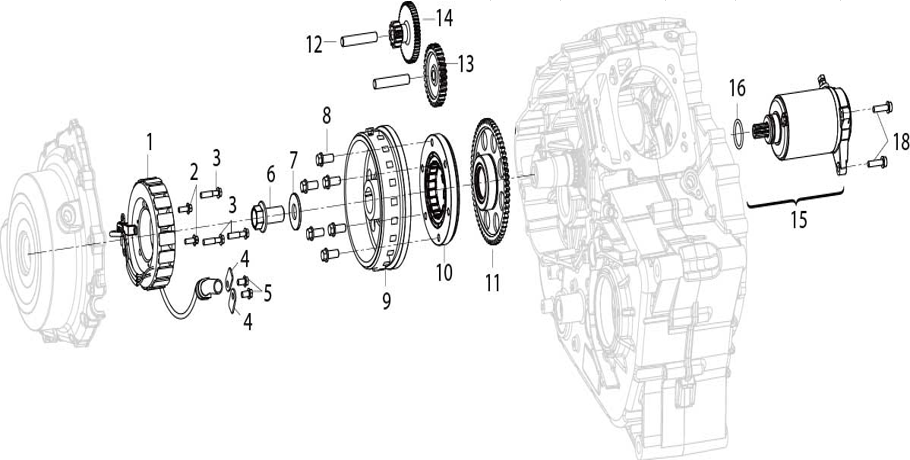

Other parts on this diagram — E13 - Starter Motor & Magneto
- P0392304E050500 — Morbidelli C1002V E5+ BOLT M6x25
- P0391214E050000 — Morbidelli C1002V E5+ O SEAL RING 24.5x3.2
- PC31200E2300000 — Morbidelli C1002V E5+ START MOTOR ASSY
- P0324503E230000 — Morbidelli C1002V E5+ DUPLICATE GEAR
- P0324502E050001 — Morbidelli C1002V E5+ STARTER INTERMEDIATE GEAR
- P0324501E050500 — Morbidelli C1002V E5+ GEAR SHAFT
- P032440AE080000 — Morbidelli C1002V E5+ DISC GEAR ASSEMBLY
- P0324300E230000 — Morbidelli C1002V E5+ STARTING CLUTCH ASSY
- P0331110E230002 — Morbidelli C1002V E5+ ROTOR ASSEMBLY
- PC90102E0500001 — Morbidelli C1002V E5+ HEXAGON BOLT M8x20
- P0390301E080000 — Morbidelli C1002V E5+ WASHER 16x38x3
- PCA1R16035A02DL — Morbidelli C1002V E5+ BOLT M16x35
- P0311109E050500 — Morbidelli C1002V E5+ BEARIN GPRESS PLATE
- P03AB06035B1DB — Morbidelli C1002V E5+ HEXAGON BOLT M6x35
- PCA1R05016A02DC — Morbidelli C1002V E5+ BOLT M5x16
- P0331120E230100 — Morbidelli C1002V E5+ STATOR ASSEMBLY
