PC8261AM5100A03Morbidelli T1002VX UPPER TAIL FRAME L ASSEMBLY (RED R5) — Genuine Morbidelli Part
Morbidellioem
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 0.00 | listing | motogbshop.co.uk |
Location in exploded diagrams

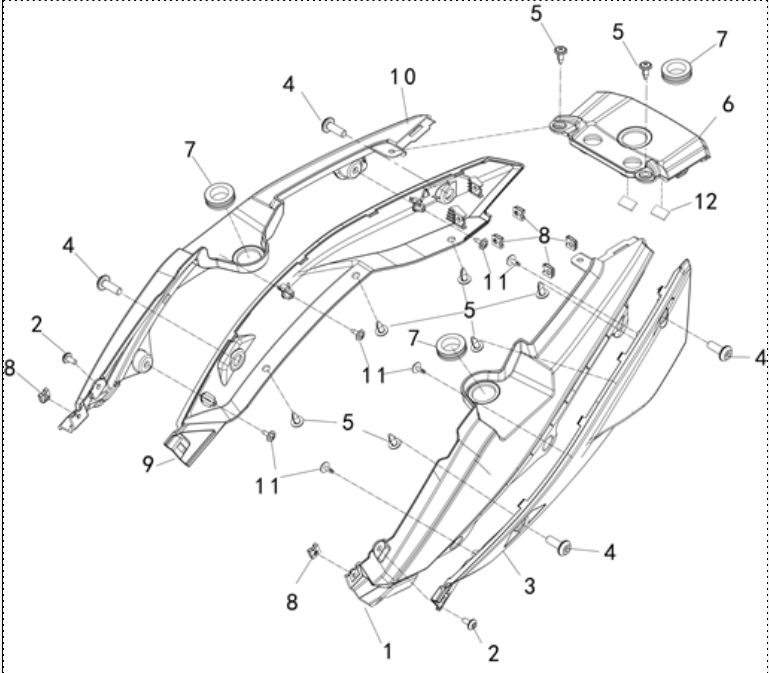

Other parts on this diagram — F26 - REAR SHIELD COMPONENTS
- P0382649M510000 — Morbidelli T1002VX SPONGE CUSHION
- PCZ4D203HC00D1 — Morbidelli T1002VX SCREW ST4.2x13
- PC8262AM5100A01 — Morbidelli T1002VX UPPER TAIL FRAME R ASSEMBLY (WHITE)
- PC8262AM5100A03 — Morbidelli T1002VX UPPER TAIL FRAME R ASSEMBLY (RED R5)
- PC8262AM5100A02 — Morbidelli T1002VX UPPER TAIL FRAME R ASSEMBLY (BLACK)
- PC82642M5100010 — Morbidelli T1002VX LOWER TAIL FRAME R
- P0382646M510000 — Morbidelli T1002VX TAIL COVER RUBBER MAT
- PC82645M5100011 — Morbidelli T1002VX TAIL COVER (WHITE)
- PC82645M5100013 — Morbidelli T1002VX TAIL COVER (RED R5)
- PC82645M5100012 — Morbidelli T1002VX TAIL COVER (BLACK)
- P0390126M120000 — Morbidelli T1002VX HEX SOCKET PAN HEAD SCREW M8X23
- PC82641M5100010 — Morbidelli T1002VX LOWER TAIL FRAME L
- PC8261AM5100A00 — Morbidelli T1002VX UPPER TAIL FRAME L ASSEMBLY (WHITE)
- PC8261AM5100A02 — Morbidelli T1002VX UPPER TAIL FRAME L ASSEMBLY (BLACK)
- P0382004M110000 — Morbidelli T1002VX NUT CLIP M5
- P0391302M120000 — Morbidelli T1002VX EXPANSION SCREW
- P0390509M310000 — Morbidelli T1002VX BOLT M5x12
