P20B0330000616Keeway XDV 125 Evo Pro E5+ HEXAGON FLANGE BIG CAP BOLT M6X20 — Genuine Keeway Part
Keewayoem
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

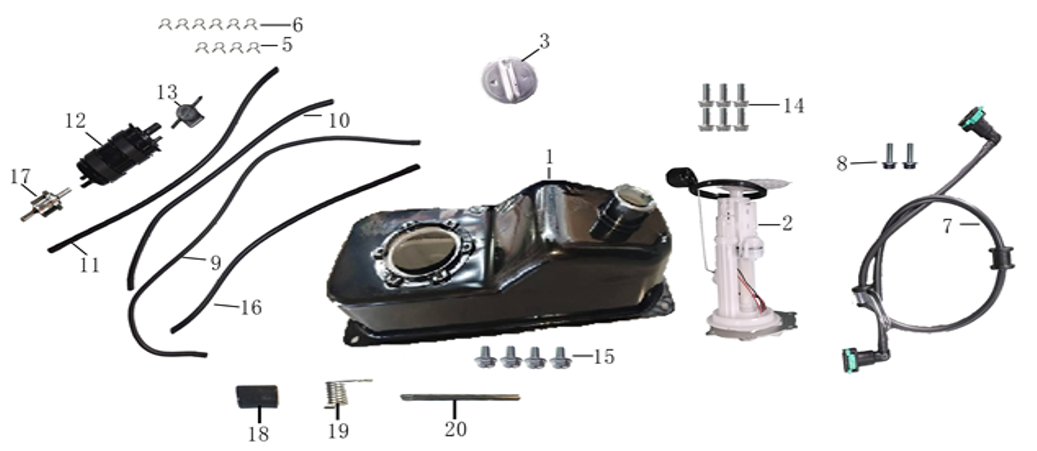

Other parts on this diagram — F06 - Fuel Tank
- P206090-18-00000 — Keeway XDV 125 Evo Pro E5+ SHAFT
- P206093-18-00000 — Keeway XDV 125 Evo Pro E5+ SRPING
- P206092-18-00000 — Keeway XDV 125 Evo Pro E5+ BUSH
- P206036-10-00000 — Keeway XDV 125 Evo Pro E5+ CHECK VALVES
- P204041-18-00001 — Keeway XDV 125 Evo Pro E5+ TUBING L=260MM ,?7mm
- P20B0110000612 — Keeway XDV 125 Evo Pro E5+ DACROMET BOLT M6×12
- P20B0010000612 — Keeway XDV 125 Evo Pro E5+ HEXAGONAL FLANGE BOLT M6 ? 12
- P20B0010000512 — Keeway XDV 125 Evo Pro E5+ HEXAGON FLANGE BOLT M5?12
- P20B0010000514 — Keeway XDV 125 Evo Pro E5+ HEXAGON FLANGE BOLT M5×14
- P206035-10-00000 — Keeway XDV 125 Evo Pro E5+ CARBON TANK DUMPING VALVE
- P206034-17-00000 — Keeway XDV 125 Evo Pro E5+ CARBON CANISTER
- P204041-18-00000 — Keeway XDV 125 Evo Pro E5+ TUBING L=560MM ?7MM
- P204040-18-00001 — Keeway XDV 125 Evo Pro E5+ TUBING L=110MM ?8MM
- P204040-18-00000 — Keeway XDV 125 Evo Pro E5+ TUBING L=600MM ?8MM
- P204037-18-JW125 — Keeway XDV 125 Evo Pro E5+ HIGH PRESSURE OIL PIPE
- P206038-10-00002 — Keeway XDV 125 Evo Pro E5+ NEGATIVE PRESSURE PIPE CLAMP ?8MM
- P208037-10-00002 — Keeway XDV 125 Evo Pro E5+ TUBING CLAMP ?7MM
- P206002-10-00000 — Keeway XDV 125 Evo Pro E5+ FUEL TANK CAP
- P204013-18-JW125 — Keeway XDV 125 Evo Pro E5+ OIL PUMP
- P206001-18-00000 — Keeway XDV 125 Evo Pro E5+ FUEL TANK
