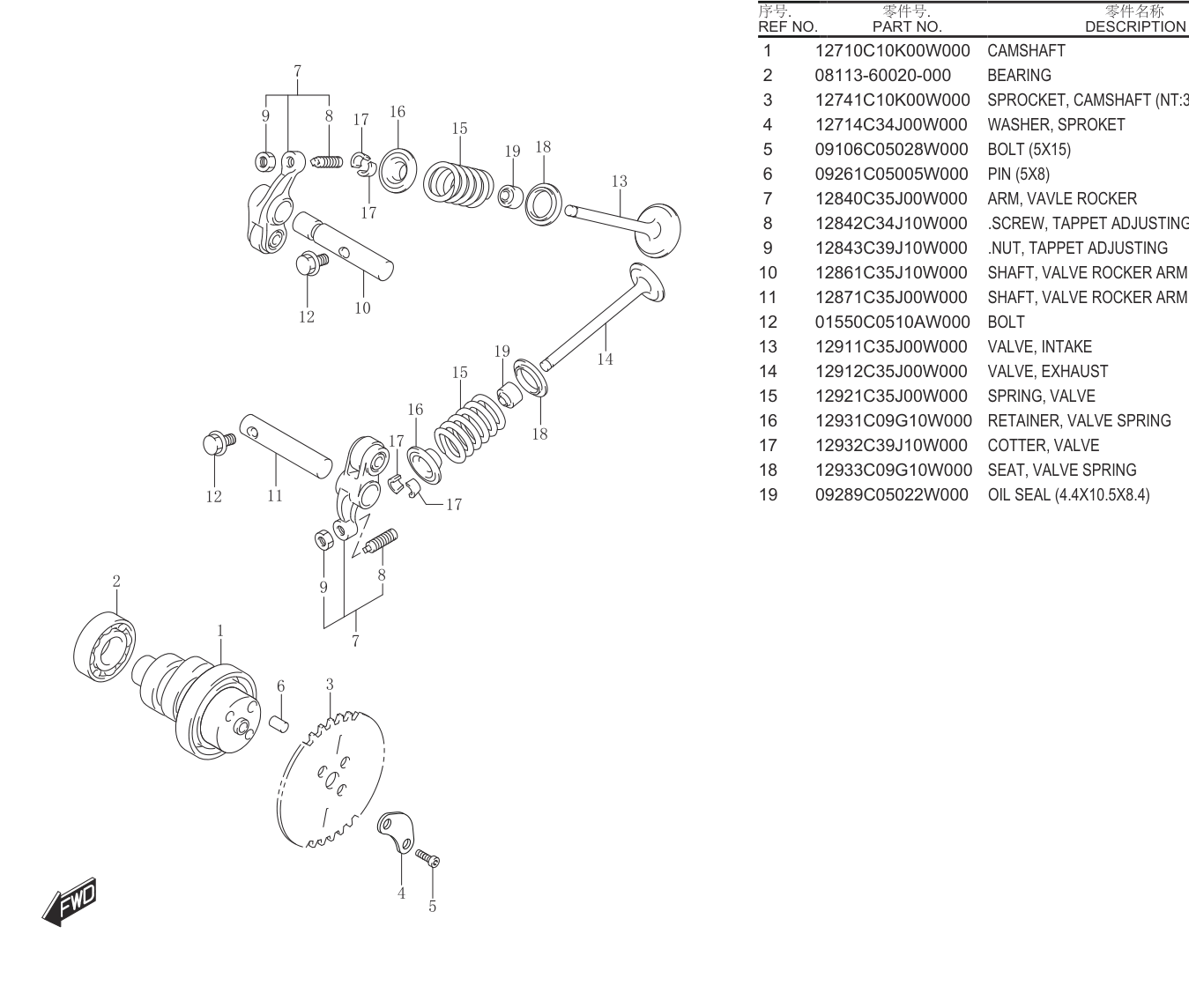

Location in exploded diagrams
Other parts on this diagram — 配气凸轮轴
- #5 09106C05028W000 — BOLT (5X15)
- #6 09261C05005W000 — PIN (5X8)
- #7 12840C35J00W000 — ARM, VAVLE ROCKER
- #8 12842C34J10W000 — .SCREW, TAPPET ADJUSTING
- #12 01550C0510AW000 — BOLT
- #13 12911C35J00W000 — VALVE, INTAKE
- #14 12912C35J00W000 — VALVE, EXHAUST
- #15 12921C35J00W000 — SPRING, VALVE
- #16 12931C09G10W000 — RETAINER, VALVE SPRING
- #17 12932C39J10W000 — COTTER, VALVE
- #1 12710C10K00W000 — CAMSHAFT
- #2 08113-60020-000 — BEARING
- #3 12741C10K00W000 — SPROCKET, CAMSHAFT (NT:34)
- #4 12714C34J00W000 — WASHER, SPROKET
- #9 12843C39J10W000 — .NUT, TAPPET ADJUSTING
- #10 12861C35J10W000 — SHAFT, VALVE ROCKER ARM
- #11 12871C35J00W000 — SHAFT, VALVE ROCKER ARM
- #1 EXHAUST — 进气门
- #18 12933C09G10W000 — SEAT, VALVE SPRING
- #19 09289C05022W000 — OIL SEAL (4.4X10.5X8.4)
