Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

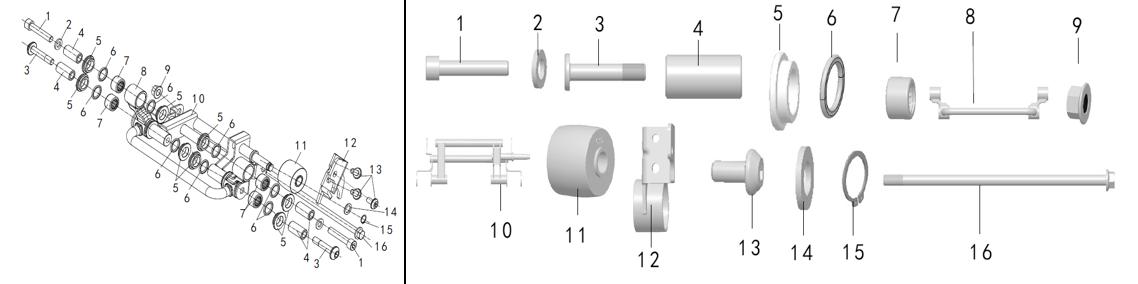

Other parts on this diagram — F23 - Engine Mount
- 54301S220000 — Lambretta J125 S22 ENGINE PIVOT SHAFT
- DA0120DB — Lambretta J125 FLAT WASHER GRADE A - M12
- 90104M110000 — Lambretta J125 BOLT M8*16
- 5432AS2200A0B4 — Lambretta J125 LIMIT SLEEVE WELDING ASSEMBLY
- 54304S2200A0 — Lambretta J125 RUBBER CUSHION
- 5433AS2200A0B4 — Lambretta J125 REAR LUGGAGE RACK WELDING ASSEMBLY
- GB1101D25004DB3 — Lambretta J125 ALL-METAL FINE PITCH HEX FLANGE LOCK NUT M10X1.25
- 5431AS2200A0B4 — Lambretta J125 FRONT LUGGAGE RACK WELDING ASSEMBLY
- 92910S110000 — Lambretta J125 DRAWN CUP NEEDLE ROLLER BEARING HMK172415
- 54305S2200A0 — Lambretta J125 ANTI-RUST WASHER
- 54304S110000 — Lambretta J125 LUGGAGE RACK INNER RING
- 54307S2200A0 — Lambretta J125 LUGGAGE RACK INNER LINER
- 90501S110000 — Lambretta J125 BOLT M10*1.25*52
- DI0100DB3 — Lambretta J125 FLAT WASHER 10 FOR PIN
- 90107M110000 — Lambretta J125 BOLT M10?1.25?53
