C90034012001SHIFT DRUM — Genuine CF MOTO Part
CF MOTOoemFactory supply status: Out of Stock - on backorder and will be dispatched once in stock.
C90034012001 - SHIFT DRUM #6
Verified fitment — 16 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (10)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| AUD | 270.00 | listing | shop.cfmoto.com.au |
| NZD | 359.90 | listing | cfmotonelson.co.nz |

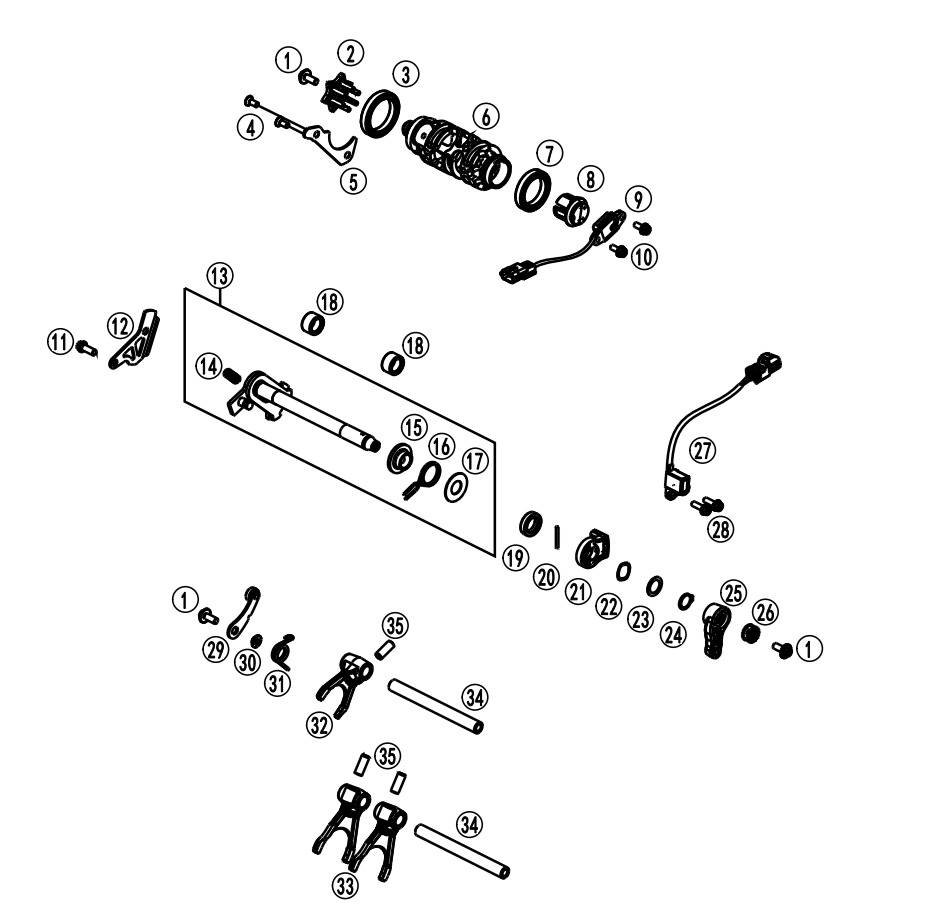

Location in exploded diagrams
Other parts on this diagram — SHIFTING MECHANISM
- #1 C0024060156S — SCREW M6X15
- #2 C90034015000 — SHIFT STAR
- #3 C0625068070 — DEEP GROOVE BALL BEARINGS 35X47X8
- #4 C0019050121S — SCREW M5X12
- #5 C90034011200 — BEARING RETAINING BRACKET SHIFT DRUM
- #7 C0625068060 — DEEP GROOVE BALL BEARINGS 30X42X8
- #8 C90034012020 — MAGNET HOLDER CPL
- #9 C90011023100 — GEAR POSITION SENSOR
- #10 C0025050126 — SCREW M5X12
- #11 C0025060166S — SCREW M6X16
- #12 C90033022000 — BEARING LOCK WASHER (SHIFT SHAFT STOP)
- #13 K-63534005033 — SHIFT SHAFT CPL Replacing: C90034005033 - SHIFT SHAFT CPL
- #14 C90034013100 — TORSION SPRING 0.8MM
- #15 C90034020000 — SPRING GUIDE
- #16 C90034014000 — RETURN SPRING
- #17 C90034050001 — STOP DISC 14X30X1
- #18 C90032095000 — NEEDLE SLEEVE 14X20X12
- #19 C0760142460 — SHAFT SEAL RING 14X24X6
- #20 C0007025241 — STUD 2.5X24
- #21 C90034050000 — MAGNET HOLDER
- #22 C90034050010 — WAVE SPRING
- #23 C0988142005 — SHIM 14X20X0.5
- #24 C0471140100 — CIRCLIP 14X1
- #25 C9003403000033 — LINK SUPPORT CAM
