Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (3)
Location in exploded diagrams

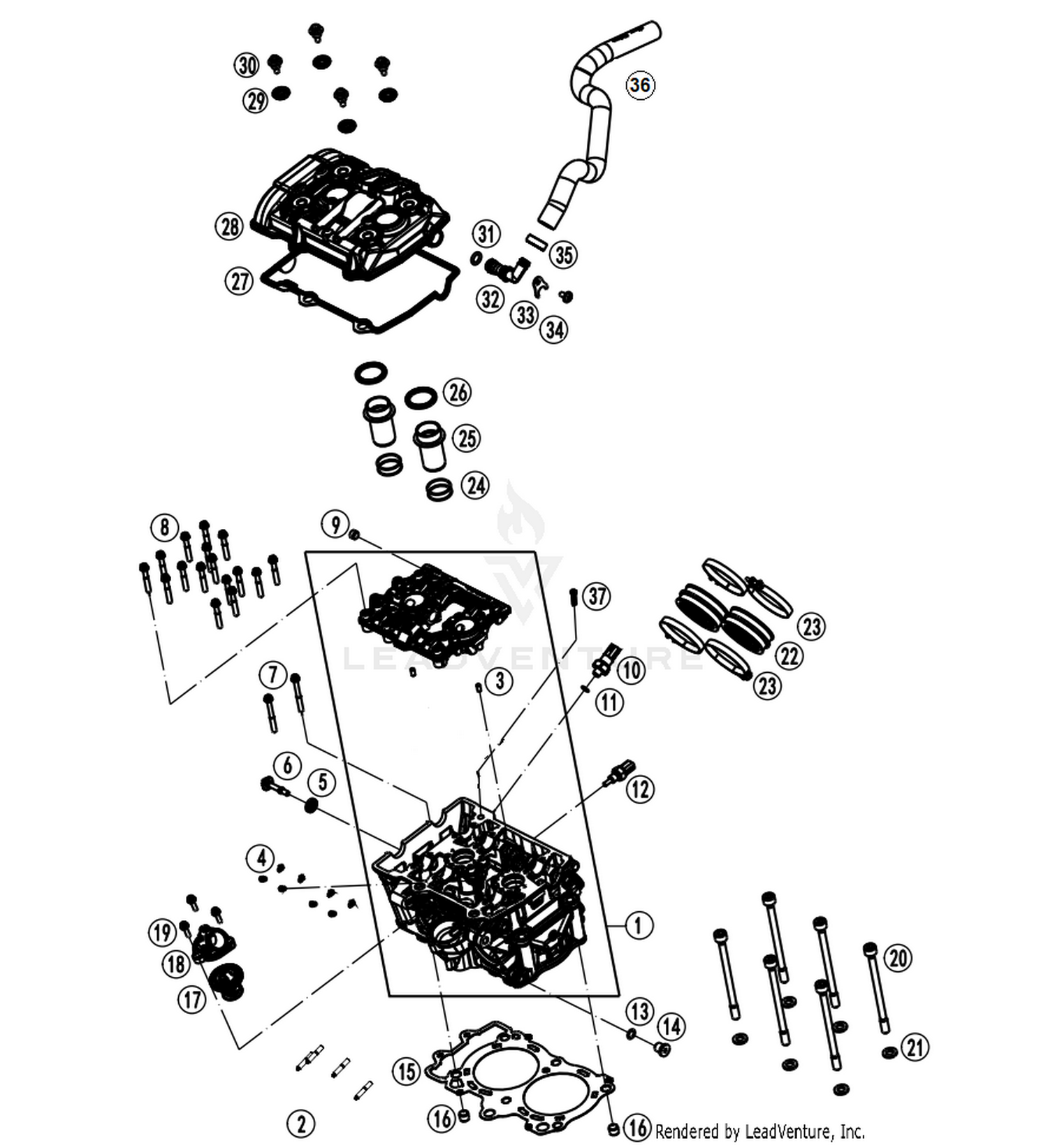

Other parts on this diagram — Cylinder Head
- #02 C63505015000 — Stud Screw M8X25
- #08 C0025060405 — Hh Collar Screw M6X40 T30 M6X40
- #14 C0908120153 — Screw Plug M12X1,5
- #18 C63635019000R — Thermostat Cap
- #24 C0770298178 — O-Ring 29.87X1.78
- #29 C90036054160 — Seal Ring 10.65X23X5 10.65X23X5
- #35 C00050198706 — Variable One-Ear Clamp 19.8X7
- #20 C0402050980 — Needle Roller D5X9.8
- #04 C0906100100 — Screw Plug M10X8
- #15 C90030036300 — Cylinder Head Gasket
- #14 C0000250501600S — Hh Collar Screw M5X16 T30 Ss
- #25 C63536075000 — Stickcoil Insert
- #30 C90036054150 — Valve Cover Screw M6X17.9 Bm6
- #36 C90030587000 — Engine Vent Hose
- #04 C90030063050 — Oil Jet50 M5
- #10 C90038091000 — Oil Pressure Sensor
- #16 C58530014100 — Dowel Pin D12.5X13
- #20 C78630044000 — Cylinder Head Screw M10X138 Sw8
- #26 C90036075050 — Spark Plug Shaft Sealing
- #31 C0770012030 — O Ring 12X3
- #05 C90036052010 — Buffer Bolt Sealing Gasket
- #08 C07700900151 — O-Ring 9X1.5
- #17 C90035017000 — Thermostat 76°C
- #21 C90036089010 — Shim 10.5X19X2.5
