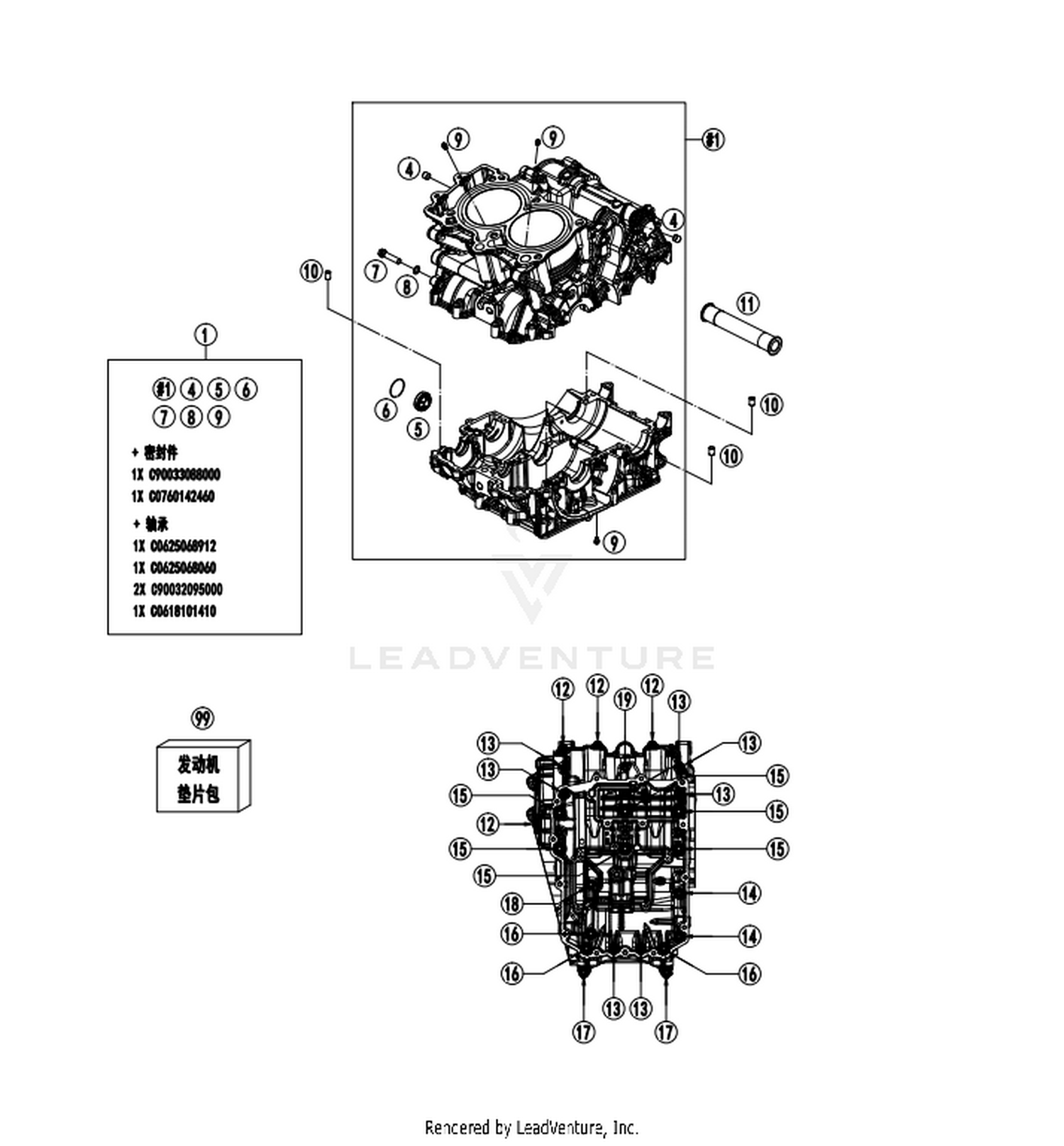

Location in exploded diagrams
Other parts on this diagram — E01-1 Engine Case
- #04 C0906100100 — Screw Plug M10X8
- #10 C90030024000 — Dowel Pin D8X11
- #16 C0000250806500 — Hh Collar Screw M8X65 T40
- #19 C59030019200 — Oil Level Viewer
- #17 C0000250805500 — Hh Collar Screw M8X55 T40
- #06 C90030019050 — Circlip 30X1
- #12 C00002506030U0 — Hh Collar Screw M6X30 With Washer T30
- #18 C0000250804500 — Hh Collar Screw M8X45 T40
- #07 C0000250803500 — Hh Collar Screw M8X35 T40
- #13 C00002506060U0 — Hh Collar Screw M6X60 With Washer T30
- #19 C00002508065U0 — Hh Collar Screw M8X65 With Washer T40
- #08 C0603082131 — Shim 8.2X13X1 2X13X1@Copper
- #14 C0000250809000 — Hh Collar Screw M8X90 T40
- #99 C90030099000 — Engine Gasket Kit
- #01 C9003000024424 — Engine Case Compl
- #09 C90030063070 — Oil Jet70 M5
- #15 C00002508090U0 — Hh Collar Screw M8X90 With Washer T40
