C0145800602000SAH COLLAR SCREW M6X20 T30 SS — Genuine CF MOTO Part
CF MOTOoemFactory supply status: 启用
C0145800602000S - AH COLLAR SCREW M6X20 T30 SS #9
Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
New Zealand (1)
Australia (1)
United Kingdom (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| AUD | 2.50 | listing | shop.cfmoto.com.au |
| EUR | 2.69 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 2.50 | listing | cfmoto.quadzillaparts.co.uk |
| NZD | 2.90 | listing | cfmotonelson.co.nz |

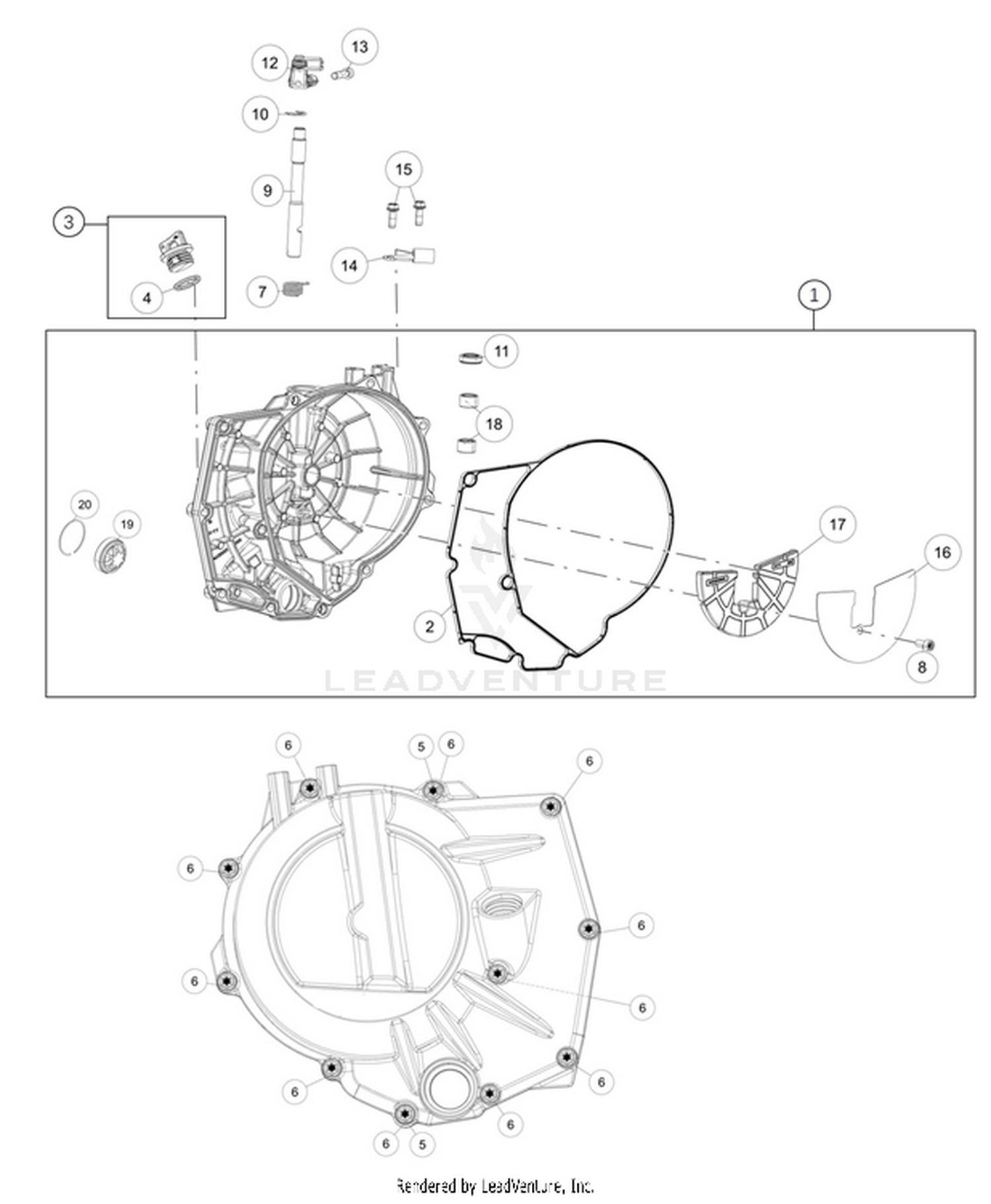

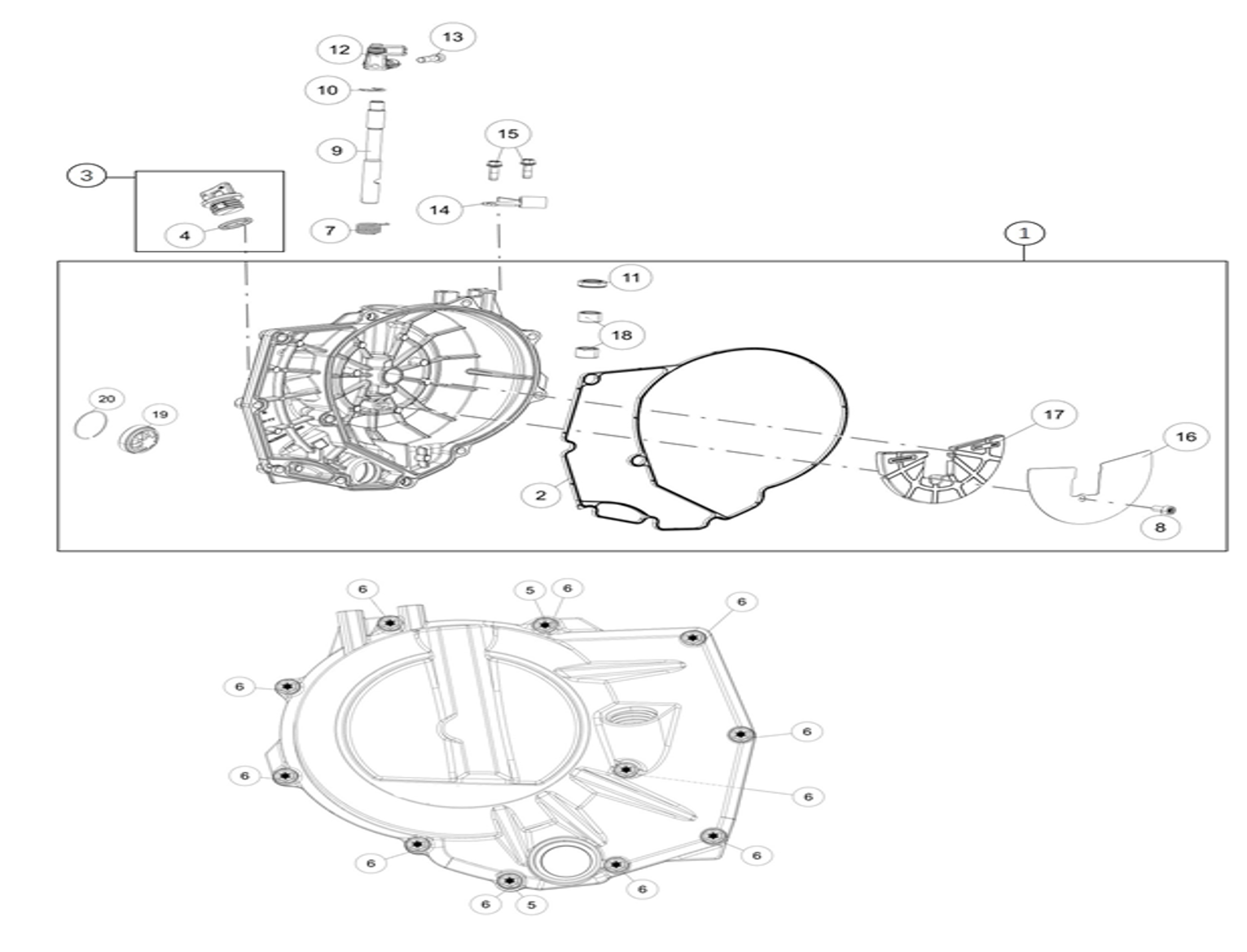

Location in exploded diagrams
Other parts on this diagram — CLUTCH COVE
- #1 C64030001044 — CLUTCH COVER CMPL.
- #2 C64030025000 — CLUTCH COVER SEALING INNER
- #3 C58030020100 — PLUG CPL MAUD SPIRIT BLACK
- #4 C0770191015 — O-RING
- #5 C90030024000 — FITTING SLEEVE 6X8X11
- #6 C0000250603000 — SCREW M6X30 TX30
- #7 C90032048003 — RETURN SPRING RELEASE LEVER
- #8 C0145800601200S — AH COLLAR SCREW M6X12 T30 SS
- #10 C0799090003 — LOCKING WASHER
- #11 C0760122060 — SEAL 12X20X6
- #12 C63532048104 — PULLING ROD
- #14 C63532052100 — BRACKET CLUTCH CABLE
- #15 C010642060166S — SCREW
- #16 C64030001010 — RETAINING BRACKET
- #17 C64030001020 — DAMPING RUBBER
- #18 C0618121610 — NEEDLE SLEEVE HK1210 12X16X10
- #19 C59030019200 — OIL LEVEL VIEWER
- #20 C90030019050 — CIRCLIP RB30X1
