Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (4)
China (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 0.38 | listing | motogbshop.co.uk |

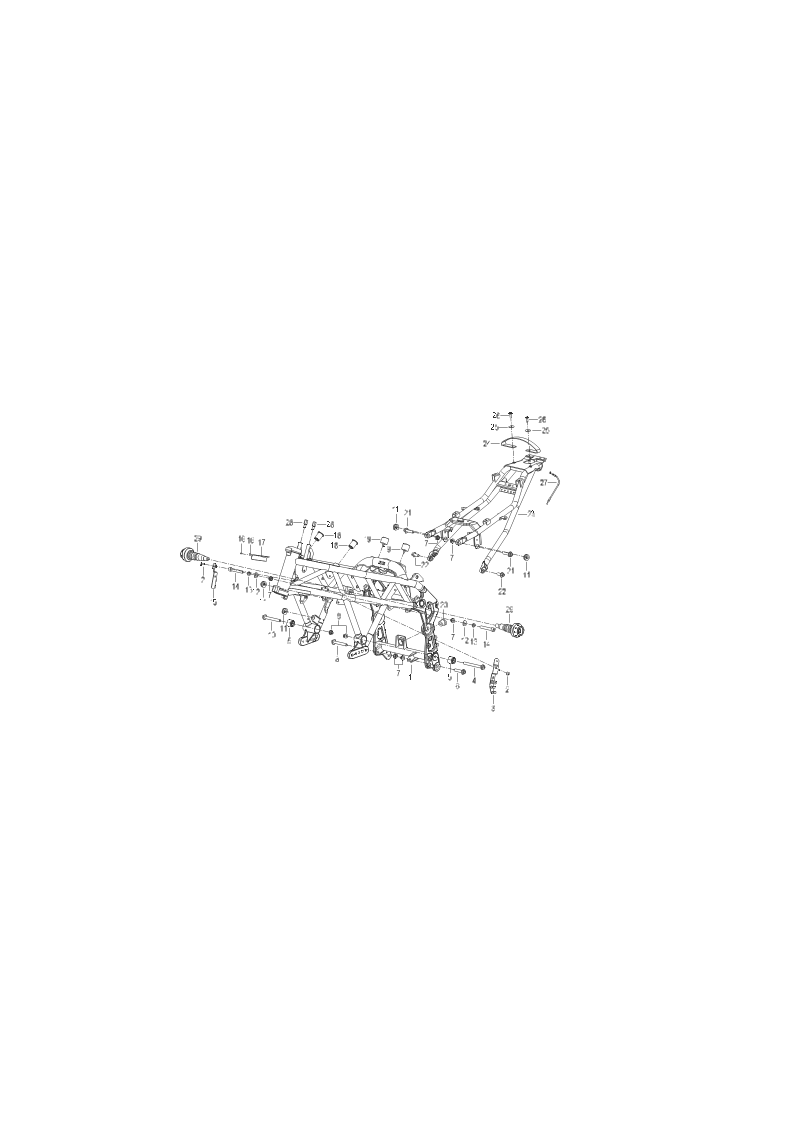

Location in exploded diagrams
Other parts on this diagram — 车架 FEAME ASSY.
- #1 57110P080000 — FRAME JOINTING COMP.
- #2 B0283060146H — SCREW M6×14
- #3 59510P360000 — EMPTY STRAINER LEFT BRACKET ASSEMBLY
- #4 B0159101106H — BOLT M10×1.25×110
- #5 57060P180000 — PRE-ENGINE BUFFER BUSHING KIT
- #6 B0159100506H — BOLT M10×1.25×50
- #7 B0417101254H — NUT M10×1.25
- #8 B01591007562 — BOLT M10×1.25×75
- #9 B0417100004H — NUT M10
- #10 B0159100906H — BOLT M10×1.25×90
- #11 50018G530000 — RUBBER SLEEVE
- #12 B0703000100H — WASHER 10
- #14 B02051007062 — SCREW M10×70
- #15 59520P360000 — EMPTY STRAINER RIGHT BRACKET ASSEMBLY
- #16 B100432007P0 — SCREW M3.2×7
- #17 57001N220004 — FRAME SIGNS
- #18 50005P080000 — MOUNTING PAD,FUEL TANK
- #19 50007P250000 — MOUNTING PAD,FUEL TANK
- #20 47026P160000 — SILENCER BUFFER RUBBER
- #21 B0159100406H — BOLT M10×1.25×40
- #22 B0109100256H — BOLT M10×20
- #23 57120P080000 — AFTER WELDING COMPONENTS FRAME
- #24 51220P360000 — BACKSEAT CUSHION HARNESS ASSEMBLY
- #25 08023J000020 — WASHER
