Location in exploded diagrams

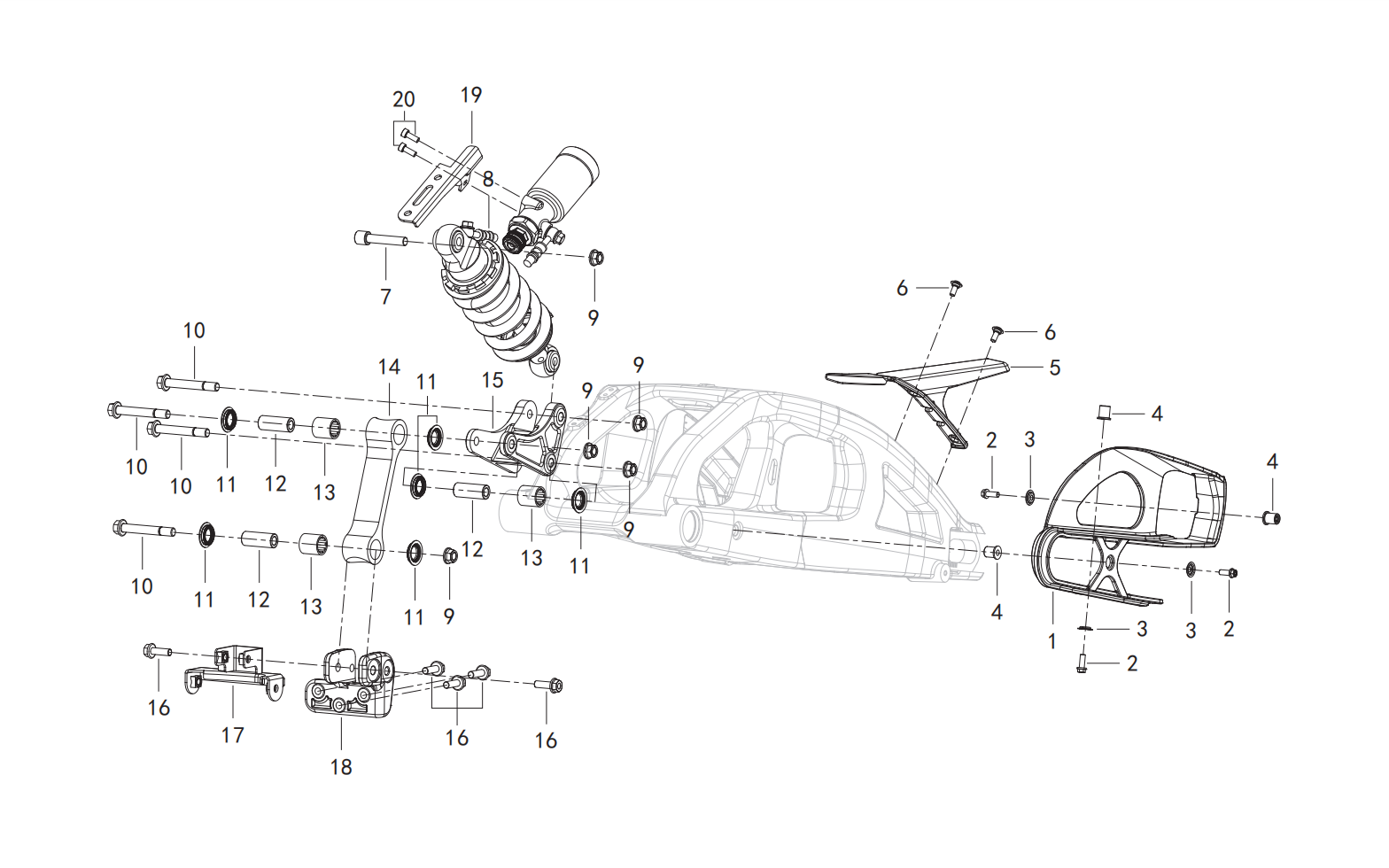

Other parts on this diagram — 后摆臂总成Ⅱ REAR SWINGING ARM ASSY.
- #1 60103P950000 — CHAIN GUARD
- #2 08001P620100 — HEXAGON SOCKET TORX FLANGE SCREW M5×12
- #3 53004P950000 — CHAIN GUARD BLOCK
- #4 53016P950000 — CHAIN GUARD BLOCK MOUNTING GASKET
- #5 B0200050102G — CROSS RECESSED PAN HEAD SCREW M5×10
- #6 60101P950000 — CHAIN COVER
- #7 08003P620100 — HEXAGON SOCKET TORX FLANGE STEP SCREW M6×15
- #8 B0507420130G — CROSS RECESSED LARGE SPHERICAL HEAD TAPPING SCREW ST4.2×13
- #9 B0702000050H — WASHER 5
- #10 60102P950000 — REAR INNER MUD PLATE
- #11 53151P950000 — CHAIN COVER MOUNTING PLATE
- #12 57012P930000 — STAINLESS STEEL CLAMP
- #13 160306030020 — HEXAGON TORX BOLT M6×16
- #14 63015N490000 — REAR SHOCK ABSORBER LOWER FIXING BOLT M10×1.25×63
- #15 63800P950000 — REAR SHOCK ABSORBER ASSEMBLY
- #16 63012P950000 — HEXAGON SOCKET TORX CAP SCREW M10×1.25×51
- #18 58306P160000 — POWER BOLT SHEATH
- #19 B0226060166S — HEXAGON LOBULAR SOCKET HEAD CAP SCREW M6×16
- #20 58950P950001 — REAR SHOCK ABSORBER ADJUSTMENT SCREW BRACKET ASSEMBLY
- #21 65836P160000 — PIPE CLAMP 0-435
