Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 0.00 | listing | motogbshop.co.uk |
Location in exploded diagrams

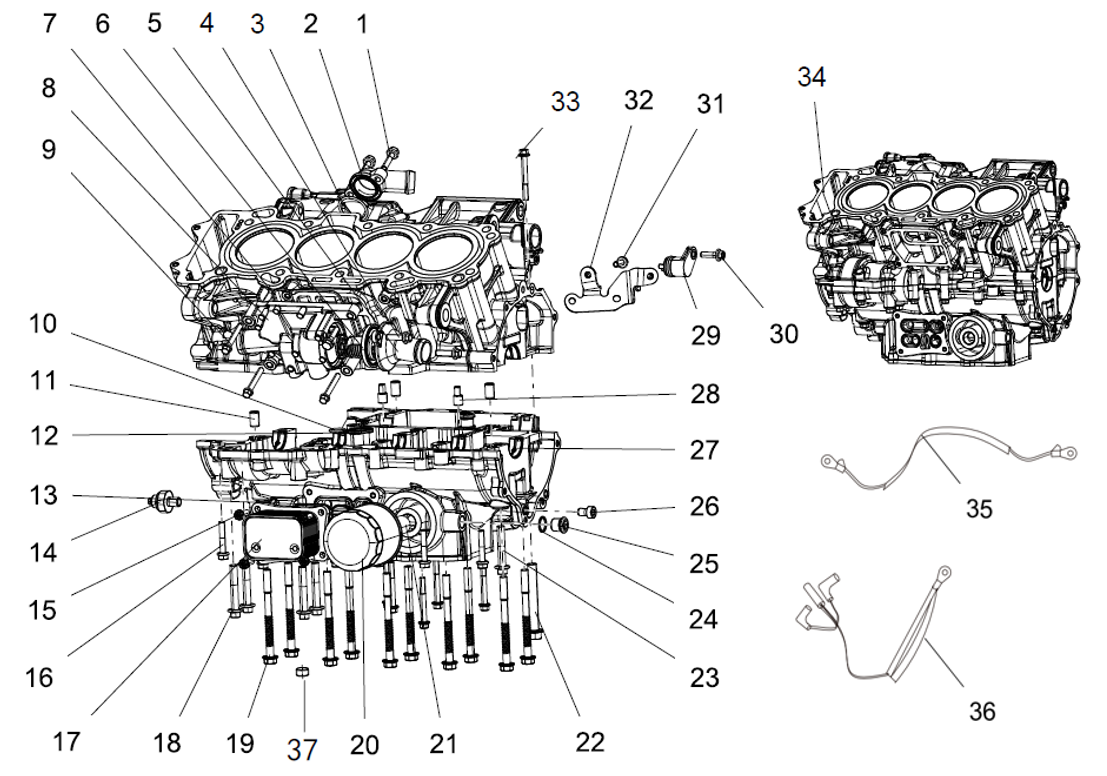

Other parts on this diagram — CRANKCASE ASSY(曲轴箱分总成)
- #1 B0107060256H — BOLT M6×25
- #2 15915668BY01 — PIPE JOINT
- #3 B190103000B0 — O-RING
- #4 15918668BY01 — THERMOSTAT COVER
- #5 B0107060226H — BOLT M6×22
- #6 279466520000 — THERMOSTAT ASSY
- #7 159166680000 — GASKET
- #8 15921668BY01 — THERMOSTAT HOLDER ASSY
- #9 B0107060406H — BOLT M6×40
- #10 57012P950000 — CLIP Ⅰ
- #11 B0107060166H — BOLT M6×16
- #12 279434590000 — CLAMP 20
- #13 159196680000 — PIPE 1
- #14 92640P950000 — OIL PRESSURE WIRE
- #15 310016680000 — OIL PRESSURE SWITCH
- #X16 159076680000 — OIL PRESSURE SOLEPLATE
- #17 B0107060356H — BOLT M6×35
- #18 159066680000 — BOLT
- #19 B0107080456H — BOLT M8×45
- #20 B0107100756H — BOLT M10×75
- #22 159206680000 — PIPE 2
- #23 159136520000 — MAIN BEARING BUSH
- #24 130014050000 — PIN 10×16
- #25 159046680000 — LIMITING PLUG
