Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (4)
China (1)

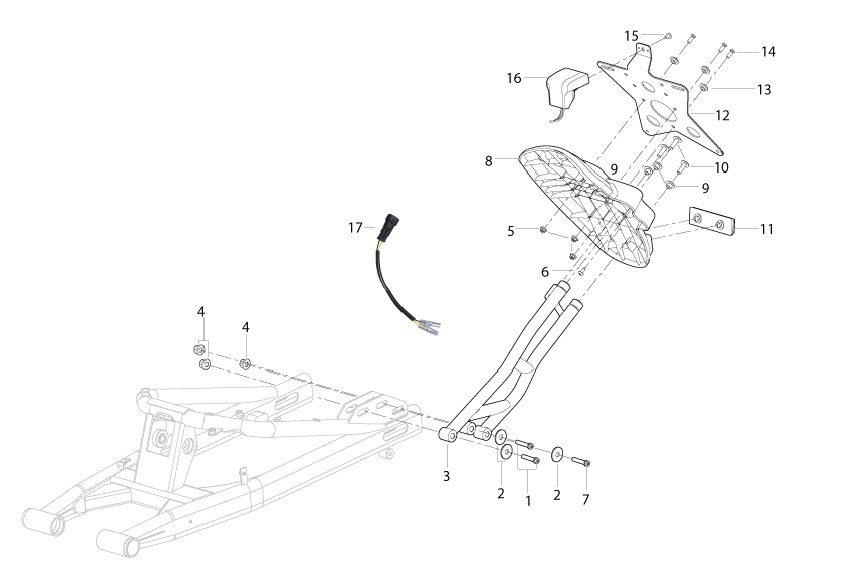

Location in exploded diagrams
Other parts on this diagram — 后摆臂 ARM AFTER ASSY.
- #1 65772P080000 — REAR LOWER FENDER BRACKET
- #2 65774P290000 — STAINLESS STEEL PLATEN II
- #3 B0205050106A — SCREW M5×10
- #4 65775P290000 — STAINLESS STEEL PLATEN III
- #5 65776P290000 — STAINLESS STEEL PLATEN IV
- #6 81500P29000Z — BACK TURN LAMP ASSEMBLY
- #7 08001B470000 — SELF-TAPPING SCREW
- #8 B0284060150A — SCREW M6×15.2
- #9 65773P290000 — STAINLESS STEEL PLATEN I
- #10 B0500350130H — SELF-TAPPING SCREW ST3.5×13
- #11 B0417050004H — NUT M5
- #12 86500B720001 — AFTER THE REFLECTOR
- #13 65761P290001 — AFTER THE FENDER
- #14 B0407060005H — NUT M6
- #15 65771P290000 — REAR LOWER FENDER BRACKET I
- #16 52018J800000 — SCREW M8×25
- #17 08252P180002 — REAR PLATE MOUNTING PLATE
- #19 05577P250000 — AFTER THE LICENSE PLATE
- 50920S070000 — SENSOR THREAD BUCKLE
- #20 B0109060126H — BOLT M6×12
