Location in exploded diagrams

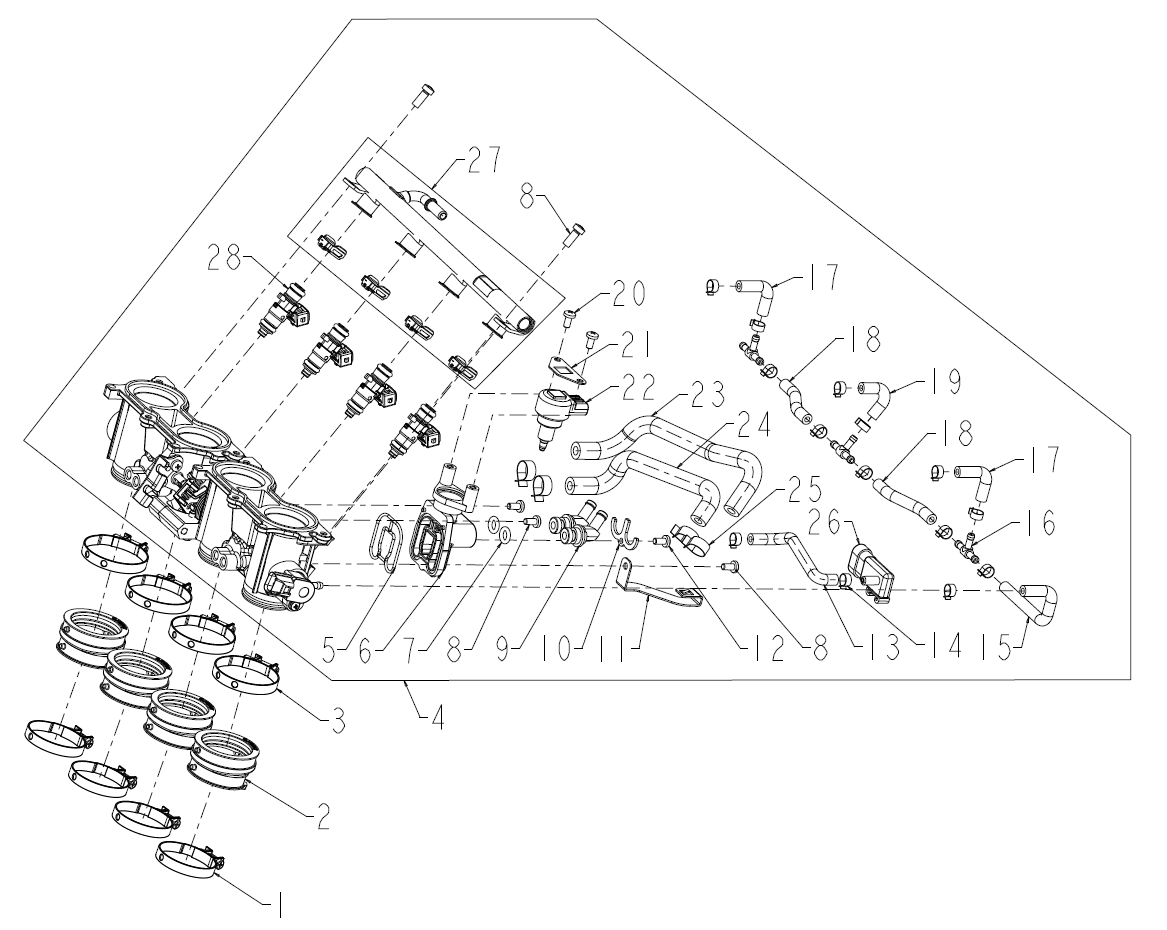

Other parts on this diagram — THROTTLE VALVE SUB-ASSEMBLY (节流阀分总成)
- #1 109406680000 — CLAMP COMPONENT
- #2 289026680000 — AIR INTAKE PIPE
- #3 109306680000 — CLAMP COMPONENT
- #4 289016680010 — THROTTLE VALVE COMPONENT
- #5 280166680000 — SEALING RING
- #6 280046680000 — MOTOR SUPPORT
- #7 280236680000 — O-RING
- #9 280216680000 — SUPPLEMENTARY AIR PIPE
- #10 280226680000 — SUPPLEMENTARY AIR PIPE CLAMP PLATE
- #11 280256680010 — PRESSURE SENSOR SUPPORT Ⅱ
- #12 B0204040122H — SCREW ASSEMBLY M4×10
- #13 280246680010 — PRESSURE SENSOR RUBBER HOSE Ⅱ
- #14 3350501K0010 — CLAMP 7.5
- #15 280306680000 — DESORPTION RUBBER HOSE Ⅰ
- #16 280106610000 — TEE PIPE
- #17 280316680000 — DESORPTION RUBBER HOSE Ⅱ
- #18 280336680000 — DESORPTION RUBBER HOSE Ⅳ
- #19 280346680000 — DESORPTION RUBBER HOSE Ⅴ
- #20 B02040501629 — SCREWS M5×16
- #21 280136680000 — MOTOR CLAMP
- #22 280116610000 — STEPPER MOTOR
- #23 280266680000 — RUBBER HOSE Ⅰ
- #24 280276680000 — RUBBER HOSE Ⅱ
- #25 06103N140000 — CLAMP 13
