Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

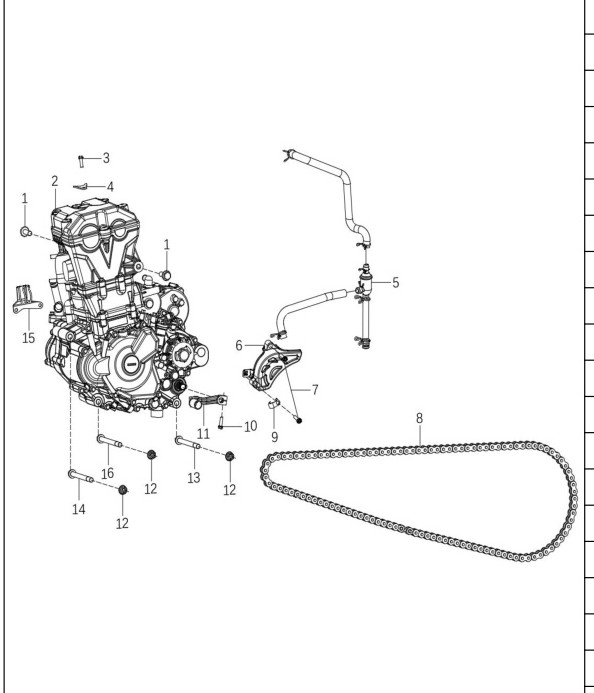

Location in exploded diagrams
Other parts on this diagram
- #1 5001-10030-SC00 — 六角法兰面螺栓
- #3 5021-06012-DK00 — 内六花六角法兰面螺栓M6*12,盘头11,达克罗,厂家代码：5021
- #4 360088-T501-00000 — 高压包压板
- #5 421700-T501-00001 — 废气管总成
- #6 390023-T501-00000 — 发动机小链轮盖
- #7 5021-06030-DK00 — 内六花六角法兰面螺栓M6*30,盘头11,达克罗,厂家代码：5021
- #8 352300-T500-00000 — 链条
- #9 400006-T501-00002 — 线钩
- #10 5021-06020-DK00 — 内六花六角法兰面螺栓M6*20,盘头11,达克罗,厂家代码：5021
- #11 370200-T501-00000 — 变档踏板总成
- #12 5008-10115-SC01 — 六角法兰面自锁螺母M10*1.25*11.5*17,细牙;10级
- #13 5001-10130-DK01 — 六角法兰面螺栓
- #14 5001-10115-DK00 — 六角法兰面螺栓
- #16 5001-10145-DK00 — 六角法兰面螺栓
