A010-220012PLATE, LOCK SEAT — Genuine CF MOTO Part
CF MOTOoemFactory supply status: 启用
A010-220012 - PLATE, LOCK SEAT #6
Verified fitment — 15 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
EE (8)
Australia (2)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| AUD | 4.10 | listing | shop.cfmoto.com.au |
Location in exploded diagrams

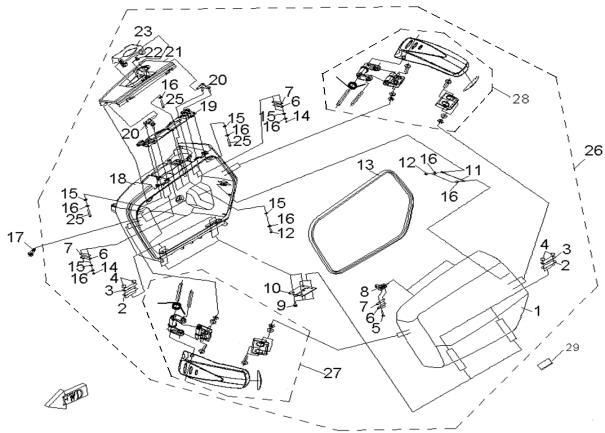

Other parts on this diagram — SIDE BOX ,LH - F22-1
- #01 A010-220002-0R30 — COVER, LH SIDE BOX
- #02 A010-220006 — WASHER, HINGE
- #03 A010-220005 — PLATE, HINGE
- #04 30202-050140 — NUT M5
- #05 30110-420250040 — SELF-TAPPING SCREW
- #07 A010-220013 — WASHER, LOCK SEAT
- #08 A010-220014 — LOCK SEAT
- #09 30105-050012440 — SCREW
- #10 A010-220100 — HINGE ASSY
- #11 A010-220501 — TIE BAND
- #12 30110-420160040 — SELF-TAPPING SCREW
- #13 A010-220007 — SEAL STRIP
- #15 6090-040203 — DEFLECTOR DAMPER
- #16 30305-040142 — WASHER
- #17 A010-220021 — BOLT M8x32
- #18 A010-220001-0H30 — SIDE BOX, LH
- #19 A010-220300 — SIDE BOX LOCK ASSY
- #20 A010-220200 — SEAT, LOCKING COVER
- #21 A010-220016-0H30 — COVER, LH LOCK KIT
- #22 A010-220009 — SPRING 1, RETURN
- #23 A010-220018-0H30 — LOCKING COVER, LH
- #25 30110-420320040 — SELF-TAPPING SCREW
- #26 A010-2220A0-0B50 — LH SIDE BOX ASSY
