A010-220004-1B300RH SIDE BOX COVER — Genuine CF MOTO Part
CF MOTOoemFactory supply status: 启用
珍珠黑
Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (2)

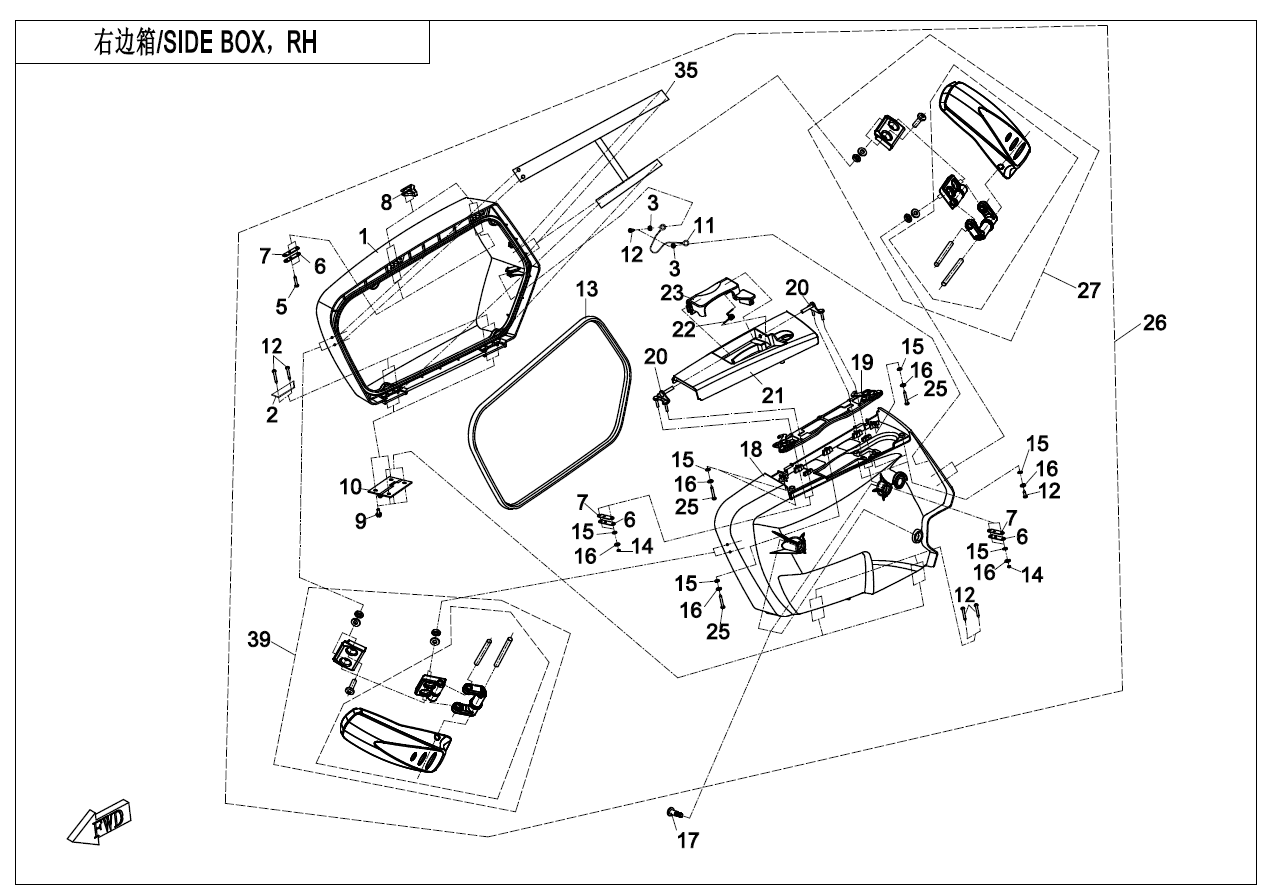

Location in exploded diagrams
Other parts on this diagram — 右边箱 SIDE BOX,RH
- #01 A010-220004-1B500 — RH SIDE BOX COVER
- #09 30105-050012410 — SCREW
- #16 30305-040112 — WASHER
- #21 A010-220017-10000 — RH LOCK SET COVER PLATE
- #23 A010-220019-10000 — RH LOCKING COVER
- #26 A010-223000-1B300 — RH SIDE BOX ASSY
- #26 A010-223000-1VE00 — RH SIDE BOX ASSY
- #27 A010-220040-10000 — FASTNER ASSY2
- #11 A010-220503 — TIE BAND
- #13 A010-220007 — SEAL STRIP
- #14 30202-040110 — NUT
- #15 6090-040203 — DEFLECTOR DAMPER
- #17 A010-220021 — BOLT M8x32
- #19 A010-220300 — SIDE BOX LOCK ASSY
- #20 A010-220200 — SEAT, LOCKING COVER
- #22 A010-220009-00001 — SPRING 1, RETURN
- #26 A010-223000-1B500 — RH SIDE BOX ASSY
- #26 A010-223000-1R300 — RH SIDE BOX ASSY
- #26 A010-223000-1V200 — RH SIDE BOX ASSY
- #01 A010-220004-1BM00 — RH SIDE BOX COVER
- #01 A010-220004-1R300 — RH SIDE BOX COVER
- #01 A010-220004-1V200 — RH SIDE BOX COVER
- #01 A010-220004-1VE00 — RH SIDE BOX COVER
- #02 A010-220106 — HINGE INSTALLATION PLATE
