A010-040010LOWER BASE PLATE, LH — Genuine CF MOTO Part
CF MOTOoem
A010-040010 - LOWER BASE PLATE, LH #2
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| AUD | 47.00 | listing | shop.cfmoto.com.au |

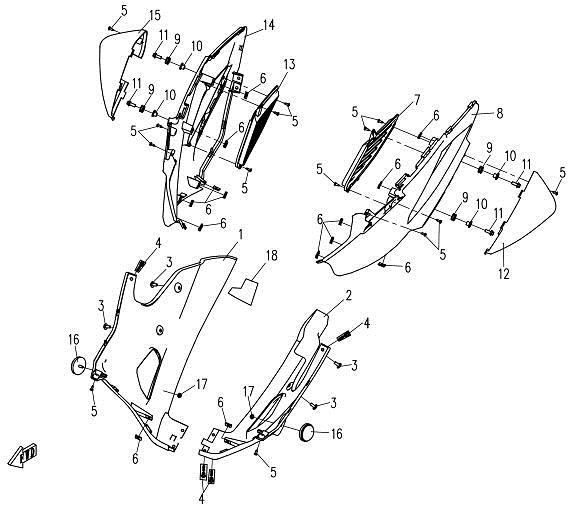

Location in exploded diagrams
Other parts on this diagram — PLASTICS IV
- #1 A010-120100-0VB0 — FUEL TANK, POLICE WHITE+PURPLISH BLUE
- #1 A010-040011 — LOWER BASE PLATE, RH
- #3 6KM#-040702-8000 — INNER HEX SCREW M6X12 Replacing: A000-040702 - INNER HEX SCREW M6X12
- #4 A000-041110 — PLASTIC CLASP
- #5 30110-421130010 — SELF-TAPPING SCREW. ST4.2X13 Replacing: 30110-420130040 - SELF-TAPPING SCREW. ST4.2X13
- #6 8010-000002 — CLAMP ST4.2
- #7 A010-040027 — AIR OUTLET PORT, LH
- #8 A010-040023-0V20 — FRONT LH PANEL PEARL WHITE
- #8 A010-040023-0B50 — FRONT LH PANEL TITANIUM GREY
- #8 A010-040023-0VB0 — FRONT LH PANEL POLICE WHITE+PURPLISH BLUE
- #8 A010-040023-0B30 — FRONT LH PANEL PEARL BLACK
- #8 A010-040023-0R30 — FRONT PROTECTION PANEL (LH), BRIGHT RED
- #9 6090-040302 — RUBBER DAMPER
- #10 9010-160102 — WASHER, HEADLIGHT
- #11 30006-060020840 — BOLT M6X20
- #12 A010-040125 — DECO COVER, LH FRONT PANEL BLACK LEATHER PATTERN BLACK LEATHER PATTERN
- #13 A010-040028 — SIDE GRILL, RH
- #14 A010-040024-0B30 — FRONT RH PANEL PEARL BLACK
- #14 A010-040024-0R30 — FRONT PROTECTION PANEL, RH, BRIGHT RED
- #14 A010-040024-0V20 — FRONT RH PANEL PEARL WHITE
- #14 A010-040024-0B50 — FRONT PROTECTION PANEL, RH, TITANIUM GREY
- #14 A010-040024-0VB0 — FRONT RH PANEL POLICE WHITE+PURPLISH BLUE
- #15 A010-040126 — DECO COVER, RH FRONT PANEL
- #16 5190-160220 — SIDE REFLECTOR AMBER COLOR
