Location in exploded diagrams

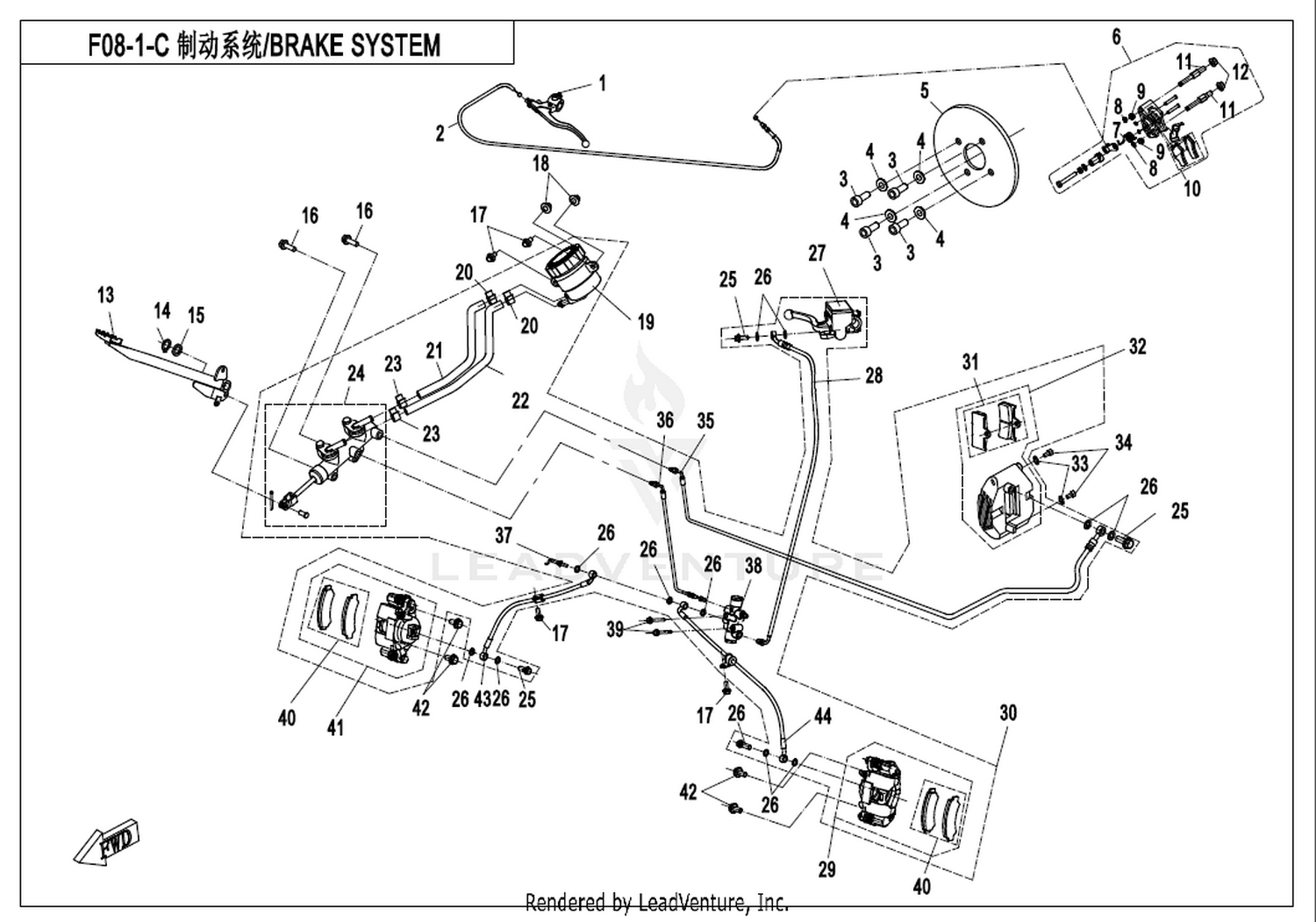

Other parts on this diagram — Brake System(With Hydraulic Distribution Valve,Sumitomo Plug)
- #18 7000-082100 — Parking Brake
- #04 30204-102810 — Nut M10×1.25
- #14 30204-060810 — Nut M6
- #18 9CRB-081010 — Master Cylinder Assy
- #09 9CR3-081100-10000 — Front Lh Brake Caliper Assy
- #35 9CR3-081010-10000 — Rear Brake Fluid Hose
- #03 9CR3-081200-10000 — Front Rh Brake Caliper Assy
- #39 9CR6-080200-10000 — Rear Brake Parking Lever Assy
- #17 7000-082103 — Return Spring
- #35 9CRB-080100 — Pedal, Brake
- #27 7020-080150-1000 — Fluid Reservoir
- #24 9CRB-081010-00001 — Master Cylinder Assy
- #30 9CRE-081000-10000 — Hydraulic Brake Assy
- #36 9CRB-081020 — Front Brake Fluid Hose
- #15 30006-102020810 — Bolt M10X1.25X20 M10X1.25X20
- #14 30802-00605 — Split Washer 6
- #03 30801-01405 — Circlips For Shaft 14
- #12 9010-080405 — Clamp
- #08 7020-081004 — Banjo Bolt
- #23 9CR3-0813A0 — Rear Brake Pad Assy
- #16 7020-080010-10000 — Hydraulic Induction Switch Sumitomo Plug, Imported
- #43 7020-082030 — Front Rh Brake Fluid Hose
- #14 9010-300001 — Bolt M10X1.25X30 M10X1.25X30
- #13 7000-082108 — Rubber Sleeve, Upper Sliding Shaft
