Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (3)

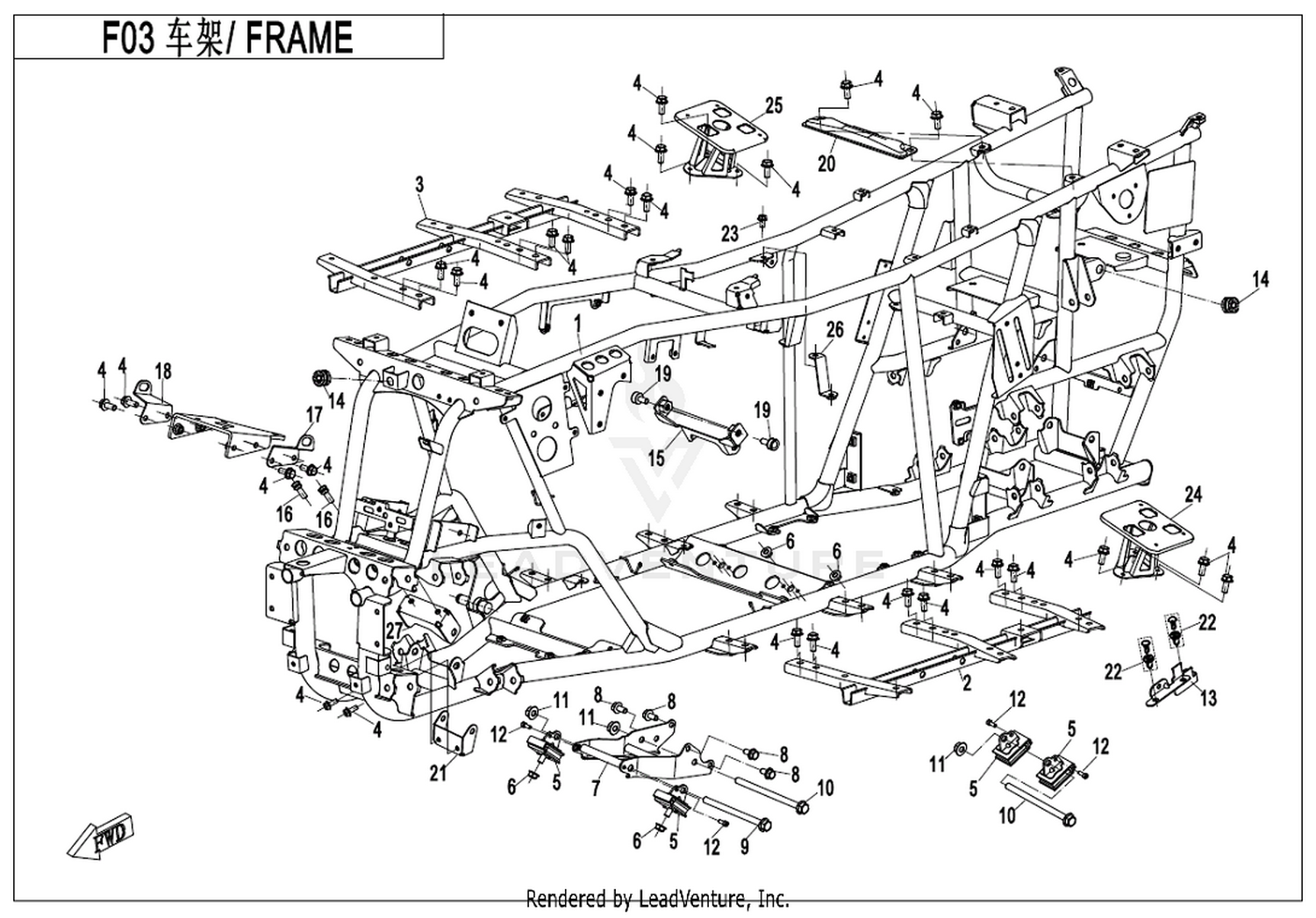

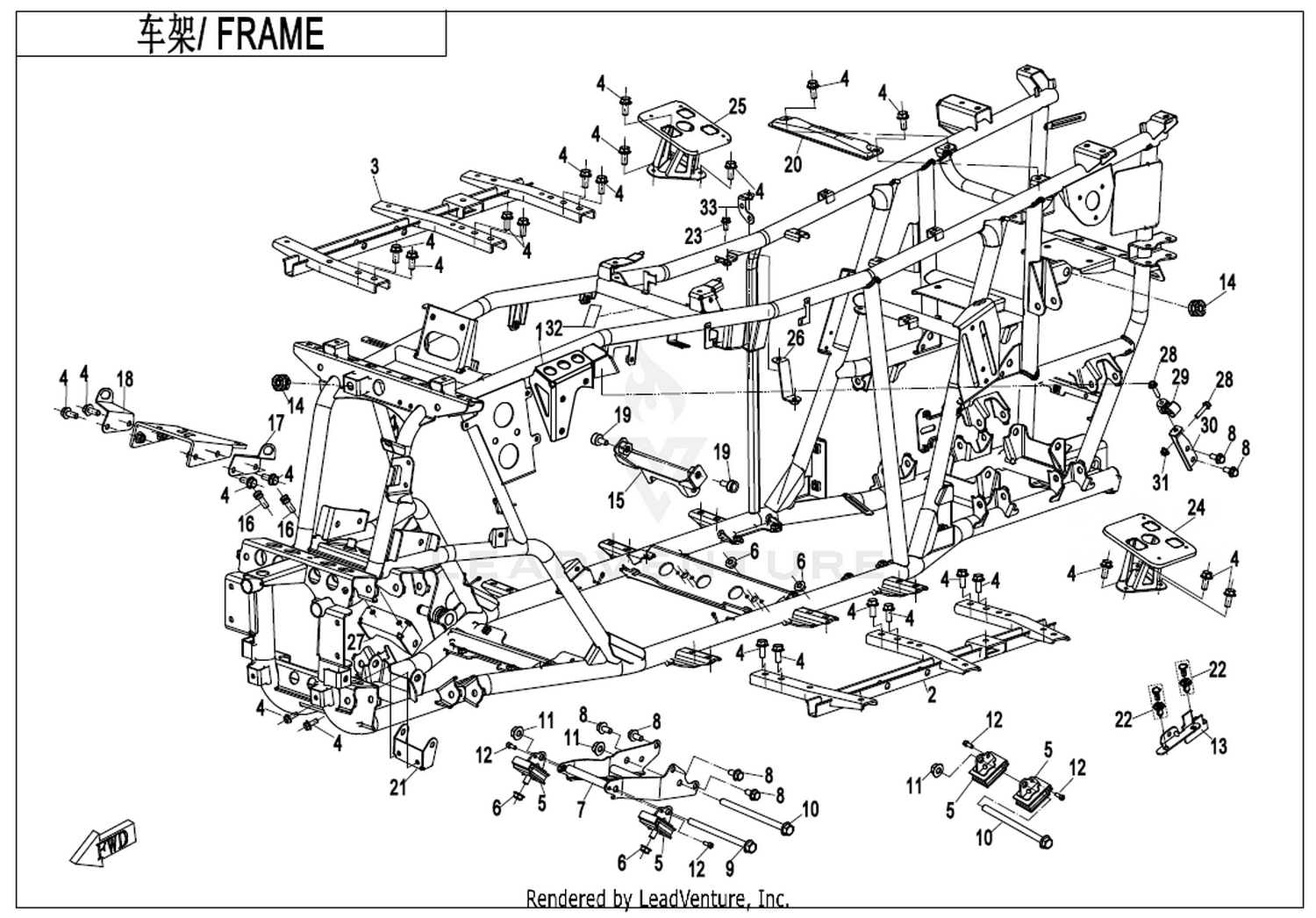

Location in exploded diagrams

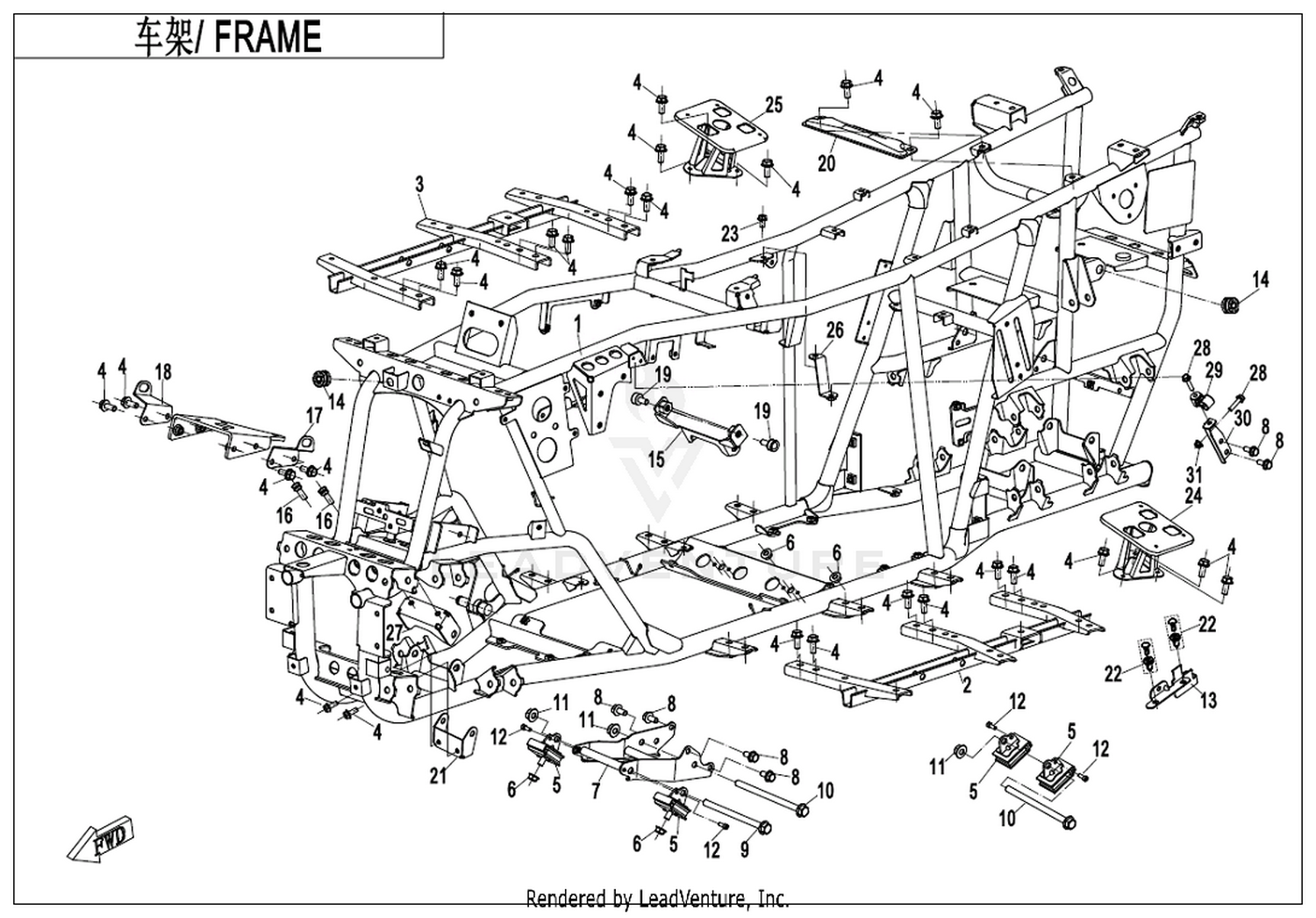

Other parts on this diagram — Frame 2
- #01 9GQL-031000-80000 — Frame Assy
- #04 30204-102810 — Nut M10×1.25
- #19 30102-060012810 — Screw M6×12
- #18 9GQ0-030005 — Rh Inner Fender Bracket
- #42 9GQ0-030120 — Side Support Assy
- #01 9GQL-031000-50000 — Frame Assy
- #10 9CR6-001100-20000 — Front Bracket, Engine Electrophoresis Black
- #16 9GQA-030020 — Bracket Assy, Ecu
- #18 30102-102020810 — Screw M10X1.25X20@Color Zinc-Plated
- #25 9GQL-039400 — Foot Pedal Rh Bracket Assy
- #15 30204-080810 — Lock Nut M8
- #02 9GQL-039100 — Foot Pedal, Lh
- #18 30006-103020810 — Bolt M10X20 M10X20
- #11 5020-031001 — Rubber Sleeve, Front License Bracket
- #20 9GQ0-030010-10000 — Fixing Bracket,Seat
- #24 9GQV-030080-1400 — Air Filter Connecting Bracket Assy
- #19 6NQ0-190005 — Tape
- #03 9GQL-039200 — Rh Foot Pedal Assy
- #11 30006-122170810 — Bolt M12X1.25X170 M12X1.25X170
- #15 9GQ0-030070-10000 — Upper Link Seat, Rear Gear Case
- #13 9GQ0-030110 — Lower Bracket,Front Gear Case
- #25 9GQ0-030050-10000 — Upper Bracket, Front Gear Case
- #25 30006-080020810 — Bolt M8X20@Color Zinc Plated
- #19 30006-122180810 — Bolt M12X1.25X180 M12X1.25X180
