9GQL-021205LOWER HEAT INSULATOR — Genuine CF MOTO Part
CF MOTOoem
9GQL-021205 - LOWER HEAT INSULATOR #17
Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

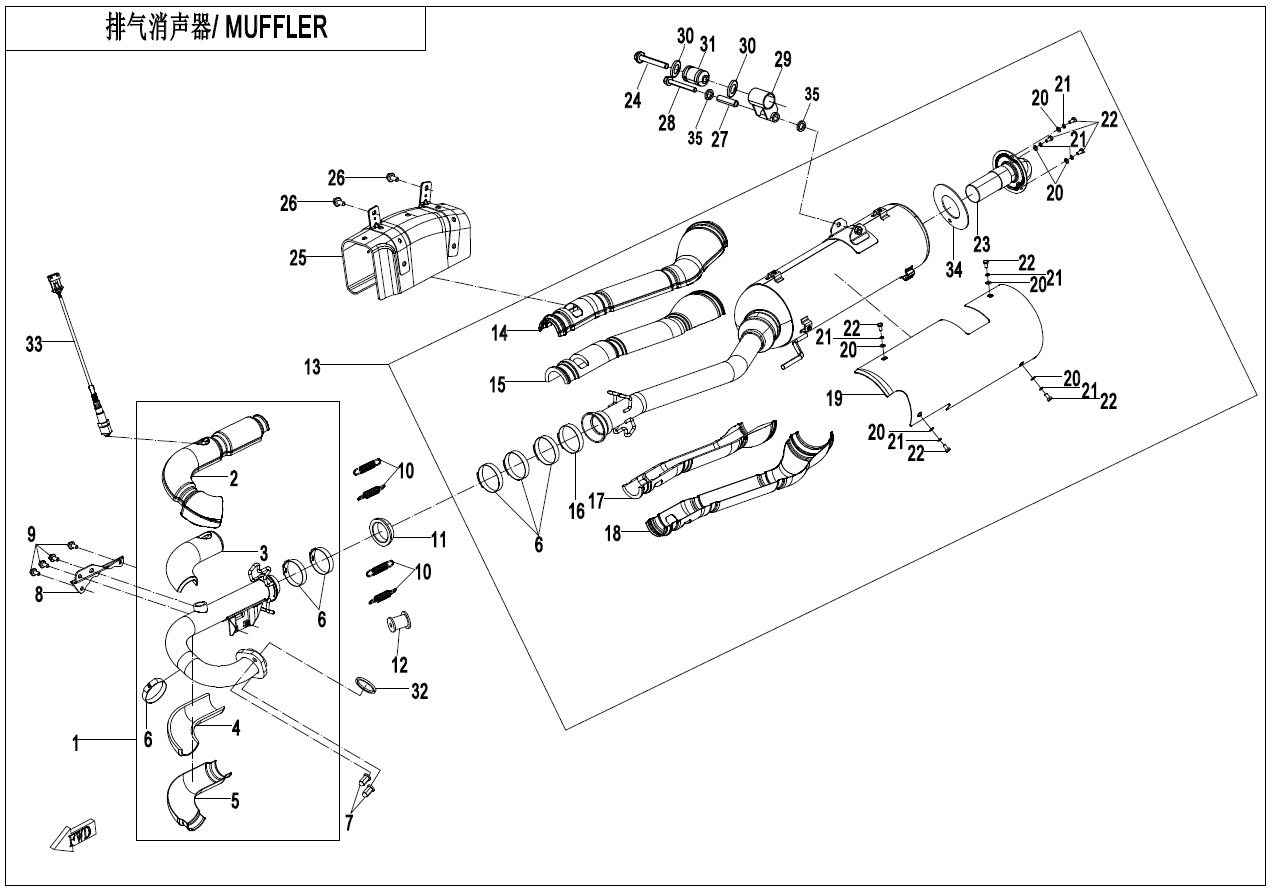

Location in exploded diagrams
Other parts on this diagram — MUFFLER(INTERNATIONAL)
- #1 9DR7-021100-10000 — EXHAUST PIPE ASSY
- #2 9DS#-021101-6000 — UPPER HEAT INSULATOR, FRONT EXHAUST PIPE
- #3 9DS#-021100-6000-20 — UPPER HEAT INSULATOR
- #4 9DS#-021100-6000-21 — LOWER HEAT INSULATOR
- #5 9DS#-021102-6000 — LOWER HEAT INSULATOR, FRONT EXHAUST PIPE
- #6 7030-021305 — SCREW CLAMP, A-TYPE
- #7 8010-020001 — NUT M8
- #8 9GQ0-020001-00003 — SUPPORT PLATE, FRONT EXHAUST PIPE Replacing: 9GQ0-020001-00002 - SUPPORT PLATE, FRONT EXHAUST PIPE
- #9 30006-060016810 — BOLT M6X16
- #10 9CR6-020002-00001 — DRAG SPRING,MUFFLER
- #11 9AWA-021003-00002 — SMALL GRAPHITE RING Replacing: 9AWA-021003-00001 - SMALL GRAPHITE RING
- #12 9GQ0-020002 — RUBBER BUSHING ,MUFFLEF
- #13 9GQ0-021200-30001 — MUFFLER ASSY
- #14 9GQ0-021207 — UPPER HEAT INSULATOR, RAER EXHAUST PIPE
- #15 9GQL-021204 — UPPER HEAT INSULATOR
- #16 9030-000109 — SCREW CLAMP, A-TYPE, 70~90
- #18 9GQ0-021208 — LOWER HEAT INSULATOR, RAER EXHAUST PIPE
- #19 9GQ0-021201-10000 — HEAT INSULATOR, MUFFLER BODY
- #20 30303-060900 — WASHER
- #21 30306-060800 — WASHER M6
- #23 9GQ0-021320 — SPARK ARRESTOR
- #24 30006-102070810 — BOLT M10X1.25X70
- #25 9GQ0-020010 — SPRING HEAT INSULATION PLATE ASSY
- #26 30006-060012870 — BOLT M6X12 Replacing: 30006-060012810 - BOLT M6X12
