Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (3)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 31.13 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 28.79 | listing | cfmoto.quadzillaparts.co.uk |

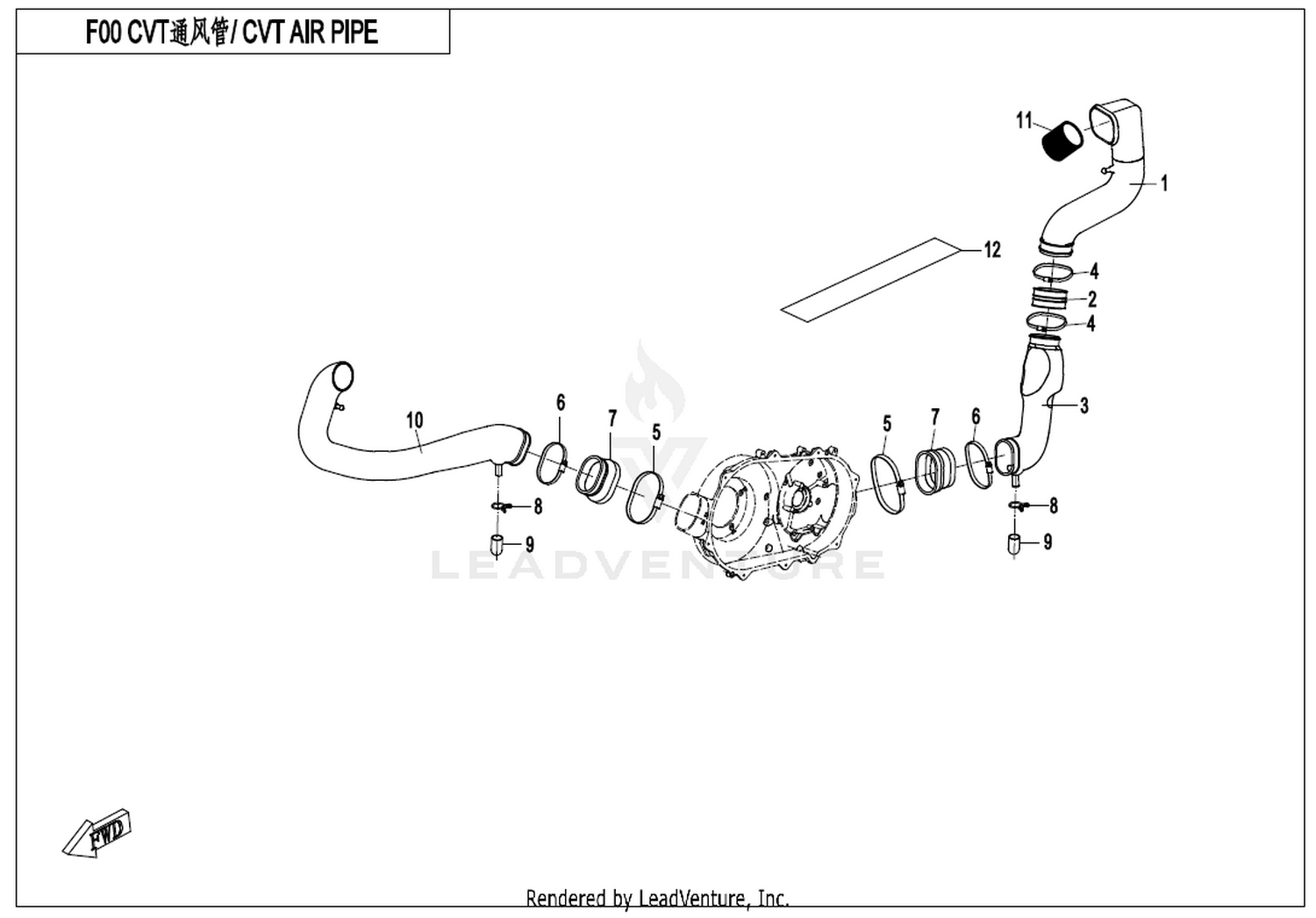

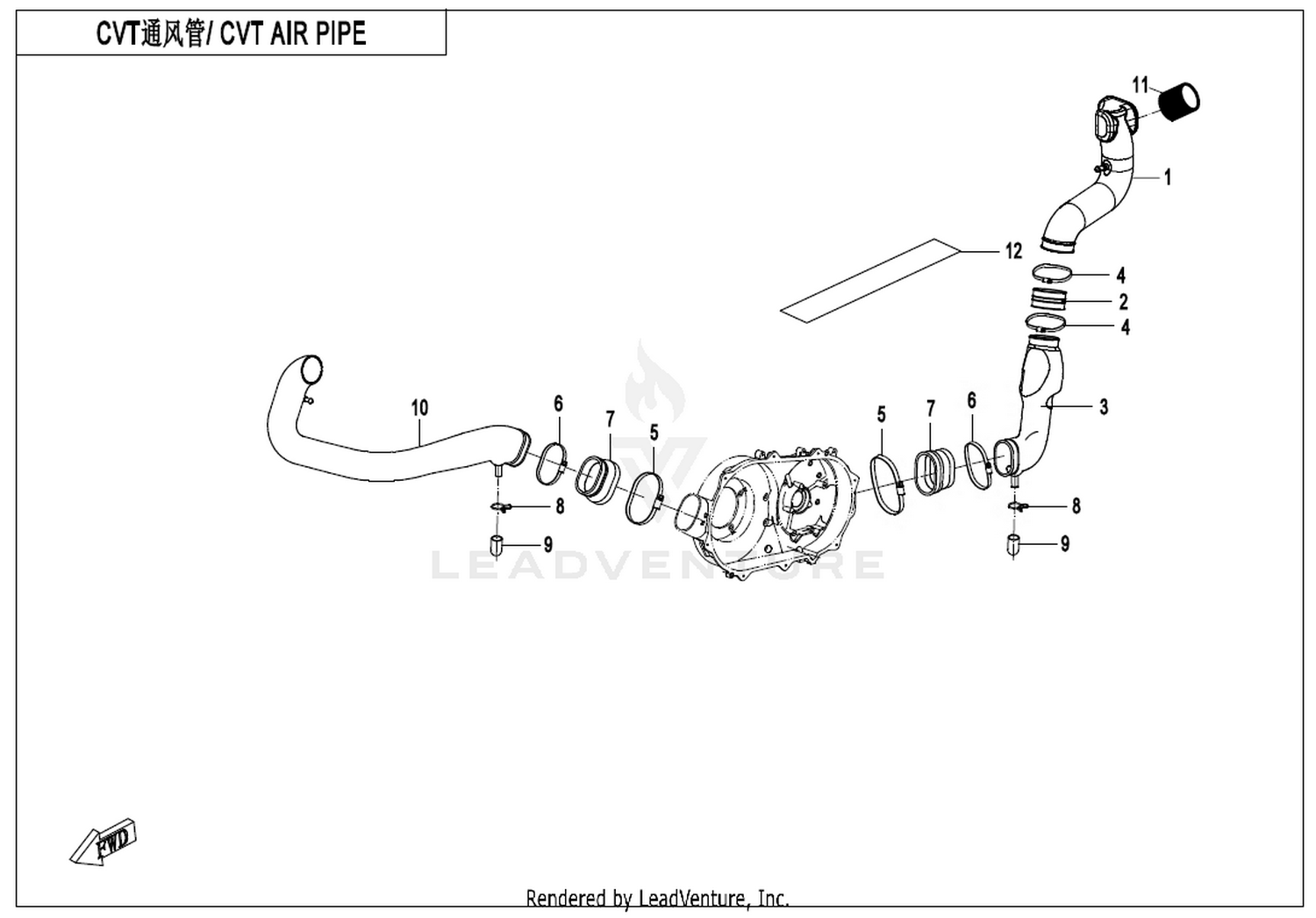

Location in exploded diagrams




Other parts on this diagram — Cvt Air Pipe
- #03 9GQ0-000206 — Rear Air Outlet Pipe, Cvt
- #16 0180-110005 — Oil Storage Hose
- #19 9030-000109 — Screw Clamp, A-Type 70~90
- #12 9010-000105 — A-Type Screw Clamp 78-101
- #13 9GQ0-000204 — Pre Filter
- #07 9010-020007 — A-Type Screw Clamp 50-70
- #14 TFQ004 — Heat Insulation Scroll Paper 50X0.062M
- #01 9GQ0-000201-10000 — Front Part, Cvt Inlet Pipe
- #07 9GQ0-000203 — Cvt Air Inlet Pipe Joint
- #02 9GQ0-000205 — Joint 2, Air Inlet Pipe, Cvt
- #17 30601-117010 — Clamp A17
