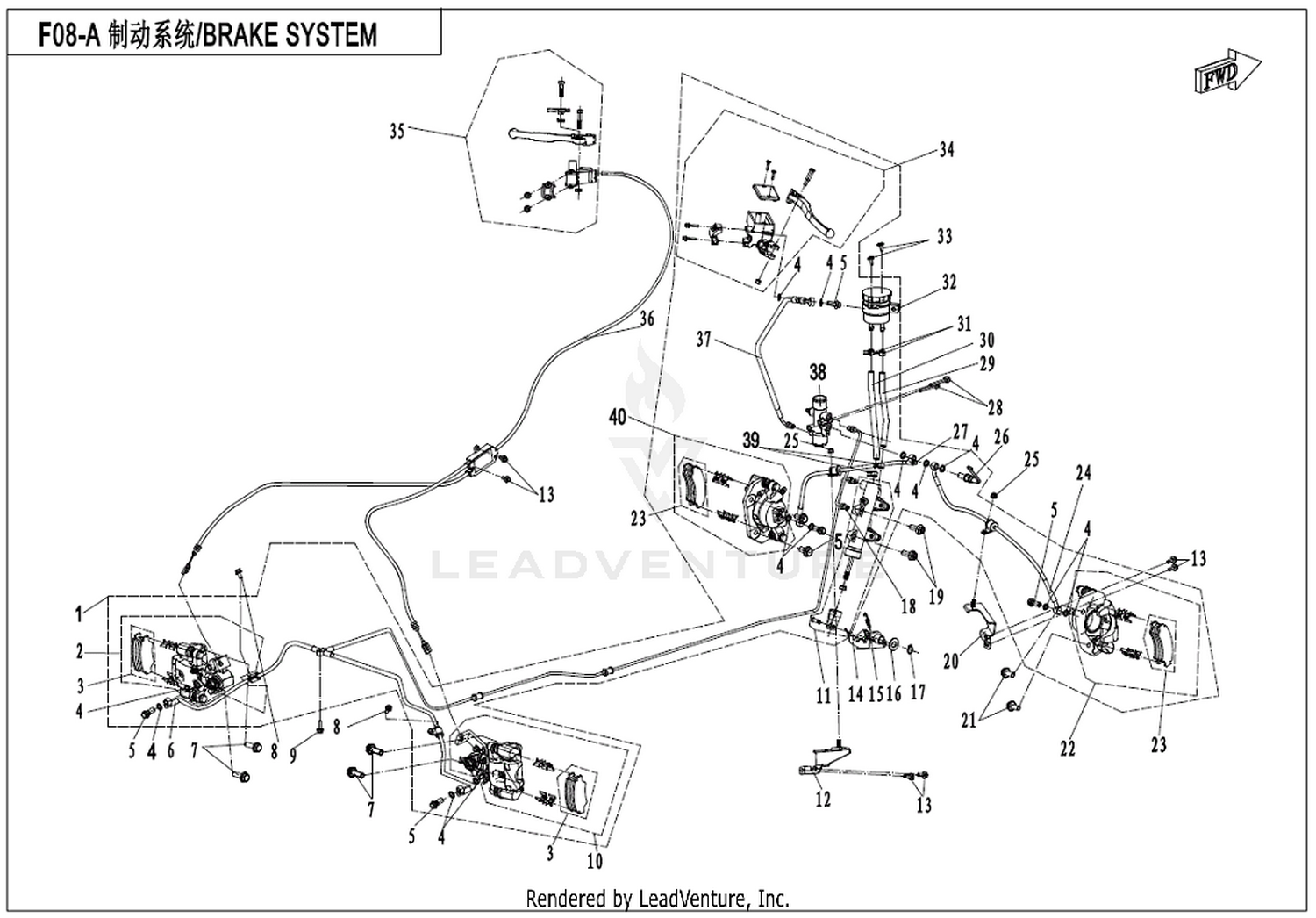

Other parts on this diagram — Brake System(Lh,Assembled,Ordinary)
- #09 9GQB-080110-10000 — Rear Brake Fluid Hose
- #37 9GQ0-080010 — Bracket, Oil Pipe
- #13 9GQA-080150-10000 — Front Brake Fluid Hose
- #35 9GQA-080120-10000 — Rh Front Brake Fluid Hose
- #06 9GQ0-080102 — Fluid Reservoir Hose 2
- #01 9GQB-081000-10000 — Hydraulic Brake Assy Lh,Unitary,Chinese Plug
- #29 30006-102030810 — Bolt M10×1.25×30
- #04 30006-060016870 — Bolt M6×16
- #11 30006-080025810 — Bolt M8×25
- #14 30204-060810 — Nut M6
- #12 9010-080405 — Clamp
- #31 7020-082010 — Fluid Hose, Hand Brake
- #20 7020-081050-10000 — Rear Brake Caliper, Lh Sintered Pad
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #12 9GQ0-080210-10000 — Pedal, Brake
- #36 9GQ0-080020 — Bracket, Oil Pipe
- #16 7020-080010-20000 — Hydraulic Induction Switch
- #18 9GQ0-080110 — Fluid Reservoir
- #12 7020-081070 — Hydraulic Distribution Valve
- #21 7020-0810A0 — Rear Brake Pad Assy
- #07 30006-060025810 — Bolt M6×25
- #11 9GQ0-080202 — Return Spring, Brake Pedal
- #15 30006-102020810 — Bolt M10X1.25X20 M10X1.25X20
- #38 9GQA-080110-10000 — Front Lh Brake Fluid Hose
