9DSV-060410-6K02Rear Lower Rh Swing Arm Assy — Genuine CF MOTO Part
CF MOTOoem
Verified fitment — 6 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

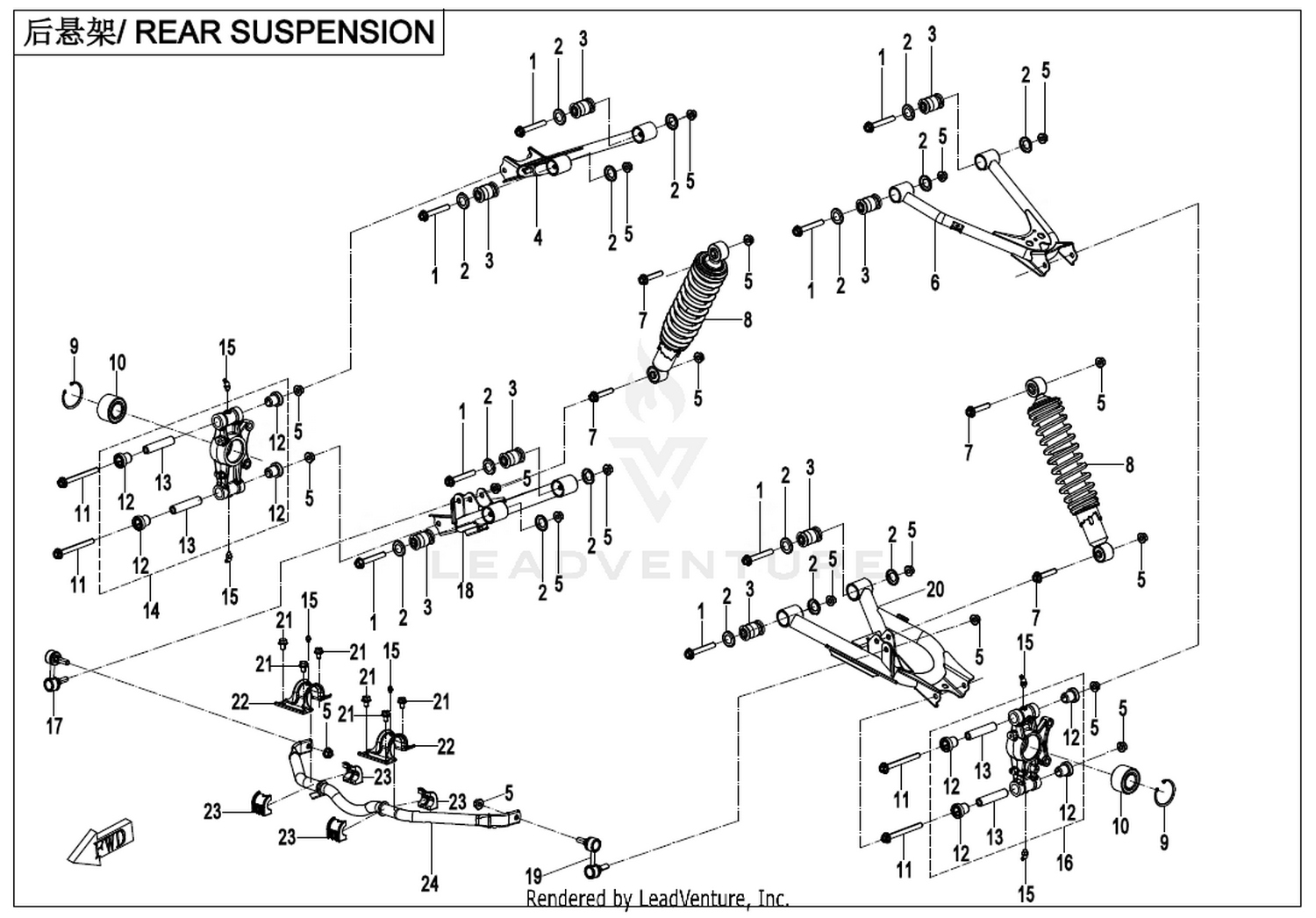

Location in exploded diagrams
Other parts on this diagram — Rear Suspension
- #04 30204-102810 — Nut M10×1.25
- #07 30006-102100810 — Bolt M10X1.25X100 M10X1.25X100
- #08 9010-060800-20000 — Rh Ball Pin Assy Ccvi
- #02 9GQ0-060003 — Supporter, Sway Bar
- #06 9DSV-060110-6K01 — Rear Upper Lh Swing Arm Assy
- #24 9060-050003 — Short Bushing, Swing Arm
- #01 9010-060500 — Sway Bar
- #22 30006-102070810 — Bolt M10X1.25X70@Color Zinc Trivalent Chromium
- #16 30006-102055810 — Bolt M10×1.25×55
- #23 7020-060702-00001 — Rear Wheel Shaft Bracket Middle Bushing
- #03 9010-060700-20000 — Lh Ball Pin Assy Ccvi
- #11 9010-050003 — Cushion Sleeve Cap
- #08 9DS#-060600-6000 — Rear Shock Absorber Assy Supplier 2@Black
- #18 7020-0608A0 — Rear Rh Bearing Seat Assy
- #20 9DSV-060210-6K02 — Rear Lower Lh Swing Arm Assy
- #12 9010-050500 — Cushion Sleeve Assy
- #25 30800-05505 — Circlip For Hole Black
- #06 3120100 — Oil Cup
- #18 30006-080012810 — Bolt M8×12
- #04 9DSV-060310-6K01 — Rear Upper Rh Swing Arm Assy
- #21 9GQ0-050710 — Bearing, Hub
- #19 7020-0607A0 — Lh Rear Bearing Carrier Assy,
- #22 9DS#-060601-6001 — Press Cover, Sway Bar
