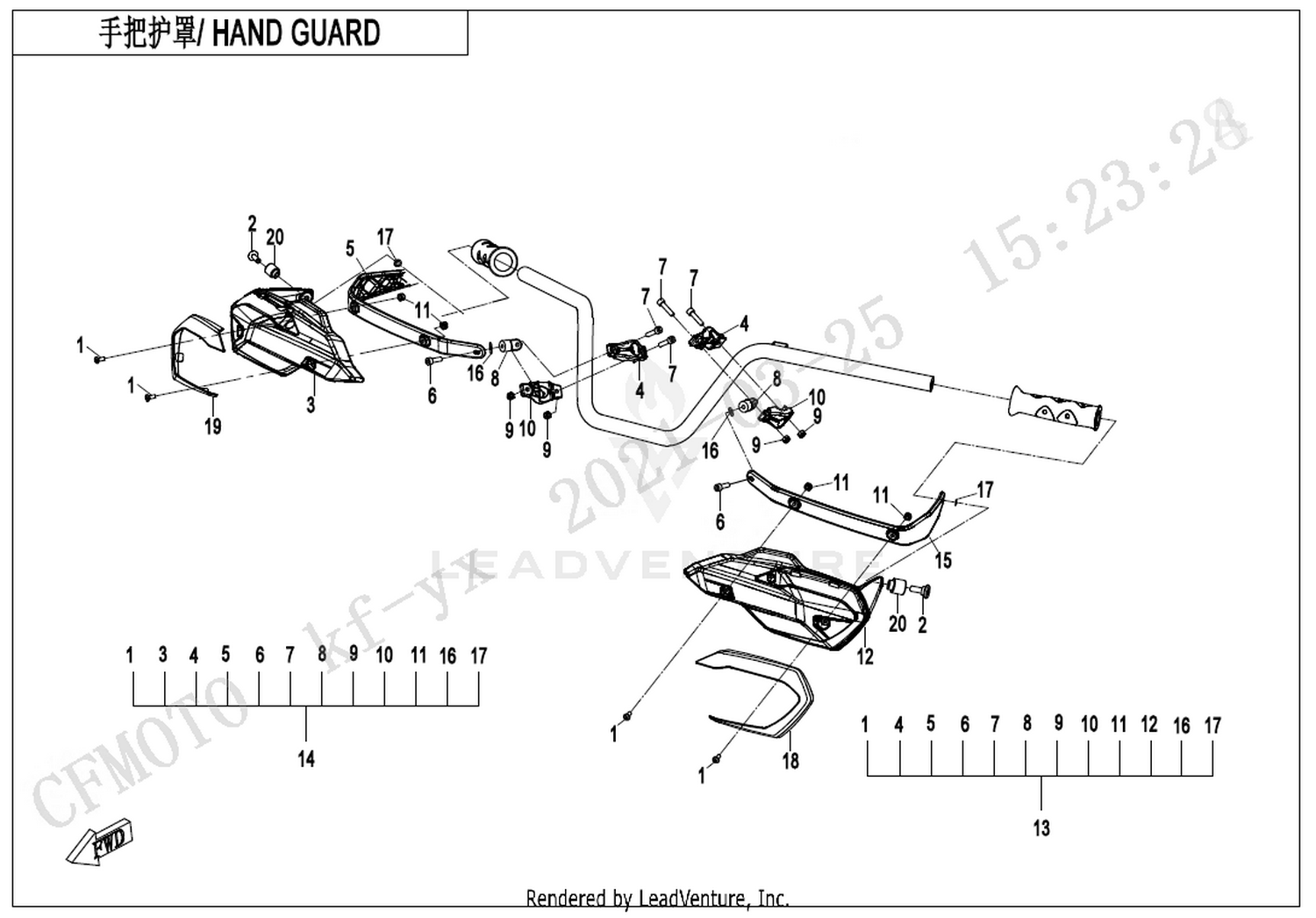

Location in exploded diagrams
Other parts on this diagram — Hand Guard
- #26 9AWA-1012A0 — Lh Hand Guard
- #07 6NQ#-000206-6001 — Inner Hex Screw M6X16 M6X16
- #45 30102-060022810 — Screw M6X22@Trivalent Chromium
- #19 9AWA-101302-0B300 — Rh Hand Guard Cover Deco Plate Pearl Black
- #05 30102-080040810 — Screw M8X40 M8X40
- #24 9CR6-101203-10000 — Connector, Bracket
- #27 9AWA-1013A0 — Rh Hand Guard Assy
- #03 9AWA-101301-10000 — Rh Hand Guard Cover
- #23 30224-060810 — Nut
- #11 9AWA-101203-20000 — Handguard Lever, Lh
- #14 9CR6-101202-10000 — Seat, Bracket
- #10 9CR6-101204-10000 — Press Cover, Bracket
- #22 30305-060112 — Washer F6@Color Zinc Trivalent Chromium
- #05 9AWA-101303-10000 — Rh Handguard Lever
- #22 30206-060510 — Cap Nut M6
- #09 30305-080112 — Washer F8
- #14 A000-040703 — Inner Hex Screw M6X20
- #22 9AWA-101201-10000 — Hand Guard, Lh
- #21 9AWA-101202-0B300 — Lh Hand Guard Deco Plate Pearl Black
