9DR8-035070CONNECTING BRACKET, AIR FILTER ELECTROPHORESIS BLACK — Genuine CF MOTO Part
CF MOTOoem
9DR8-035070 - CONNECTING BRACKET, AIR FILTER ELECTROPHORESIS BLACK #20
Verified fitment — 4 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (3)
Australia (1)

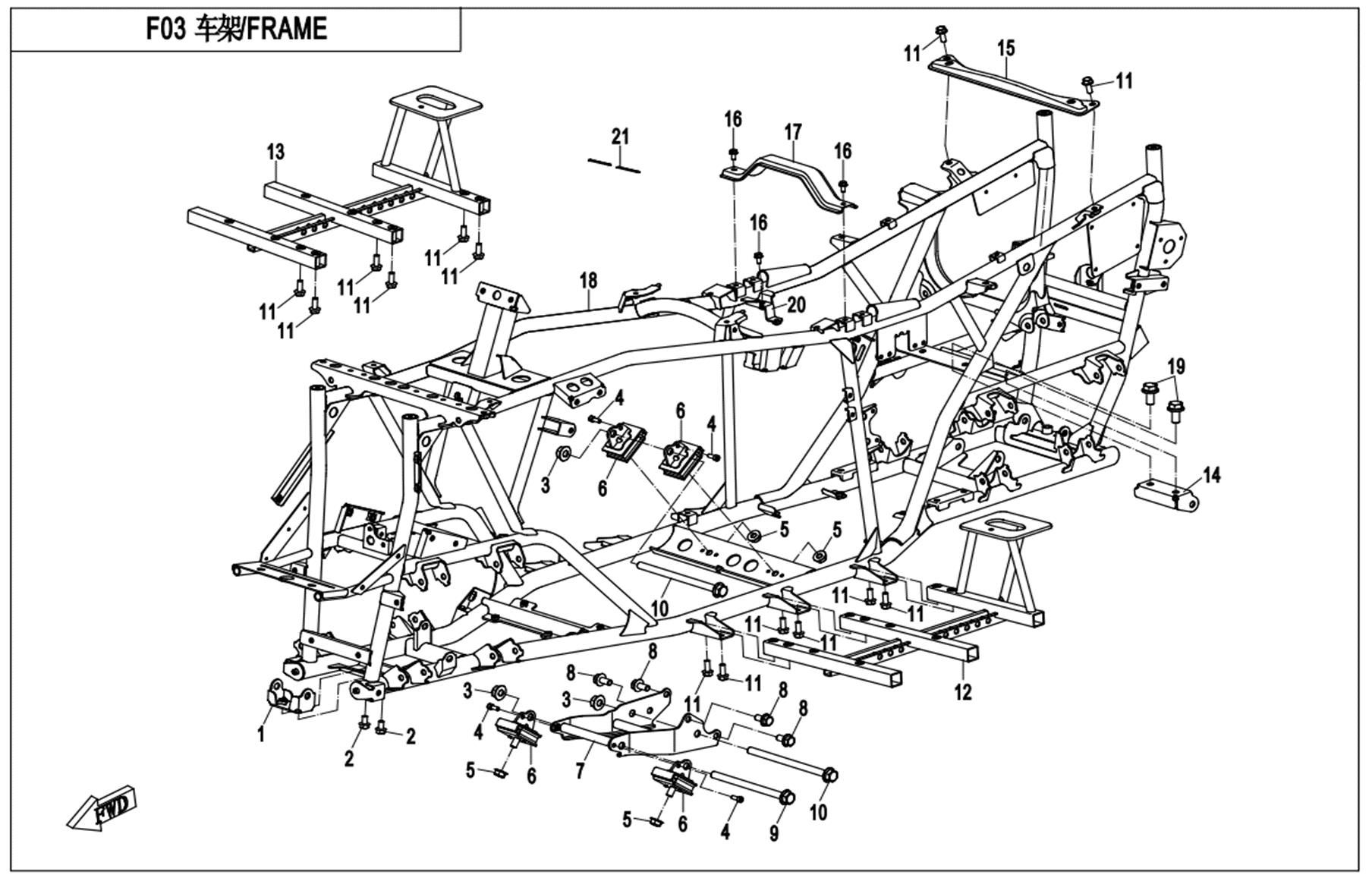

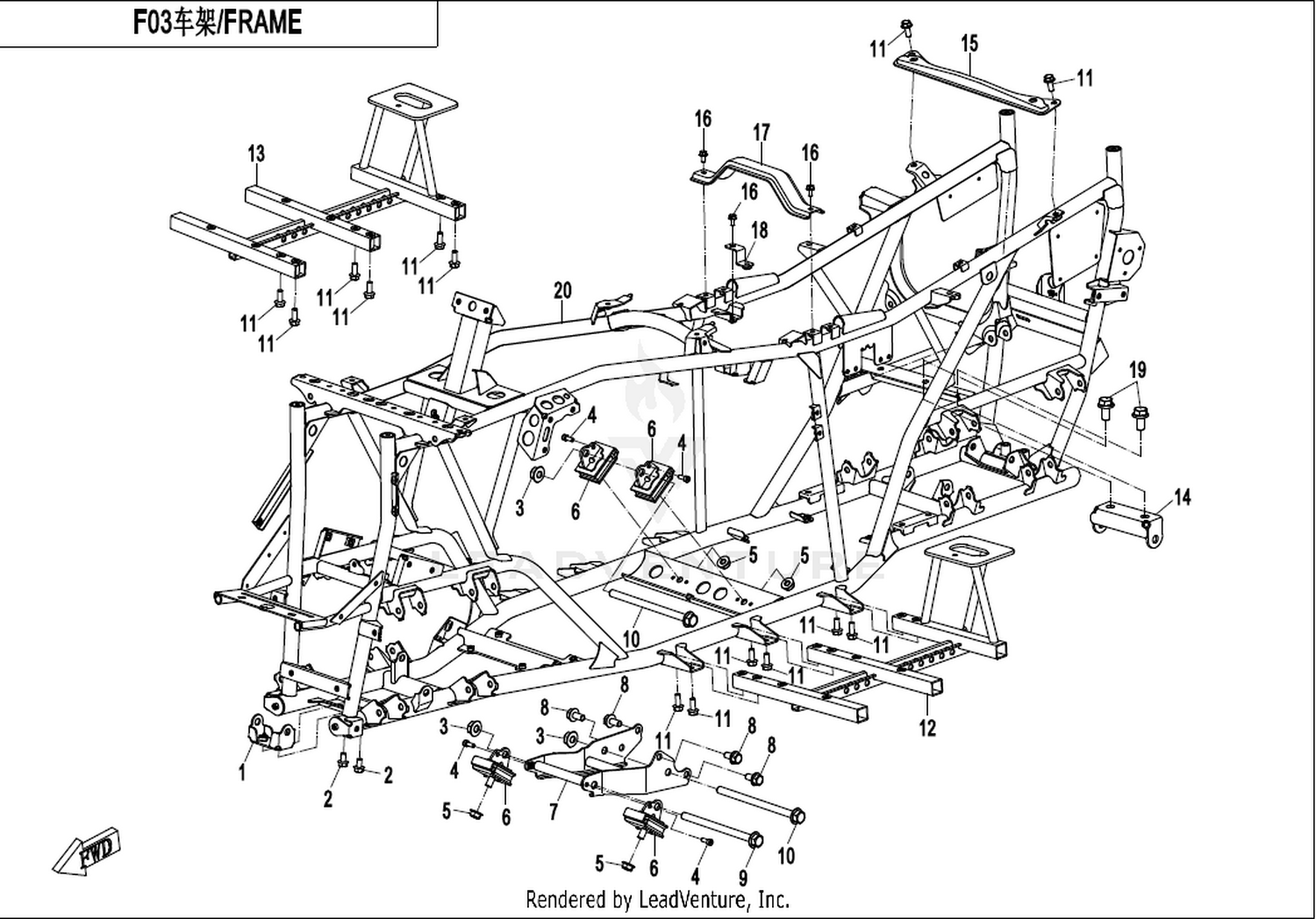

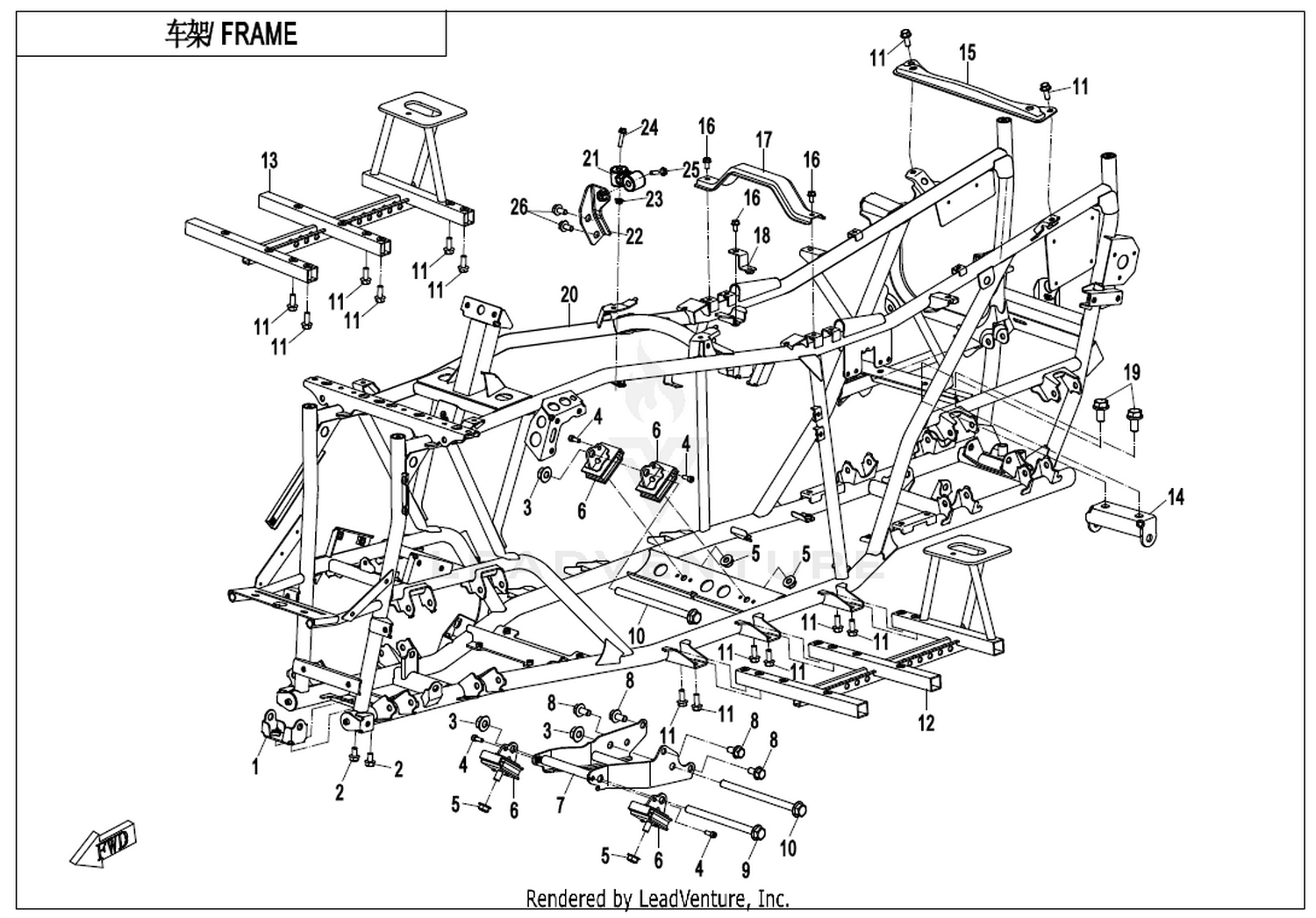

Location in exploded diagrams
Other parts on this diagram — FRAME
- #1 9010-037400 — BRACKET
- #2 30006-080014810 — BOLT M8X14
- #3 30204-122810 — NUT M12X1.25
- #4 30102-060016810 — SCREW M6X16
- #5 30204-102810 — NUT M10X1.25
- #6 401B-000200-10000 — DAMPER
- #7 9CR6-001100-20000 — FRONT BRACKET, ENGINE ELECTROPHORESIS BLACK
- #8 30006-102020810 — BOLT M10X1.25X20 Replacing: 30006-100020810 - BOLT M10X20
- #9 30006-122170810 — BOLT M12X1.25X170
- #10 30006-122180810 — BOLT M12X1.25X180
- #11 30006-080020810 — BOLT M8X20
- #12 9CR6-039100-10000 — BRACKET, LEFT FOOTBOARD
- #13 9CR6-039200-10000 — BRACKET, RIGHT FOOTBOARD
- #14 9CRB-030010 — SUSPENSION BRACKET ASSY, REAR AXLE
- #15 9010-030070 — SEAT BRACKET
- #16 30006-060012870 — BOLT M6X12 Replacing: 30006-060012810 - BOLT M6X12
- #17 901A-030007 — TOP HOLDER ASSY, SEAT
- #18 9CRB-031000-20000 — FRAME ASSY
- #20 9DR8-035070-10000 — CONNECTING BRACKET, AIR FILTER
- #21 9060-038129 — SPONGE STRIP 1, HEAT INSULATOR
