Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 16.74 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 15.48 | listing | cfmoto.quadzillaparts.co.uk |

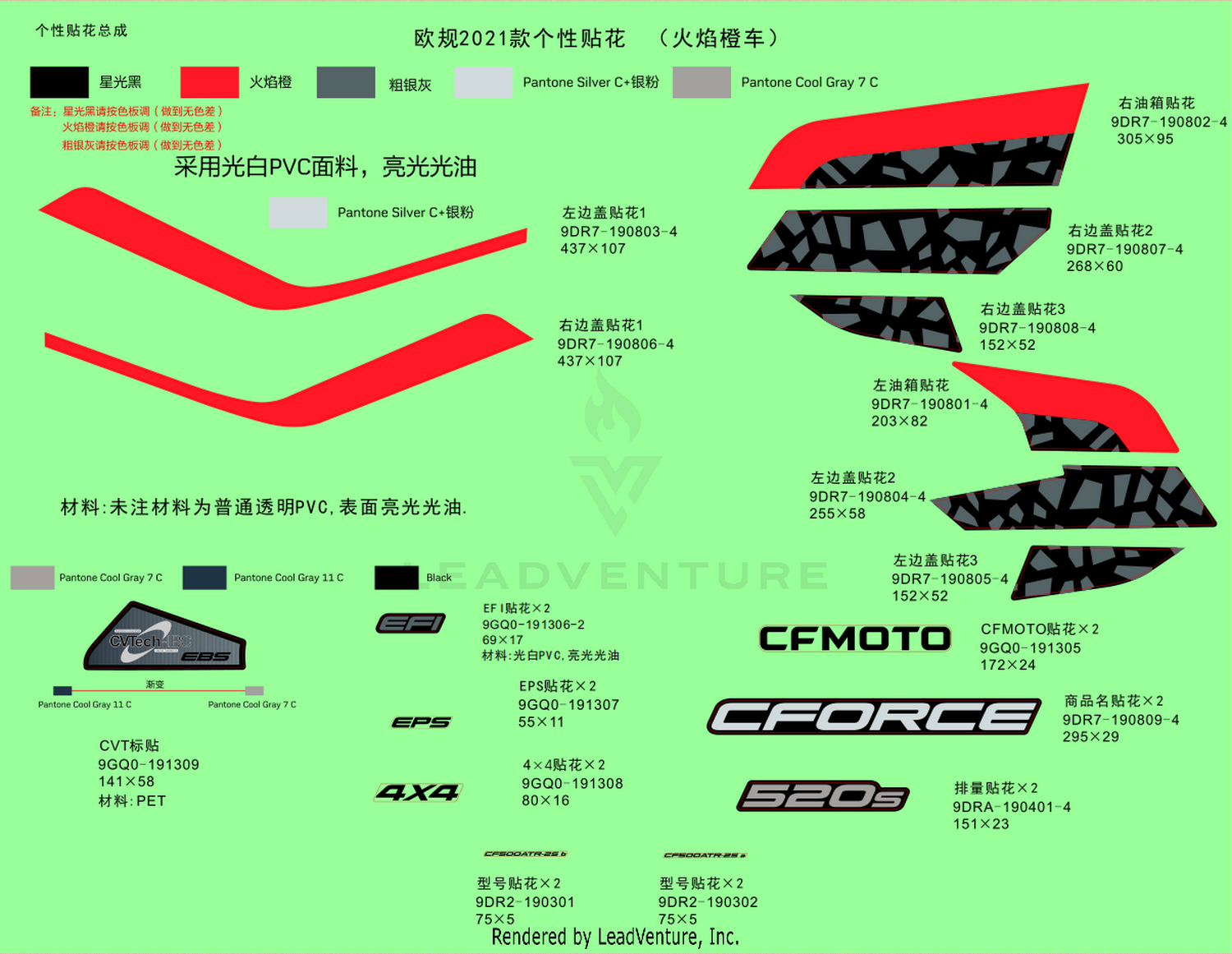

Location in exploded diagrams
Other parts on this diagram — Decal Kits(Lava Orange)
- #04 9DR7-190803-40000 — Lh Side Cover Decal 1
- #10 9DR7-190809-40000 — Commercial Name Decal
- #08 9GQ0-191309 — Cvt Decal
- #05 9DR7-190804-40000 — Lh Side Cover Decal 2
- #11 9DRA-190401-40000 — Displacement Decal
- #17 9DR2-190301 — Model Decal
- #06 9DR7-190805-40000 — Lh Side Cover Decal 3
- #06 9GQ0-191305 — Cfmoto Decal
- #18 9DR2-190302 — Model Decal
- #07 9DR7-190806-40000 — Rh Side Cover Decal 1
- #13 9GQ0-191306-20000 — Efi Decal
- #02 9DR7-190801-40000 — Lh Fuel Tank Decal
- #08 9DR7-190807-40000 — Rh Side Cover Decal 2
- #10 9GQ0-191307 — Eps Decal
- #03 9DR7-190802-40000 — Fuel Tank Rh Decal
- #09 9DR7-190808-40000 — Rh Side Cover Decal 3
- #07 9GQ0-191308 — 4X4 Decal
