9CSV-150700-6000WINCH ASSY — Genuine CF MOTO Part
CF MOTOoem
9CSV-150700-6000 - WINCH ASSY #11
Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
Australia (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 651.07 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 601.92 | listing | cfmoto.quadzillaparts.co.uk |

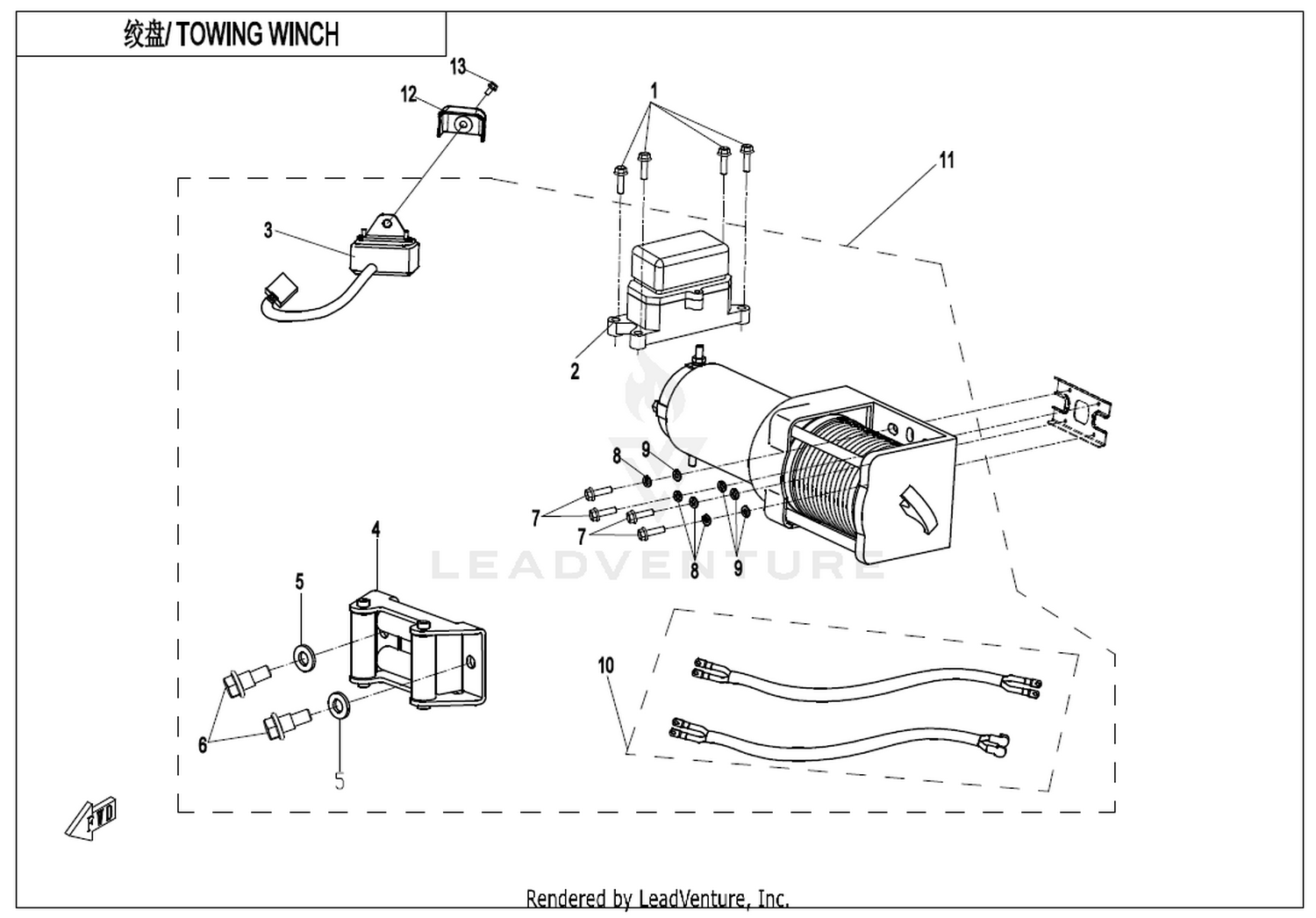

Location in exploded diagrams

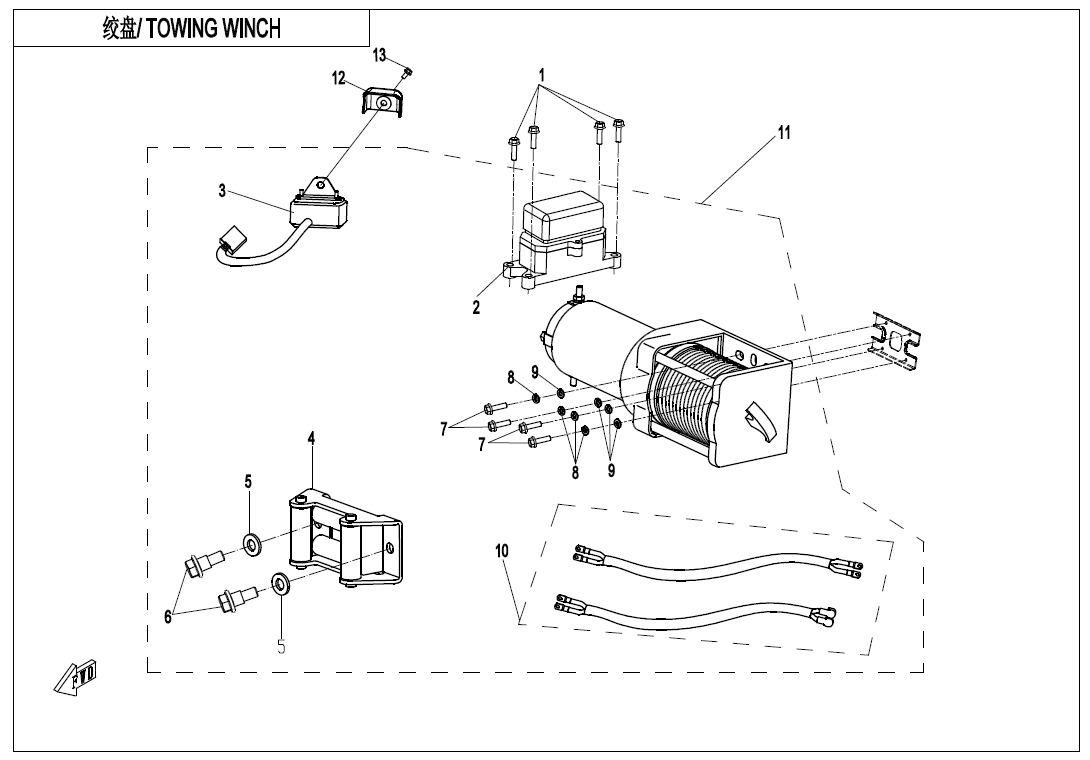

Other parts on this diagram — TOWING WINCH
- #1 30006-060022810 — BOLT M6X22
- #2 5BYV-150720-8800 — WINCH CONTROL RELAY
- #3 9DSV-150730-D000 — WINCH CONTROL SWITCH
- #4 9030-150730 — CABLE PULLEY
- #5 30303-100112 — WASHER 10
- #6 30006-102025810 — BOLT M10X1.25X25
- #7 30006-080025810 — BOLT M8X25
- #8 30304-080420 — WASHER
- #9 30303-080112 — WASHER
- #10 9CSV-150760-A200 — CABLE, WINCH
- #12 9CR6-101002 — DECO COVER, WINCH SWITCH
- #13 6KM#-040702-8000 — INNER HEX SCREW M6X12 Replacing: A000-040702 - INNER HEX SCREW M6X12
