9CSV-082000-A201HYDRAULIC BRAKE ASSY — Genuine CF MOTO Part
CF MOTOoem
9CSV-082000-A201 - HYDRAULIC BRAKE ASSY #1
Verified fitment — 4 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)

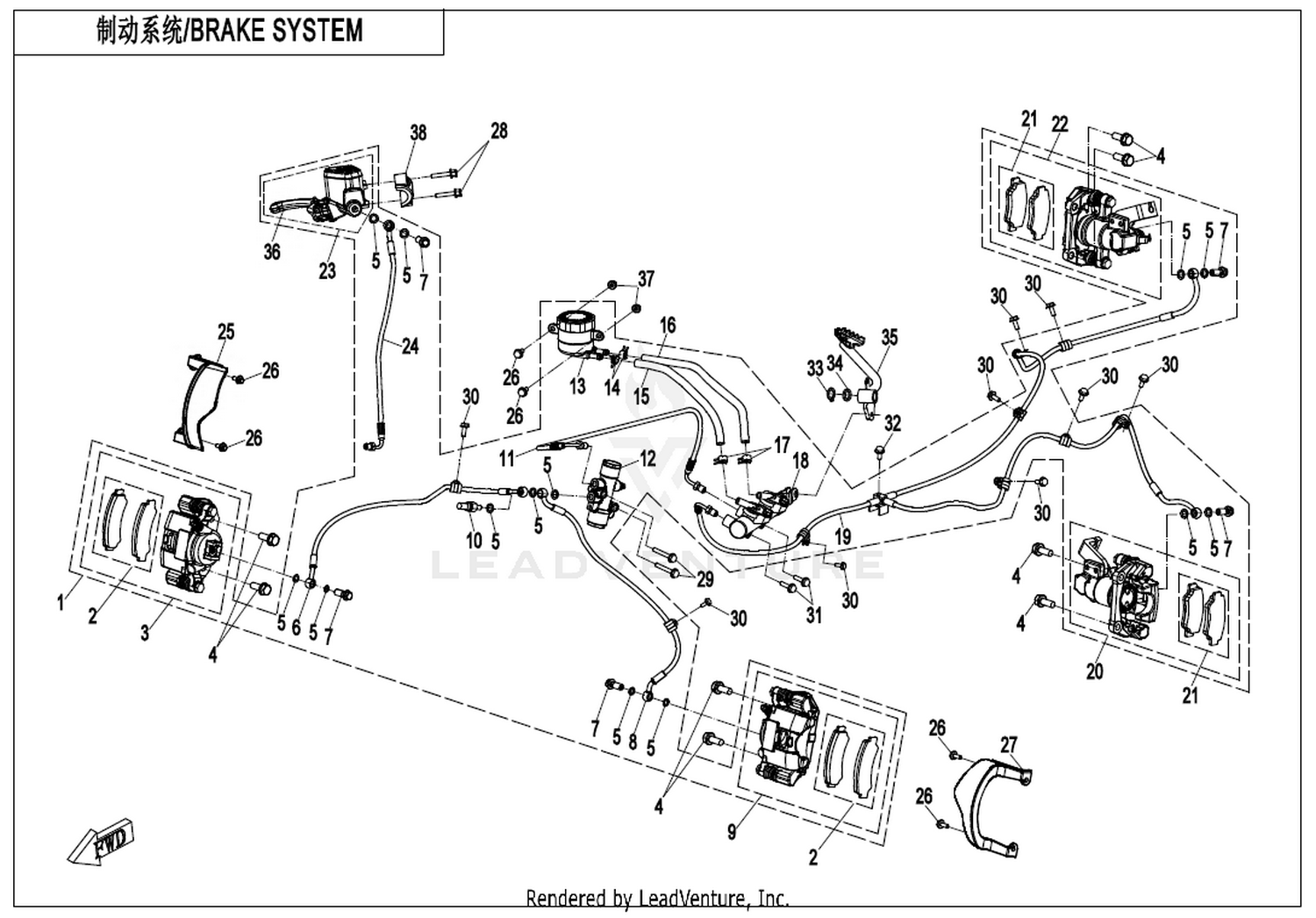

Location in exploded diagrams
Other parts on this diagram — BRAKE SYSTEM
- #2 5ASV-0811A0 — FRONT BRAKE PAD ASSY
- #3 9DSV-081200-A200 — FRONT BRAKE CALIPER, RH
- #4 30006-102030810 — BOLT M10X1.25X30
- #5 0010-060010 — WASHER M10 Replacing: 901B-080102 - WASHER
- #6 9DS#-081020-6000 — RH FRONT BRAKE FULID HOSE
- #7 7020-081004 — BANJO BOLT
- #8 9DS#-081010-6000 — LH FRONT BRAKE FULID HOSE
- #9 9DSV-081100-A200 — FRONT BRAKE CALIPER, LH
- #10 5HY0-080010-20000 — HYDRAULIC INDUCTION SWITCH (MALE PLUG)
- #11 9DS#-081040-6000 — FRONT BRAKE FULID HOSE
- #12 9AWV-081070-4000 — HYDRAULIC DISTRIBUTION VALVE
- #13 7020-080150-1000 — FLUID RESERVOIR
- #14 9010-080405 — CLAMP
- #15 9CR6-081002 — FLUID HOSE 2, RESERVOIR
- #16 9CR6-081001 — FLUID HOSE 1,RESERVOIR
- #17 7020-081002 — PIPE CLIP, MASTER CYLINDER
- #18 9CRB-081010 — MASTER CYLINDER
- #19 9CS#-081030-6401 — REAR BRAKE FLUID HOSE
- #20 9AWV-081050-4000 — REAR LH BRAKE CALIPER
- #21 5ASV-0813A0 — REAR BRAKE PAD ASSY
- #22 9AWV-081060-4000 — REAR RH BRAKE CALIPER
- #23 9AY0-081200 — MASTER CYLINDER ASSY, RH HAND BRAKE
- #24 9AY0-081010 — BRAKE FLUID HOSE, LH HAND BRAKE
- #25 9DS#-080002-6001 — GUARD, FRONT RH CV JOINT
