9CS0-021201HEAT INSULATOR — Genuine CF MOTO Part
CF MOTOoem
9CS0-021201 - HEAT INSULATOR #17
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (1)

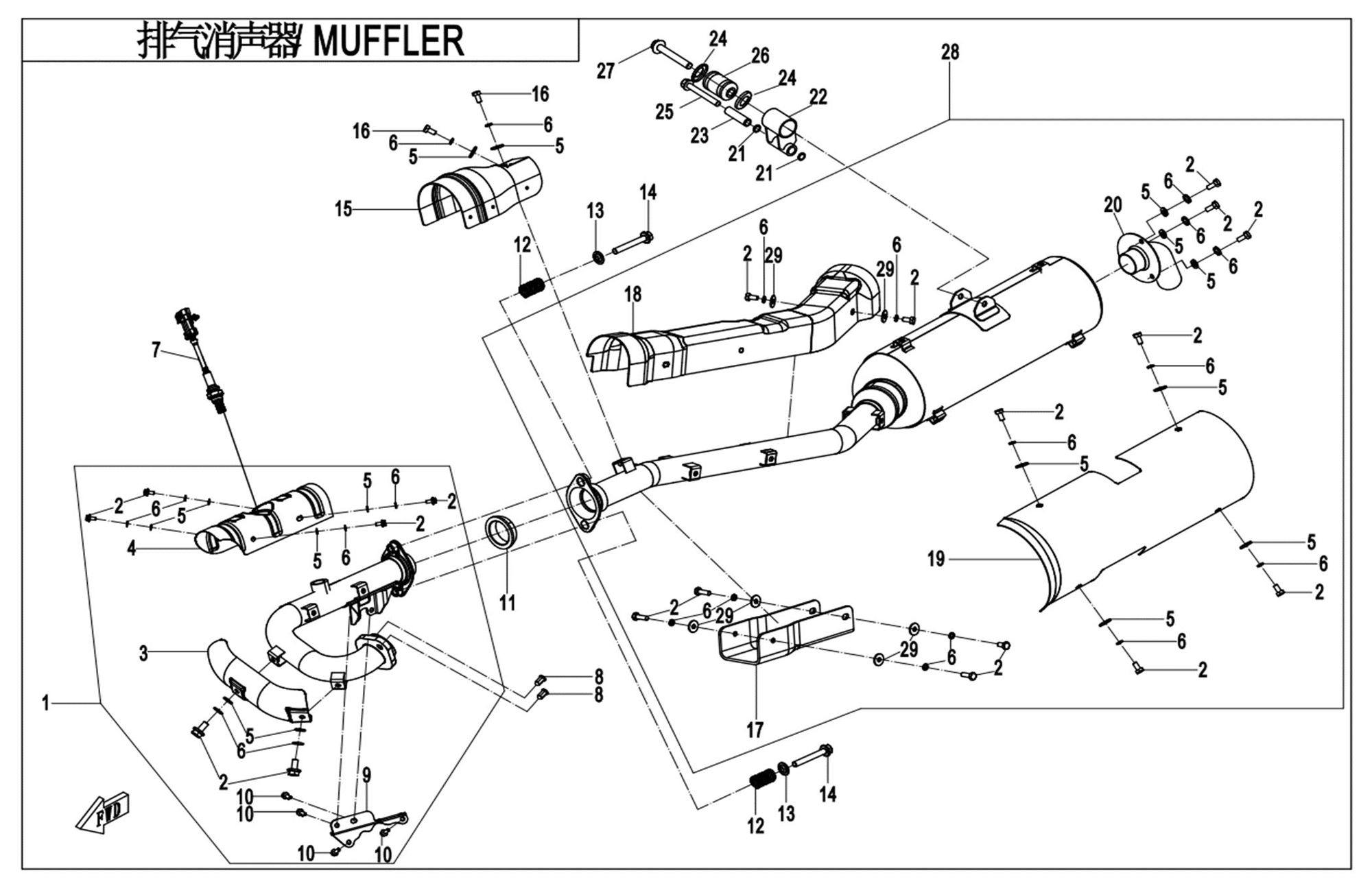

Location in exploded diagrams
Other parts on this diagram — MUFFLER
- #23 7020-020001 — LINER, MUFFLER
- #1 9CS0-021100 — EXHAUST PIPE ASSY
- #2 30000-060012700 — BOLT
- #3 9GQ0-021101 — FRONT HEAT INSULATOR, EXHAUST PIPE
- #4 9GQ0-021102 — HEAT INSULATOR,EXHAUST PIPE
- #5 30306-060800 — WASHER M6
- #6 30303-060900 — WASHER
- #7 018B-176000 — OXYGEN SENSOR
- #8 8010-020001 — NUT M8
- #9 9GQ0-020001 — SUPPORT PLATE, FRONT EXHAUST PIPE
- #9 9GQ0-020001-00001 — SUPPORT PLATE,FRONT EXHAUST PIPE
- #10 30006-060016810 — BOLT M6X16
- #11 9AWA-021003-00002 — SMALL GRAPHITE RING Replacing: 9AWA-021003-00001 - SMALL GRAPHITE RING
- #12 9AWA-021001 — SPRING, MUFFLER
- #13 9AWA-021005 — BUSHING
- #14 9AWA-021002-10000 — BOLT M8X55
- #15 9GQL-021220-10000 — HEAT INSULTOR ASSY, SPRING
- #16 30006-060012870 — BOLT M6X12 Replacing: 30006-060012810 - BOLT M6X12
- #18 9CS0-021204 — REAR HEAT INSULATION PLATE
- #19 9CR6-021203 — HEAT INSULATOR, MUFFLER BODY
- #20 7020-021320-10000 — SPARK ARRESTOR
- #21 9CR6-020003 — WIRE WASHER
- #22 9CR6-020020 — MOUNT ASSY, MUFFLER
- #24 9DSV-050900-6K00 — CAP, CUSHION SLEEVE Replacing: 9010-050003 - CAP, BUFFERING COLLAR
