9AWA-051663PISTON — Genuine CF MOTO Part
CF MOTOoem
9AWA-051663 - PISTON #30
Verified fitment — 14 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (12)
Location in exploded diagrams

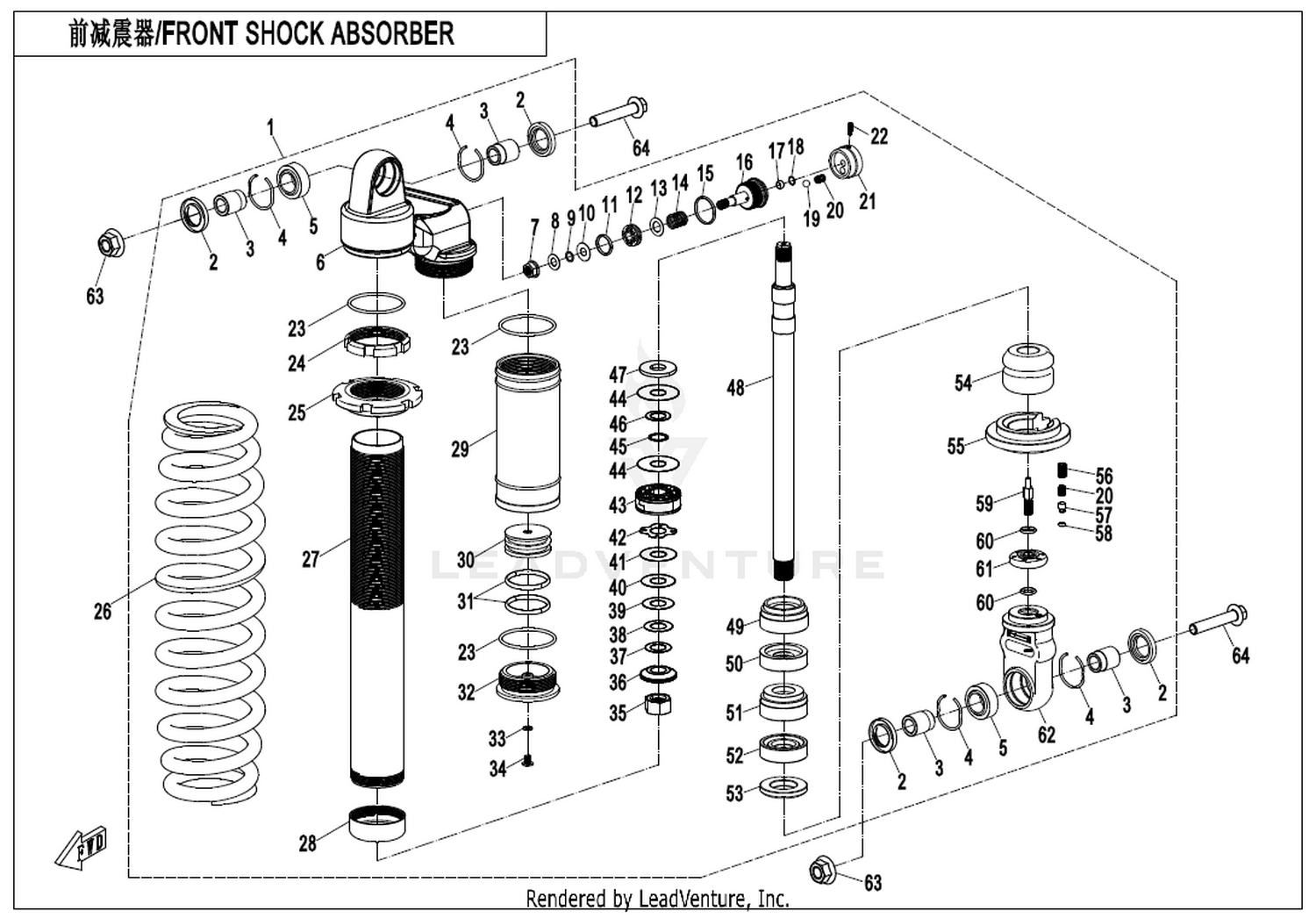

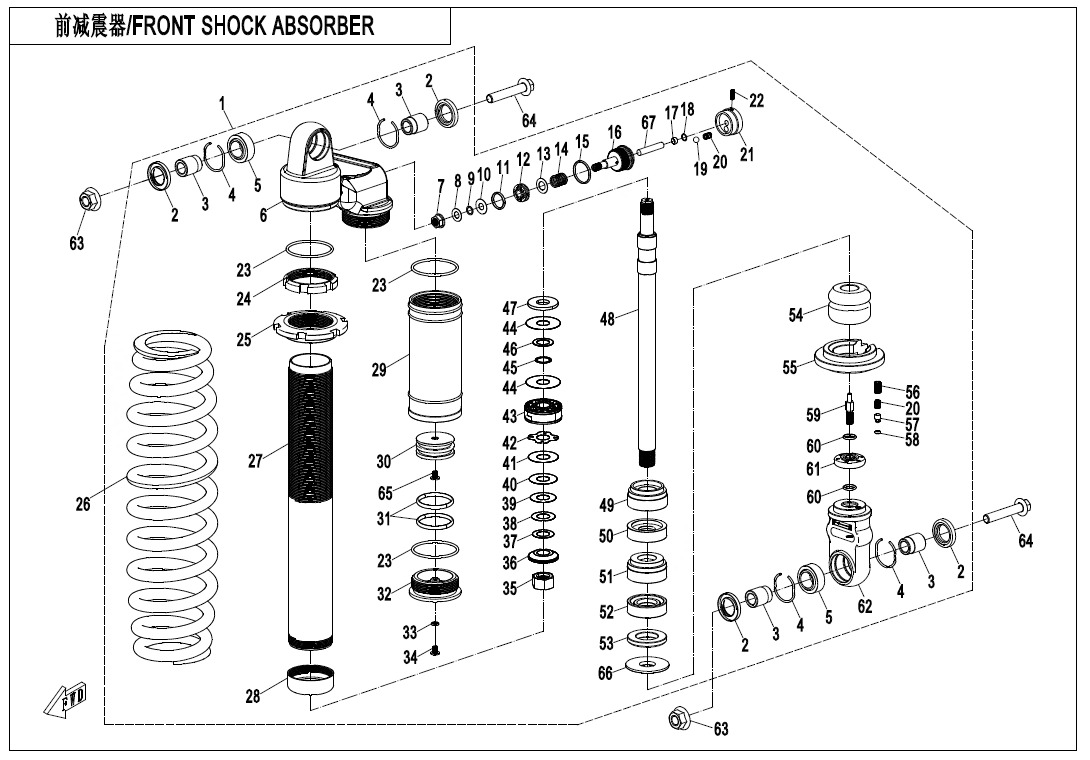

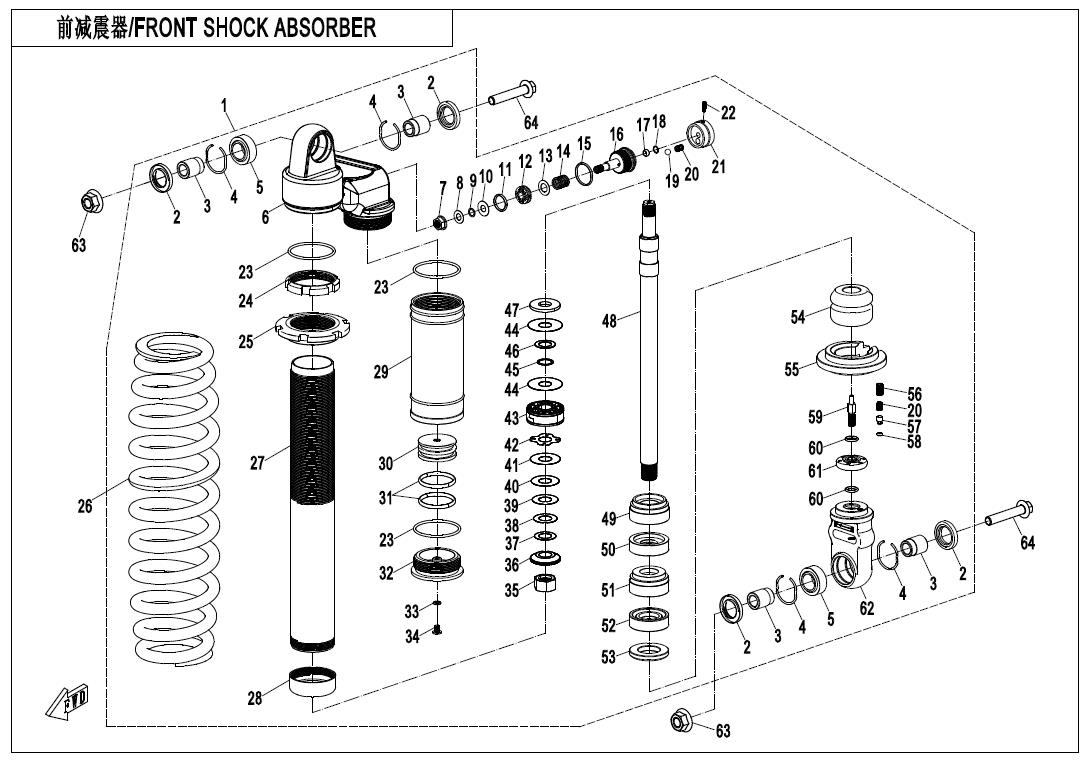

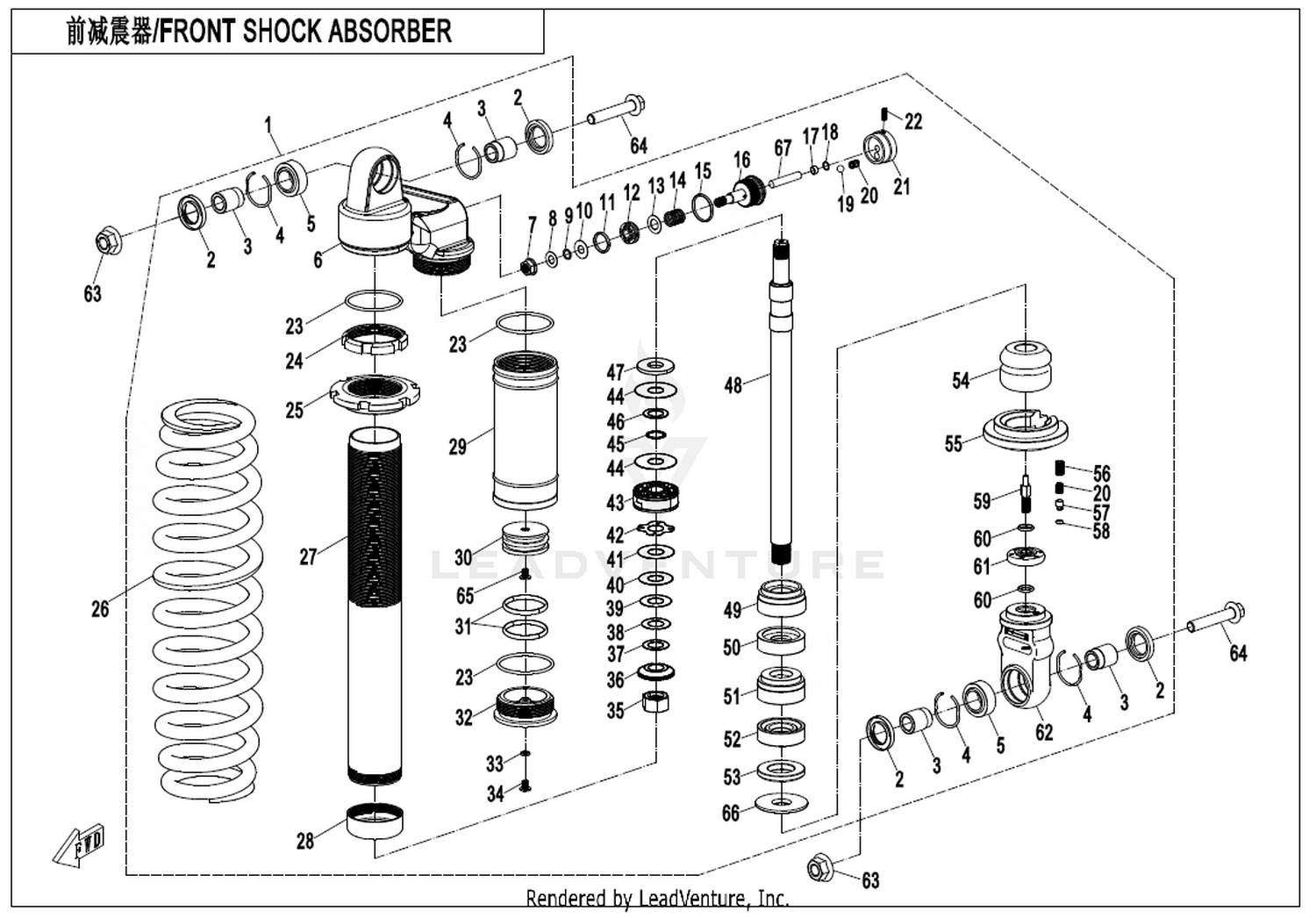

Other parts on this diagram — FRONT SHOCK ABSORBER(GAS,RUSSIA)
- #7 30200-060810 — NUT M6
- #1 9AWA-051600-20000 — FRONT SHOCK ABSORBER, BLACK
- #1 9AWA-051600-2E800 — FRONT SHOCK ABSORBER GAS, CORAL BLUE SPRING
- #1 9AWA-051600-2G700 — FRONT SHOCK ABSORBER ASSY LEMON GREEN
- #1 9AWA-051600-2H900 — FRONT SHOCK ABSORBER GHOST GREY
- #1 9AWA-051600-2YD00 — FRONT SHOCK ABSORBER ASSY LAVA ORANGE
- #2 7020-051604-30000 — ANTI-DUST SEAL
- #3 7020-051601-30000 — UPPER BUSH, SHOCK ABSORBER
- #4 7020-051603-30000 — CIRCLIP
- #5 7020-051610-30000 — BEARING COMP
- #6 9AWA-051620 — FRONT SHOCK ABSORBER
- #8 9AWA-051673 — VALVE 12
- #9 9AWA-051672 — VALVE 11
- #37 9AWA-051633 — VALVE BLOCK 9
- #10 9AWA-051671 — VALVE 10
- #11 9AWA-051669 — O-RING 8
- #12 9AWA-051668 — ADJUSTING VALVE, AIR BAG
- #13 9AWA-051667 — VALVE 9
- #14 9AWA-051666 — RETURN SPRING, VALVE
- #15 9AWA-051665 — O-RING 7
- #16 9AWA-051657 — COMPRESSING VALVE
- #17 9AWA-051656 — O-RING 3
- #18 9AWA-051655 — CIRCLIP
- #19 9AWA-051654 — STEEL BALL
