9AWA-020001INNER HEAT INSULATION, MUFFLER — Genuine CF MOTO Part
CF MOTOoem
9AWA-020001 - INNER HEAT INSULATION, MUFFLER #28
Verified fitment — 9 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (5)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 15.56 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 14.39 | listing | cfmoto.quadzillaparts.co.uk |

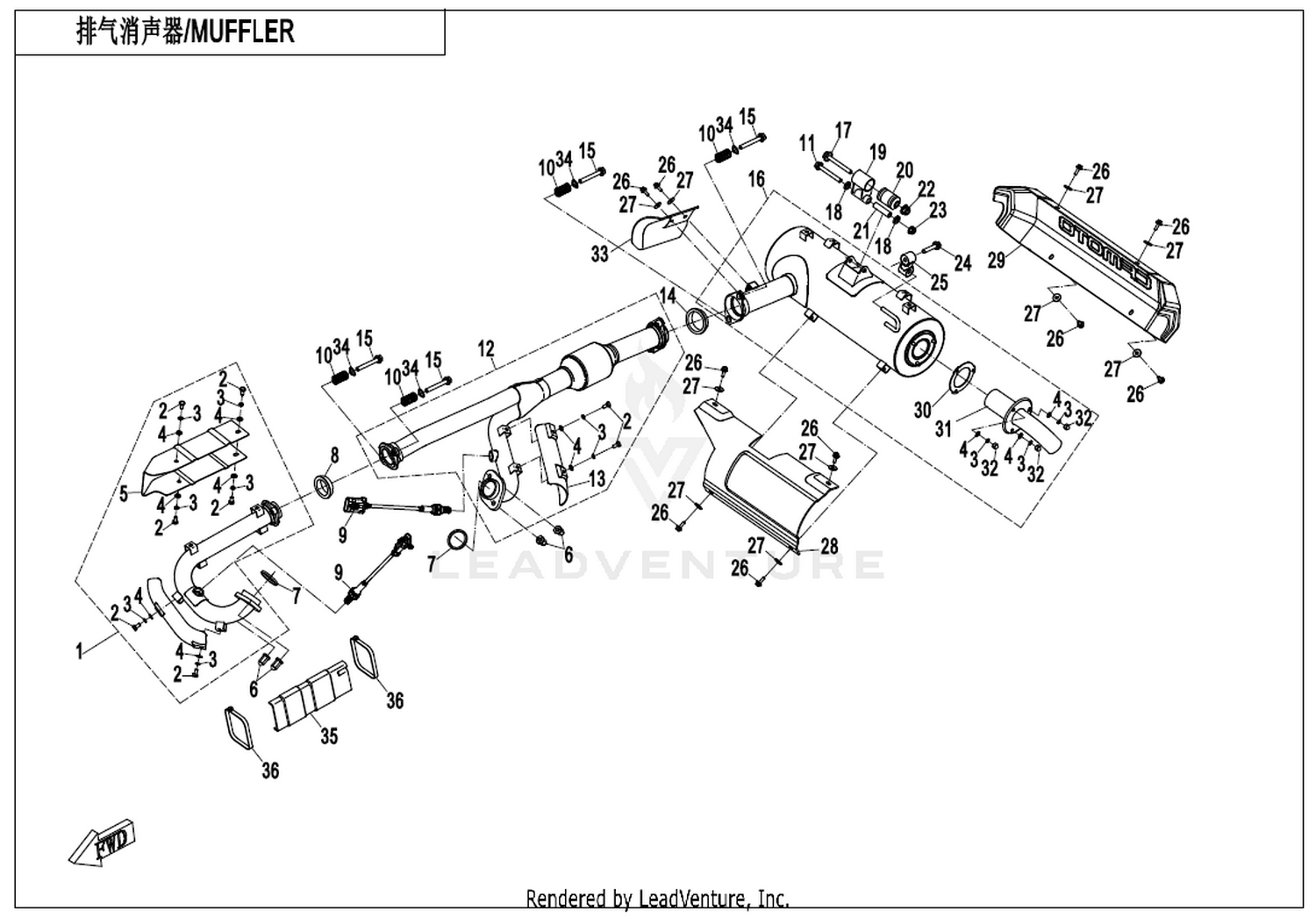

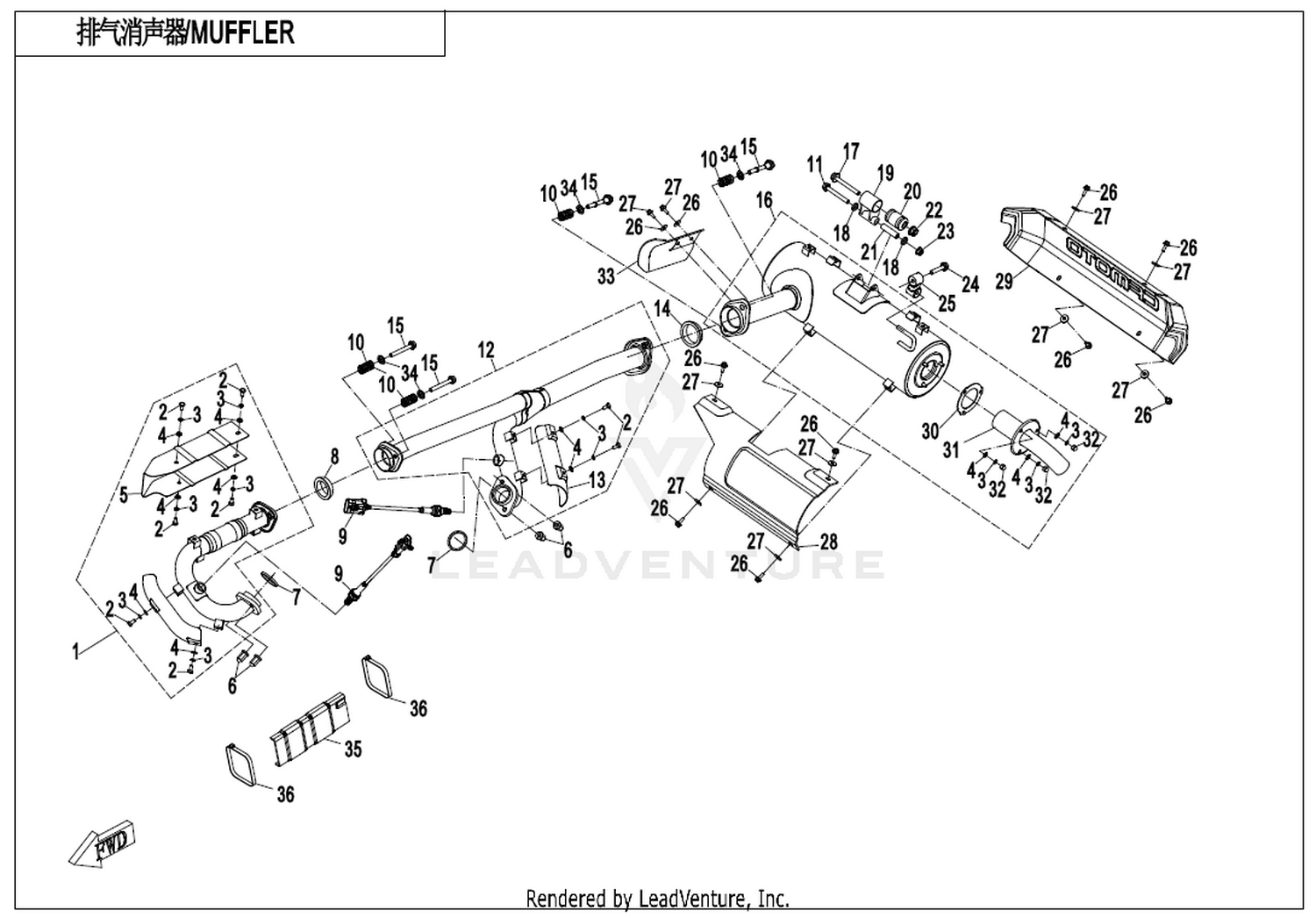

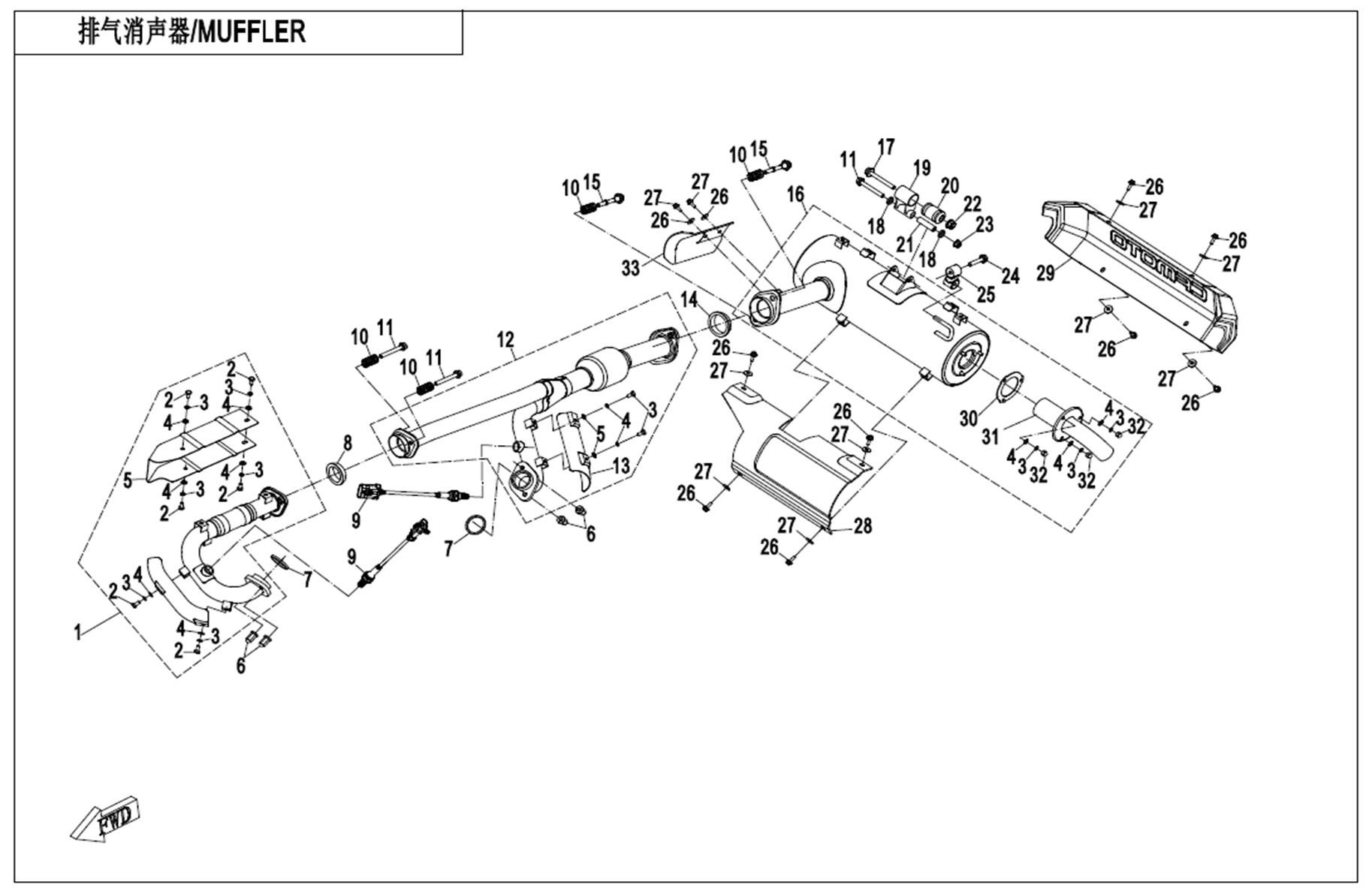

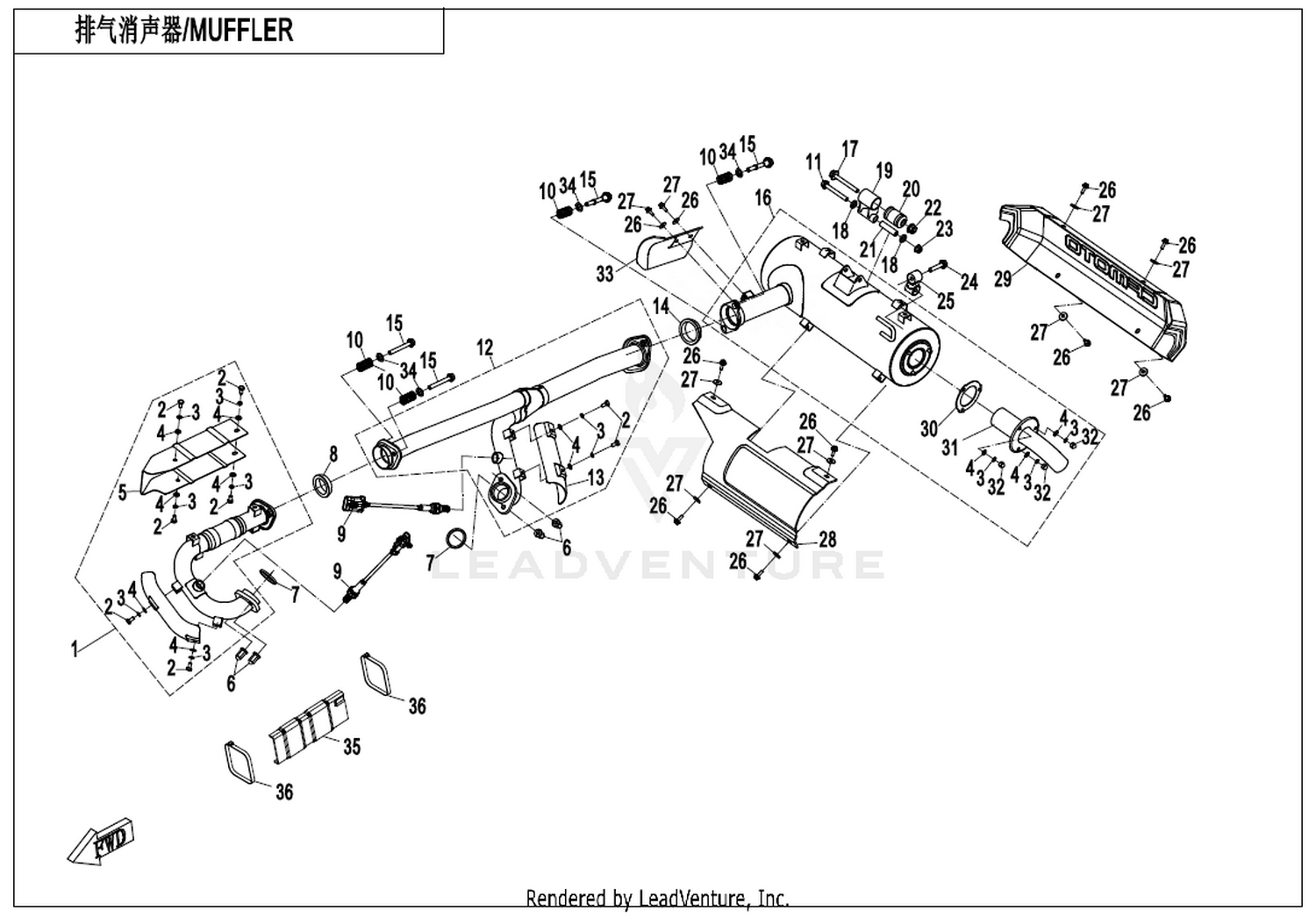

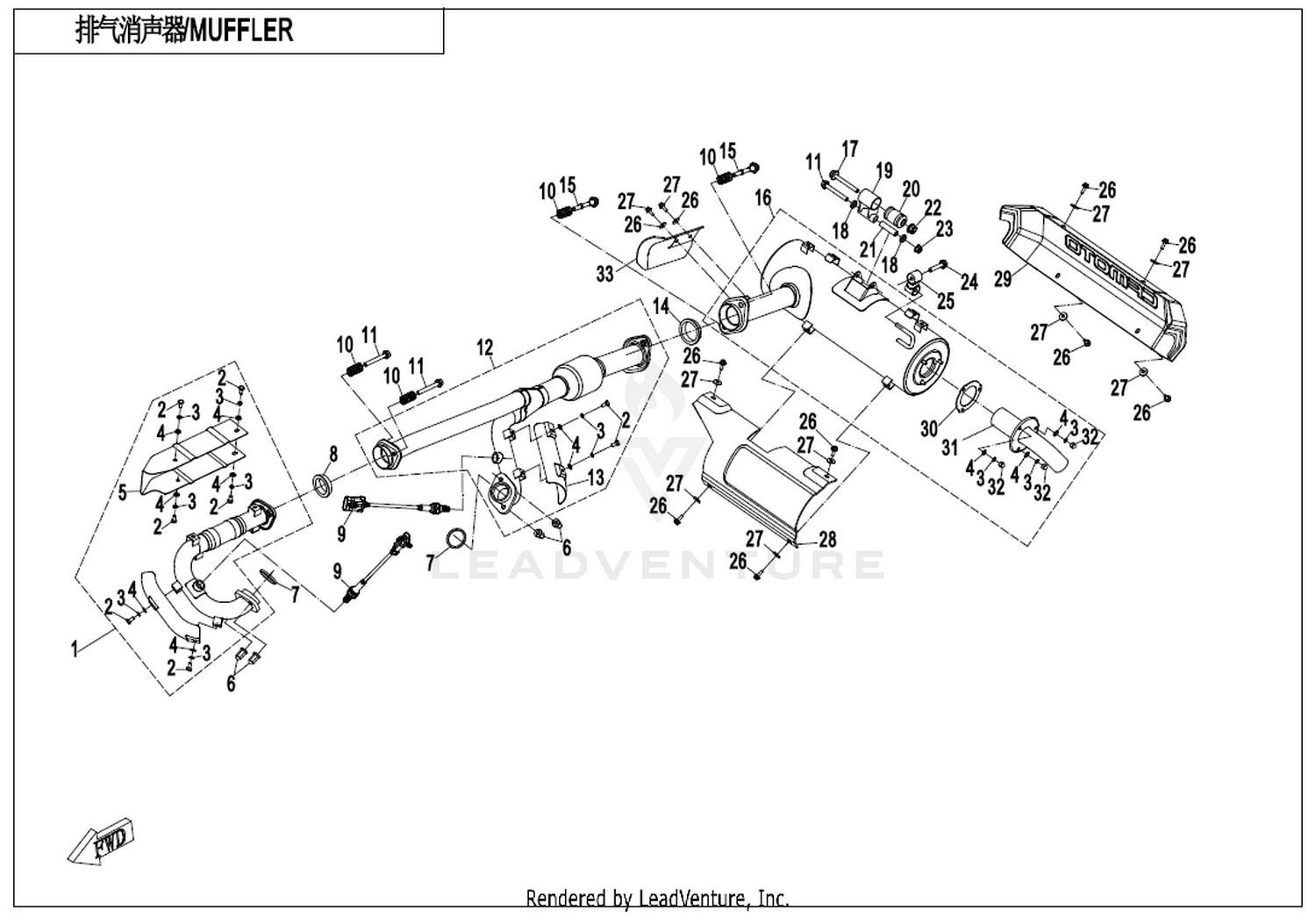

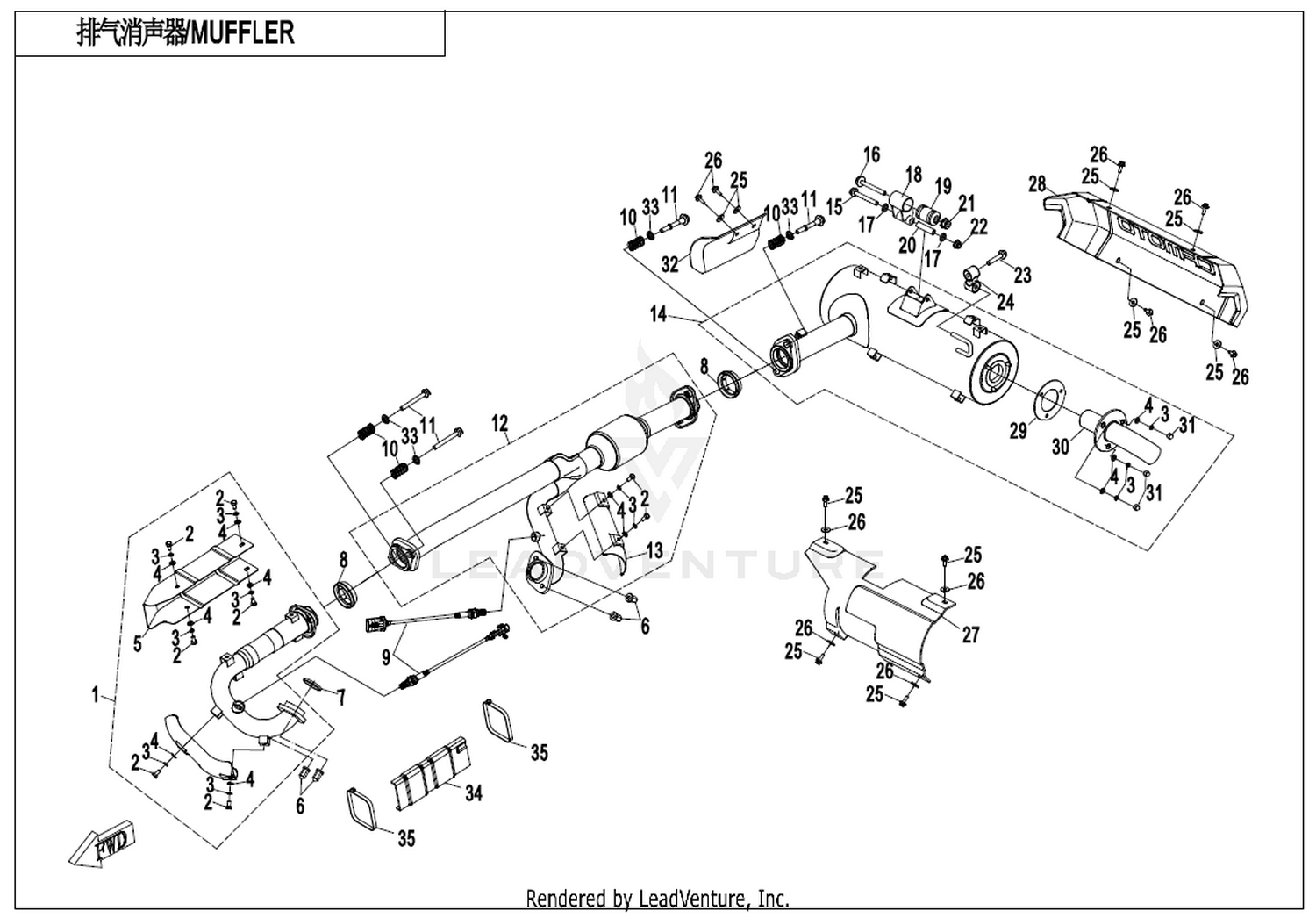

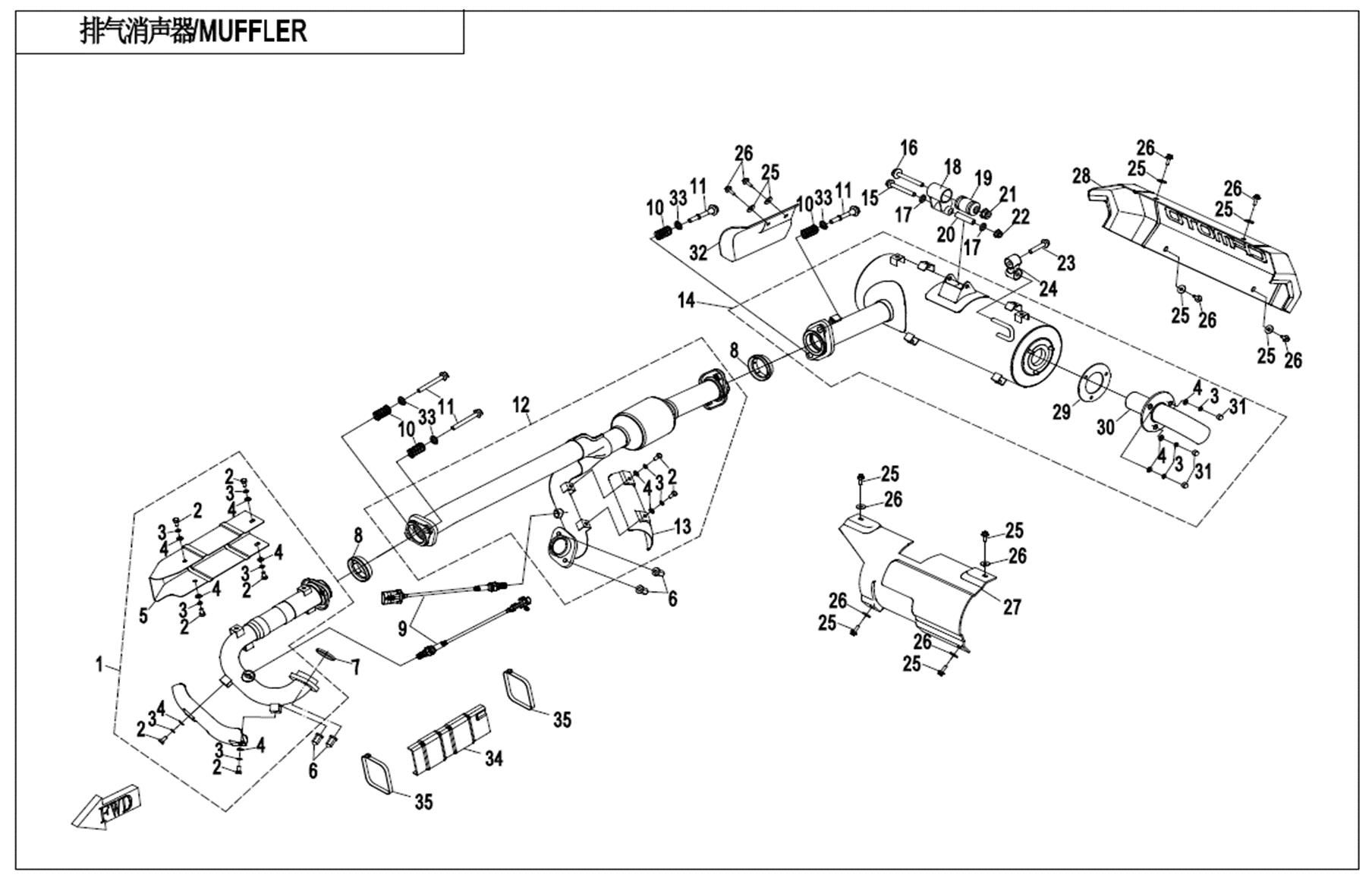

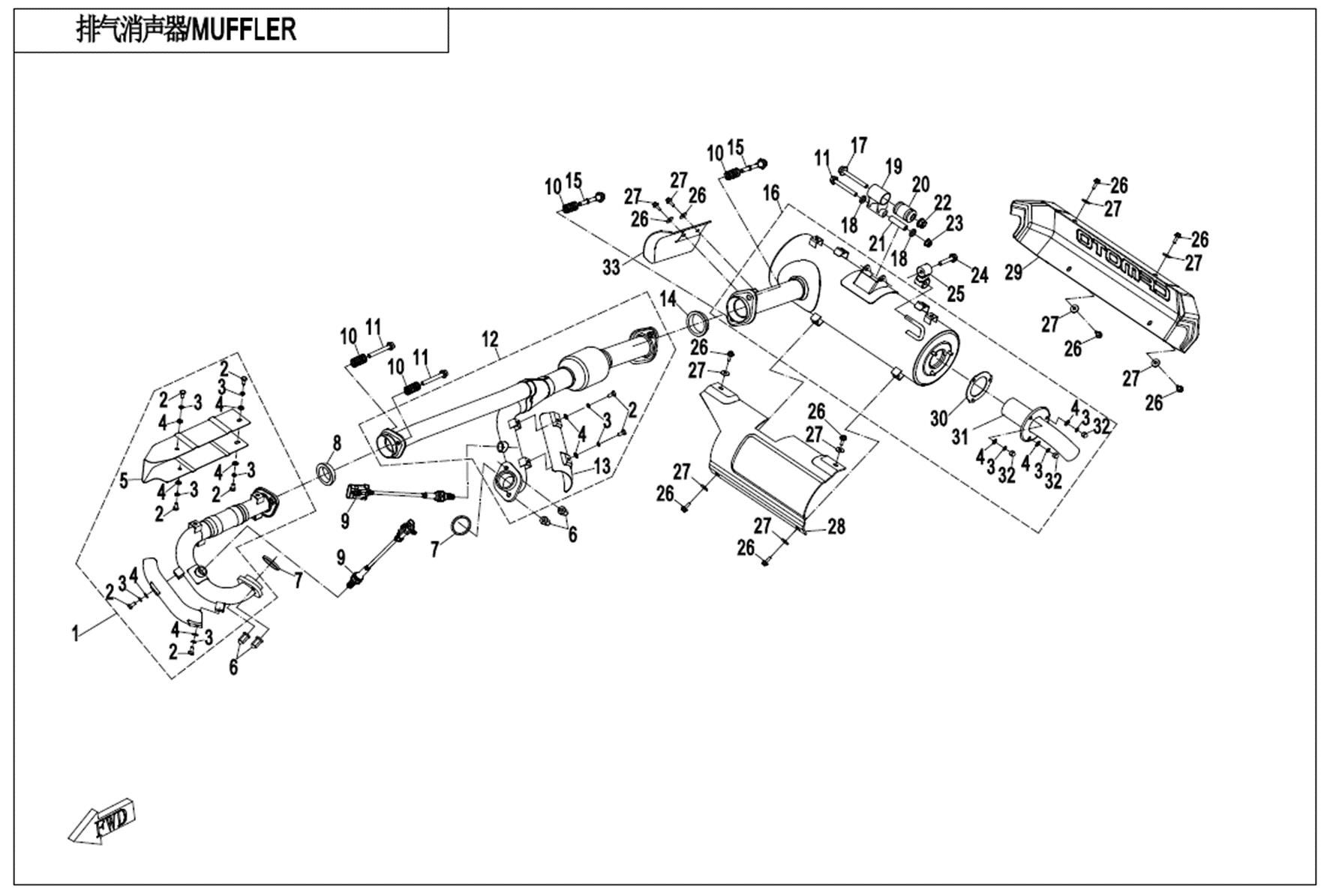

Location in exploded diagrams
Other parts on this diagram — MUFFLER
- #1 9AY0-021100 — EXHAUST PIPE ASSY, FIRST CYLINDER
- #2 30000-060010700 — BOLT M6X10
- #3 30303-060900 — WASHER
- #4 30306-060800 — WASHER M6
- #5 9AWA-021101 — HEAT INSULATOR
- #6 8010-020001 — NUT M8
- #7 0800-022300 — BUSHING, EXHAUST PIPE
- #31 30206-060510 — NUT M6
- #32 9AWA-020003 — HEAT INSULATOR
- #33 9AWA-021005 — BUSHING
- #34 9AWA-021006 — HEAT INSULATOR, FRONT EXHAUST PIPE
- #35 9030-000109 — SCREW CLAMP, A-TYPE, 70~90
- #8 9AWA-021004-00002 — GRAPHITE RING, BIG Replacing: 9AWA-021004-00001 - GRAPHITE RING, BIG
- #9 018B-176000 — OXYGEN SENSOR
- #10 9AWA-021001 — SPRING, MUFFLER
- #11 9AWA-021002-10000 — BOLT M8X55
- #12 9AY0-021200 — EXHAUST PIPE ASSY
- #13 9AWA-021201 — HEAT INSULATOR
- #14 9AY0-021300 — MUFFLER ASSY
- #15 30006-080065810 — BOLT M8X65
- #16 30006-102070810 — BOLT M10X1.25X70
- #17 9CR6-020003 — WIRE WASHER
- #18 9CR6-020020 — MOUNT ASSY, MUFFLER
- #19 9010-050500 — CUSHION SLEEVE
